12.3. PSUs for the amplifier

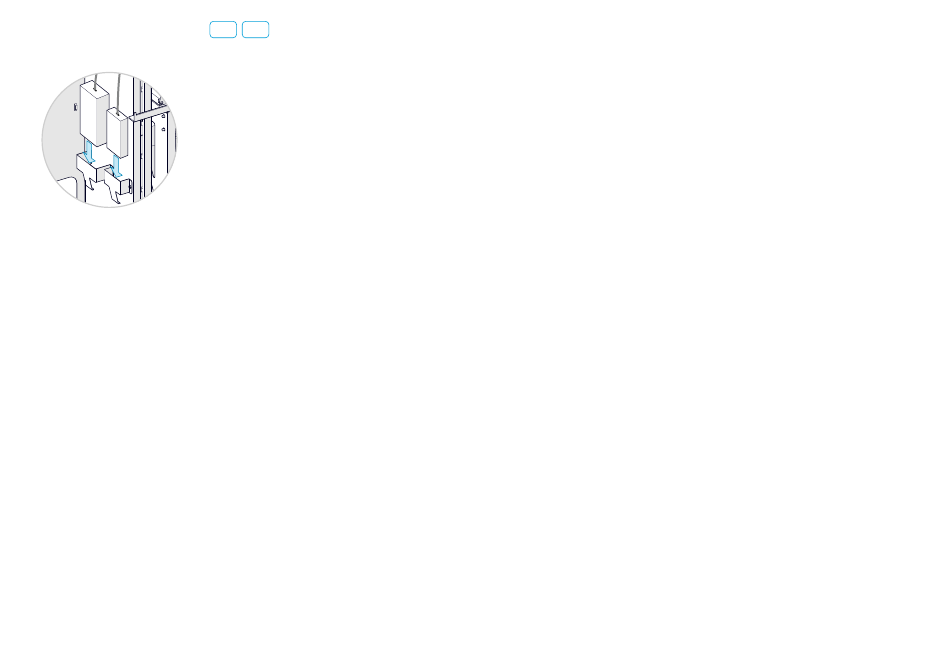

1. Place the two PSUs in the bracket in the left power cavity.
2. Lead the cables on top of the cavities and connect the two PSUs to the
amplifier as shown in the wiring diagram (D2, D3).
3. The 24 V PSU (the largest one) has a power switch. Switch it to ON.
4. Connect the power cords to the PSUs (D4, D5). Don't connect them to the
socket outlets now.
C6
C7
12.4. One Connect cables
The One Connect cables, which connect the main screens to their One
Connect boxes, will be connected later:
•
One Connect cables (S10, S11)
12.5. Cables from the system toward the table
The cables between the system and the table will be connected later:
•
Presentation cables (T1..3)
•
Ethernet cable from the codec to the Ethernet switch by the table (X1)
12.6. Cables by the table
Other cables that are connected to the Ethernet switch by the table will be
connected later:
•
Microphones (M1..6)
•
Cables for the touch panels (T4..5)
•
Power cable (X2)
