1. Fuel level gauge
2. Fuel level gauge  terminal
3. Fuel level gauge terminal
4. Float

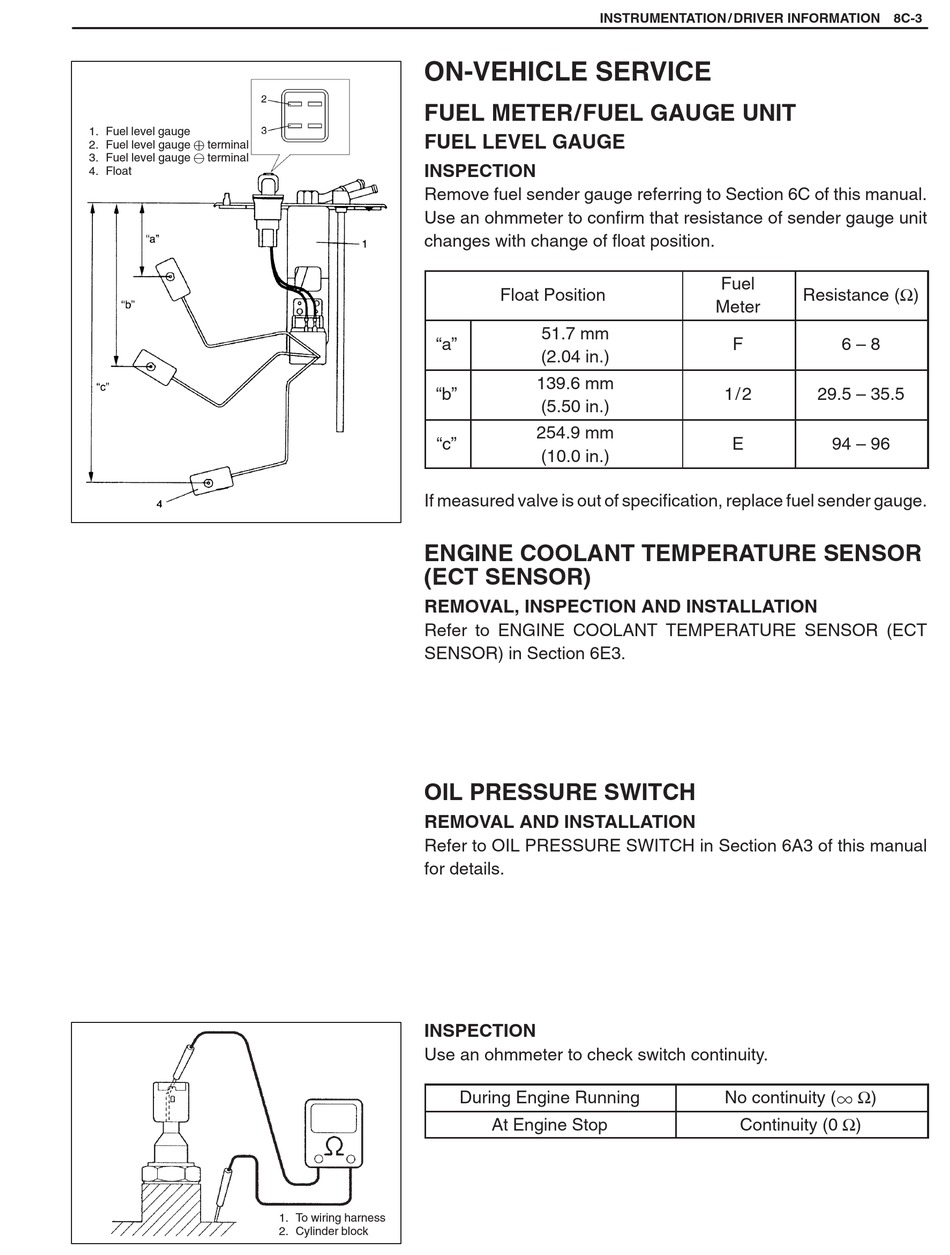

ON-VEHICLE SERVICE
FUEL METER/FUEL GAUGE UNIT
FUEL LEVEL GAUGE
INSPECTION
Remove fuel sender gauge referring to Section 6C of this manual.
Use an ohmmeter to confirm that resistance of sender gauge unit
changes with change of float position.
"a"
"b"
"c"
If measured valve is out of specification, replace fuel sender gauge.
ENGINE COOLANT TEMPERATURE SENSOR
(ECT SENSOR)
REMOVAL, INSPECTION AND INSTALLATION
Refer to ENGINE COOLANT TEMPERATURE SENSOR (ECT
SENSOR) in Section 6E3.
OIL PRESSURE SWITCH
REMOVAL AND INSTALLATION
Refer to OIL PRESSURE SWITCH in Section 6A3 of this manual
for details.
INSPECTION
Use an ohmmeter to check switch continuity.
1. To wiring harness
2. Cylinder block
INSTRUMENTATION / DRIVER INFORMATION 8C-3
Float Position
51.7 mm
(2.04 in.)
139.6 mm
(5.50 in.)
254.9 mm
(10.0 in.)
During Engine Running
At Engine Stop
Fuel
Resistance (Ω)
Meter
F 6 – 8
1/2 29.5 – 35.5
E 94 – 96
No continuity (1 Ω)
Continuity (0 Ω)
