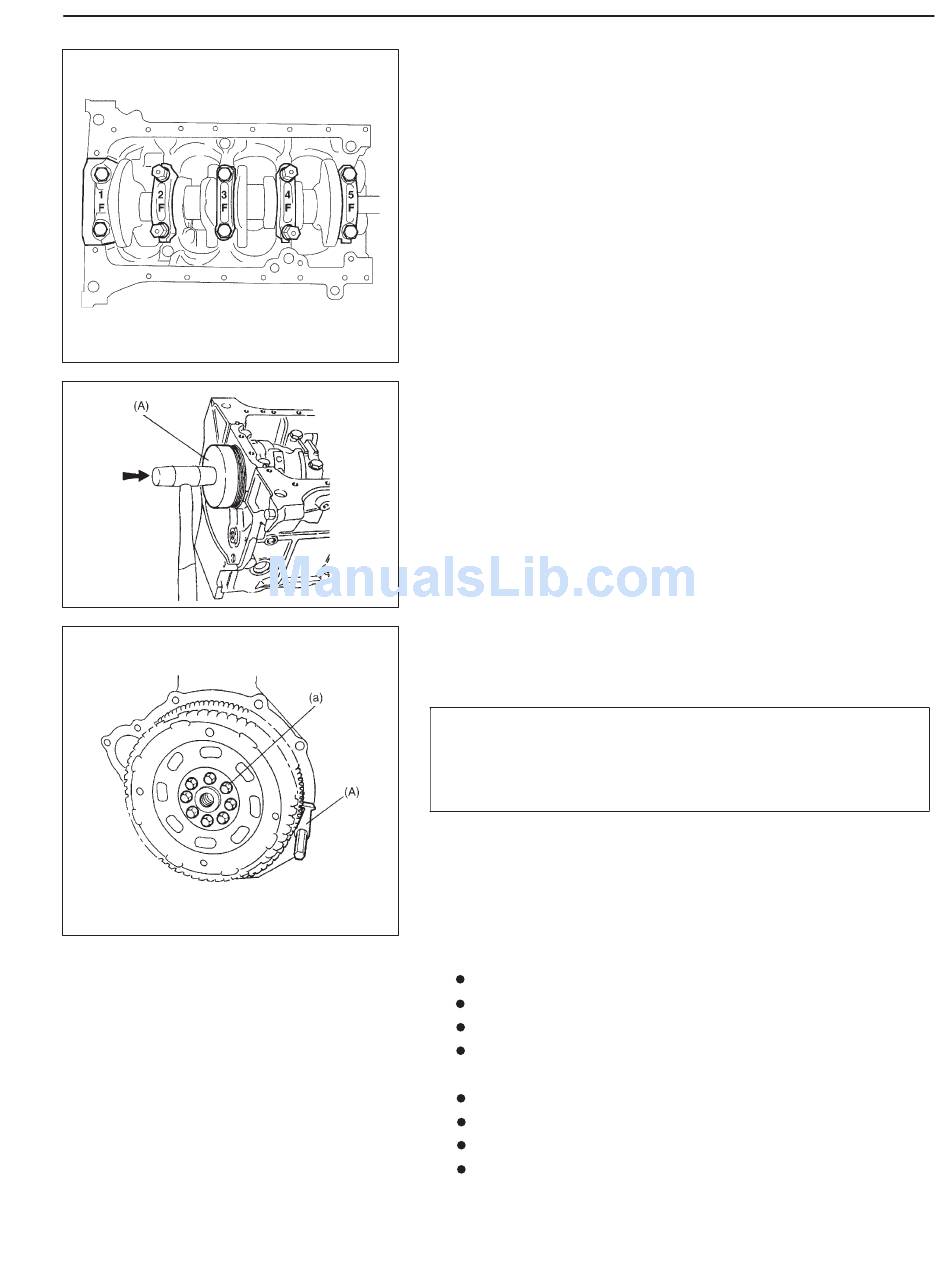

13) 13) Install main bearing caps in the right place as shown figure.
And then, tighten main bearing cap bolts as follows.
a) Tighten bolts to 25 N·m (2.5 kg-m, 24.5 lb-ft) according to
numerical order in figure.
b) In the same manner as in step a), retighten them by turning
through 60°.
Tightening torque
Crankshaft main bearing cap bolt (a):
25 N·m (2.5 kg-m, 24.5 lb-ft) and extra tightening 60°
NOTE:
After tightening cap bolts, check to be sure that crank-
shaft rotates smoothly.
14) Place a new rear oil seal on special tool.
Special Tool
(A): 09911-16520/OUT0000011
15) Install rear oil seal, tapping it with plastic hammer until it fully
seats.
16) Remove special tool by turning and pulling it out in direction of
engine rotation.
17) Check that visible lip of rear oil seal faces outside.
18) Install flywheel (M/T model) or drive plate and CKP (Engine
speed) sensor ring (A /T model).
Using special tool, lock flywheel or drive plate.
CAUTION:
Do not reuse flywheel bolts (for M/T model) or drive plate
bolts (for A/T model). Otherwise, engine oil may leak. Be
sure to use new bolts with pre-coated adhesive.
Special Tool
(A): 09924-17811
Tightening Torque
.
(a): 50 N m (5.0 kg-m, 36.5 lb-ft)
19) Install following parts to engine as previously outlined.
Piston and connecting rod
Cylinder head assembly
Oil pump, oil pump drive sprocket and gasket holder plate
Timing belt, belt tensioner, roller and crankshaft timing
sprocket
Timing belt cover
Cylinder head cover
Intake manifold and exhaust manifold
Oil pan and oil pump strainer
20) Install clutch to flywheel (vehicle with M/T) referring to Section
7C.
ENGINE MECHANICAL (RHZ ENGINE) 6A3-55
