NOTE: Pull-up resistors are 4.7k ohm.

Downloading/Verification of Configuration Data

2-14
MultiLINX Connectors
4 3
CS0 (CS) D0
CS1 D1
CS2 D2
D3
CLK2-IN
CLK2-OUT D4
WS D5
RS (RDWR) D6
D7
RDY/BUSY
Circuit Board
TMS
TCK
TDI
TDO
see data sheet of the device (if applicable)
Figure 2-6 JTAG Mode (XC9000, Virtex, Spartan, XC5200,
XC4000)
This section details the connections needed for downloading/verifi-
cation of configuration data with the MultiLINX Cable in Slave Serial
Mode.

Slave Serial Mode (XC3000)

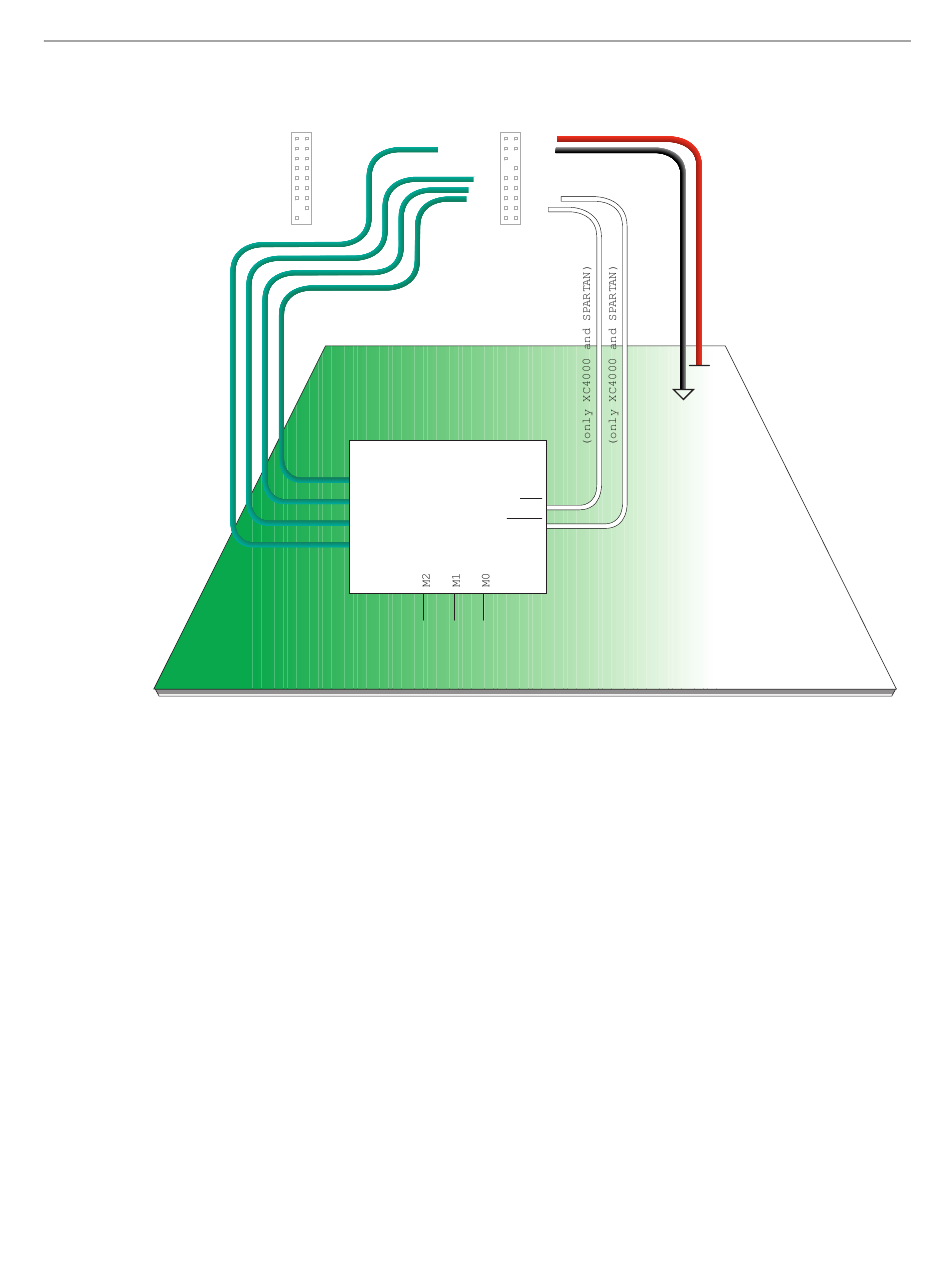

The following figure shows in detail the Slave Serial Mode connec-
tions for the XC3000 device.
RT PWR
RD (TDO) GND
TRIG
CCLK
TDI DONE (D / P)
TCK
DIN
TMS PROG
CLK1-IN INIT
CLK1-OUT RST
2 1
XILINX device
INIT
PROG
VCC
Xilinx Development System
X8939
