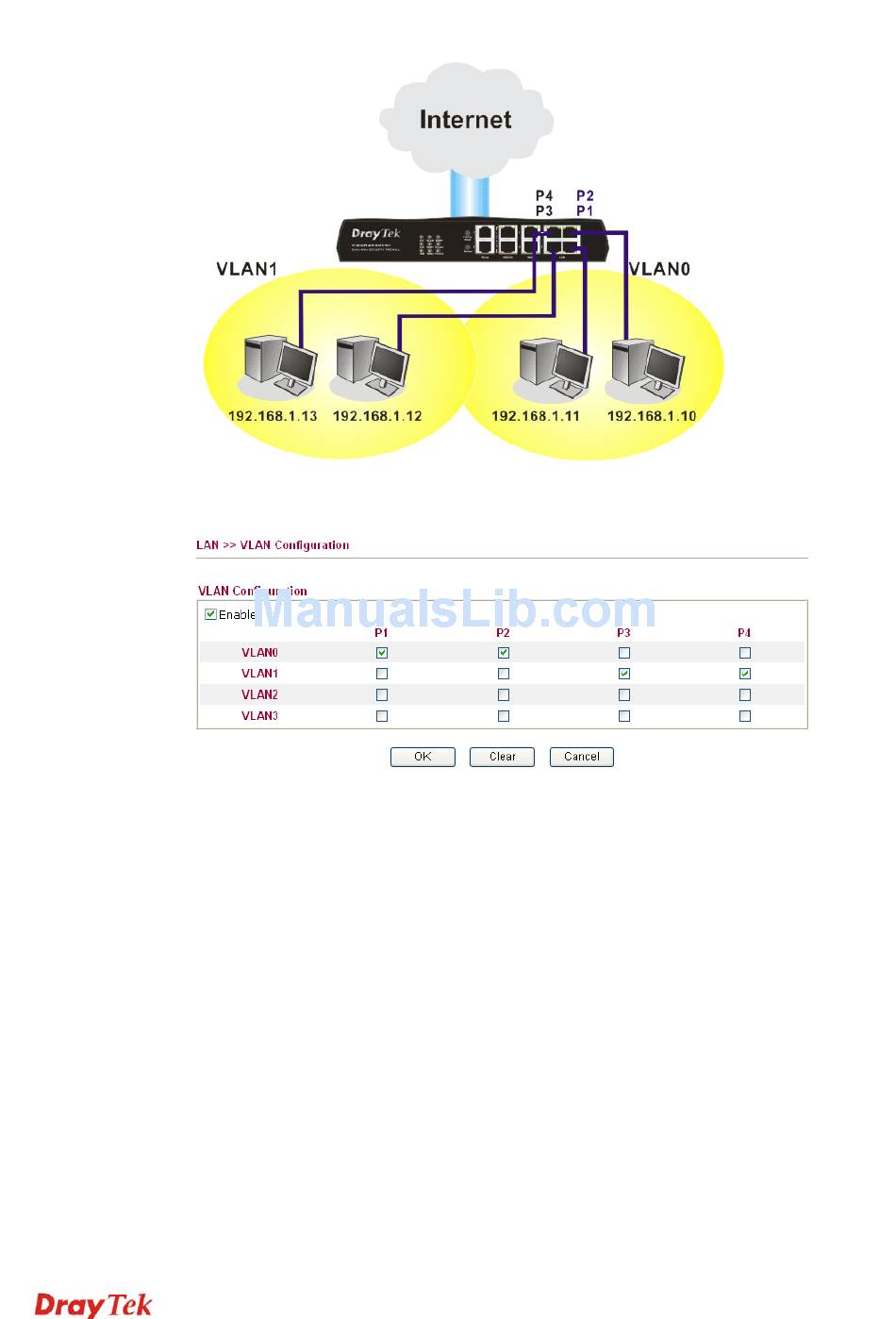

2. After checking the box to enable VLAN function, you will check the table according to
the needs as shown below.
To remove VLAN, uncheck the needed box and click OK to save the results.
3 . 2 . 5 B i n d I P t o M
3 . 2 . 5 B i n d I P t o M
This function is used to bind the IP and MAC address in LAN to have a strengthen control in
network. When this function is enabled, all the assigned IP and MAC address binding
together cannot be changed. If you modified the binding IP or MAC address, it might cause
you not access into the Internet.
Click LAN and click Bind IP to MAC to open the setup page.
A C
A C
