Phone Settings - Draytek Vigor2930 Series User Manual

Ring Port
Ring Pattern
3 . 1 1 . 3 P h o n e S e
3 . 1 1 . 3 P h o n e S e

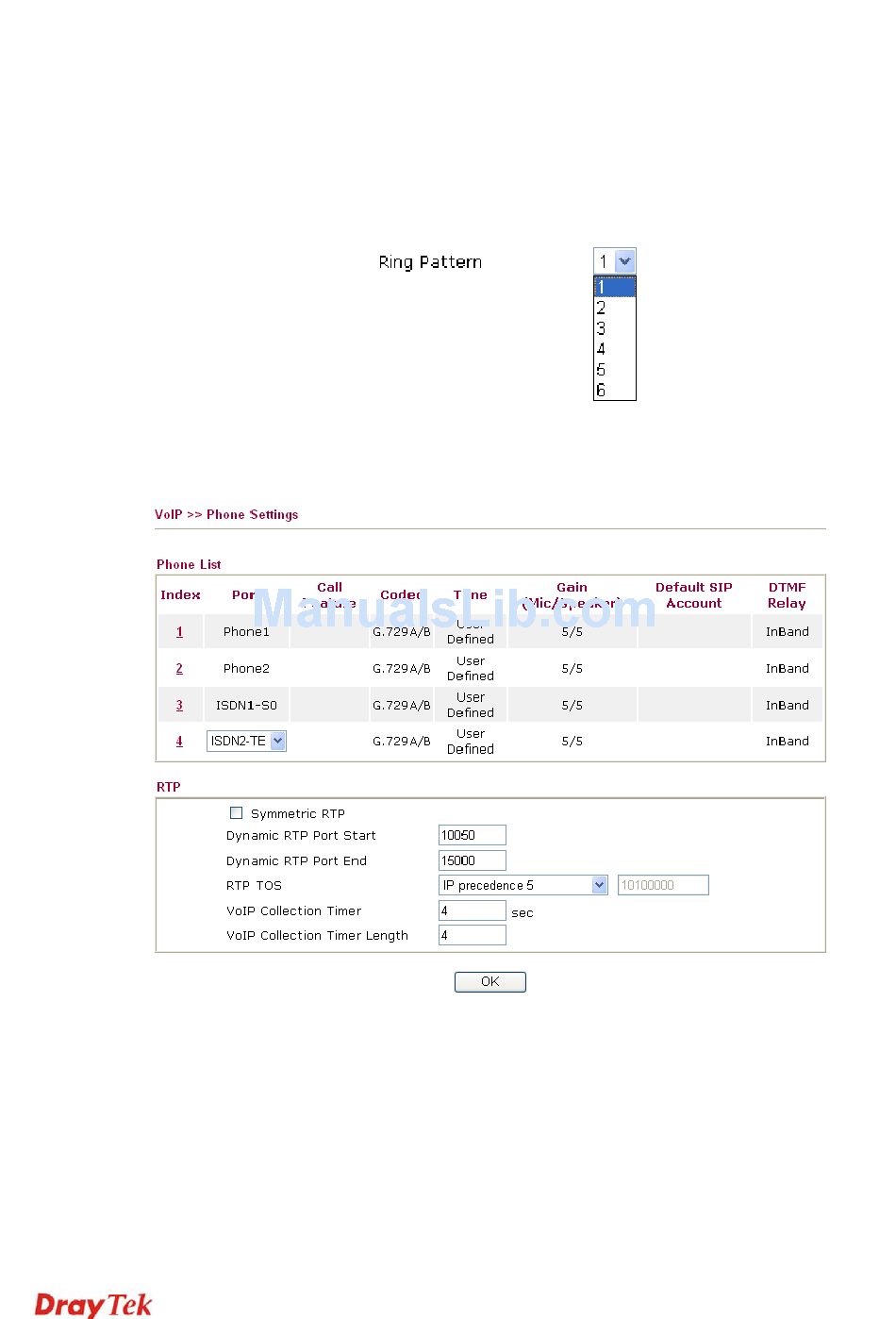

This page allows user to set phone settings for Phone1, Phone2, ISDN1-S0 and
ISDN2-TE/S0 respectively.
Phone List
Set Phone1, Phone2, ISDN1-S0 or ISDN-TE as the default
ring port for this SIP account. If you choose Phone1, Phone2
or ISDN1-S0, the ISDN2-TE selection will be dimmed, vice
versa. There are ten internal lines with numbers (30 – 39)
offered for ISDN-S0. You can specify one of them or choose
Any as ring port for specified SIP account. By the way,
ISDN-S0 can be used by mapping with MSN numbers.
Choose a ring tone type for the VoIP phone call.
t t i n g s
t t i n g s
Port – There are four phone ports provided here for you to
configure. Three (Index 1 to 3) are fixed and one (Index 4) is
configurable. Phone1 and Phone2 allow you to set general
settings for PSTN phones. ISDN1-S0 and ISDN2-TE allow
you to set common settings for ISDN network connection.
ISDN2 port is configurable. Please use the drop down list to
choose ISDN2-TE for Internet connection or choose
ISDN2-S0 (ISDN intern) for ISDN phone. In addition, you
can connect six phones to this router in certain case. Please
refer to Section 4-1 for detailed information of ISDN
phone/network connection.
176
Vigor2930 Series User's Guide
