Status - Draytek Vigor2930 Series User Manual

3 . 1 1 . 4 S t a t u s
3 . 1 1 . 4 S t a t u s

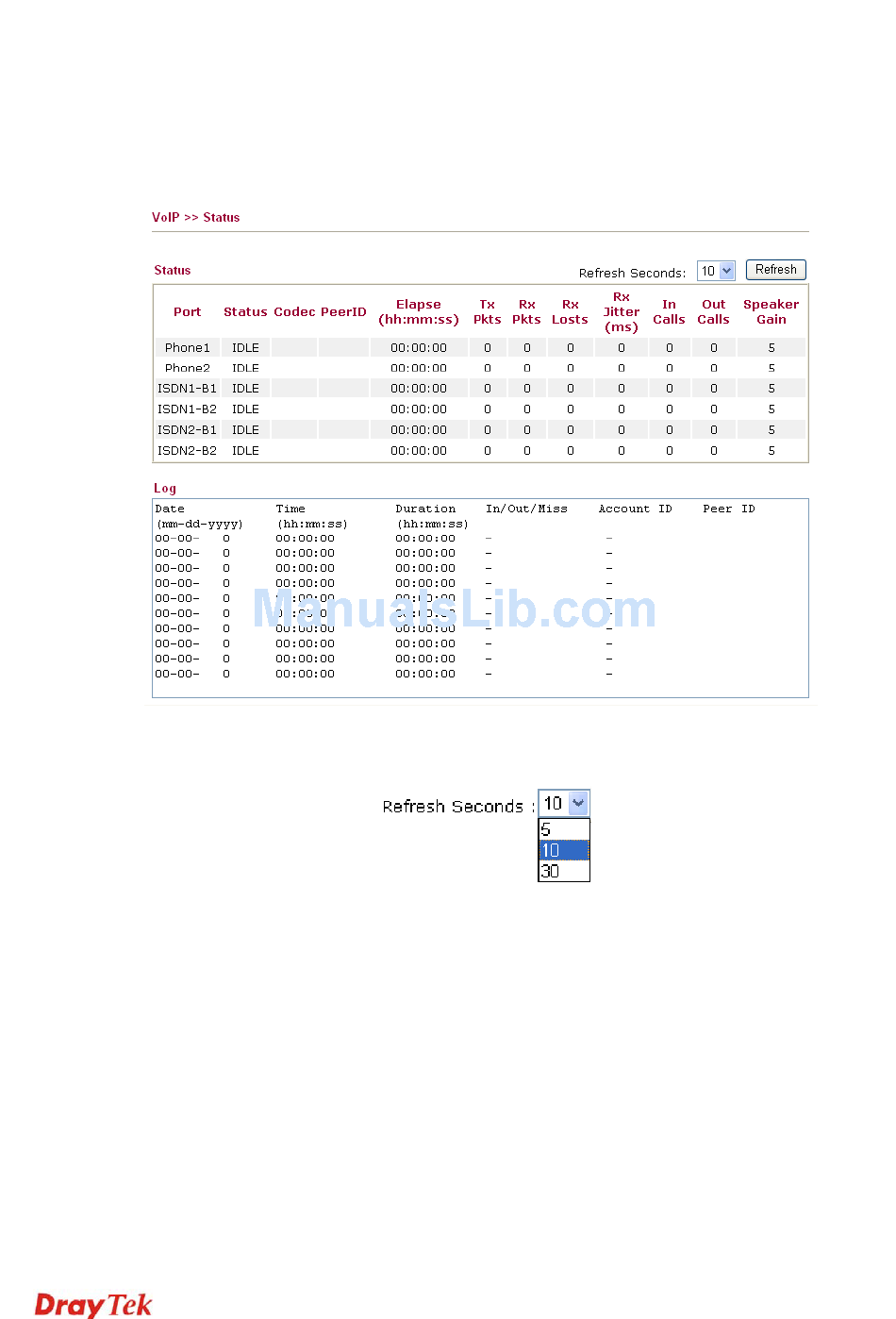

From this page, you can find codec, connection and other important call status for each port.
Refresh Seconds
Port

Status

Payload Type (rfc2833) - Choose a number from 96 to 127,
the default value was 101. This setting is available for the
OutBand (RFC2833) mode.
Specify the interval of refresh time to obtain the latest VoIP
calling information. The information will update immediately
when the Refresh button is clicked.
It shows current connection status for the port of Phone1,
Phone2, ISDN1 and ISDN2. The ISDN1/2 appears only when
the router is equipped with ISDN interface. ISDN1 means B1
channel for the physical ISDN port; ISDN2 means B2 channel
for the physical ISDN port. Be aware that ISDN1/2 port is
available for the users living in Europe and using Vigor
2930VSn only. For other V models, only the status for VoIP1
and VoIP2 will be shown in this page.
It shows the VoIP connection status.
IDLE - Indicates that the VoIP function is idle.
HANG_UP - Indicates that the connection is not established
(busy tone).
CONNECTING - Indicates that the user is calling out.
WAIT_ANS - Indicates that a connection is launched and
waiting for remote user's answer.
