Draytek Vigor2930 Series User Manual page 17

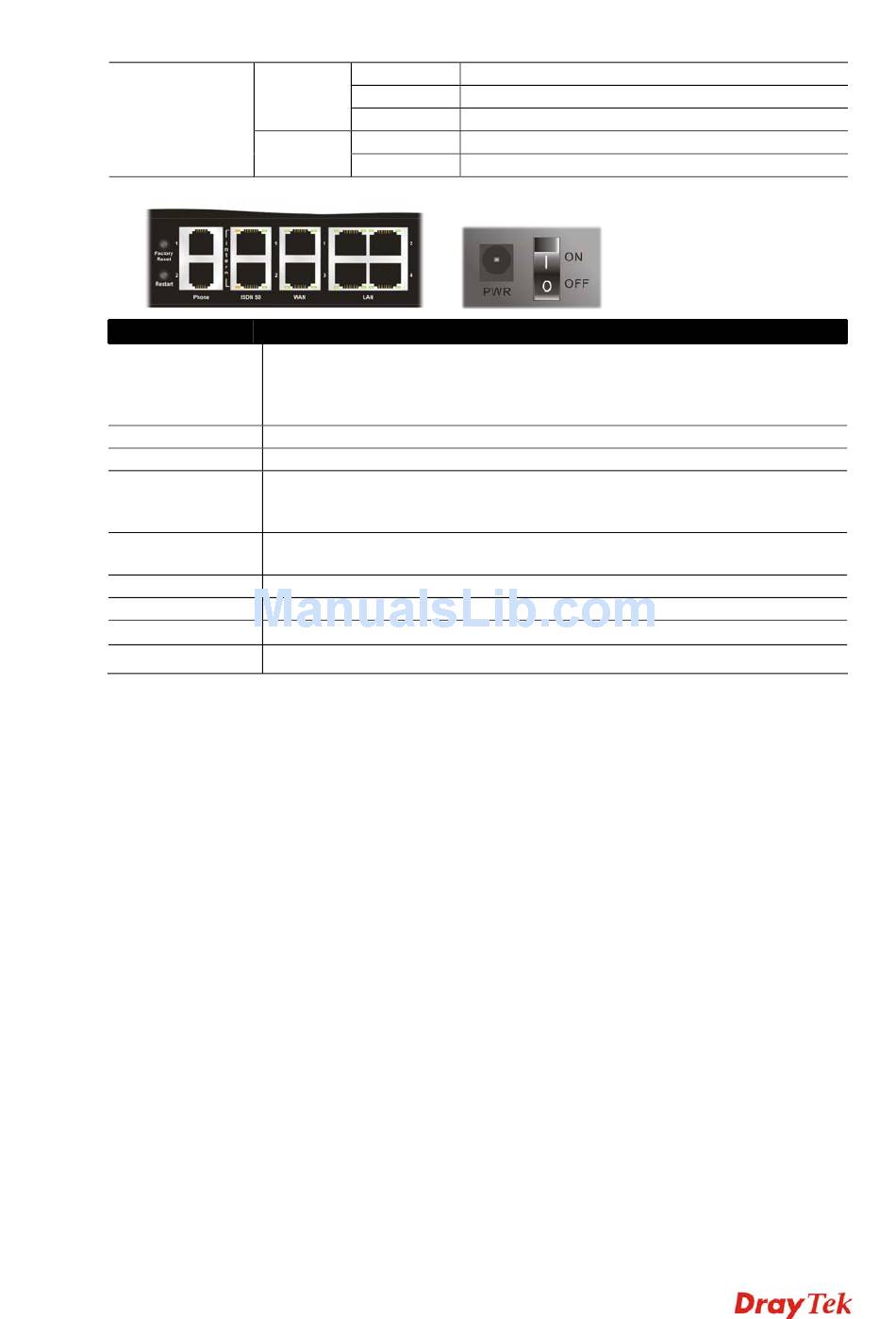

LAN 1/2/3/4
Interface
Factory Reset
Restart
Phone (1/2)
ISDN S0 1
ISDN S0 2
WAN (1/2)
LAN (1-4)
PWR
ON/OFF
igor2930 Series User's Guide
Left LED On
(Green)
Off
Blinking
Right LED On
(Green)
Off
Description
Restore the default settings. Usage: Turn on the router (ACT LED is blinking).
Press the hole and keep for more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button. Then the router will restart
with the factory default configuration.
Restart the router forcefully.
Connecters for PSTN phones.
Connecter for ISDN phone(s) only via ISDN phone adapter. Do not connect any
other device to such port or connect ISDN line, otherwise the router might be
damaged.
Connecter for ISDN line or ISDN phone adapter in particular condition. Refer to
section 2.2 for more details.
Connecters for remote networked devices.
Connecters for local networked devices.
Connecter for a power adapter.
Power Switch.
The port is connected.
The port is disconnected.
The data is transmitting.
The port is connected with 100Mbps.
The port is disconnected with 10Mbps.
9
