RIP Protocol
WAN Connection
Detection
MTU
WAN IP Network
Settings
PING to the IP - If you enable the PING function, please specify
the IP address for the system to PING it for keeping alive.
PING Interval - Enter the interval for the system to execute the
PING operation.
Routing Information Protocol is abbreviated as RIP (RFC1058)
specifying how routers exchange routing tables information. Click
Enable RIP for activating this function.
Such function allows you to verify whether network connection is
alive or not through ARP Detect or Ping Detect.
Mode – Choose ARP Detect or Ping Detect for the system to
execute for WAN detection.
Ping IP – If you choose Ping Detect as detection mode, you have
to type IP address in this field for pinging.
TTL (Time to Live) – Displays value for your reference. TTL
value is set by telnet command.
Mean maximum transmission unit of one packet. The default
value is 1442.
This group allows you to obtain an IP address automatically and
allows you type in IP address manually.

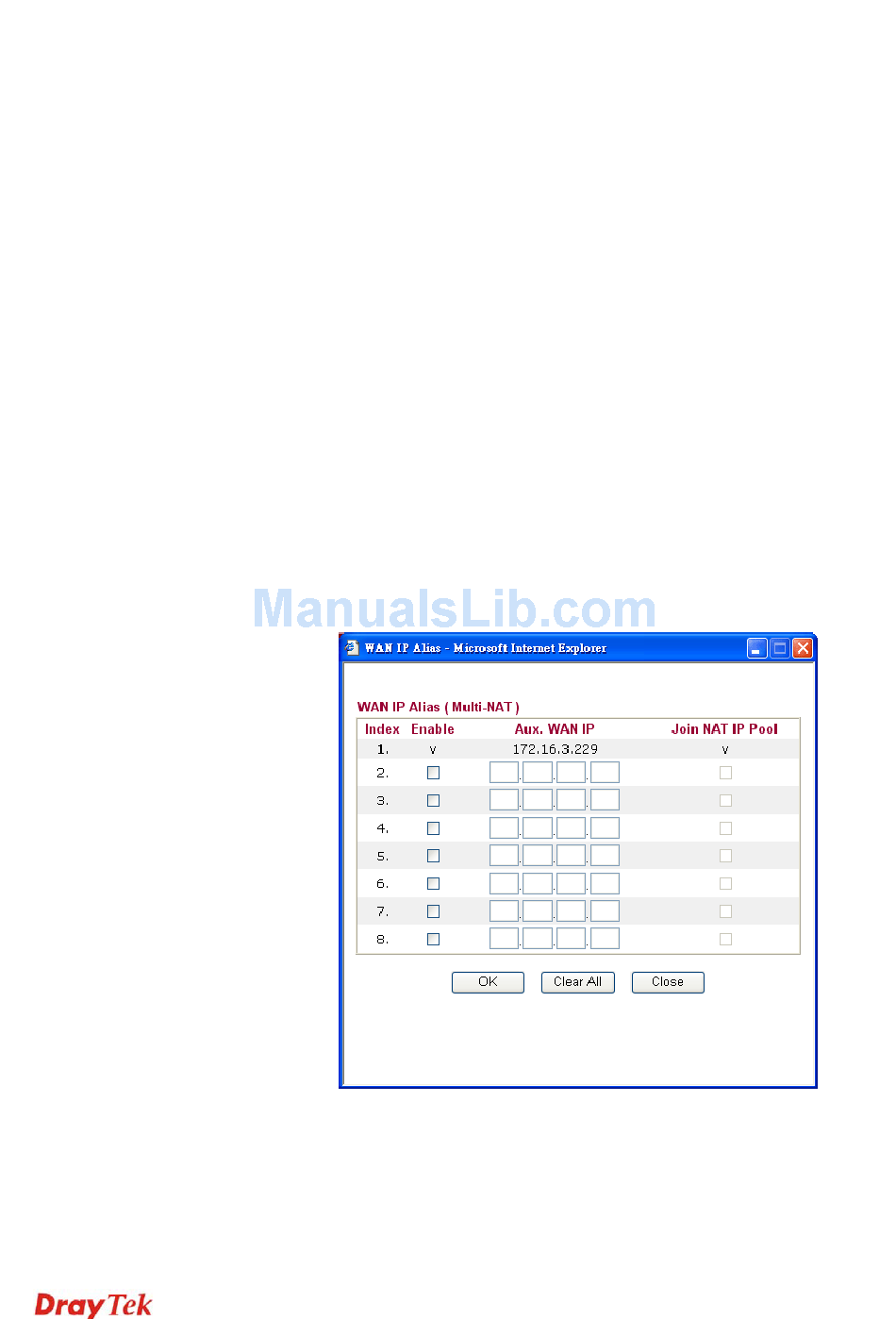

WAN IP Alias - If you have multiple public IP addresses and
would like to utilize them on the WAN interface, please use WAN
IP Alias. You can set up to 8 public IP addresses other than the
current one you are using. Notice that this setting is available for
WAN1 only.
Obtain an IP address automatically – Click this button to obtain
the IP address automatically if you want to use Dynamic IP mode.
Router Name: Type in the router name provided by ISP.
Domain Name: Type in the domain name that you have assigned.
Specify an IP address – Click this radio button to specify some
data if you want to use Static IP mode.
IP Address: Type the IP address.
