DNS Server IP
Address
D e t a i l s
D e t a i l s

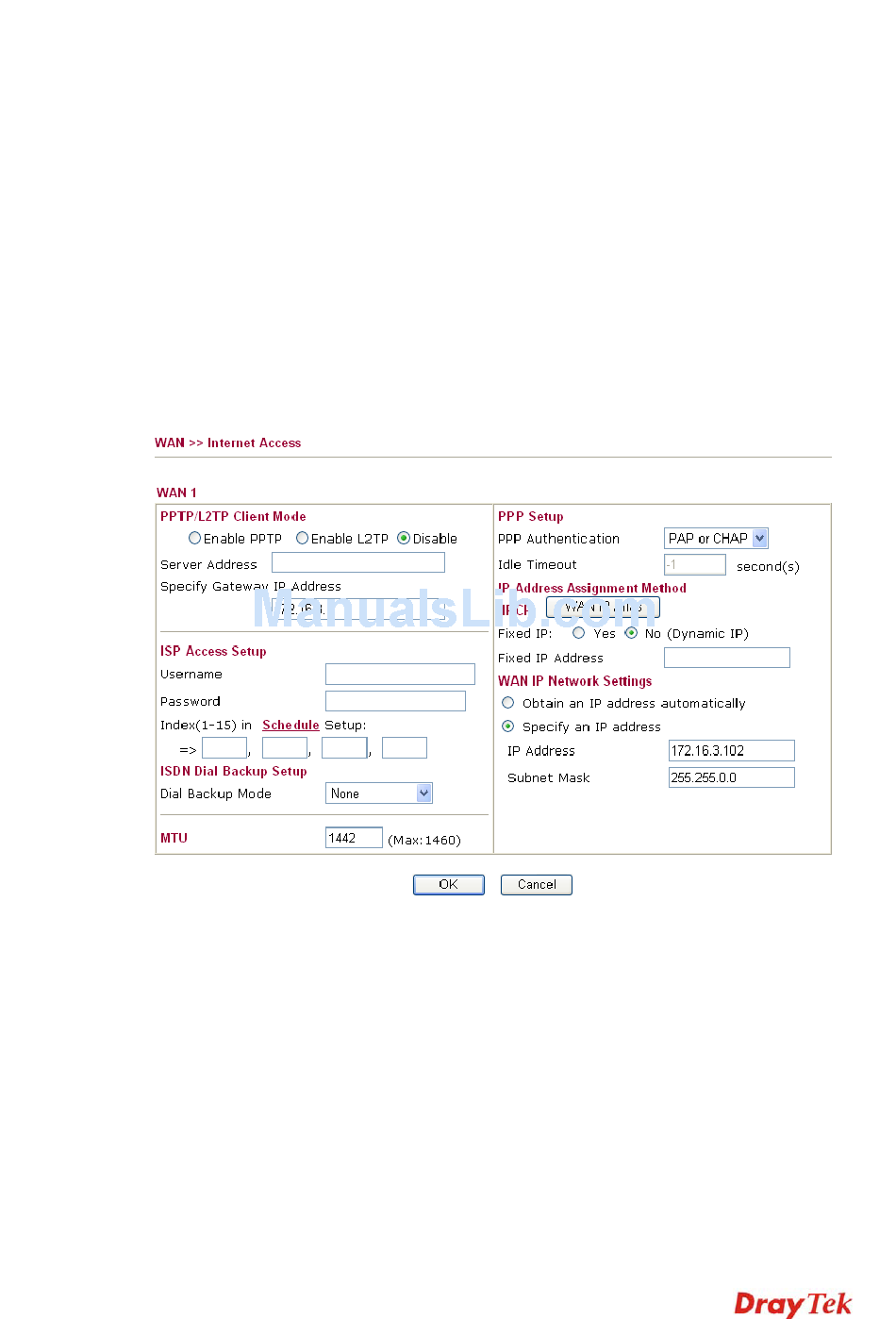

To use PPTP as the accessing protocol of the internet, please choose Internet Access from
WAN menu. Then, select PPTP mode for WAN2. The following web page will be shown.
PPTP/L2TP Client
Mode
ISP Access Setup
igor2930 Series User's Guide
Subnet Mask: Type the subnet mask.
Gateway IP Address: Type the gateway IP address.
Default MAC Address : Click this radio button to use default MAC
address for the router.
Specify a MAC Address: Some Cable service providers specify a
specific MAC address for access authentication. In such cases you
need to click the Specify a MAC Address and enter the MAC
address in the MAC Address field.
Type in the primary IP address for the router if you want to use
Static IP mode. If necessary, type in secondary IP address for
necessity in the future.
P a g e f o r P P T P / L 2
P a g e f o r P P T P / L 2
Enable PPTP / Enable L2TP - Click Enable PPTP / Enable
L2TP to enable a PPTP/L2TP client to establish a tunnel to a
DSL modem on the WAN interface.
Server Address – Type the IP address for PPTP or L2TP server.
Specify Gateway IP Address - Specify the gateway for the
PPTP/L2TP server.
Username -Type in the username provided by ISP in this field.
Password -Type in the password provided by ISP in this field.
Index (1-15) in Schedule Setup - You can type in four sets of
time schedule for your request. All the schedules can be set
previously in Application – Schedule web page and you can use
the number that you have set in that web page.
T P
T P
37
