Index
Profile
Domain/Realm
Proxy
Account Name
Ring Port
STUN Server
External IP
SIP PING interval
Status
Profile Name

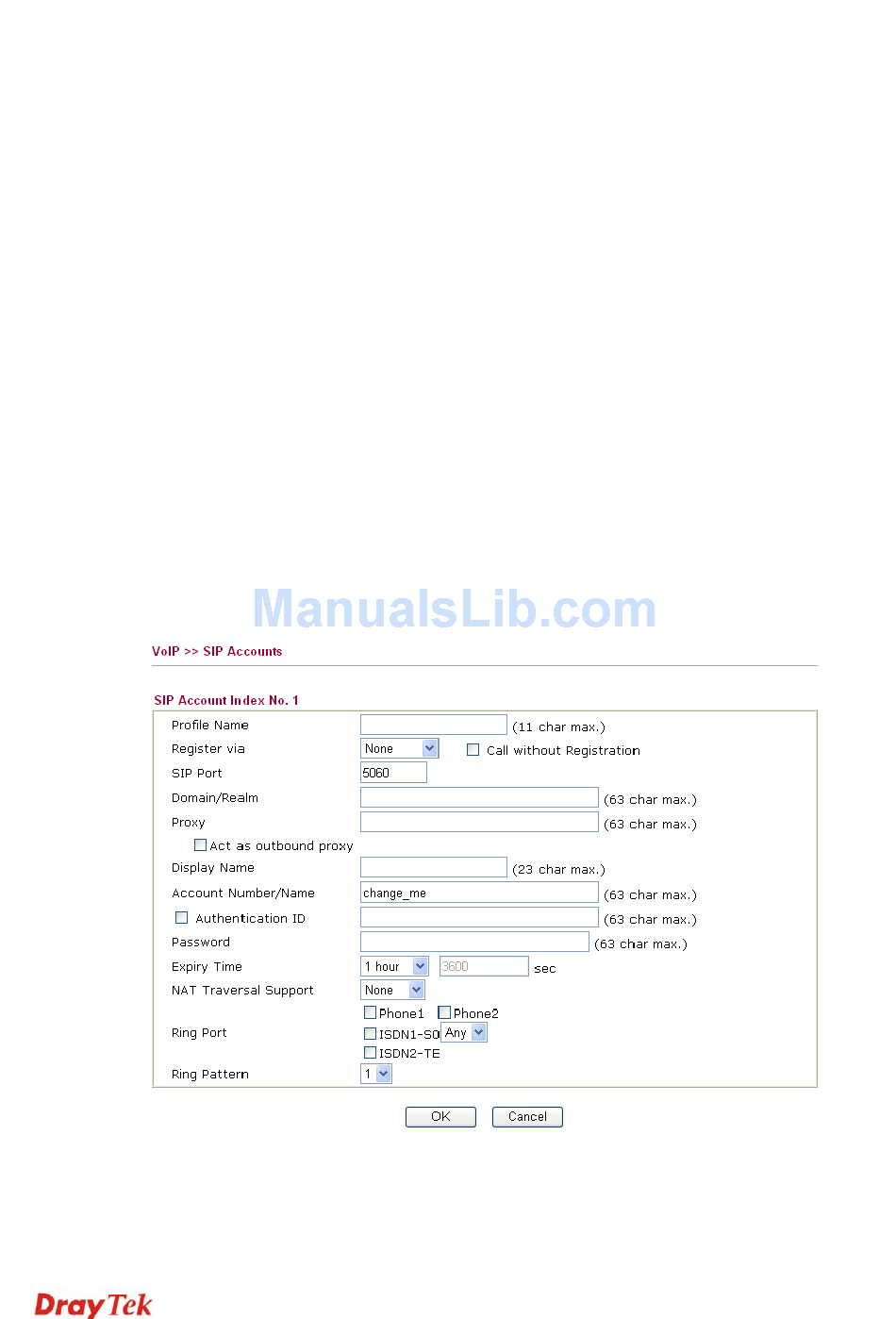

Click this link to access into next page for setting SIP account.
Display the profile name of the account.
Display the domain name or IP address of the SIP registrar
server.
Display the domain name or IP address of the SIP proxy
server.
Display the account name of SIP address before @.
Specify which port will ring when receiving a phone call. Set
Phone1, Phone2, ISDN1-S0 or ISDN-TE as the default ring
port for the SIP account. If you choose Phone1, Phone2 or
ISDN1-S0, the ISDN2-TE selection will be dimmed, vice
versa. There are ten internal lines with numbers (30 – 39)
offered for ISDN-S0. You can specify any one of them as ring
port for specified SIP account. By the way, ISDN-S0 can be
used by mapping with MSN numbers.
Type in the IP address or domain of the STUN server.
Type in the gateway IP address.
The default value is 150 (sec). It is useful for a Nortel server
NAT Traversal Support.
Show the status for the corresponding SIP account. R means
such account is registered on SIP server successfully. – means
the account is failed to register on SIP server.
Assign a name for this profile for identifying. You can type
similar name with the domain. For example, if the domain
name is draytel.org, then you might set draytel-1 in this field.
