Draytek Vigor2930 Series User Manual page 121

The built-in RADIUS client feature enables the router to assist the remote dial-in user or a
wireless station and the RADIUS server in performing mutual authentication. It enables
centralized remote access authentication for network management.

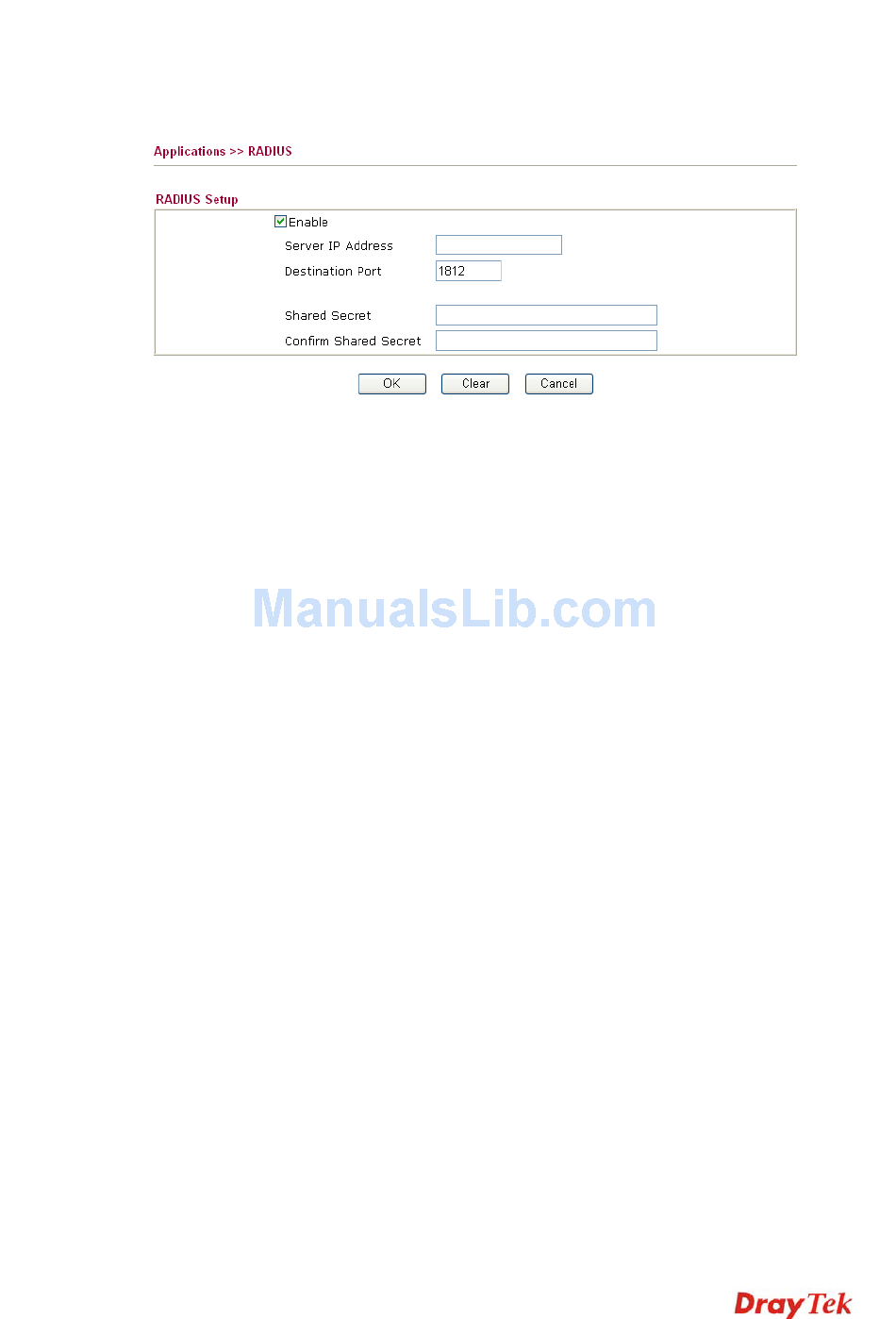

Enable
Server IP Address
Destination Port
Shared Secret
Confirm Shared Secret
igor2930 Series User's Guide
Check to enable RADIUS client feature
Enter the IP address of RADIUS server
The UDP port number that the RADIUS server is using. The
default value is 1812, based on RFC 2138.
The RADIUS server and client share a secret that is used to
authenticate the messages sent between them. Both sides must
be configured to use the same shared secret.
Re-type the Shared Secret for confirmation.
113
