Service Type Object - Draytek Vigor2930 Series User Manual

3 . 5 . 3 S e r v i c e T y p
3 . 5 . 3 S e r v i c e T y p

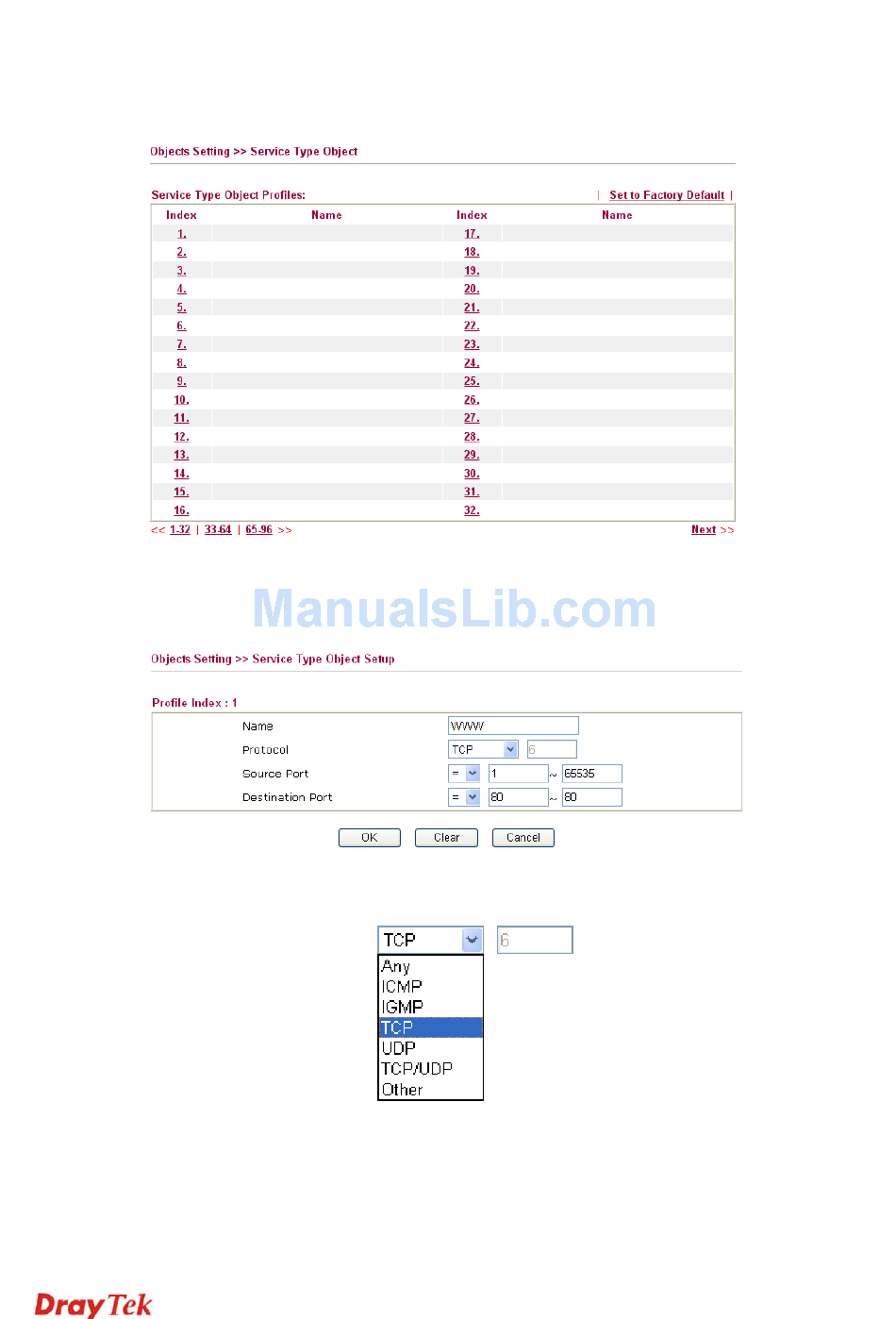

You can set up to 96 sets of Service Type Objects with different conditions.
Set to Factory Default
Click the number under Index column for settings in detail.
Name
Protocol
Source/Destination Port
e O b j e c t
e O b j e c t
Clear all profiles.
Type a name for this profile.
Specify the protocol(s) which this profile will apply to.
Source Port and the Destination Port column are available
for TCP/UDP protocol. It can be ignored for other protocols.
The filter rule will filter out any port number.
(=) – when the first and last value are the same, it indicates
one port; when the first and last values are different, it
indicates a range for the port and available for this profile.
80
Vigor2930 Series User's Guide
