ISDN BRI WAN Interface Cards
To connect an ISDN BRI U WIC to a network, follow these steps:
Confirm that the router is turned off.
Step 1
To comply with the Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety,
Warning
connect the 1-port ISDN BRI WIC with U interface, version 2 (WIC-1B-U-V2) only to intra-building or
unexposed wiring or cable. The intra-building port(s) of the equipment or subassembly must not be
metallically connected to interfaces that connect to the OSP or its wiring. These interfaces are
designed for use as intra-building interfaces only (Type 2 or Type 4 ports as described in
GR-1089-CORE, Issue 4) and require isolation from the exposed OSP cabling. The addition of Primary
Protectors is not sufficient protection in order to connect these interfaces metallically to OSP wiring.
Connect one end of a straight-through RJ-48C-to-RJ-48C cable to the RJ-48C port on the ISDN BRI U
Step 2
WIC.
Connect the other end of the cable directly to the ISDN wall jack as shown in
Step 3
Figure 53
Step 4 Turn on power to the router.
Check that the OK LED goes on, which indicates that the ISDN port has established a connection with
Step 5
the central office switch.

ISDN BRI S/T Leased-Line WAN Interface Card

This section describes how to connect ISDN BRI S/T leased-line WICs to a network and contains the
following sections:
•
•
•
•

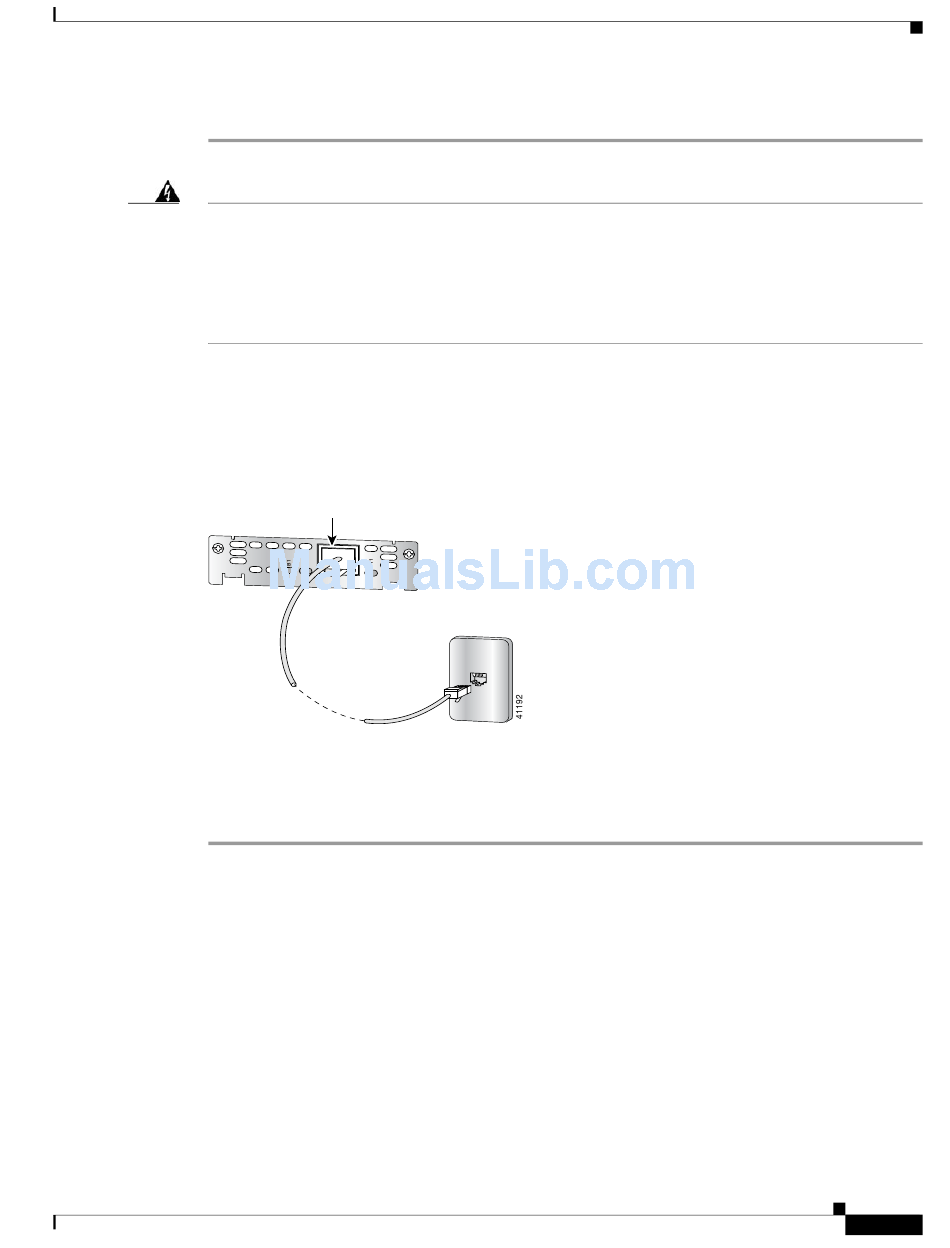

Connecting an ISDN BRI U WIC to an ISDN Wall Jack
BRI U port
(RJ-48C)
BRI
U
SEE MANUA L BEFOR E INSTAL LATION
Straight-through
RJ-48C-to-RJ-48C cable
ISDN BRI S/T Leased-Line WICs Overview
ISDN BRI S/T Leased-Line WIC LEDs
Prerequisites for Connecting an ISDN BRI S/T Leased-Line WIC to a Network
Connecting an ISDN BRI S/T Leased-Line WIC to a Network
RJ-48C jack
ISDN BRI S/T Leased-Line WAN Interface Card
Figure 53.
