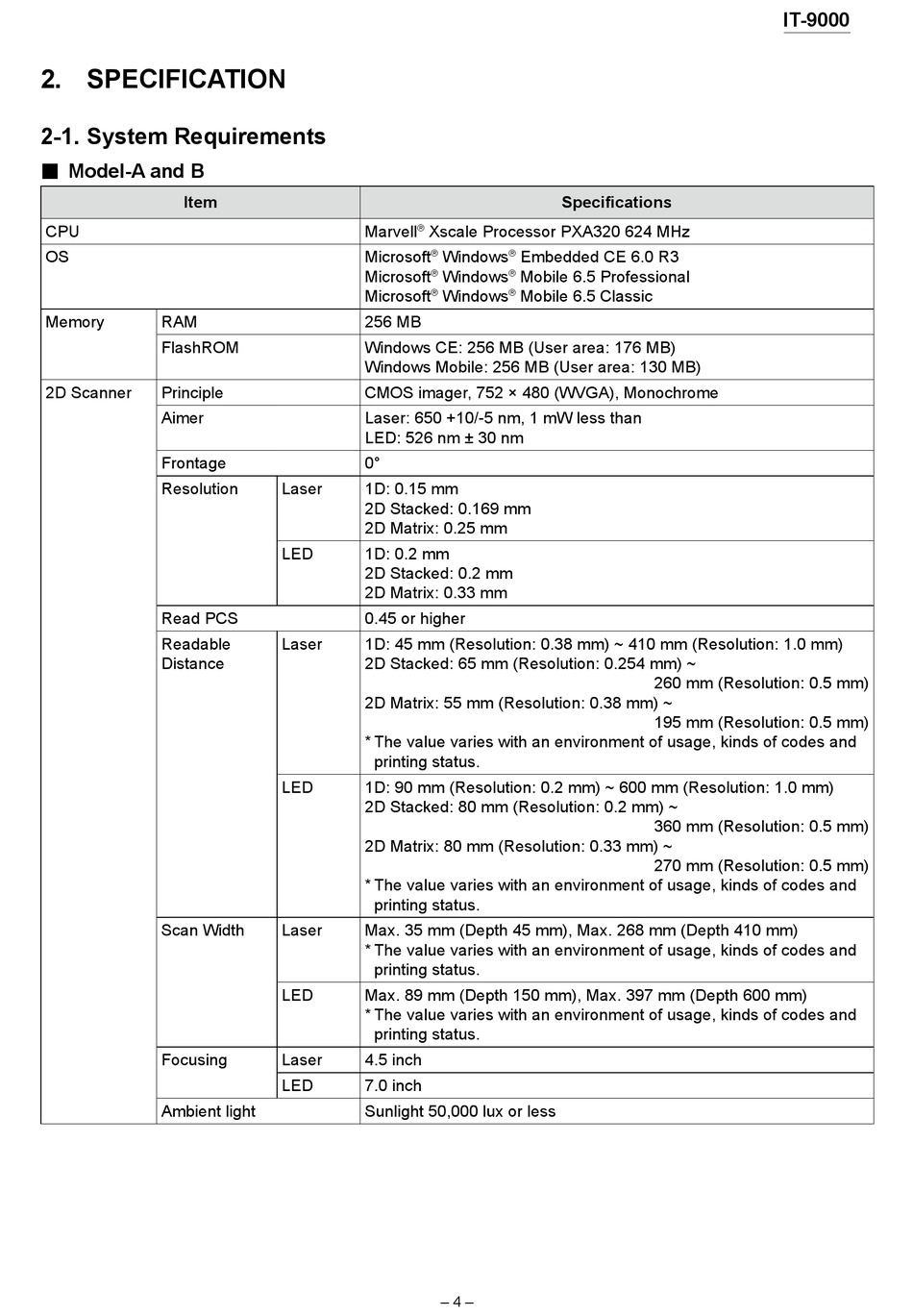

2. SPECIFICATION

2-1. System Requirements

Y Model-A and B
Item
CPU
OS
Memory RAM
FlashROM
2D Scanner Principle
Aimer
Frontage
Resolution
Read PCS
Readable
Distance
Scan Width
Focusing
Ambient light
Marvell ® Xscale Processor PXA320 624 MHz
Microsoft Windows
®
Microsoft ® Windows
Microsoft Windows
®
256 MB
Windows CE: 256 MB (User area: 176 MB)
Windows Mobile: 256 MB (User area: 130 MB)
CMOS imager, 752 × 480 (WVGA), Monochrome
Laser: 650 +10/-5 nm, 1 mW less than
LED: 526 nm ± 30 nm
0°
Laser 1D: 0.15 mm
2D Stacked: 0.169 mm
2D Matrix: 0.25 mm
LED 1D: 0.2 mm
2D Stacked: 0.2 mm
2D Matrix: 0.33 mm
0.45 or higher
Laser 1D: 45 mm (Resolution: 0.38 mm) ~ 410 mm (Resolution: 1.0 mm)
2D Stacked: 65 mm (Resolution: 0.254 mm) ~
2D Matrix: 55 mm (Resolution: 0.38 mm) ~
* The value varies with an environment of usage, kinds of codes and
printing status.
LED 1D: 90 mm (Resolution: 0.2 mm) ~ 600 mm (Resolution: 1.0 mm)
2D Stacked: 80 mm (Resolution: 0.2 mm) ~
2D Matrix: 80 mm (Resolution: 0.33 mm) ~
* The value varies with an environment of usage, kinds of codes and
printing status.
Laser Max. 35 mm (Depth 45 mm), Max. 268 mm (Depth 410 mm)
* The value varies with an environment of usage, kinds of codes and
printing status.
LED Max. 89 mm (Depth 150 mm), Max. 397 mm (Depth 600 mm)
* The value varies with an environment of usage, kinds of codes and
printing status.
Laser 4.5 inch
LED 7.0 inch
Sunlight 50,000 lux or less
– 4 –
Specifi cations
Embedded CE 6.0 R3
®
® Mobile 6.5 Professional
Mobile 6.5 Classic
®
260 mm (Resolution: 0.5 mm)
195 mm (Resolution: 0.5 mm)
360 mm (Resolution: 0.5 mm)
270 mm (Resolution: 0.5 mm)
IT-9000
