Combining the individual components

Mains types

● Each residual-current-operated circuit breaker only supplies one drive
controller
● Only Rexroth components and accessories including cables and filters
are used

TN-S mains type

The TN-S mains type is the usual mains type in Europe.
T = Direct grounding of a point (station ground)
N = Exposed conductive parts directly connected to station ground
S = Separate neutral conductor and equipment grounding conduc‐
tor in entire mains

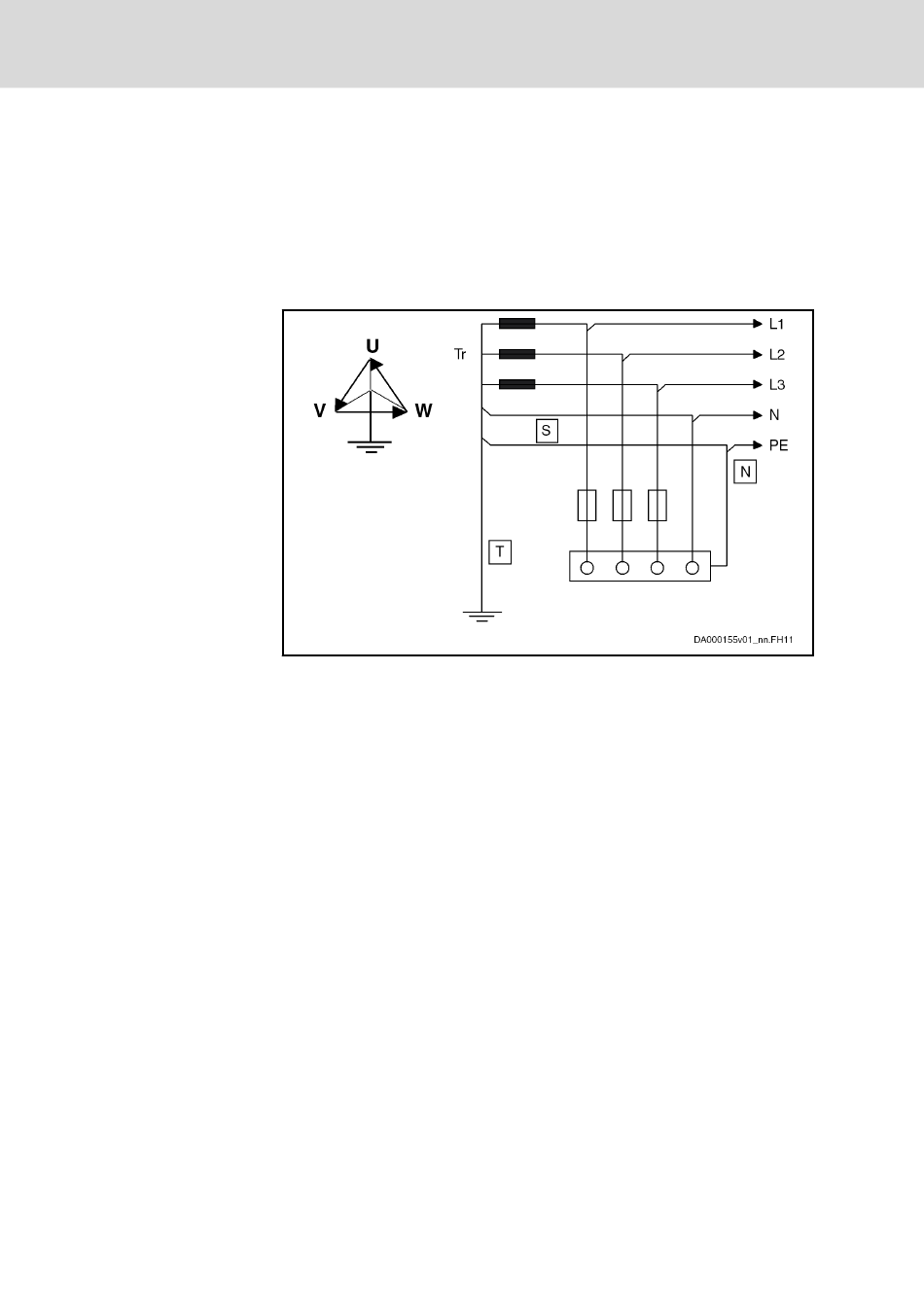

Fig. 4-17: TN-S mains type
