304/341
Bosch Rexroth AG
Cables, accessories, additional components
Dimensions (with upright mount‐
ing)
A
Minimum mounting clearance

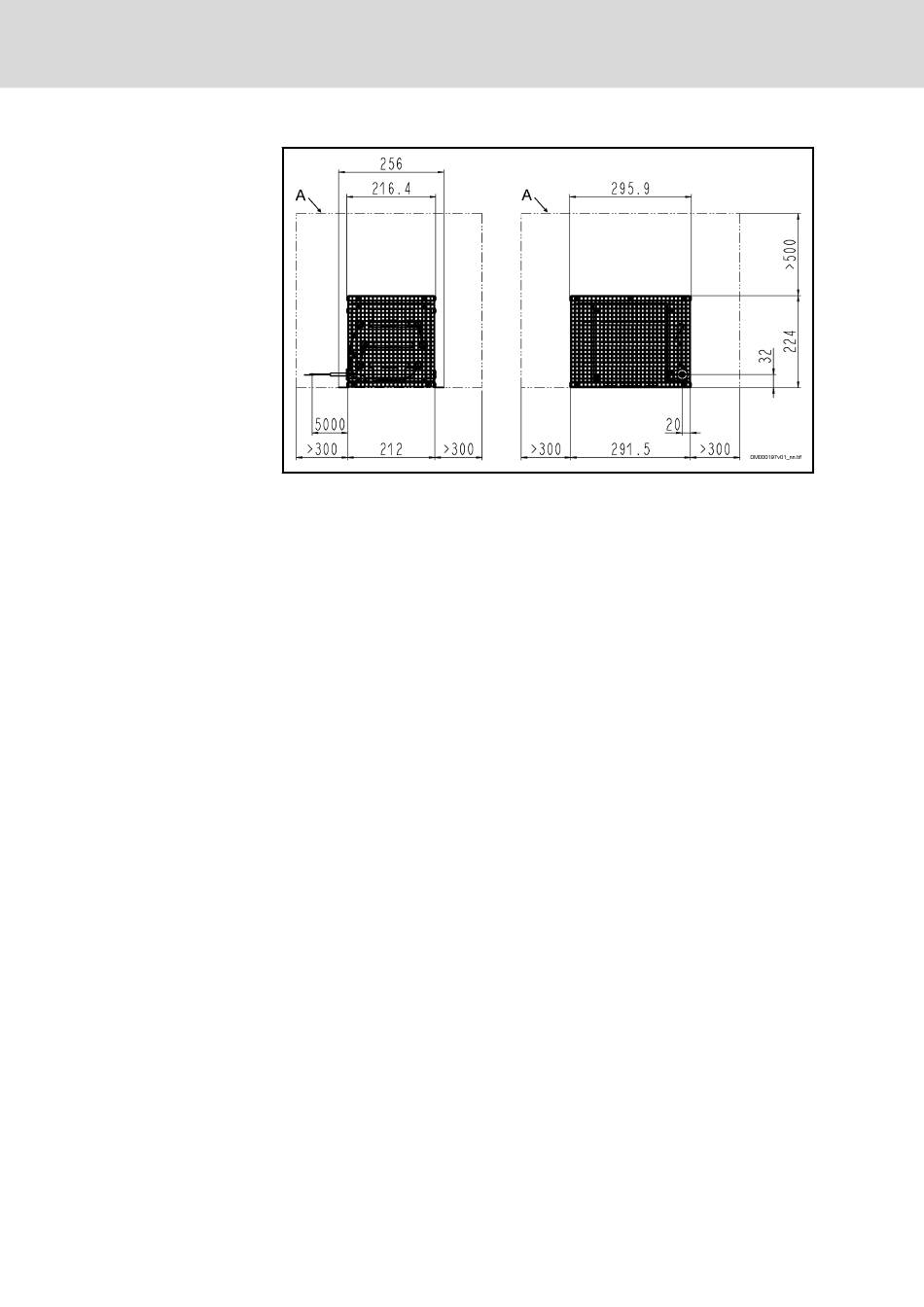

Fig. 8-53:
Dimensions (with upright mounting on the floor)
DOK-INDRV*-HCS01******-PR05-EN-P
Rexroth IndraDrive CsDrive Systems with HCS01
