Technical data of the components

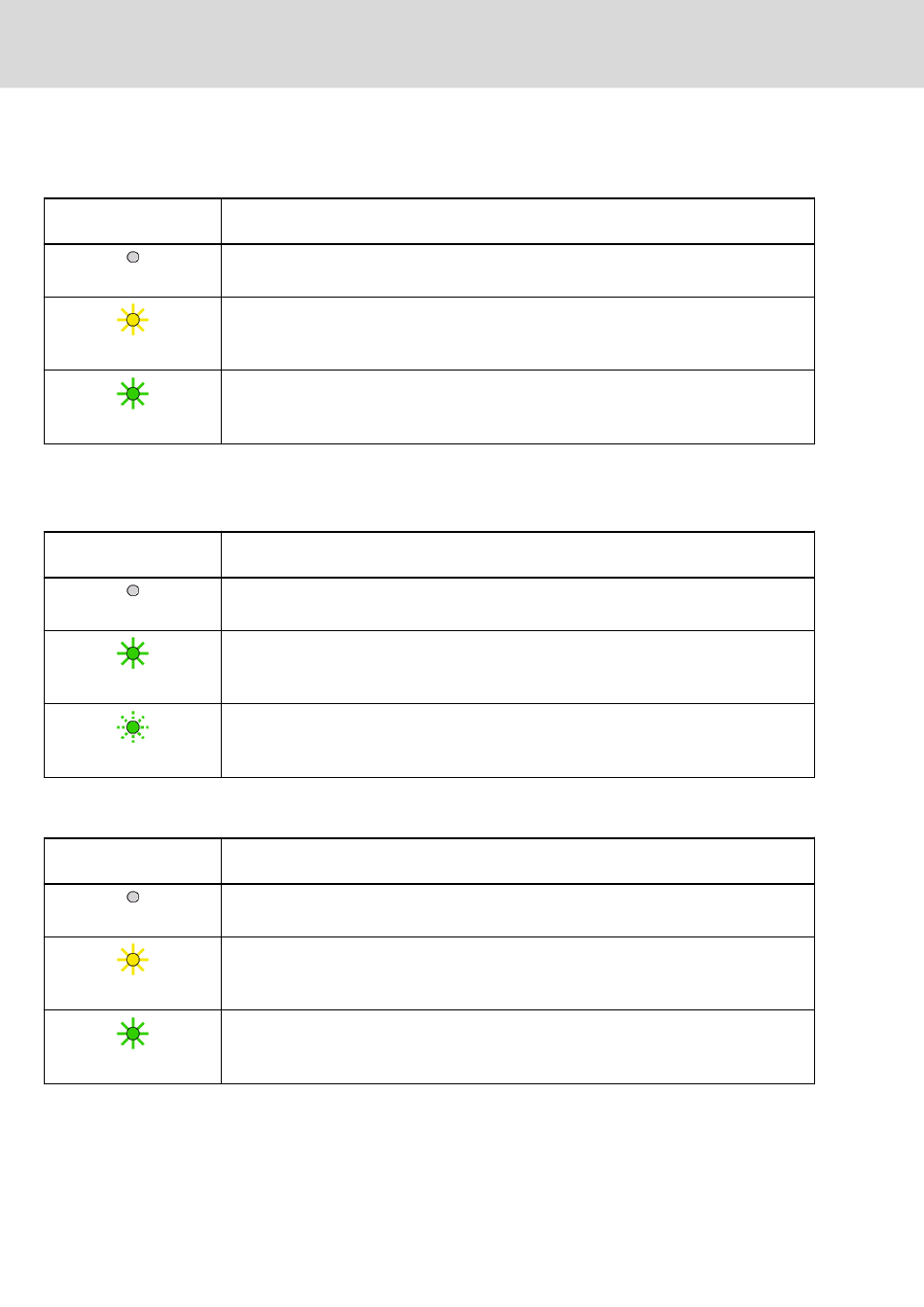

Port LED

LED: Color / flashing pat‐
tern
Off
Permanently lit yellow
Permanently lit green
LED: Color / flashing pat‐
tern
Off
Permanently lit green
Flashing green
LED: Color / flashing pat‐
tern
Off
Permanently lit yellow
Permanently lit green
EtherNet/IP
Significance
No connection
No data transmission
Data transmission running
Connection to network available
Tab. 7-14: Port LED
EtherCAT
EtherCAT has only one active LED per port.
Significance
No connection
Connection to network available, but no telegram exchange (EtherCAT bus inactive)
Connection to network available with telegram exchange (EtherCAT bus active)
Tab. 7-15: Port LED
sercos III
Significance
No connection
No data transmission
Data transmission running
Connection to network available
Tab. 7-16: Port LED
