Connection Points - Bosch Rexroth IndraDrive CsDrive System with HCS01 Project Planning Manual

124/341 Bosch Rexroth AG
Mounting and installation
6.2.2

Connection points

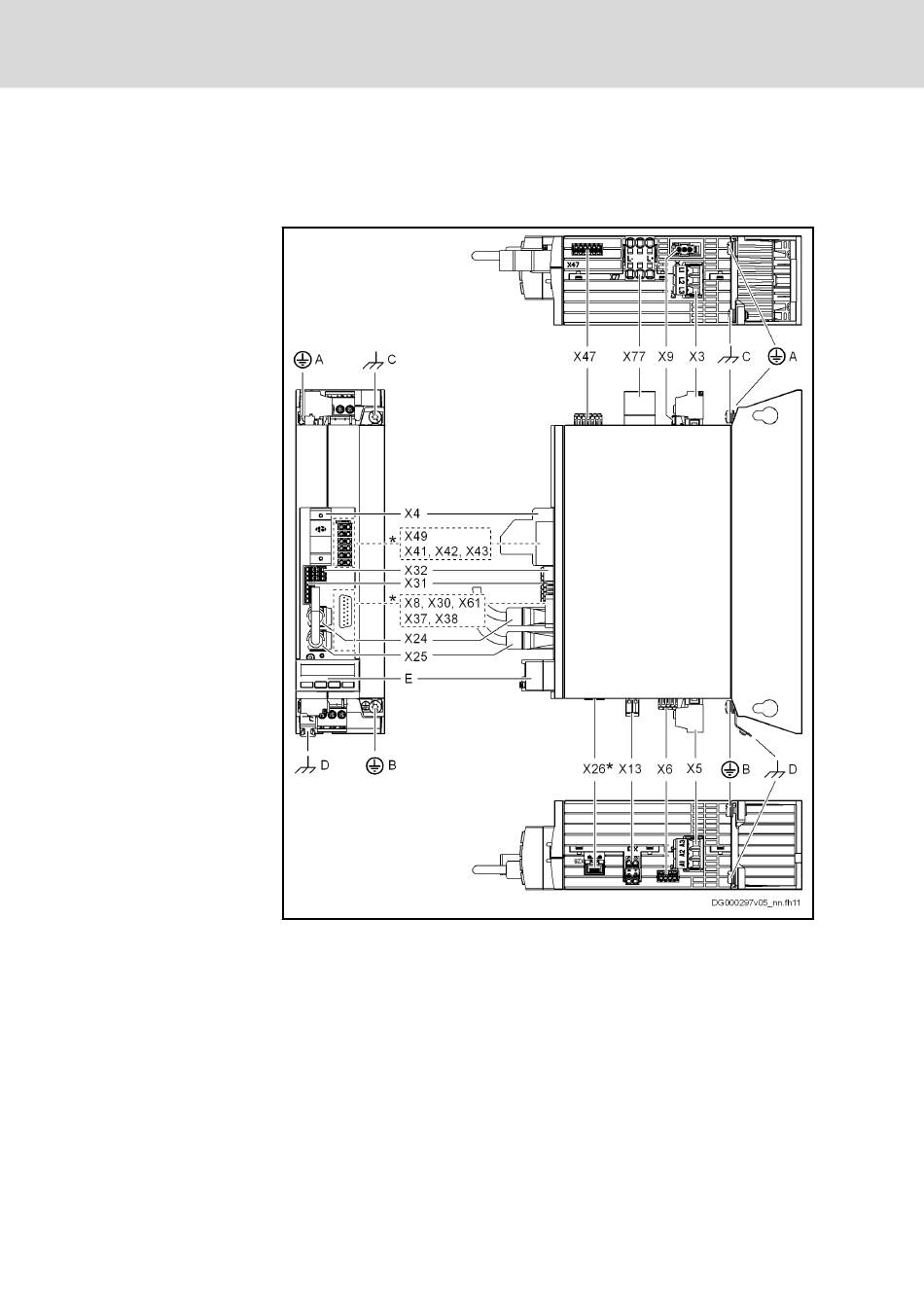

Arrangement of the HCS01 connection points
HCS01 connection points (ECONOMY, BASIC)
* Optional connection point
A Connection point of equipment grounding conductor, mains
B Connection point of equipment grounding conductor, motor
C Control line shield connection
D Motor cable shield connection
E Control panel
X3 Mains connection
X4 Motor encoder
X5 Motor connection
X6 Motor temperature monitoring, motor holding brake
X8 Encoder evaluation (EC option); encoder emulation (EM op‐
tion)
X9 Integrated/external braking resistor
X13 24V supply (control voltage)
