Rkb0011, Multi-Ethernet Cable - Bosch Rexroth IndraDrive CsDrive System with HCS01 Project Planning Manual

DOK-INDRV*-HCS01******-PR05-EN-P
Rexroth IndraDrive CsDrive Systems with HCS01
8.2.9

RKB0011, Multi-Ethernet Cable

Length That Can Be Ordered, Or‐
der Code
RKB0011
Plug-in connector bus
RBS0016/S01 (RJ-45,
4-pin)
Fig. 8-31: RKB0011
Use The cable connects the drive system to the higher-level control.
Length
Select as desired
(max. 100 m)
5 m
Tab. 8-13: RKB0033
Bulk cable
REB0400

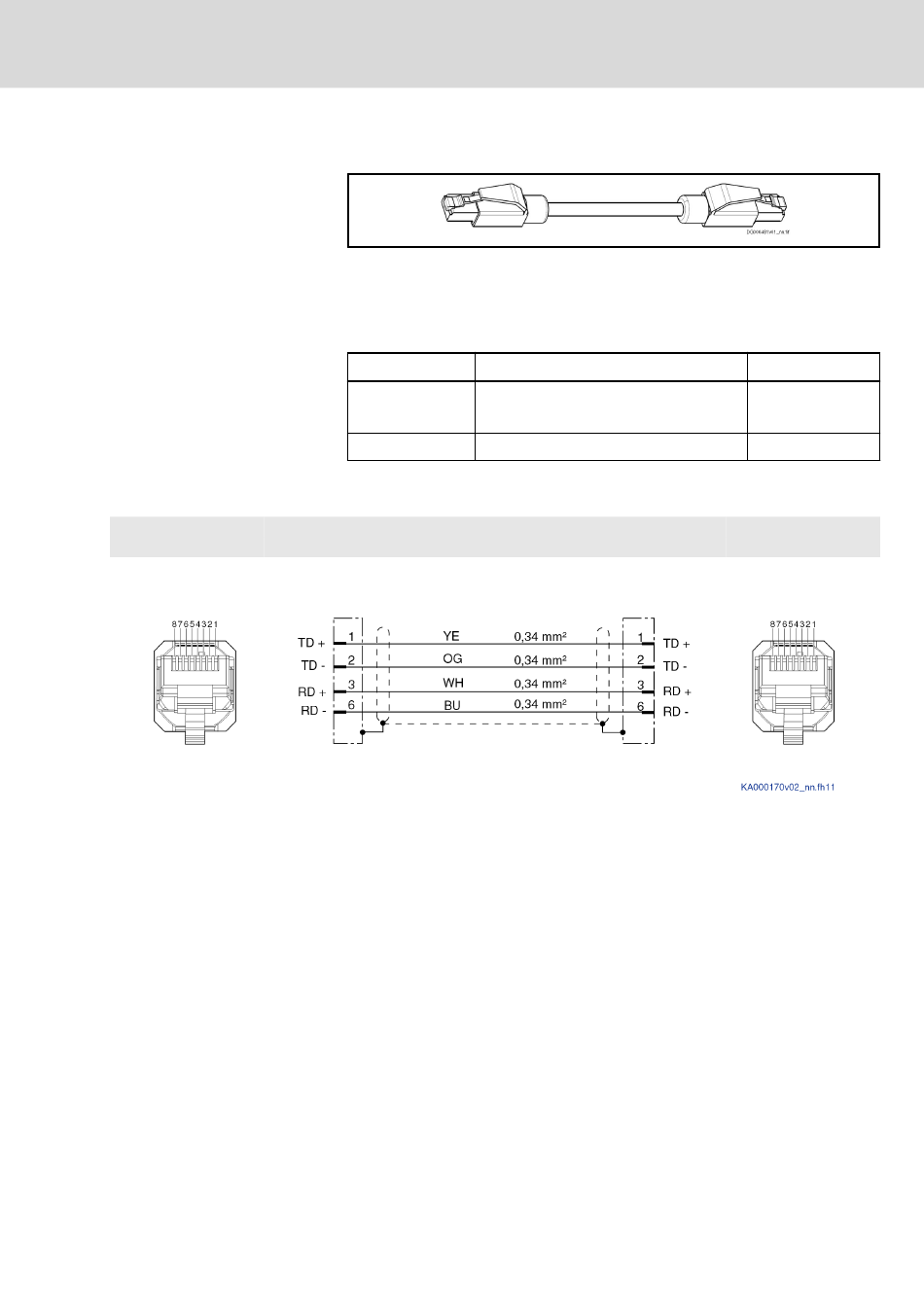

Tab. 8-14: Interconnection Diagram RKB0011
Cables, accessories, additional components
Order code
RKB0011/xxx,x (xxx,x = length in meters)
Example: 13.5 m ⇒ RKB0011/013,5
RKB0011/005,0
Bosch Rexroth AG 279/341
Parts number
R911316888
R911321548
Plug-in connector bus
RBS0016/S01 (RJ-45,
4-pin)
