Mounting and installation
Signal Specification
1)
Terminating resistor is off
2)
Cable shield must have direct contact to metal
Fig. 6-19:

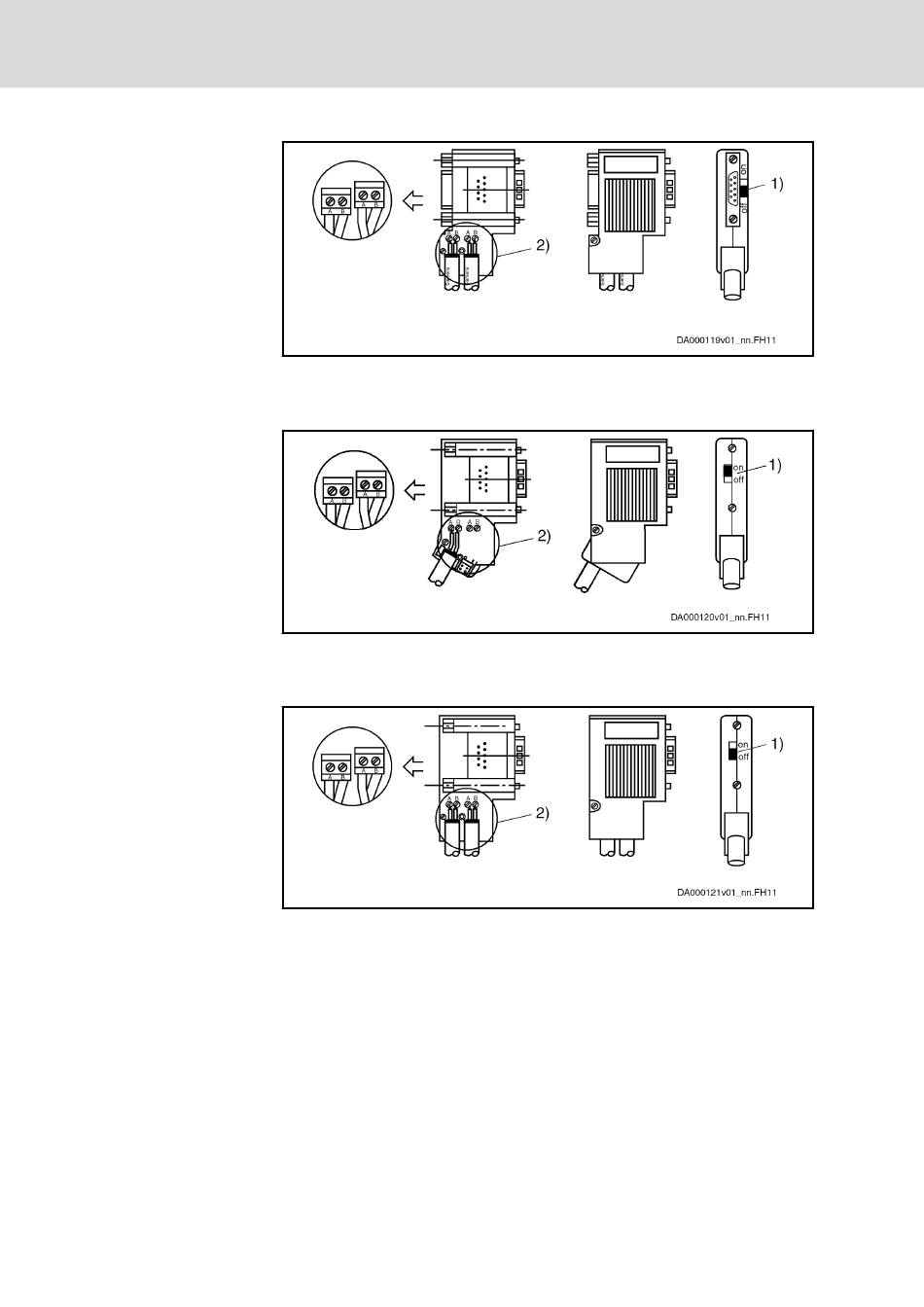

Bus Connection for all Other Slaves, Bus Connector With 9-pin D-
Sub Female Connector, INS0541
1)
Switch position for first slave and last slave in PROFIBUS-DP
2)
Cable shield must have direct contact to metal
Fig. 6-20:
Bus Connection for First and Last Slave, Without 9-pin D-Sub Fe‐
male Connector, INS0540
1)
Terminating resistor is off
2)
Cable shield must have direct contact to metal
Fig. 6-21:
Bus Connection for all Other Slaves, Without 9-pin D-Sub Female
Connector, INS0540
Connect the drive controller to a control unit using a shielded two-wire line in
accordance with DIN 19245/Part 1.
chapter 7.1.4 "PB - PROFIBUS" on page 214
