Rexroth IndraDrive CsDrive Systems with HCS01
8.2.3

Battery box SUP-E01-MSM-BATTERYBOX

Scope of delivery
Use The battery box "SUP-E01-MSM-BATTERYBOX" is an set of accessories for
operation of MSM motors with absolute encoder (M0) and is used for buffer‐
ing of the encoder data in case of power shut off.

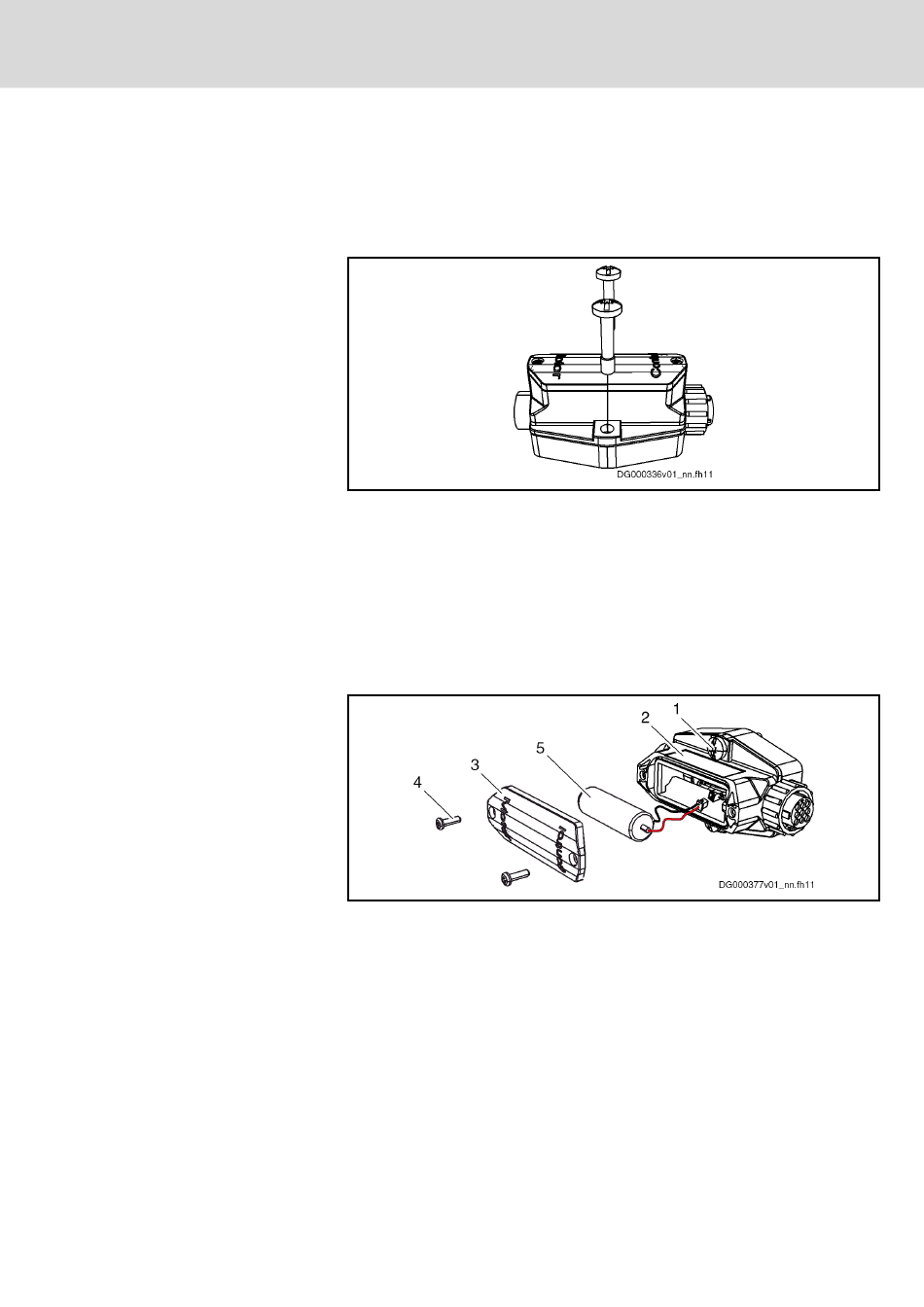

Fig. 8-12: Battery box
Battery box complete with
● Battery: Type: ER6C, 3.6 V; 1800 mA, lithium; lifetime: up to 10 years,
depending on use and ambient temperature
● Assembly screws: M6×30; screw head: Torx and slot
The battery box "SUP-E01-MSM-BATTERYBOX" is delivered in ready-for-
use state with battery.
Components:
1 Assembly screw
2 Housing
3 Housing lid
4 Housing lid screw (self-shaping screw 30×10; tightening torque
0.8 Nm)
5 Battery
Fig. 8-13: Components of battery box
