Hlr01.2N-0K06-N100R, ...-N180R Dimensions - Bosch Rexroth IndraDrive CsDrive System with HCS01 Project Planning Manual

DOK-INDRV*-HCS01******-PR05-EN-P
Rexroth IndraDrive CsDrive Systems with HCS01

HLR01.2N-0K06-N100R, ...-N180R dimensions

Connector

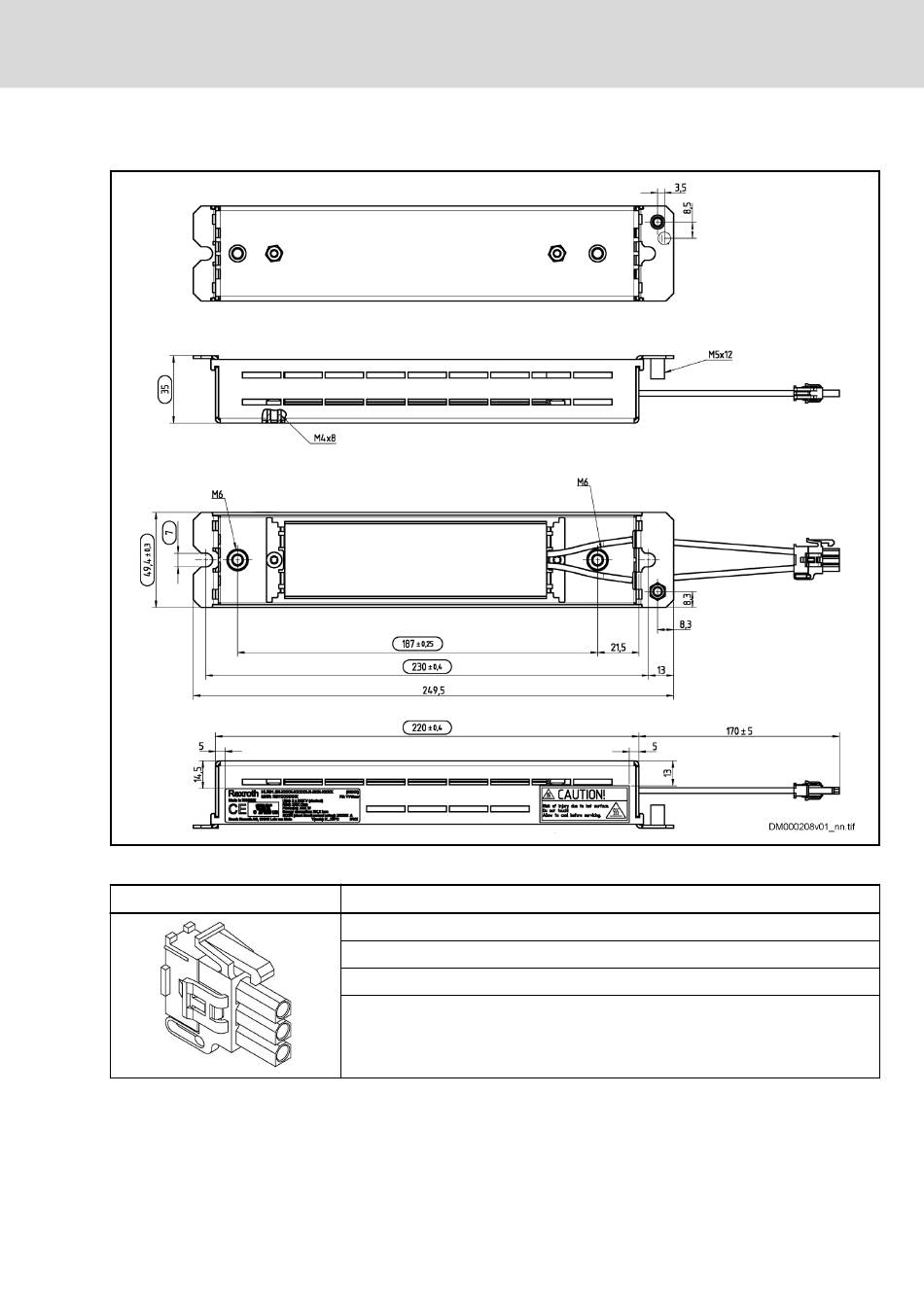

Fig. 8-54: Dimensions
Data
Manufacturer: TE connectivity Ltd.
Type: Mini-Universal MATE-N-LOK 2
Number: 794186-1
Contacts (female):
● Number: 794223-1
● Connection cross section: 0.5 ... 1.4 mm
Tab. 8-34: Connector
Bosch Rexroth AG
Cables, accessories, additional components
2 (16 ... 20 AWG)
305/341
