306/341 Bosch Rexroth AG
Cables, accessories, additional components

Assignment HLR01.2 to HCS01

Installation
Connection
Snap-on ferrite
Bimetal protection relay
Braking resistor
HLR01.2N-...
0K06-N100R-E-003
0K06-N180R-E-007
01K0-N68R0-E-007
01K0-N28R0-E-007

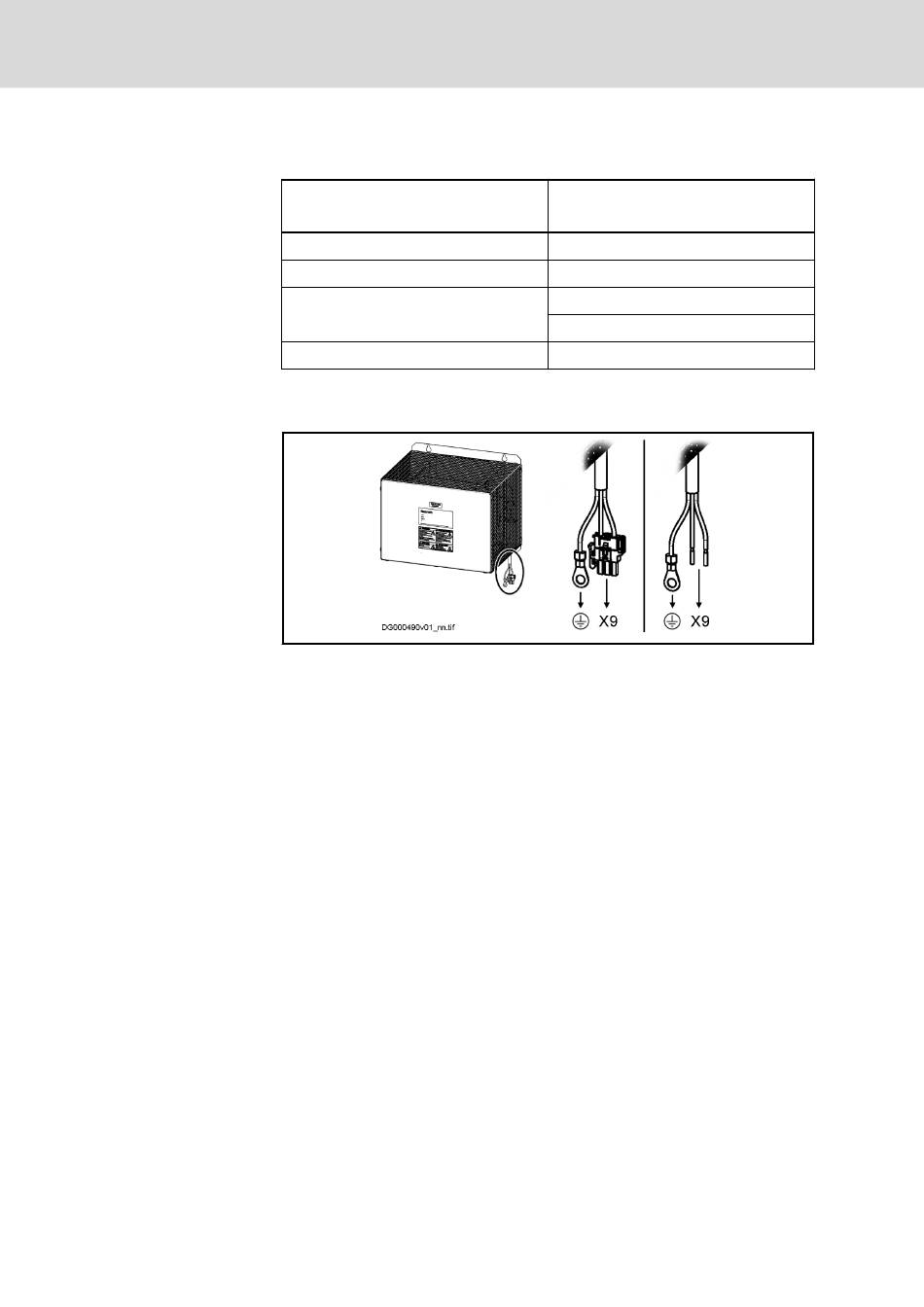

Tab. 8-35: Assignment HLR01.2 to HCS01
Fig. 8-55: Connection
When installing the braking resistor, observe the instructions given in the de‐
scription of connection point
The accessory HAS05.1-015-NNN-NN (snap-on ferrite) ensures that
Class C3 of the EMC Directive EN 61800-3 is complied with for braking resis‐
tors installed outside of the control cabinet.
The snap-on ferrite is designed for the following components:
■ HCS01.1E-W0018 + HLR01.2N-01K0-N68R0-E-007
■ HCS01.1E-W0028 + HLR01.2N-01K0-N68R0-E-007
■ HCS01.1E-W0054 + HLR01.2N-01K0-N28R0-E-007
Using a bimetal protection relay you can establish overload protection for ex‐
ternal braking resistors.
Integrate the isolated N/C contact of the relay in the control circuit for mains
connection. See also chapter "Control Circuit for the Mains Connection" on
page 104.
DOK-INDRV*-HCS01******-PR05-EN-P
Rexroth IndraDrive CsDrive Systems with HCS01
Drive controller
HCS01.1E-W00...
03, 06, 09, 13
18-03, 28
X9.
05, 08
18-02
54
