Chapter 5
Upgrading a Cisco TelePresence System 3000 to a Cisco TelePresence System 3200
Building the Second Row Table Assembly
Step 22
Attach the left tabletop end to tabletop section 5 using the using the draw bolts, spline and alignment
plate.

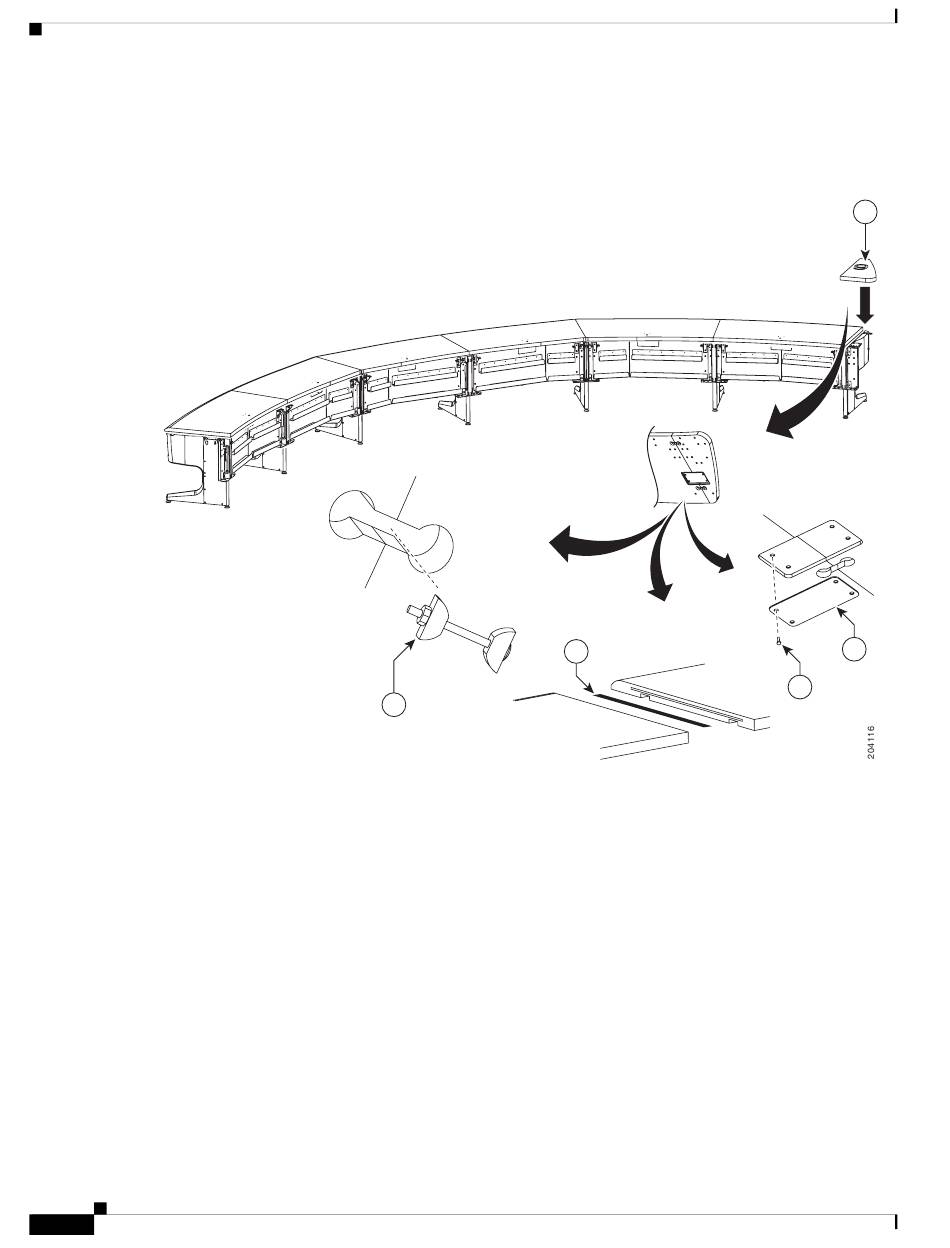

Figure 5-27
Left Tabletop End, Draw Bolts, Spline and Alignment Plate
19
34
40
35
39
Cisco TelePresence System
5-36
OL-16441-01
