Figure 4.15 Example Of Totalizer Gate Mode - Omega iServer Microserver User Manual

4.7.1.7 Totalizer Gate Mode (continued)
SERVER HOME PAGE
http://192.168.1.200
Assembly Dept.
SP1 200 SP2 100
Motion Monitor
CH B: 84206 PPR
Chart
0 100000
Message:
Mon Nov 24 15:24:05 PST 2003 1Minute(1Sec/Div) Mon Nov 24 15:57:43 PST 2003
a=Totalizer Gate ;b=0;c=0;d=81882;e=Motion Monitor;f=PPR;g=101;h=200;i=100;j=2;k=0;l=/;m=12:50:03 Nov,22 2003;
a=Totalizer Gate ;b=0;c=0;d=83100;e=Motion Monitor;f=PPR;g=101;h=200;i=100;j=2;k=0;l=/;m=12:50:04 Nov,22 2003;
a=Totalizer Gate ;b=0;c=0;d=84206;e=Motion Monitor;f=PPR;g=101;h=200;i=100;j=2;k=0;l=/;m=12:50:05 Nov,22 2003;
Reset Timer Reset Latch A Reset Latch B
Applet pulse started

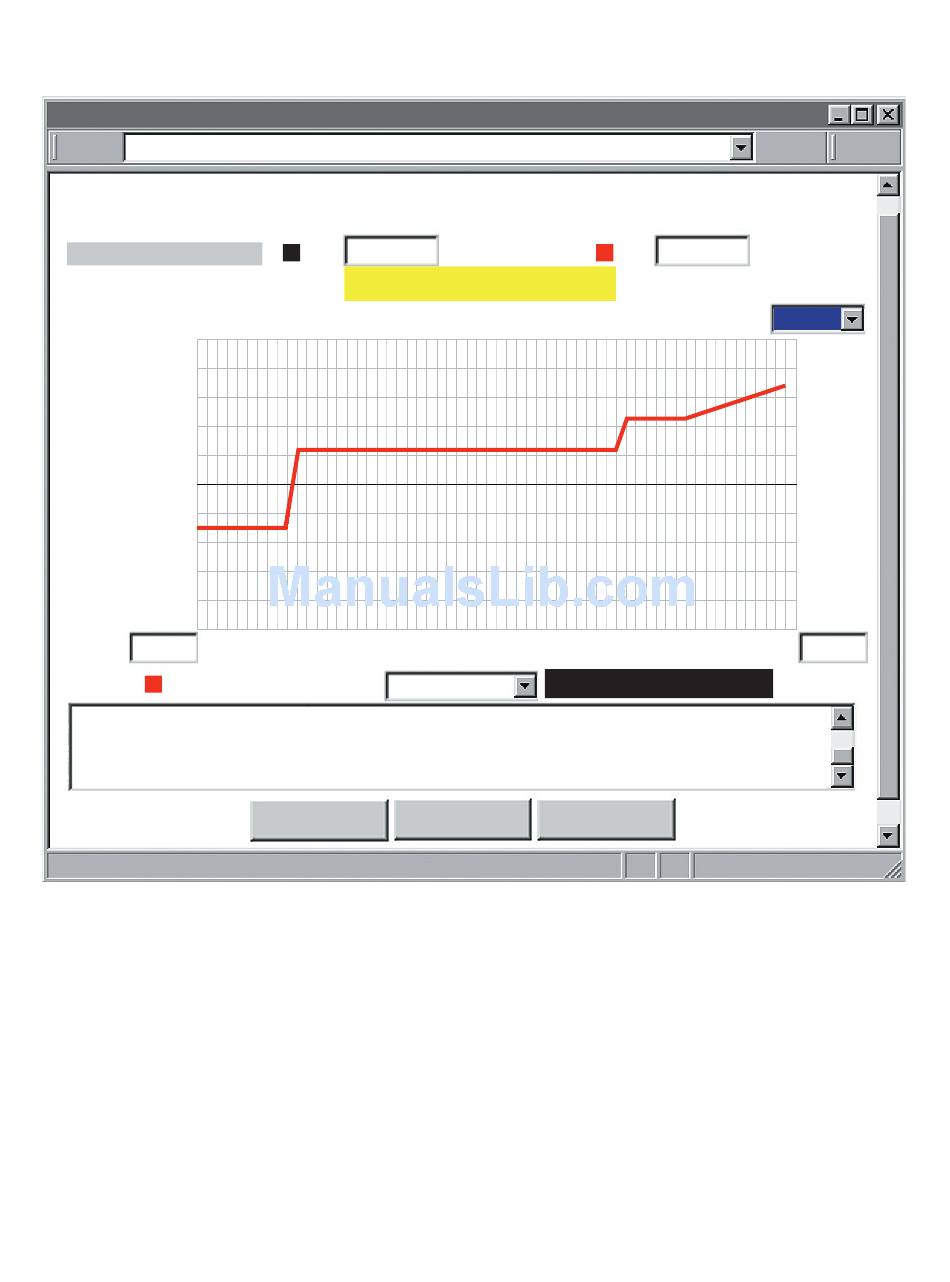

Figure 4.15 Example of Totalizer Gate Mode
