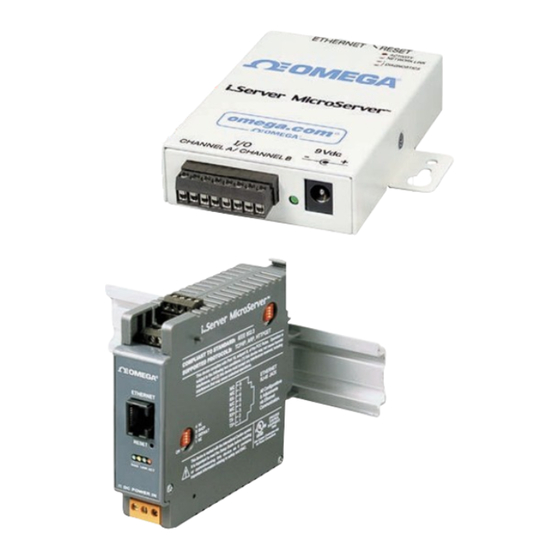

User' s Guide
SERVER HOME PAGE
http://192.168.1.200
Shop on line at
Assembly Dept.
SP1
200
SP2
100
Motion Monitor
CH A: 97574 PPR
CH B: 1138 PPR
®
Chart
®
omega.com
e-mail: info@omega.com
For latest product manuals
-10000
100000
Message:
Mon Nov 24 15:24:05 PST 2003
1Minute(1Sec/Div)
Mon Nov 24 15:57:43 PST 2003
omegamanual.info
a=Quadrature ;b=0;c=95228;d=1138;e=Motion Monitor;f=PPR;g=011;h=200;i=100;j=2;k=0;l=/;m=12:50:03 Nov,22 2003;
a=Quadrature ;b=0;c=96411;d=1138;e=Motion Monitor;f=PPR;g=011;h=200;i=100;j=2;k=0;l=/;m=12:50:03 Nov,22 2003;
a=Quadrature ;b=0;c=97574;d=1138;e=Motion Monitor;f=PPR;g=011;h=200;i=100;j=2;k=0;l=/;m=12:50:03 Nov,22 2003;
Reset Timer
Reset Latch A Reset Latch B
Applet pulse started
Internet Counter
Advertisement
Table of Contents
Related Manuals for Omega iServer Microserver
Summary of Contents for Omega iServer Microserver
- Page 1 Shop on line at Assembly Dept. Motion Monitor CH A: 97574 PPR CH B: 1138 PPR ® Chart ® omega.com e-mail: info@omega.com For latest product manuals -10000 100000 Message: Mon Nov 24 15:24:05 PST 2003 1Minute(1Sec/Div) Mon Nov 24 15:57:43 PST 2003 omegamanual.info a=Quadrature ;b=0;c=95228;d=1138;e=Motion Monitor;f=PPR;g=011;h=200;i=100;j=2;k=0;l=/;m=12:50:03 Nov,22 2003;...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Part 1: Introduction Safety and EMC Considerations ...............2 Before You Begin....................2 Description ......................2 Part 2: Hardware Mounting ......................3 2.1.1 Mounting the Wall Mount iServer ............3 2.1.2 Mounting the DIN Rail iServer..............4 2.1.3 Removal from a DIN Rail ................4 DIP Switches .......................5 2.2.1 SW1 DIP Switch Usage ................5 2.2.2 SW3 DIP Switch Usage ................6 Parts of iServer Unit ..................7... - Page 4 4.7.4 Operation Condition Parameters............38 4.7.4.1 Input Reading Scale & Offset..........39 4.7.4.1.1 A Scale ................39 4.7.4.1.2 A Offset ................39 4.7.4.1.3 B Scale ................39 4.7.4.1.4 B Offset ................39 4.7.4.1.5 A Gate Time (ms) ..............39 4.7.4.1.6 B Gate Time (ms)..............39 4.7.4.1.7 A Debounce Time (ms) ............39 4.7.4.1.8 B Debounce Time (ms) ............39 4.7.4.1.9 Reading Format..............40 4.7.4.1.10 Number of Digit ..............40...
-
Page 5: List Of Figures
LIST OF FIGURES: Figure 2.1 Mounting - Wall Mount iServer ................3 Figure 2.2 Mounting - DIN Rail iServer ................4 Figure 2.3 Removal - DIN Rail iServer ................4 Figure 2.4a DIP Switch SW1 - Wall Mount iServer ...............5 Figure 2.4b DIP Switch SW1 - DIN Rail iServer..............5 Figure 2.5a DIP Switch SW3 - Wall Mount iServer ...............6 Figure 2.5b... - Page 6 Table 4.2 List of Communication Commands ..............43...
- Page 7 NOTES, WARNINGS and CAUTIONS Information that is especially important to note is identified by the following labels: • NOTE • WARNING or CAUTION • IMPORTANT • TIP NOTE: Provides you with information that is important to successfully setup and use the iServer. CAUTION: Tells you about the risk of electrical shock.
-
Page 8: Part 1: Introduction
PART 1 INTRODUCTION 1.1 Safety and EMC Considerations Refer to the CE Approvals Section. Always use a power supply, which complies with EN 60950 safety standard. EMC Considerations • Whenever EMC is an issue, always use shielded cables. • Never run signal and power wires in the same conduit. •... -
Page 9: Part 2 Hardware
PART 2 HARDWARE 2.1 Mounting 2.1.1 Mounting the Wall Mount iServer Position unit where required. Mark and drill holes as required. If unit is to be mounted on a flat surface, you may take the bottom rubber feet off the unit. It is recommended that you ground your unit by wrapping a wire around the mounting tab screw and tightening a lock washer so that it embeds itself into the metal of the mounting tab. -
Page 10: Mounting The Din Rail Iserver
2.1.2 Mounting the DIN Rail iServer To install unit onto DIN Rail: a) Tilt unit, position mounting slot onto DIN Rail, as shown. b) Push unit towards DIN Rail and it will snap into place. Figure 2.2 Mounting - DIN Rail iServer 2.1.3 Removal from a DIN Rail a) Insert flat screw-driver into tab and push downwards. -
Page 11: Dip Switches
2.2 DIP Switches 2.2.1 SW1 DIP Switch Usage The iServer is shipped with all SW1 DIP switches in "OFF" position. N/C - not used To change to default factory settings To enable/disable DHCP N/C - not used To set the iServer to factory default settings, slide SW1 DIP switch #2 to ON position. -
Page 12: Sw3 Dip Switch Usage
2.2.2 SW3 DIP Switch Usage The iServer is shipped with all SW3 DIP switches in "OFF" position (signal 5V max). SW # DESCRIPTION CHANNEL PULL DOWN (1K ohm) CHANNEL A PULL UP (3K ohm) CHANNEL A PULL DOWN (1K ohm) CHANNEL B PULL UP (3K ohm) CHANNEL B HIGH INPUT SIGNAL (0-12 V) -
Page 13: Parts Of Iserver Unit
2.3 Parts of the iServer Unit RJ45 interface Reset Button I/O Connectors 1 2 3 4 LEDs Channel A Channel B 5 6 7 8 RJ45 interface Reset Button LEDs Mounting Tabs dc Power Input dc Power Input 1 2 3 4 5 6 7 8 Power LED Figure 2.6 Parts of the iServer Unit Table 2.1 Parts of iServer Unit... -
Page 14: Wiring
2.4 Wiring Figures 2.7 shows the signals on the 8 Position Connector. SIGNAL CHANNEL CONN. CHANNEL A CHANNEL A OUT A CHANNEL A IN A CHANNEL A CHANNEL B CHANNEL B OUT B CHANNEL B IN B CHANNEL B 1 2 3 4 5 6 7 8 Figure 2.7a Wall Mount iServer 8 Position Connector 1 2 3 4 SIGNAL... -
Page 15: Network Communication Interfaces
2.5 Network Communication Interfaces 2.5.1 10Base-T RJ-45 Pinout The 10BASE-T Ethernet network (RJ-45) system is used in the iServer for network connectivity. The 10 Mbps twisted-pair Ethernet system operates over two pairs of wires. One pair is used for receiving data signals and the other pair is used for transmitting data signals. -
Page 16: Part 3: Network Configuration
PART 3 NETWORK CONFIGURATION 3.1 Network Protocols The iServer can be connected to the network using standard TCP/IP protocols. It also supports ARP, HTTP (WEB server), DHCP, DNS and Telnet protocols. 3.2 Ethernet (MAC) Address MAC (Media Access Control) address is your computer's unique hardware number. When you're connected to the LAN from your computer, a correspondence table relates your IP address to your computer's physical (MAC) address. -
Page 17: Dhcp
3.3 DHCP DHCP, Dynamic Host Configuration Protocol enables individual computers or devices to extract their IP configurations from a server (DHCP server). If the DHCP is enabled on your iServer, as soon as the iServer is connected to the network, there is an exchange of information between DHCP server and the iServer. -
Page 18: Ip Address
3.5 IP Address Every active device connected to the TCP/IP network must have a unique IP address. This IP address is used to build a connection to the iServer. Every computer using TCP/IP should have a unique 32-bit address. It is divided into two portions, the network ID and the host ID. -
Page 19: Part 4: Operations
PART 4 OPERATIONS This iServer can be used and configured in several ways, depending on user’s preference and network setup. It can be configured using a Web browser, like Netscape or Internet Explorer. It can also be configured using NEWPORT’s iCONNECT Configuration Software. -
Page 20: Iconnect Software
4.1 iCONNECT Software The iServer may also be assigned an IP Address by using the iCONNECT software. Download the iCONNECT software from the website listed in this manual. Install iCONNECT software on a networked PC. This software is compatible with Windows 95, NT, 2000, and XP. -
Page 21: Setting A New Ip Address Over The Network
4.2 Setting a New IP Address over the Network Besides using the iCONNECT software, you may use the iServer’s default IP address to access it and assign a new IP address to it. The iServer is shipped with a default IP address of 192.168.1.200 and Subnet Mask of 255.255.255.0. -
Page 22: Setup And Operation Using A Web Browser
4.3 Setup and Operation Using a Web Browser • Start your web browser. • In the URL field, type http://eisxxxx using the last four-digits from the MAC address label located on the device (see Figure 3.1) if DHCP and DNS are used. •... -
Page 23: Login
4.4 Login In order to access certain menu items of the Home Page, users may be prompted for a password, as shown in Figure 4.6. LOGIN ADMINISTRATOR http://192.168.1.200 http://192.168.1.200 LOGIN ADMINISTRATOR Figure 4.6 LOGIN and ADMINISTRATOR Passwords There are 2 different access levels: 1. -
Page 24: Browser Proxy Selection
4.5.1 Browser Proxy Selection Accessing iServer units within your internal network • Usually when the computer and iServer are on an internal network, you will not use Proxy server access. • You should un-check the "Use Browser Settings" option on the "Proxy" tab. Accessing iServer units using the internet •... -
Page 25: Iserver Operation Basic Menus
4.6 iServer Operation Basic Menus 4.6.1 Chart Descriptions SERVER HOME PAGE http://192.168.1.200 R & D Engr.Lab Rate Monitor 5000 4000 CH A: 3088 HZ CH B: 4561 HZ 3088.0 5000.0 (BAR CHART) 4561.0 4000.0 10000 Message: Mon Nov 24 15:24:05 PST 2003 1Minute(1Sec/Div) Mon Nov 24 15:57:43 PST 2003 a=Frequency ;b=0.0;c=3089;d=4559 ;e=Rate Monitor;... - Page 26 4.6.1 Chart Descriptions (continued) Chart Option Pull-Down Menu, which allows users to select Bar chart type Figure 4.8 or Line chart type Figure 4.9. Graphical Display of Chart, either Bar or X-axis Line Chart. Enter your setting for Minimum Range of Measurement for graphical display. Enter your setting for Maximum Range of Measurement for graphical display.
-
Page 27: Table 4.1 Message Item Window Description
4.6.1 Chart Descriptions (continued) Message Window is described below. Table 4.1 Message Item Window Description Message: Content Description: Item: Function Device Measurement Mode/Type CH A & CH B Combined input reading (A-B F or A-B T mode) CH A input reading value CH B input reading value Your own-defined Name of Experiment/Measurement Task Unit of Input Value (definable) -
Page 28: Device Configuration Page Items' Description And Concepts Of Setup
4.7 Device Configuration Page Items’ Description and Concepts of Setup: From the Home Page click on CONFIGURATION button to get to the Configuration/Device Setup page (see Figure 4.9). Users will be prompted with a Login Page to enter a password, default password is 12345678 and then click OK. There are five types of settings in the Configuration Page, which should be saved by the reserved Save Button: Device Type / Operation Mode Selection. -
Page 29: Device Type/Mode Selection
4.7.1 Device Type/Mode Selection: This is one of the first choice that users must decide and choose to operate device for the requirement of applications. Using your Web Browser, users can configure this device to operate either with universal single or dual input channels in following available modes as Device Type Selection Pull-Down Menu illustrated: Save Device Type Selection Frequency... -
Page 30: Totalizer Mode
4.7.1.2 Totalizer Mode This mode is operated commonly as event counter or recorder as either with single A or B channel or If there are dual inputs, both Input values will be totalized or accumulated and displayed graphically and digitally until Reset Timer Button restart measurement of both Channels at zero or the Offset values. -
Page 31: Figure 4.10 Example Of Totalizer Mode
4.7.1.2 Totalizer Mode (continued) SERVER HOME PAGE http://192.168.1.200 Assembly Dept. 6000 PCB Productivity CH A: 4526 PCBs CH B: 5363 PCBs Chart 10000 Message: Mon Nov 24 15:24:05 PST 2003 1Minute(1Sec/Div) Mon Nov 24 15:57:43 PST 2003 a=Totalizer;b=0.0;c=4423;d=5240;e=PCB Productivity;f=PCBs;g=010;h=120;i=6000;j=463;k=3524;l=+;m=12:50:03 Nov,22 2003; a=Totalizer;b=0.0;c=4474;d=5302;e=PCB Productivity;f=PCBs;g=110;h=120;i=6000;j=463;k=3524;l=+;m=12:50:04 Nov,22 2003;... -
Page 32: Batch Mode
4.7.1.3 Batch Mode This mode is for either single or dual input counting and monitoring visually number of definable batches that is required by users’ application. To setup Batch value (unit count) and Batch mode, users must access Configuration Page for detail of setting descriptive parameters. -
Page 33: Figure 4.11 Example Of Batch Mode
4.7.1.3 Batch Mode (continued) SERVER HOME PAGE http://192.168.1.200 Assembly Dept. 3199 Batch A: 12000 Batch B: PCB Productivity CH A: 727 PCBs CH B: 1986 PCBs Chart 15000 Message: Mon Nov 24 15:24:05 PST 2003 1Hour(1Minute/Div) Mon Nov 24 15:57:43 PST 2003 a=Batch ;b=0;c=620;d=1860;e=PCB Productivity;f=PCBs;g=000;h=3199;i=12000;j=89;k=28;l=+;m=12:50:03 Nov,22 2003;... -
Page 34: A-B F Mode
4.7.1.4 A-B F Mode This mode is designed to operate with dual input pulse rate or frequency sources. Its main function is to perform 4 common types of calculation (addition, subtraction, multiplication and division) of 2 input values at a specific time and display the result digitally as well as graphically with 2 types of chart, 6 types of time scale. -
Page 35: Figure 4.12 Example Of A-B F Mode
4.7.1.4 A-B F Mode (continued) SERVER HOME PAGE http://192.168.1.200 Assembly Dept. 3199.9 12000.0 PCB Productivity A-B: 200.6 PCBs CH A: 257.0 PCBs CH B: 56.4 PCBs Chart Message: 1Day(1Hour/Div) Mon Nov 24 15:24:05 PST 2003 Mon Nov 24 15:57:43 PST 2003 a=A-B F Mode;b=200;c=257;d=56;e=PCB Productivity;f=PCBs;g=100;h=3199.9;i=12000;j=209;k=65;l=-;m=12:50:03 Nov,22 2003;... -
Page 36: A-B T Mode
4.7.1.5 A-B T Mode This mode has almost the same setup procedure and operation as A-B F mode required. However Dual input channels will be totalized and additional A-B T combined input calculated values would change significantly except if A-B Mode pull-down Menu is selected with “... -
Page 37: Figure 4.13 Example Of A-B T Mode With Bar Chart
4.7.1.5 A-B T Mode (continued) SERVER HOME PAGE http://192.168.1.200 Assembly Dept. 3199 12000.0 PCB Productivity A/B: 3 PCBs CH A: 82916 PCBs CH B: 23733 PCBs 82916.0 3199.0 23733.0 12000.0 100000 Message: 1Day(1Hour/Div) Mon Nov 24 15:24:05 PST 2003 Mon Nov 24 15:57:43 PST 2003 a=A-B T Mode;b=3;c=81441;d=23310;e=PCB Productivity;f=PCBs;g=100;h=3199;i=12000;j=209;k=65;l=/;m=12:50:03 Nov,22 2003;... -
Page 38: Quadrature Mode
4.7.1.6 Quadrature Mode This mode configures device to operate with two 90° phase shifted input signals A and B from linear or rotational revolvers. The counting direction of Channel A is automatically derived from the phase of the signals A and B that is designed for very fast, high-pulse rate totalizing measuring and positioning applications and to utilize the outputs of Rotary Pulse Generators (RPG’s), Tachometers, Motion Monitors and Controls Devices or Equipments. -
Page 39: Figure 4.14 Example Of Quadrature Mode
4.7.1.6 Quadrature Mode (continued) SERVER HOME PAGE http://192.168.1.200 Assembly Dept. Motion Monitor CH A: 97574 PPR CH B: 1138 PPR Chart -10000 100000 Message: 1Minute(1Sec/Div) Mon Nov 24 15:24:05 PST 2003 Mon Nov 24 15:57:43 PST 2003 a=Quadrature ;b=0;c=95228;d=1138;e=Motion Monitor;f=PPR;g=011;h=200;i=100;j=2;k=0;l=/;m=12:50:03 Nov,22 2003; a=Quadrature ;b=0;c=96411;d=1138;e=Motion Monitor;f=PPR;g=011;h=200;i=100;j=2;k=0;l=/;m=12:50:03 Nov,22 2003;... -
Page 40: Totalizer Gate Mode
4.7.1.7 Totalizer Gate Mode This mode offers total control to users with the uses of Channel A to Controlling and triggering signal to start, pause or restart the counting of totalizing Channel B input value which is served as the main input for measurement. Users can manually control by just creating an on-off toggle switch at the input terminal of channel A. -
Page 41: Figure 4.15 Example Of Totalizer Gate Mode
4.7.1.7 Totalizer Gate Mode (continued) SERVER HOME PAGE http://192.168.1.200 Assembly Dept. Motion Monitor CH B: 84206 PPR Chart 100000 Message: Mon Nov 24 15:24:05 PST 2003 1Minute(1Sec/Div) Mon Nov 24 15:57:43 PST 2003 a=Totalizer Gate ;b=0;c=0;d=81882;e=Motion Monitor;f=PPR;g=101;h=200;i=100;j=2;k=0;l=/;m=12:50:03 Nov,22 2003; a=Totalizer Gate ;b=0;c=0;d=83100;e=Motion Monitor;f=PPR;g=101;h=200;i=100;j=2;k=0;l=/;m=12:50:04 Nov,22 2003; a=Totalizer Gate ;b=0;c=0;d=84206;e=Motion Monitor;f=PPR;g=101;h=200;i=100;j=2;k=0;l=/;m=12:50:05 Nov,22 2003;... -
Page 42: Setpoint, Alarm And Alarm Output Operation Config
4.7.2 SetPoint, Alarm and Alarm Output Operation Configuration To setup Alarm1 / Alarm2 operations or Batches’ values and access Configuration Page. Locate the section as illustrated in Figure 4.16: 5.00000000e+03 SP1 Value SP1 Latch Mode Unlatch Above SP1 Active Mode SP1 Dead Band High SP1 Active Status... -
Page 43: Sp2 Value
4.7.2.6 SP2 Value Enter desired value for Alarm2 Setpoint or B Batch and its factory default value is 0. Whatever number is entered for modifying The SP2 Value or B Batch will be displayed in exponential format after SAVE button is pressed or clicked. 4.7.2.7 SP2 Latch Mode Select either “Unlatch”... -
Page 44: Operation Condition Parameters
4.7.4 Operation Condition Parameters This section of Configuration Page allows users to setup: Input Reading Scale & Offset Reading configuration: Gate time, Debounce time, Reading Format, Number of Digit and Decimal Point. Counting Mode: Direction and A-B Channel combined modes. A Scale 1.00000000E-00 A Offset... -
Page 45: Input Reading Scale & Offset
4.7.4.1 Input Reading Scale & Offset Users can setup dual channel reading Scale and Offset as described following: Any edited/modified value with decimal point must be matched with existing Decimal Point setting in Operation Condition Parameters Section 4.7.4.1.11 of Configuration Page. 4.7.4.1.1 A Scale: Choose and setup up Channel A input reading displayed in different scale. -
Page 46: Reading Format
4.7.4.1.9 Reading Format: Select 2 available Format options for all Readings as following: Decimal (as default) or Exponent to display on the Chart. 4.7.4.1.10 Number of Digit: For users’ application and equipment requirement of a limited number of digits to be displayed properl. For example: user may want to connect with remote display, which always has hardware limitation in term of number of display digits. -
Page 47: Terminal/Remote (Tunneling) Server Setup
4.7.5 Terminal / Remote (Tunneling) Server Setup TCP/UPD Server Type Continuous Number of Connections Port 2000 disable Remote Access Remote Port 2000 Remote IP Address 0.0.0.0 Save Figure 4.19 Terminal / Remote (Tunneling) Server Setup 4.7.5.1 TCP/UDP*: The iServer supports TCP and UDP protocols (default is TCP). If UDP is selected, it can be configured either for Broadcast UDP or Directed UDP. -
Page 48: Port
4.7.5.4 Port: Port 2000 is the default TCP port for the iServer’s port to which the device is connected. Ports 1000 (used for HTTPget, refer to Section 4.9) , 2002, 2003, and 2004 are reserved for internal use. Terminal Server usually describes a device that exchanges data between Ethernet/TCPIP networks and RS-232/RS-485 systems. -
Page 49: List Of Available Communication Commands
4.7.5.8 List of Available Communication Commands: Table 4.2 List of Communication Commands Command Command Function List Response a=xxx Device Measurement Mode/Type b=xxx CH A & CH B Combined input reading (A-B F or A-B T Mode) c=xxx CH A input reading value d=xxx CH B input reading value e=xxx... -
Page 50: Telnet Setup
4.8 Telnet Setup Telnet stands for Telecommunications Network, is a protocol that provides a way for users (or clients) to connect to computers (or servers) on a network, whether in the next building or across the world. Example: C:\>Telnet 192.168.1.200 2002 You will then get the following screen. -
Page 51: Sending *Srp Command For Data Parameter String
4.8.3 Sending *SRP command for Data Parameter String Refer to Figure 4.21, the response is identical to the Message Item Window display data. Refer to Table 3.1 iServer Device Chart for details. Telnet 192.168.1.200 a=Frequency ;b=0.0;c=705.8;d=216.0;e=Dual F.Counter; f=Hz; g=111; h=0.0;i=0.0;j=0;k=0;l=+;m=04:25:46 Jan,02 2003; Figure 4.21. -
Page 52: Httpget Program
4.9 HTTPGET Program The Httpget software is used to send a single HTTP or TCP request to an iServer product. In contrast, the telnet or Hyperterminal programs allow a continuous connection with multiple requests to be sent to the iServer product. Generally httpget is used for simply programming an IP address to the iServer or for quickly obtaining a reading of from a device. -
Page 53: Figure 4.23 Example Of Using Httpget Program
4.9.1 HTTPGET using Port 1000 (continued) where: -r –S are parameters needed for the command string *SRA is the read command (of Channel A) in the first line. *SRB is the read command (of Channel B) in the second line. *SRP is the read command (of data string including configuration and all reading values) in the third line. -
Page 54: Httpget And Arp To Setup Device Ip Address
4.9.2 HTTPGET and ARP to setup Device IP Address Use the iCONNECT software, which may be downloaded from our website, to do these IP changes whenever possible. Use ARP first to assign the mac address to a static IP address in computer arp table by this command: apr –s 192.168.1.200 00-03-34-00-00-06-b6 Then use the following command to assign new IP to the device:... -
Page 55: Remote Access (Tunneling)
4.10 ARP Protocol (continued) Figure 4.24 ARP Commands and Responses 4.11 Remote Access (Tunneling) To "tunnel", in this context, is to transmit data between two points through a private conduit on a shared or public network. The network could be an Ethernet LAN, a WAN, or the Internet. -
Page 56: Local Iserver
4.11.1 Local iServer 1. An IP address should be assigned to the iServer either statically or using a DHCP server. 2. Use a browser to access iServer’s WEB server. Simply type the iServer’s IP address at the browser’s URL location (i.e. http://192.168.1.200). 3. -
Page 57: Remote Iserver
4.11.2 Remote iServer An IP address should be assigned to the Frequency Pulse iServer either statically or using a DHCP server. Use a browser to access iServer’s WEB server. Simply type the iServer’s IP address at the browser’s URL location (i.e. http://192.168.1.84). Click on Update button. -
Page 58: Access Control Descriptions And Functions
4.12 Access Control Descriptions and Functions This section describes the "Access Control" page of the iServers’s Web interface (although some of the items of this page where described in previous Section 4.2). This page allows the users to set up the network and security parameters of the iServer. To get into the Access Control page, the user will be prompted with an Admin Password. -
Page 59: Ilog Software
4.12 Access Control Descriptions and Functions (continued) Gateway Address: A gateway is a network point that acts as an entrance to another network. A gateway is often associated with a router, which knows where to direct a given packet of data that arrives at the gateway. If the iServer is sending packets to another network node that is not on the same network on which the iServer is connected, a gateway address needs to be given to the iServer. -
Page 60: Mail Notifier Software
4.14 Mail Notifier Software The Mail Notifier Software can be used only with NEWPORT Electronics instruments. For complete information of how to use the Mail Notifier software, click on the Help menu of the main window. The Mail Notifier software generates email notifications for alarm conditions. Users can be notified automatically of alarm conditions monitored via internet connections throughout the world. -
Page 61: Program Options Setup And Configuration
4.14.2 Program Options Setup and Configuration Complete program setup requires: Options • Entering a recipient for Send To Email Setup Content Startup General the email Mail Server • Specifying connection details to MAPI services. MAPI • Defining alarms for devices, Use Login Name/Profile and selecting how and when... -
Page 62: Device Setting Setup And Configuration
4.14.3 Device Setting and Configuration Device setup requires: • Entering the IP address for iServer device (for example 192.168.1.200). • Specifying Socket number (1000 or 2000 depending on iServer settings). • Defining RS485 Unit # interface address (1 to 199). Enter "0" for RS232 interface or for iServer. -
Page 63: Part 5: Specifications
Output A and B: PART 5 Open-collector transistors, rated 150mA SPECIFICATIONS sink, 30V. For external supply. INPUT TYPE ISOLATION Dual Input A and B: Dielectric strength per 1 minute test based Min. Low level signal input on EN 61010. (magnetic pickups): 120 mV iFPX-W: Power to ethernet: 1500 Vrms (SW3: #6, #8 “ON”) Open Collector NPN:... - Page 64 POWER INPUT - iFPX-D Input: 10-32 Vdc Consumption: 2 W max. (DC Power supply sold separately) POWER INPUT - iFPX-PCB Input: 5 Vdc @ 150 mA ENVIRONMENTAL Operating Temperature: 0 to 70°C (32 to 158°F) Storage Temperature: -40 to 125°C (-40 to 257°F) Relative Humidity: 90% @ 40°C non-condensing PACKAGING - iFPX-W...
-
Page 65: Part 6: Factory Preset Values
PART 6 FACTORY PRESET VALUES PRESET PARAMETERS FACTORY DEFAULTS Network Interface: IP Address 192.168.1.200 Gateway Address 0.0.0.0 Subnet Mask 255.255.255.0 Device Host Name eis and Last 4 digits from the MAC address Login Password 12345678 Admin Password 00000000 DHCP Disabled Flow Control None End Character... -
Page 66: Appendix A Glossary
Appendix A GLOSSARY User of this manual should be familiar with following definitions: ARP (Address Resolution Protocol) is a protocol for mapping an Internet Protocol address (IP address) to a physical machine address that is recognized in the local network. For example, the IP address in use today is an address that is 32-bits long. In an Ethernet local area network, however, addresses for attached devices are 48-bits long. - Page 67 Appendix B IP Address An IP address is a unique 32-bit address assigned to a computer and includes: • A network ID number identifying a network. • A host ID number identifying a computer on the network. All IP addresses have been divided into three smaller groups (classes) A, B and C •...
-
Page 68: Appendix Cip Netmask
Appendix C IP Netmask IP Netmask or Subnet Mask is a 32-bit pattern of ones and zeros used to determine network portion of an IP address from the host portion of the IP address. Subnet mask is a network ID that is created by borrowing bits from host portion of IP address and using them as part of a network ID. -
Page 69: Appendix Dascii Chart
Appendix D ASCII Chart ASCII Binary ASCII Binary Char No Parity Char No parity 00000000 01000000 00000001 01000000 00000010 01000010 00000011 01000011 00000100 01000100 00000101 01000101 00000110 01000110 00000111 01000111 00001000 01001000 00001001 01001001 00001010 01001010 00001011 01001011 00001100 01001100 00001101 01001101 00001110... - Page 70 Appendix D ASCII Chart Continuation 00101111 01101111 00110000 01110000 00110001 01110001 00110010 01110010 00110011 01110011 00110100 01110100 00110101 01110101 00110110 01110110 00110111 01110111 00111000 01111000 00111001 01111001 00111010 01111010 00111011 01111011 < 00111100 01111100 00111101 01111101 > 00111110 01111110 00111111 01111111 ASCII Control Codes ASCII Dec Hex Ctrl Key...
-
Page 71: Appendix E Ilog Error Messages
Appendix E iLog Error Messages Error # Description Note -8003 User stopped logging readings. -10005 Failed to find the iServer. Ethernet cable is disconnected, iServer is powered off, connections across the firewall require longer “connection to socket time out” setting. -10006 Windows socket was closed. -
Page 72: Part 7: Approvals Informatio
PART 7 APPROVALS INFORMATION 7.1 CE APPROVAL This product conforms to the EMC directive 89/336/EEC amended by 93/68/EEC, and with the European Low Voltage Directive 72/23/EEC. Electrical Safety EN61010-1:2001 Safety requirements for electrical equipment for measurement, control and laboratory. Basic Insulation Pollution Degree 2 Dielectric withstand Test per 1 min •... - Page 73 WARRANTY/DISCLAIMER OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of one (1) year from the date of purchase. In addition to OMEGA’s standard warranty period, OMEGA Engineering will extend the warranty period for one (1) additional year if the warranty card enclosed with each instrument is returned to OMEGA.
- Page 74 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop on line at omega.com TEMPERATURE R Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies R Wire: Thermocouple, RTD & Thermistor R Calibrators & Ice Point References R Recorders, Controllers &...
