Figure 4.11 Example Of Batch Mode - Omega iServer Microserver User Manual

4.7.1.3 Batch Mode (continued)
SERVER HOME PAGE
http://192.168.1.200
PCB Productivity
CH A: 727 PCBs
0
Message:
Mon Nov 24 15:24:05 PST 2003
a=Batch ;b=0;c=620;d=1860;e=PCB Productivity;f=PCBs;g=000;h=3199;i=12000;j=89;k=28;l=+;m=12:50:03 Nov,22 2003;
a=Batch ;b=0;c=674;d=1923;e=PCB Productivity;f=PCBs;g=100;h=3199;i=12000;j=89;k=28;l=+;m=12:50:04 Nov,22 2003;
a=Batch ;b=0;c=727;d=1986;e=PCB Productivity;f=PCBs;g=000;h=3199;i=12000;j=89;k=28;l=+;m=12:50:05 Nov,22 2003;
Applet pulse started
For Batch Mode ID, observe Message Item Window and notice items following:
a= Batch
c=CH A input count reading is totalizing and restart as Batch A value
reached/passed
d=CH B input count reading is totalizing and restart as Batch B value
reached/passed
h=CH A Batch (unit count) value
i=CH B Batch (unit count) value
j= Number of Batches counted via CH A input
k= Number of Batches counted via CH B input
Assembly Dept.
SP1 3199 Batch A:
1Hour(1Minute/Div)
Reset Timer Reset Latch A Reset Latch B

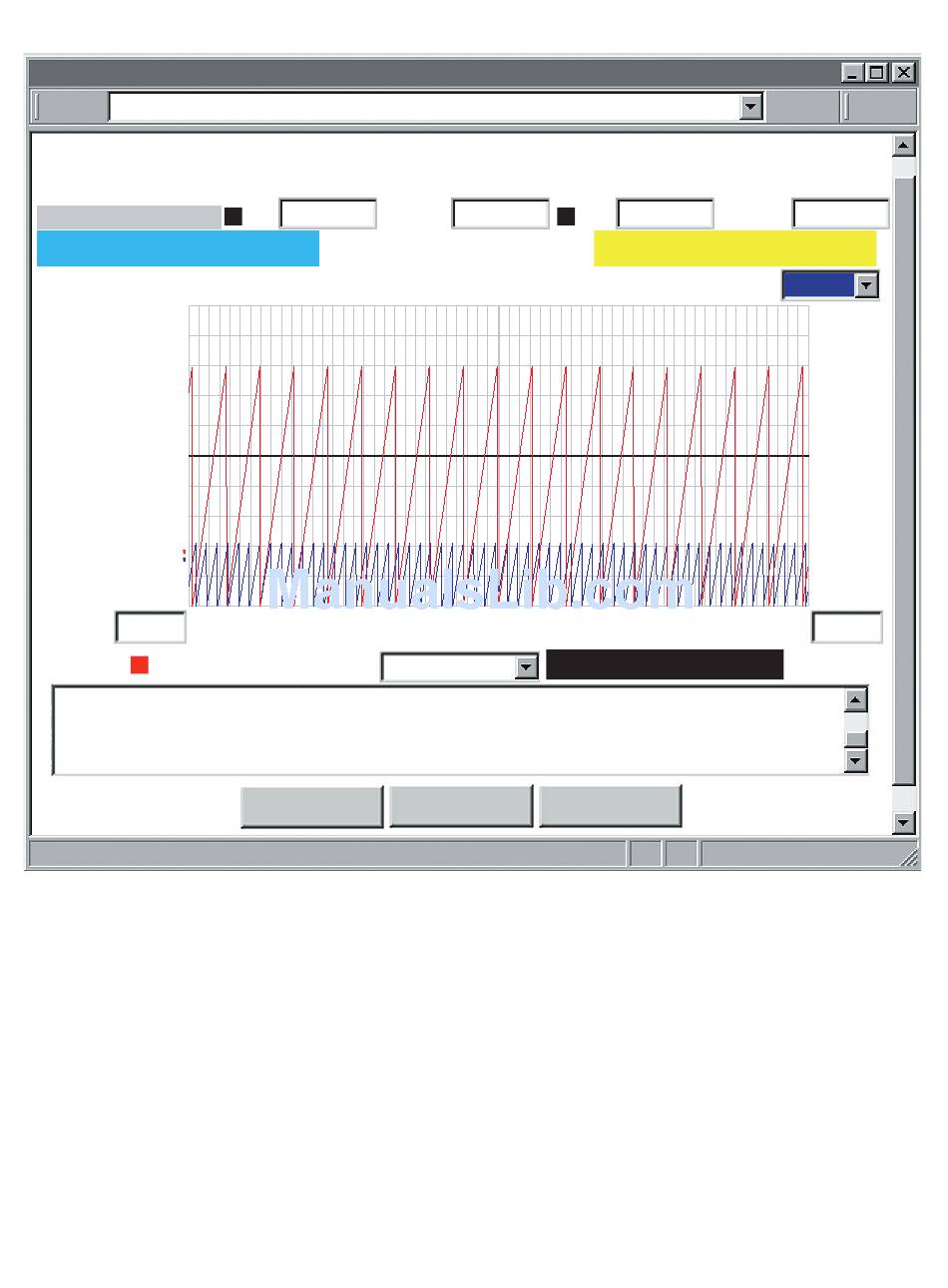

Figure 4.11 Example of Batch Mode

89 SP2 12000
CH B: 1986 PCBs
Mon Nov 24 15:57:43 PST 2003
27
Batch B: 28
