Figure 4.12 Example Of A-B F Mode - Omega iServer Microserver User Manual

4.7.1.4 A-B F Mode (continued)
SERVER HOME PAGE
http://192.168.1.200
PCB Productivity
A-B: 200.6 PCBs
0
Message:
Mon Nov 24 15:24:05 PST 2003
a=A-B F Mode;b=200;c=257;d=56;e=PCB Productivity;f=PCBs;g=100;h=3199.9;i=12000;j=209;k=65;l=-;m=12:50:03 Nov,22 2003;
a=A-B F Mode;b=200;c=257;d=56;e=PCB Productivity;f=PCBs;g=100;h=3199.9;i=12000;j=209;k=65;l=-;m=12:50:04 Nov,22 2003;
Applet pulse started
For A-B F Mode ID, observe Message Item Window and notice items following:
a= A-B F Mode
b= combined (calculated results of A&B) input reading value.
c=CH A input value
d=CH B input value
j= not applied ( previous Number of Batch Mode Measurement)
k= not applied ( previous Number of Batch Mode Measurement)
Assembly Dept.
SP1 3199.9
CH A: 257.0 PCBs
1Day(1Hour/Div)
Reset Timer Reset Latch A Reset Latch B

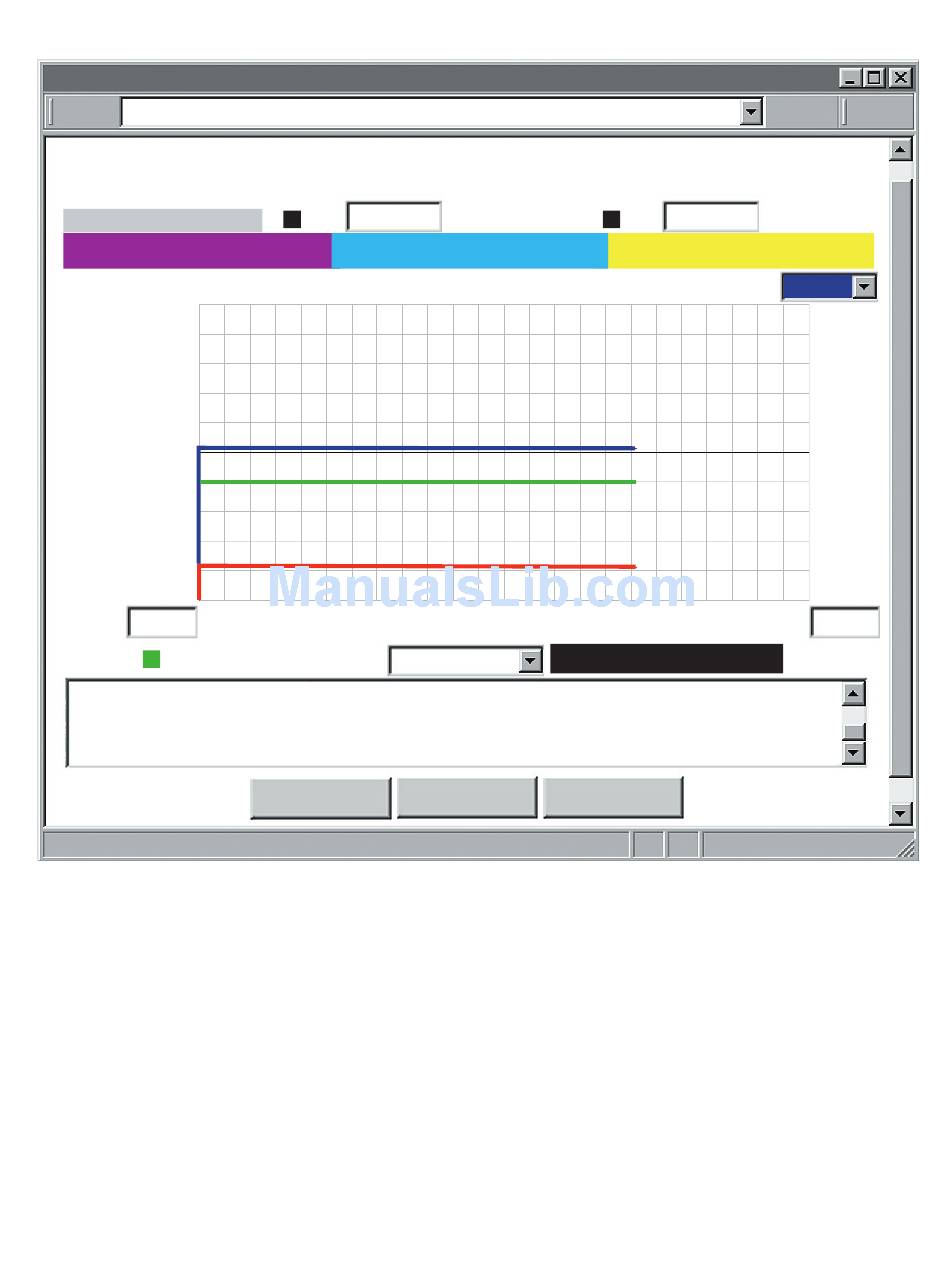

Figure 4.12 Example of A-B F Mode

SP2
CH B: 56.4 PCBs
Mon Nov 24 15:57:43 PST 2003
29
12000.0
Chart
500
