2.2 DIP Switches
2.2.1 SW1 DIP Switch Usage
The iServer is shipped with all SW1 DIP switches in "OFF" position.
1)
N/C - not used
2)
To change to default factory settings
3)
To enable/disable DHCP
4)
N/C - not used
To set the iServer to factory default settings, slide SW1 DIP switch #2 to ON
position. Power the iServer on and wait about 10 seconds until the iServer fully
boots up. Set the SW1 DIP switch #2 back to OFF position (it does not matter if
the iServer is powered ON or OFF, just make sure that the DIP switch is set to
OFF, otherwise, every time the unit is power-cycled the factory settings will take
over.
To enable the DHCP, besides using SW1 DIP switch #3, set the iServer's IP
address to 0.0.0.0. An iServer with IP address of 0.0.0.0 will request an IP
address, gateway address, and subnet mask from the DHCP server over the
Ethernet.
SW1
1
2
3
4
SW3
8
ON
7
6
5
4
OFF
3
2
1

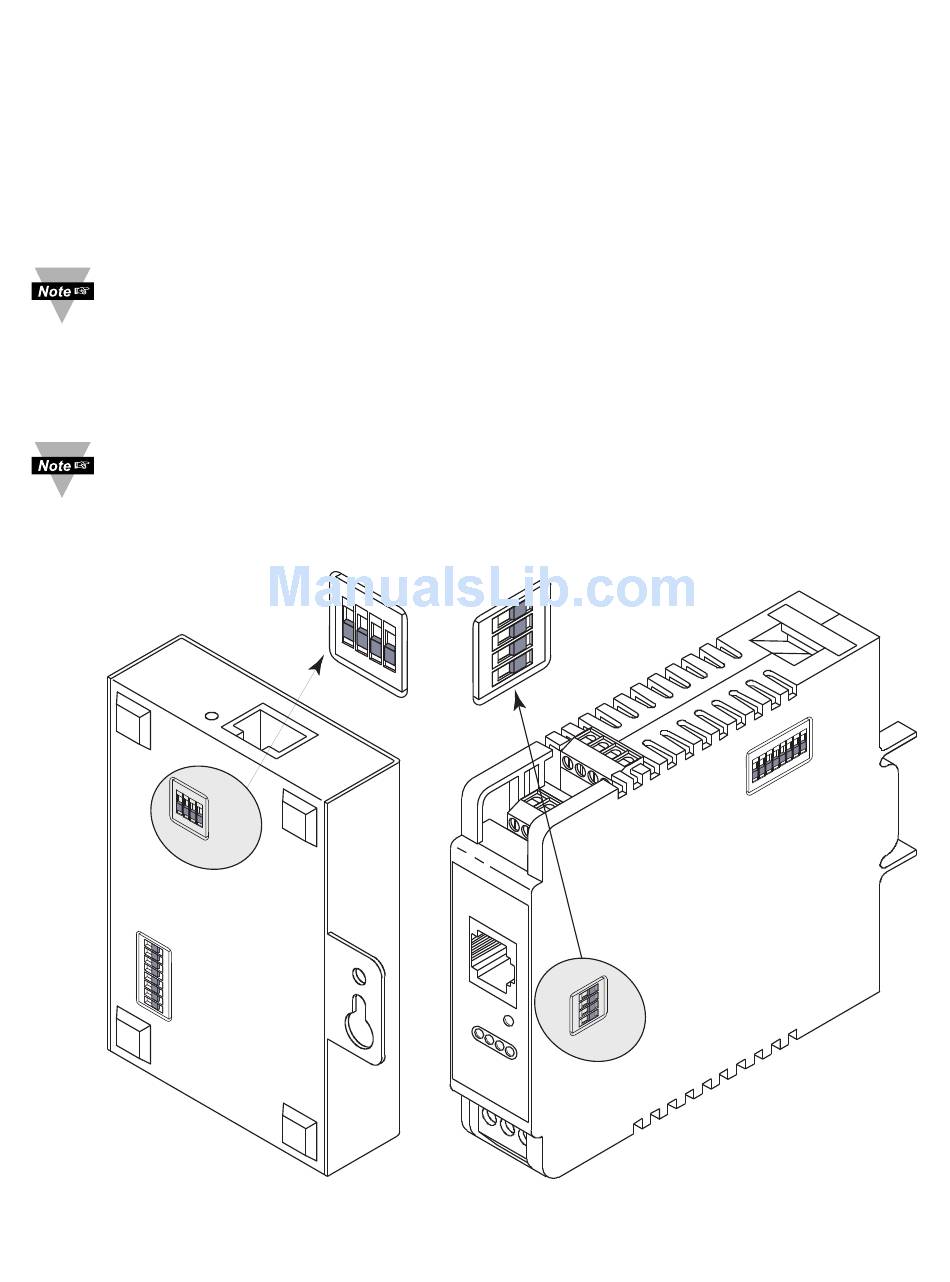

Figure 2.4a
