AWG2021 Service Manual

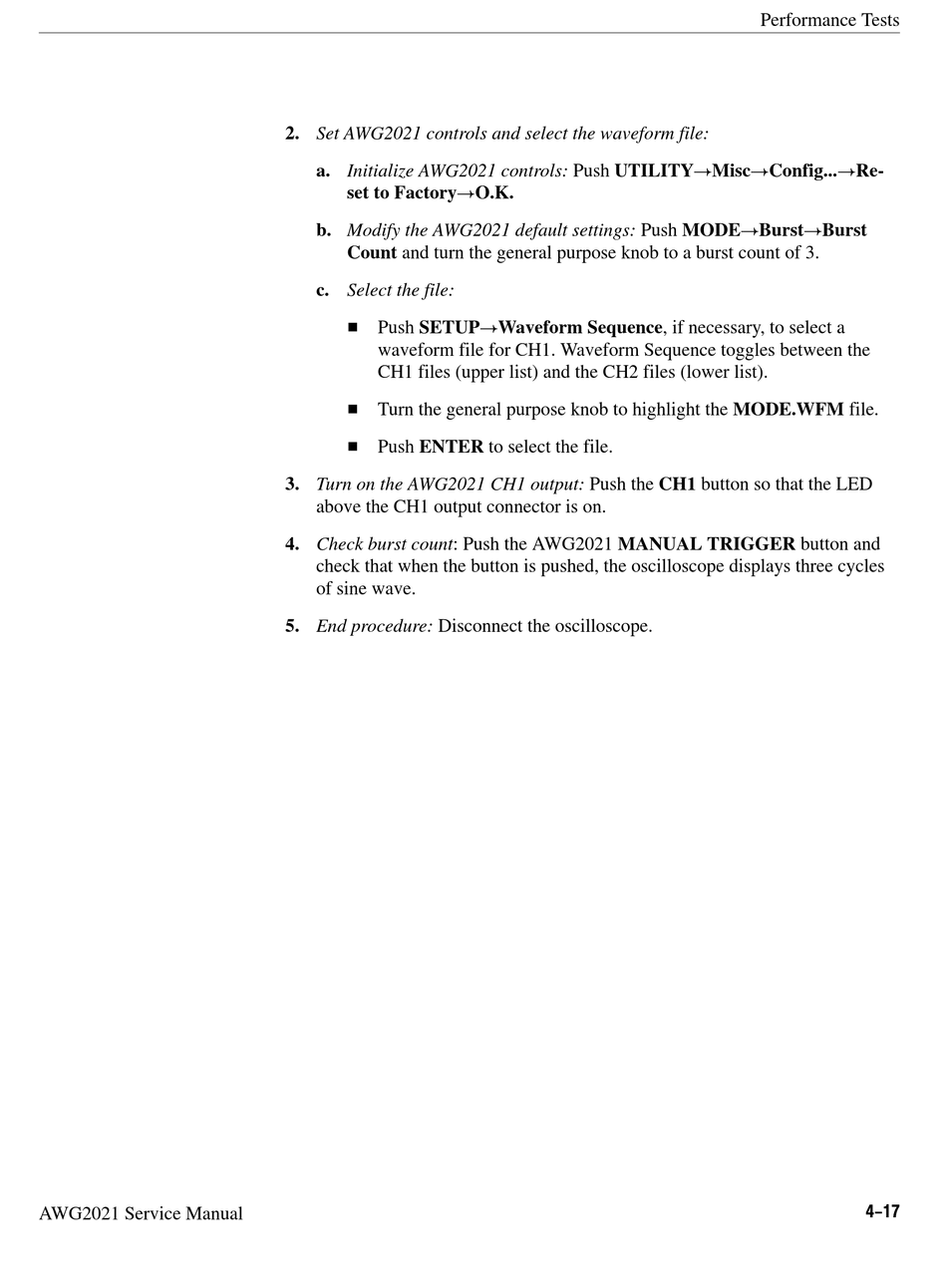

2. Set AWG2021 controls and select the waveform file:
a. Initialize AWG2021 controls: Push UTILITY!Misc!Config...!Re-
set to Factory!O.K.
b. Modify the AWG2021 default settings: Push MODE!Burst!Burst
Count and turn the general purpose knob to a burst count of 3.
c. Select the file:
H Push SETUP!Waveform Sequence, if necessary, to select a
waveform file for CH1. Waveform Sequence toggles between the
CH1 files (upper list) and the CH2 files (lower list).
H Turn the general purpose knob to highlight the MODE.WFM file.
H Push ENTER to select the file.
3. Turn on the AWG2021 CH1 output: Push the CH1 button so that the LED
above the CH1 output connector is on.
4. Check burst count: Push the AWG2021 MANUAL TRIGGER button and
check that when the button is pushed, the oscilloscope displays three cycles
of sine wave.
5. End procedure: Disconnect the oscilloscope.
Performance Tests
4-17
