Pulse Response Check

AWG2021 Service Manual
This procedure checks the pulse response characteristics of the AWG2021 output
waveforms at amplitudes of 0.5 V and 1 V.
Electrical
Main Outputs, Pulse Response, on page 1-10.
Characteristic
Checked
Equipment One 50 W coaxial cable
Required
One oscilloscope
Prerequisites The AWG2021 meets the prerequisites listed on page 4-7.
1. Install test hookup and set test equipment controls:
a. Hook up the oscilloscope: Connect the AWG2021 CH1 output connector
through the coaxial cable to the CH1 vertical input connector on the
oscilloscope (see Figure 4–15).
AWG2021
AWG2021

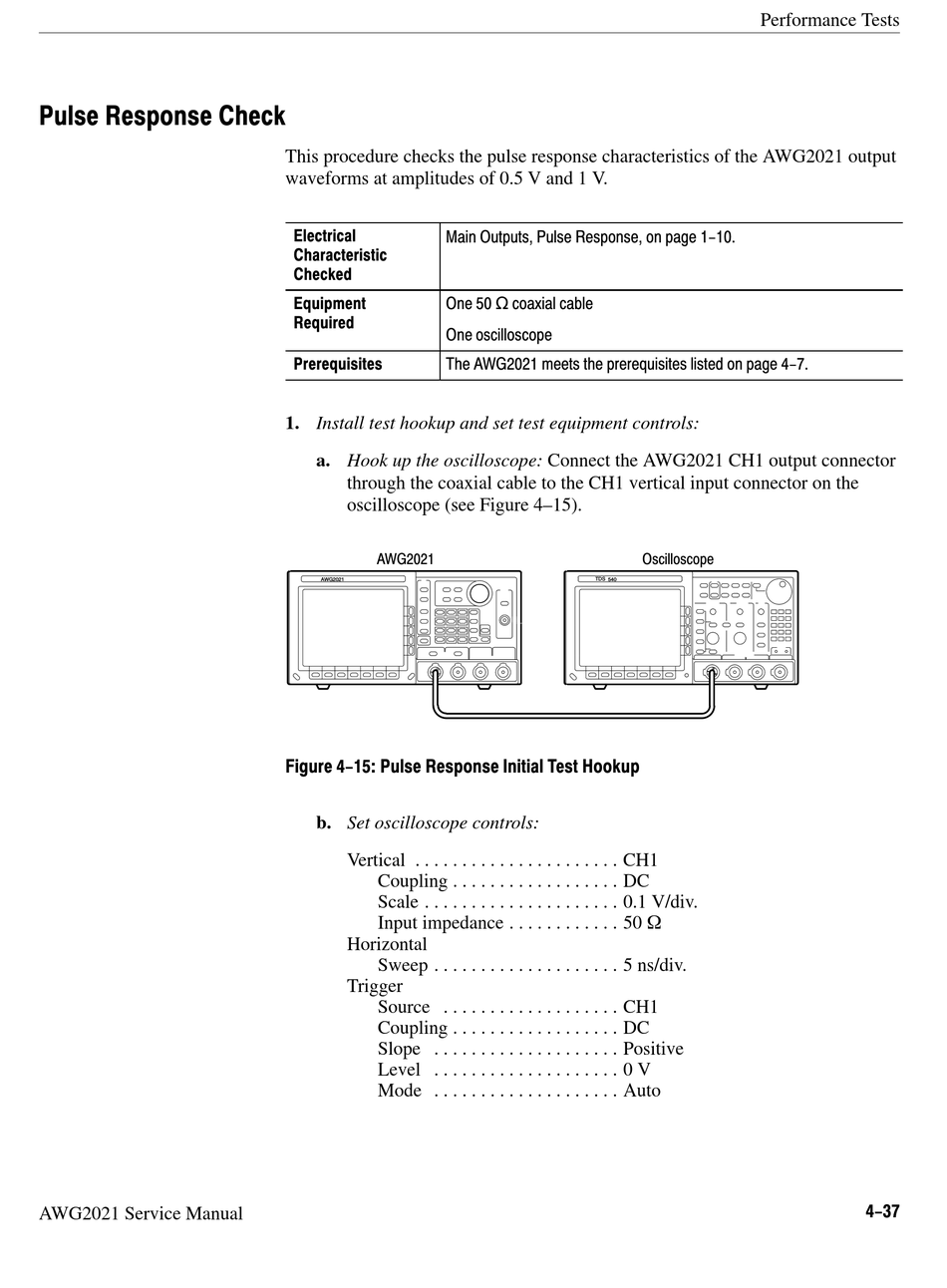

Figure 4-15: Pulse Response Initial Test Hookup

b. Set oscilloscope controls:
Vertical . . . . . . . . . . . . . . . . . . . . . .
Coupling . . . . . . . . . . . . . . . . . .
Scale . . . . . . . . . . . . . . . . . . . . .
Input impedance
Horizontal
Sweep . . . . . . . . . . . . . . . . . . . .
Trigger
Source . . . . . . . . . . . . . . . . . . .
Coupling . . . . . . . . . . . . . . . . . .
Slope . . . . . . . . . . . . . . . . . . . .
Level . . . . . . . . . . . . . . . . . . . .
Mode . . . . . . . . . . . . . . . . . . . .
Oscilloscope
TDS 540
CH1
DC
0.1 V/div.
50 W
. . . . . . . . . . . .
5 ns/div.
CH1
DC
Positive
0 V
Auto
