Removal and Installation Procedures
(1) Push
(2) Slide

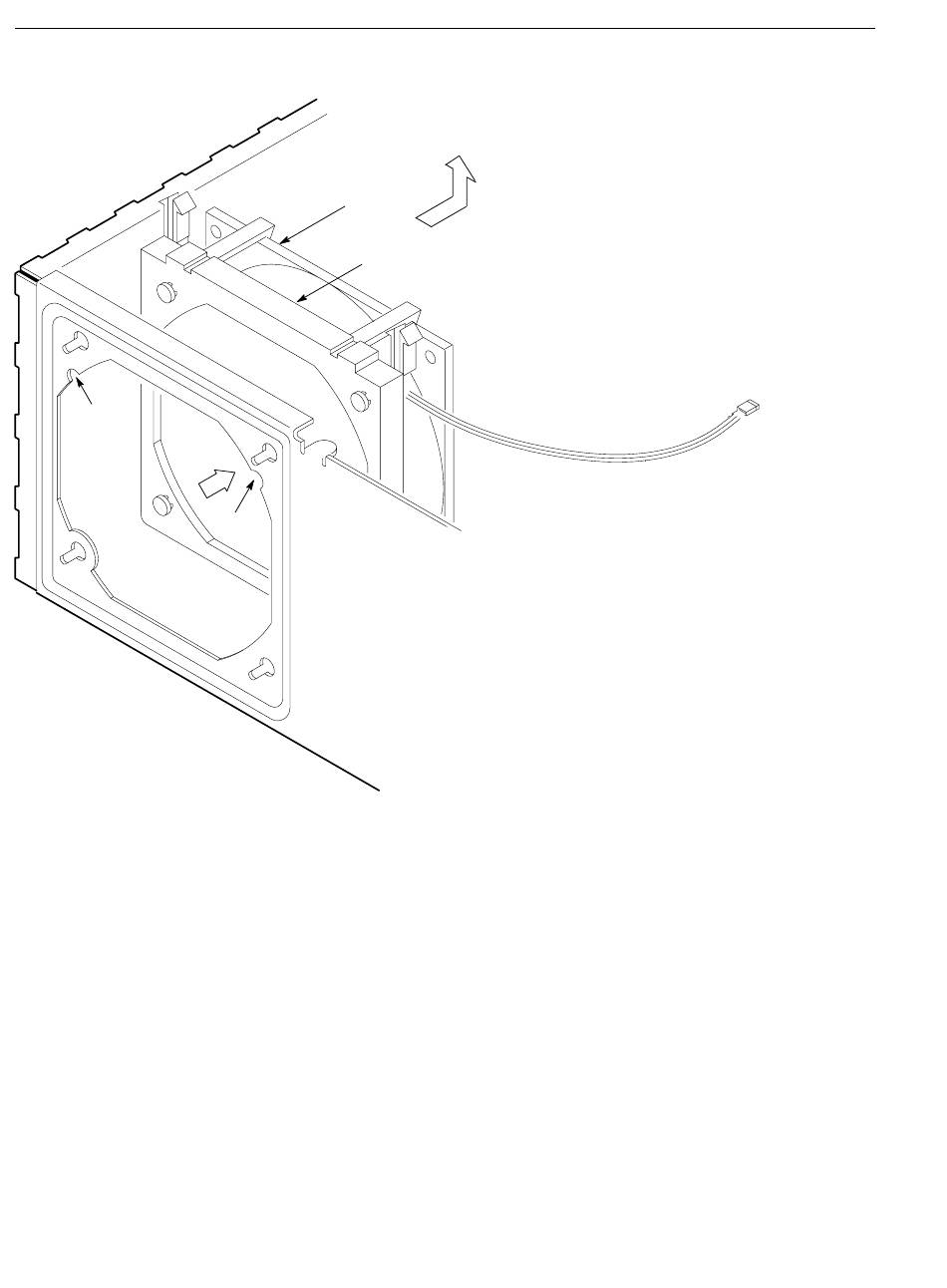

Figure 6-15: Fan and Fan Frame Removal
6-32
Fan
Fan Frame
(1) Push
4. Reinstallation:
a. Secure the fan to the fan frame.
b. Connect the cable (J3) to power supply module.
c. Align the four protrusions of the fan frame with the holes of the chassis.
Slide the fan and fan frame to the lower left until the fan is in place.
To Power
Supply (J3)
