Installation

Installing the system unit

5.2 Installing the system unit
Drill hole, insert wall plug with screw supplied and turn screw until head projects by approx.
5 mm from surface of wall.
Engage screw (1) in hole at top of unit.
Mark positions of holes for remaining wall plugs (2) and remove unit.
Drill holes, insert wall plugs and turn screws until head projects by approx. 5 mm.
Engage unit on all three screws, align and tighten bottom screws.
Unit

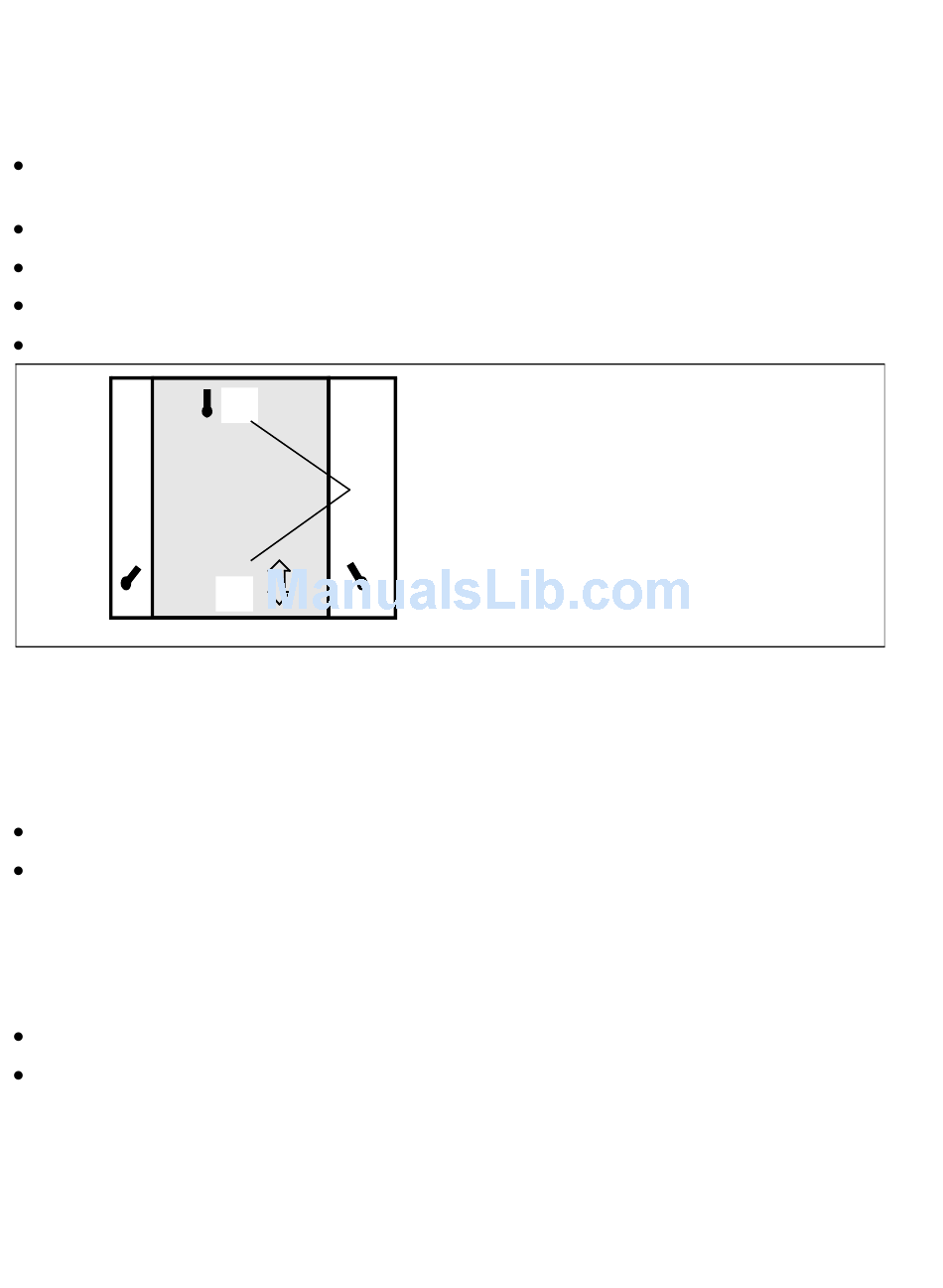

Figure 5-2 Installing unit
5.3

Power supply

Power supply unit with PSU power cable (1.5 m) or UPS with power cable (1.5 m) and battery
adapter. Overall ratings:
PSU 1/UPS1 > 35W
PSU 2/UPS2 > 90W.
Mains input 230 Vac~ ± 15% and 115 Vac~ ± 15%. Input for 98 Vac to 264 Vac voltage range,
Frequency 50/60 Hz.
The ringing voltage is adjustable (in the GER version, permanently set to 75 Vac, not
adjustable):
75 Vac~ ± 10% for 50 Hz or
75 Vac~ ± 10% for 25 Hz
Insert and screw the PSU or UPS once the necessary add-on modules have been inserted.
5-2
(1)
(2)
Slots in
rear of housing
Hicom 100 E Version 2.1, Service manual
Basic box and
expansion box
A31003-K16-X001-3-7620
,
07/99
