Pppoe Server - Draytek Vigor2960 Series User Manual

Apply
Cancel
3. When you finish the above settings, please click Apply to save the configuration and
exit the dialog.
4. The LAN profile has been edited.
4 . 2 . 2 P P P o E S
4 . 2 . 2 P P P o E S

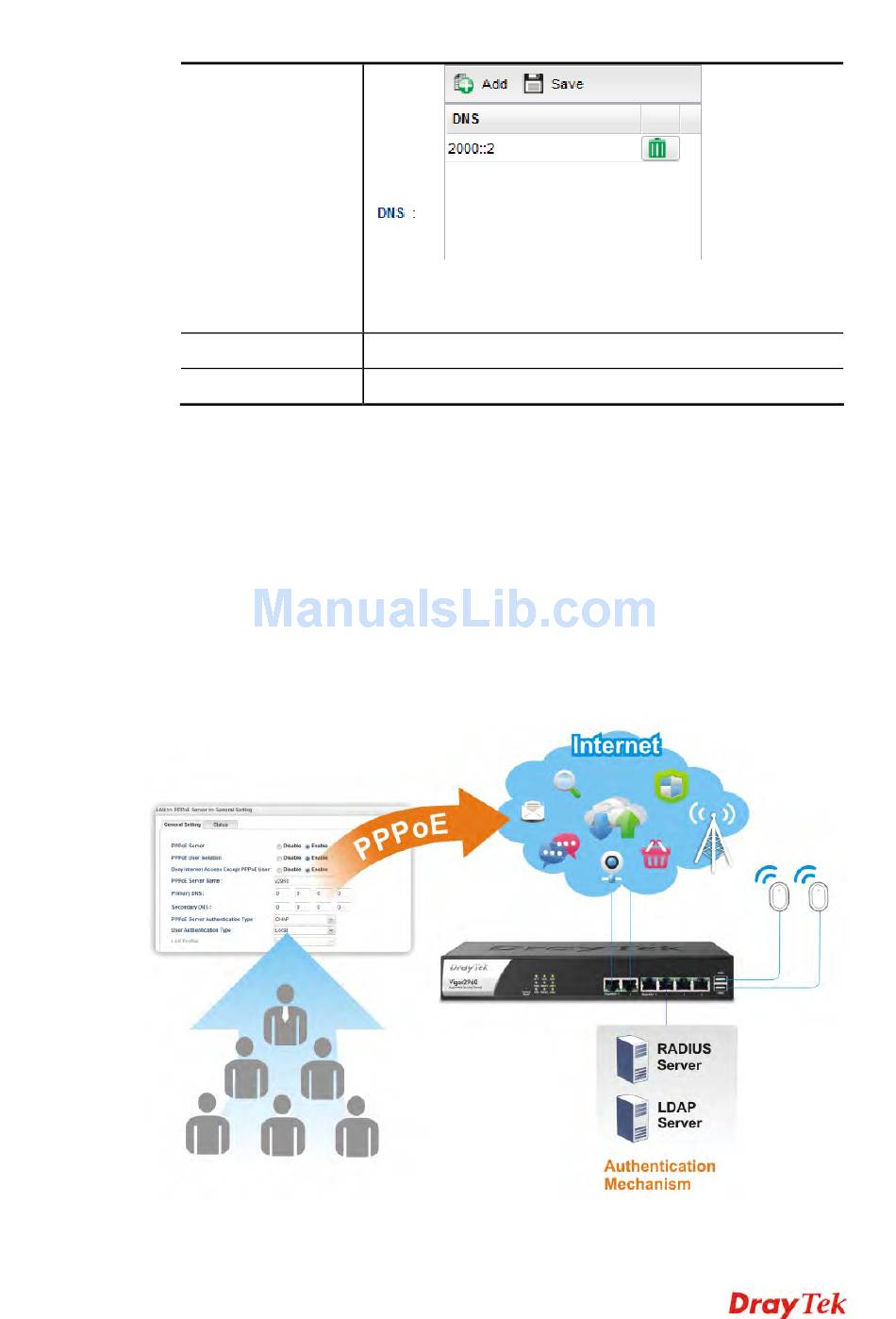

This feature makes the router working like an ISP, providing PPPoE connections to LAN
PCs. The only difference is that local PCs don't need an ADSL modem.
There are several advantages of using PPPoE connections on the LAN. Firstly, the PPPoE
server can secure the LAN PC connections with username/password authentication.
Secondly, it can prevent ARP attack by nature. Thirdly, the system administrator can
configure quota (time/traffic based) for each user as ISP does.
Vigor2960 Series User's Guide
Add – Click it to add a new IP address for DNS server.
Save – Click it to save the setting.
Click it to save and exit the dialog.
Click it to exit the dialog without saving anything.
e r v e r
e r v e r
103
