Draytek Vigor2960 Series User Manual page 60

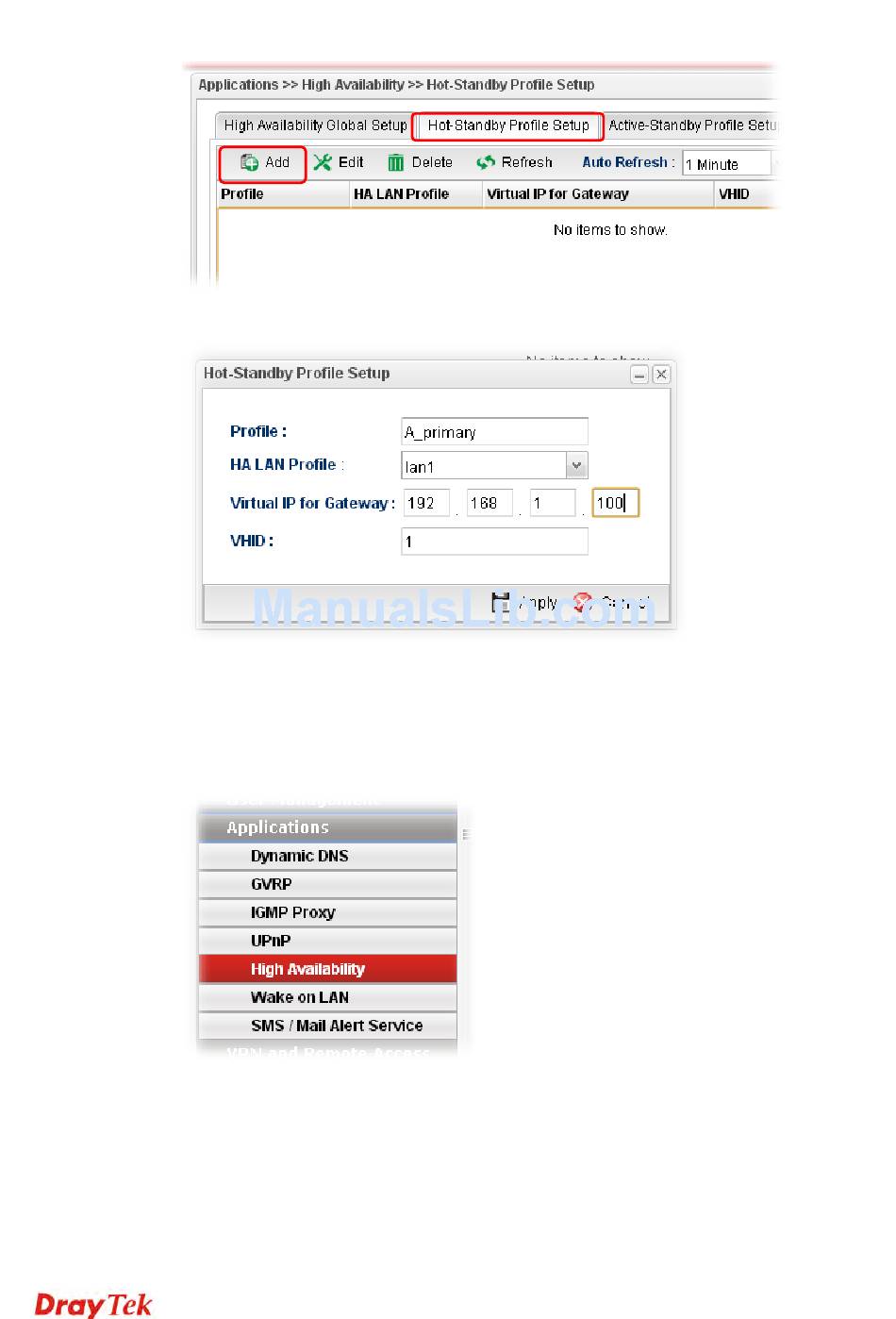

5. Create an HA profile. Refer to the following figures.
6. Now, the configuration for router A has been finished.
F o r r o u t e r B
F o r r o u t e r B
1. Access into the web user interface of Vigor2960.
2. Open Applications >>High Availability.
3. In the tab of High Availability Global Setup, choose Hot-Standby as Redundant
Method; choose Secondary as Config Synchronization Rule; type the lan1 IP address
configured in router A; type draytek as Authentication Key; choose Automatic as
Advance Preemption Mode. Click Apply to save the settings.
52
Vigor2960 Series User's Guide
