Draytek Vigor2960 Series User Manual page 75

Connection
Detection Retry
Apply
Cancel


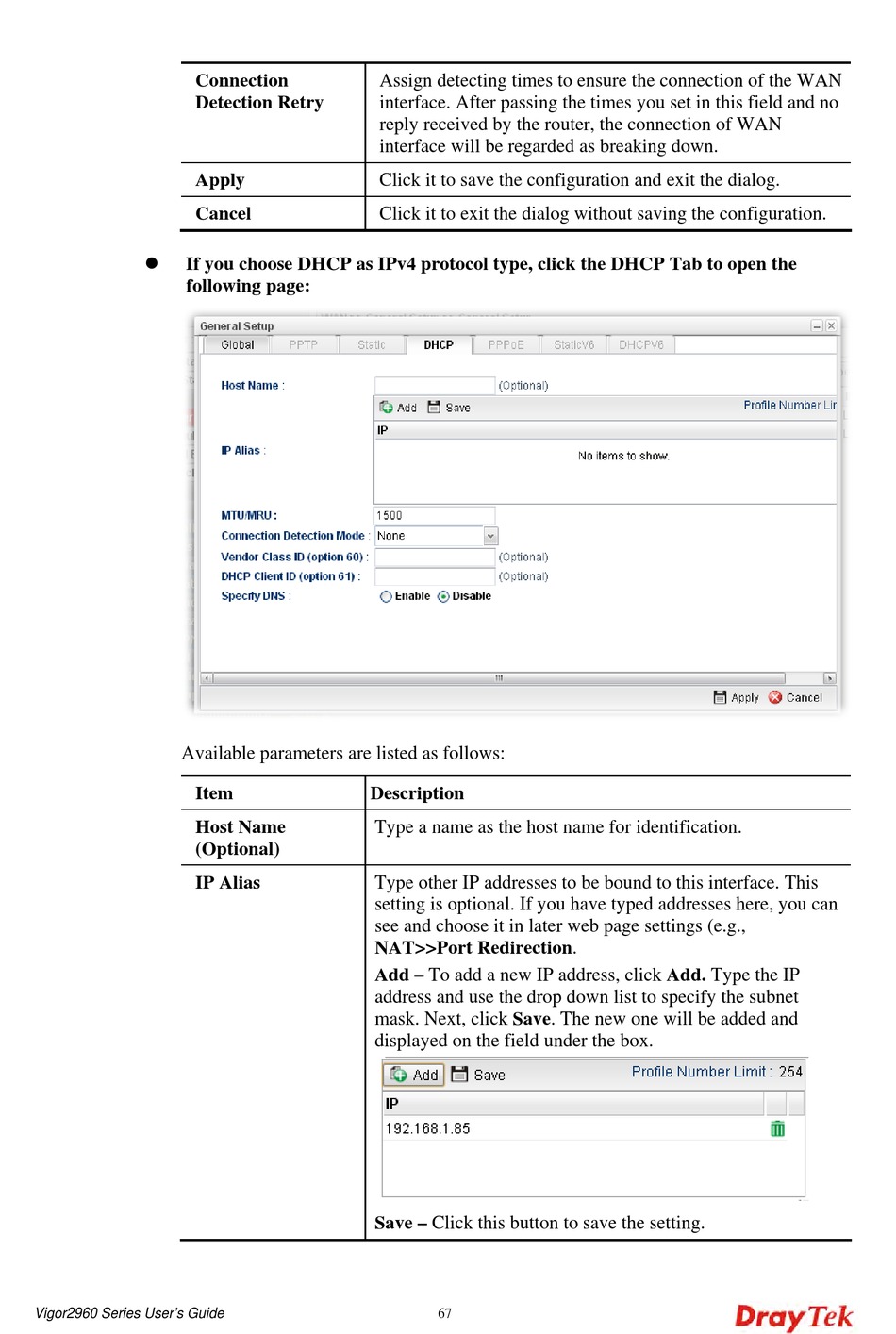

If you choose DHCP as IPv4 protocol type, click the DHCP Tab to open the
following page:
Available parameters are listed as follows:
Item
Host Name
(Optional)
IP Alias
Vigor2960 Series User's Guide
Assign detecting times to ensure the connection of the WAN
interface. After passing the times you set in this field and no
reply received by the router, the connection of WAN
interface will be regarded as breaking down.
Click it to save the configuration and exit the dialog.
Click it to exit the dialog without saving the configuration.
Description
Type a name as the host name for identification.
Type other IP addresses to be bound to this interface. This
setting is optional. If you have typed addresses here, you can
see and choose it in later web page settings (e.g.,
NAT>>Port Redirection.
Add – To add a new IP address, click Add. Type the IP
address and use the drop down list to specify the subnet
mask. Next, click Save. The new one will be added and
displayed on the field under the box.
Save – Click this button to save the setting.
67
