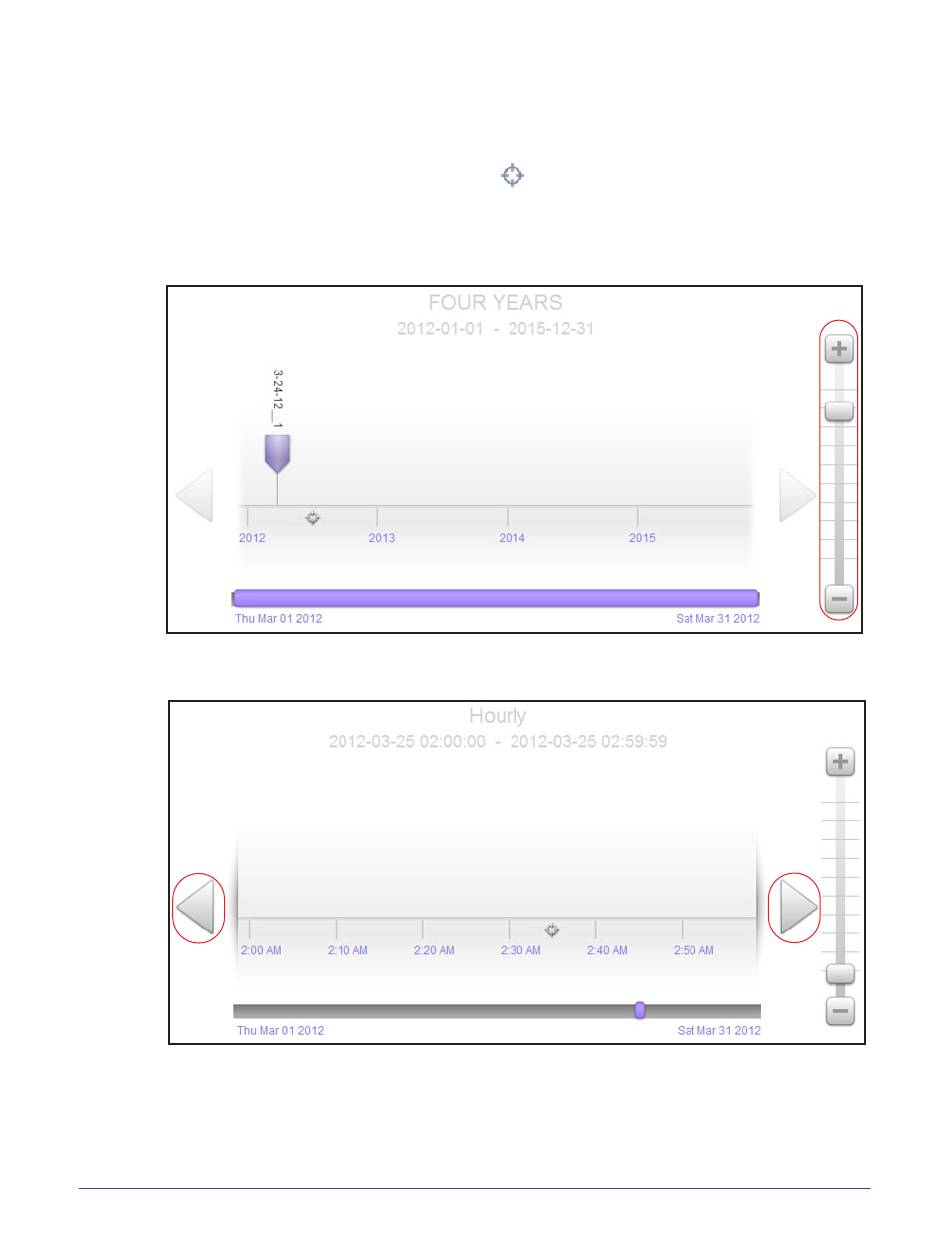

4. Locate the snapshot using the controls on the timeline.
Snapshots are displayed as purple marker icons along the timeline.
• The timeline centers on the zoom icon (
the zoom icon by clicking anywhere along the timeline. Moving the zoom icon
establishes a new center of focus when you zoom in and out.
• Adjust the vertical slider on the right of the timeline as needed. To expand the timeline
to years, click the + button. To limit the timeline to hours, click the - button.
• Use the arrow buttons to the left and right of the timeline as needed to move forward
in time (right arrow button) or back in time (left arrow button) in time.
Note: The snapshot is not shown in the previous screen because it was not
taken in the 2:00 AM–2:50 AM timespan.
ReadyDATA OS 1.2
Backup, Replication, and Recovery
170
) as you zoom in and out. You can move
