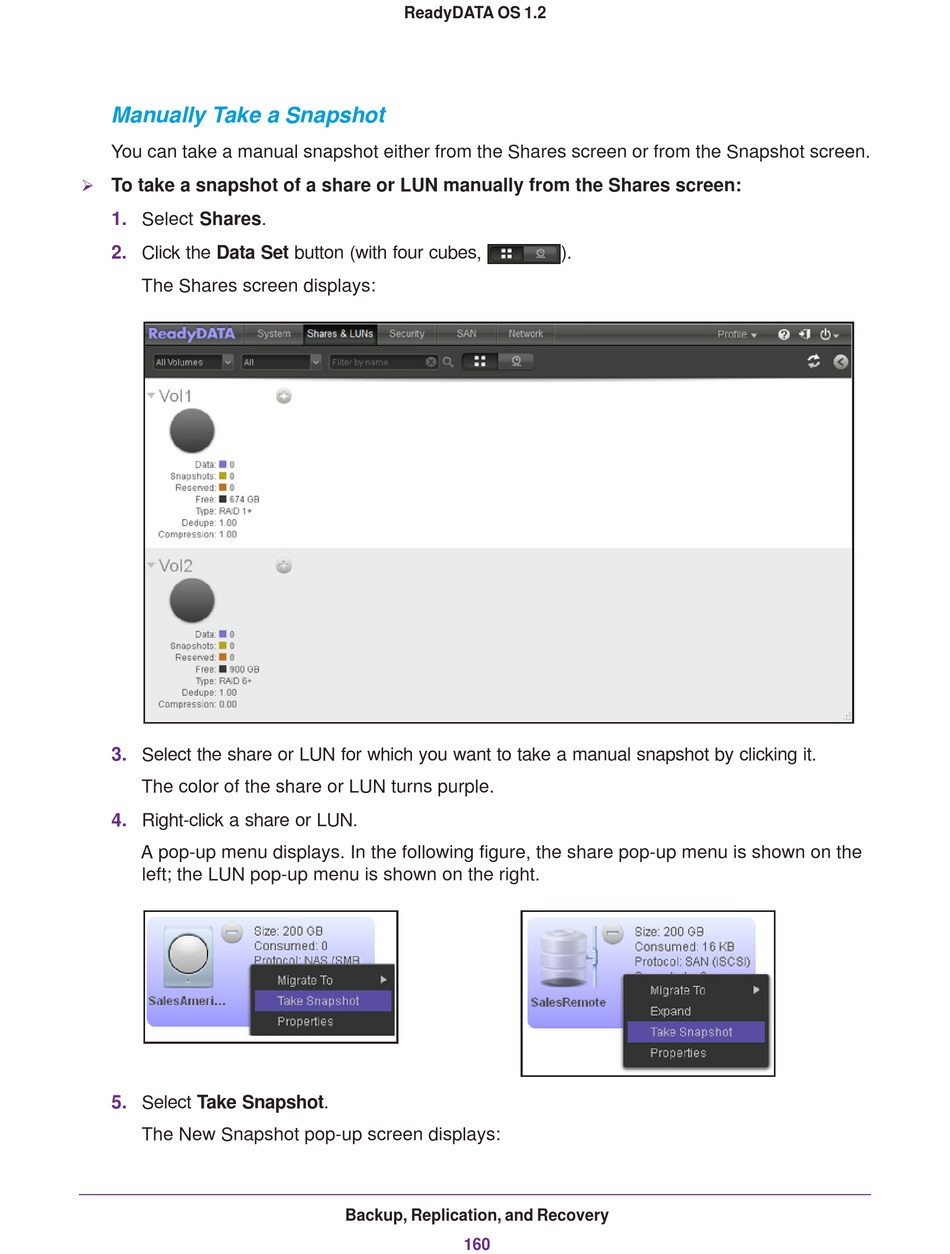

Manually Take a Snapshot
You can take a manual snapshot either from the Shares screen or from the Snapshot screen.

To take a snapshot of a share or LUN manually from the Shares screen:
1. Select Shares.
2. Click the Data Set button (with four cubes,
The Shares screen displays:
3. Select the share or LUN for which you want to take a manual snapshot by clicking it.
The color of the share or LUN turns purple.
4. Right-click a share or LUN.
A pop-up menu displays. In the following figure, the share pop-up menu is shown on the
left; the LUN pop-up menu is shown on the right.
5. Select Take Snapshot.
The New Snapshot pop-up screen displays:
