Each device compares the IP address to its own. Only the device with the matching IP address replies to
the device that sends the data with a packet that contains the MAC address for the device. The source
device adds the destination device MAC address to its ARP table for future reference, creates a data-link
header and trailer that encapsulates the packet, and proceeds to transfer the data.

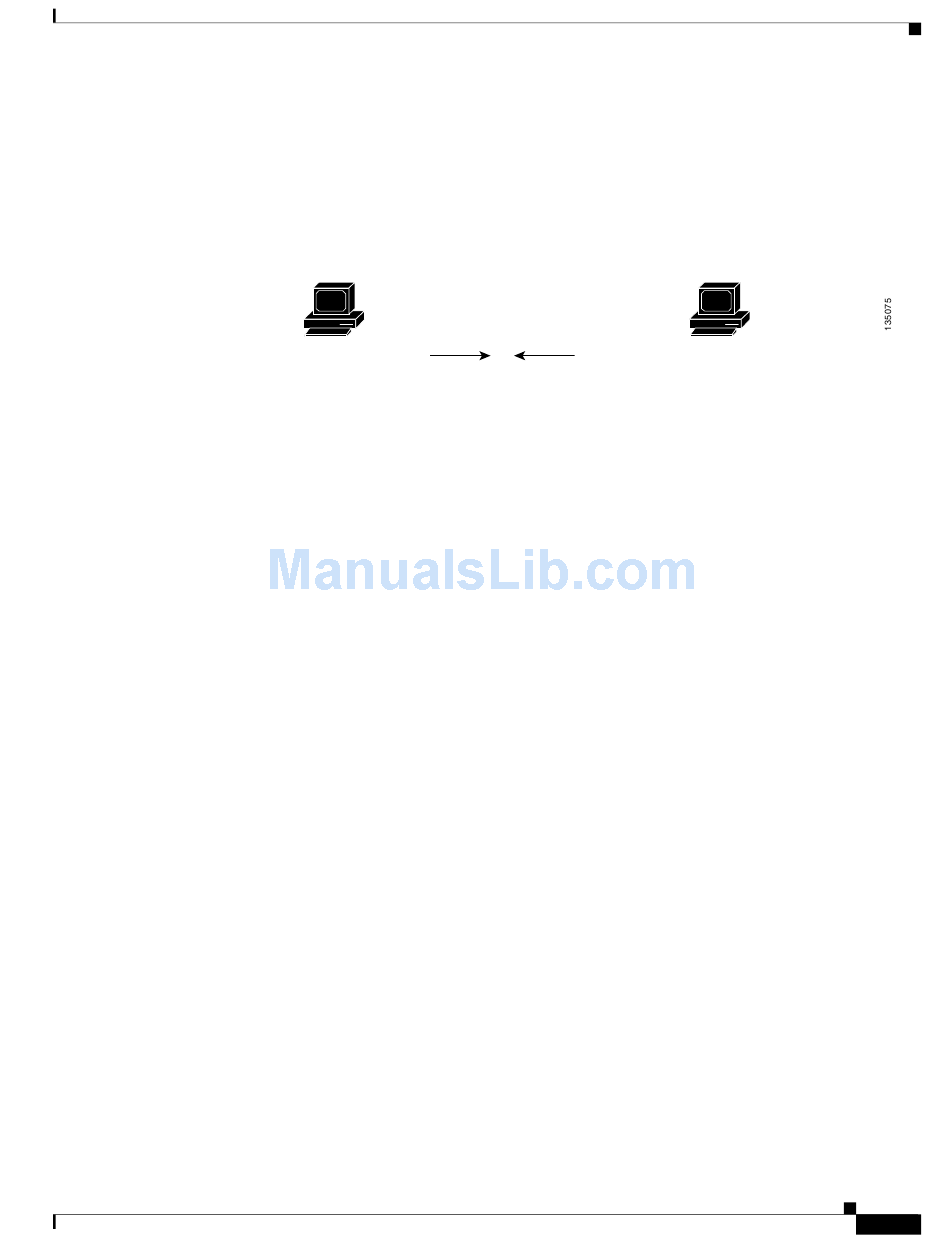

ARP broadcast and response process.
Figure 2-1
I need the address of 10.1.1.2.
When the destination device lies on a remote network which is beyond another device, the process is the
same except that the device that sends the data sends an ARP request for the MAC address of the default
gateway. After the address is resolved and the default gateway receives the packet, the default gateway
broadcasts the destination IP address over the networks connected to it. The device on the destination
device network uses ARP to obtain the MAC address of the destination device and delivers the packet.
ARP is enabled by default.
In Cisco NX-OS Release 4.1(4) and later, the default system-defined CoPP policy rate-limits ARP
broadcast packets bound for the supervisor module. The default system-defined CoPP policy prevents
an ARP broadcast storm from affecting the control plane traffic, but does not affect bridged packets.

ARP Caching

ARP caching minimizes broadcasts and limits wasteful use of network resources. The mapping of IP
addresses to MAC addresses occurs at each hop (device) on the network for every packet sent over an
internetwork, which may affect network performance.
ARP caching stores network addresses and the associated data-link addresses in memory for a period of
time, which minimizes the use of valuable network resources to broadcast for the same address each time
a packet is sent. You must maintain the cache entries since the cache entries are set to expire periodically
because the information might become outdated. Every device on a network updates its tables as
addresses are broadcast.

Static and Dynamic Entries in the ARP Cache

You must manually configure the IP addresses, subnet masks, gateways, and corresponding MAC
addresses for each interface of each device when using static routes. Static routing enables more control
but requires more work to maintain the route table. You must update the table each time you add or
change routes.
Dynamic routing uses protocols that enable the devices in a network to exchange routing table
information with each other. Dynamic routing is more efficient than static routing because the route table
is automatically updated unless you add a time limit to the cache. The default time limit is 25 minutes
but you can modify the time limit if the network has many routes that are added and deleted from the
cache.
