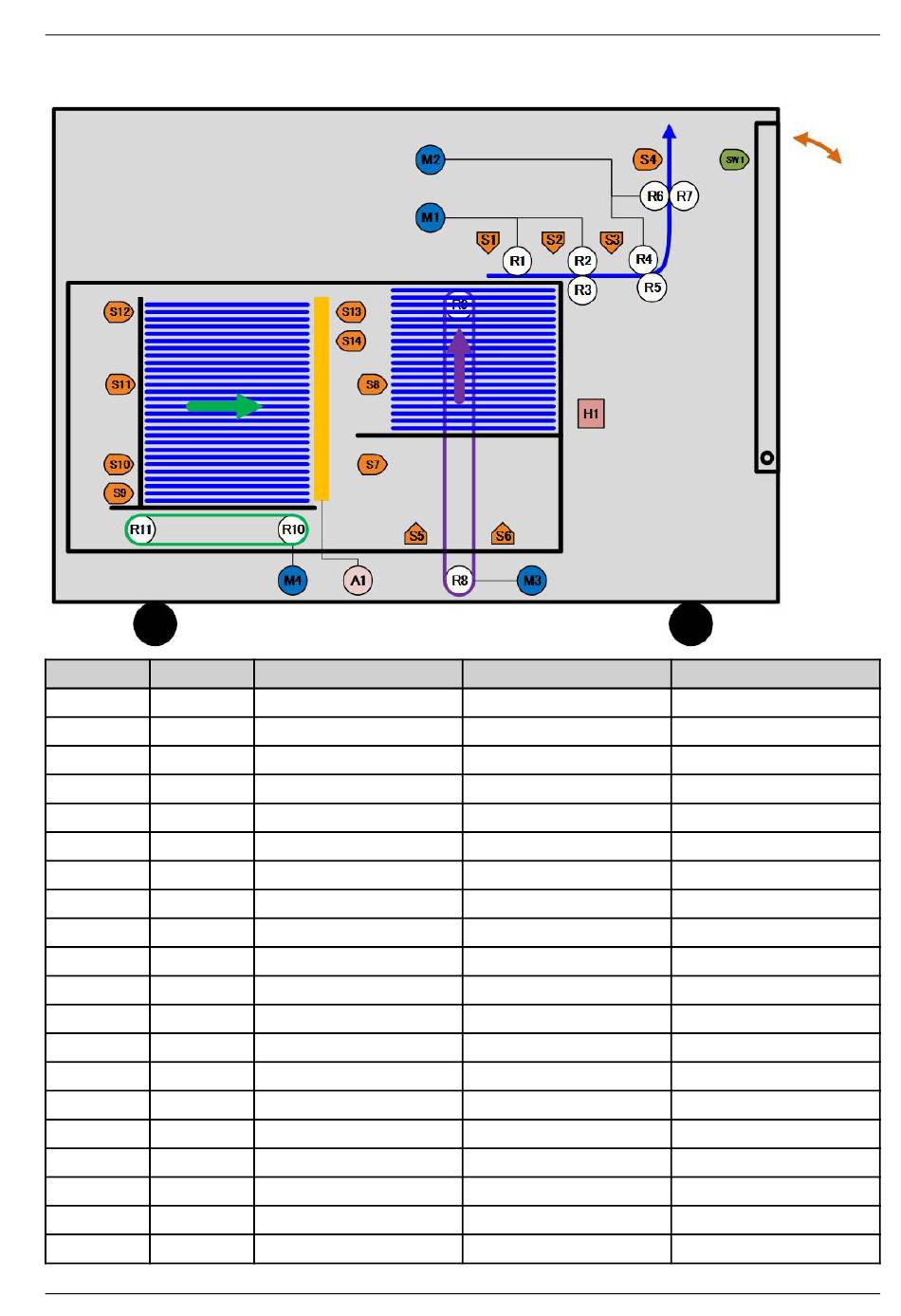

3) Electrical Parts Location / Parts Code / Connection Information
Tray No
Ref.
3
S1
3
S2
3
S3
3
S4
3
S5
3
S6
3
S7
3
S8
3
S9
3
S10
3
S11
3
S12
3
S13
3
S14
3
SW1
3
M1
3
M2
3
M3
3
M4
3
A1
Copyright© 1995-2017 SAMSUNG. All rights reserved.
Description
Pickup No-paper Sensor
Pickup Level Sensor
Pre feed Sensor
Path Sensor
Tray Insertion Sensor
Knockup Home Sensor
Main Tray Level Sensor1
Main Tray Level Sensor2
Shift Tray No-paper Sensor
Shift Tray Level Sensor1
Shift Tray Level Sensor2
Shift Plate Home Sensor
Shift Plate End Sensor
Solenoid Home Sensor
Side Door Open Switch
Tray Pickup Motor
Tray Feed Motor
Tray Liftup Motor
Paper Shift Motor
Solenoid
2. Product Specifications and Description
Parts number
0604-001393
0604-001393
0604-001490
0604-001393
0604-001393
0604-001393
0604-001393
0604-001393
0604-001393
0604-001393
0604-001393
0604-001393
0604-001393
0604-001393
JC39-02279A
JC31-00009C
JC31-00177A
JC31-00109A
JC31-00125A
JC33-00031B
DC controller PCB
CN502-1 to 3
CN502-4 to 6
CN502-7 to 9
CN502-10 to 12
CN901-15 to 17
CN901-7
CN901-4
CN901-5
CN901-2
CN901-10
CN901-11
CN901-3
CN901-6
CN901-8
CN601-9 to 10
CN601-1 to 4
CN601-5 to 8
CN902-1 to 2
CN902-4 to 5
CN901-12 to 14
