2G Lift Dialer
1.

INTRODUCTION

Thanks for purchasing a Digicom product!

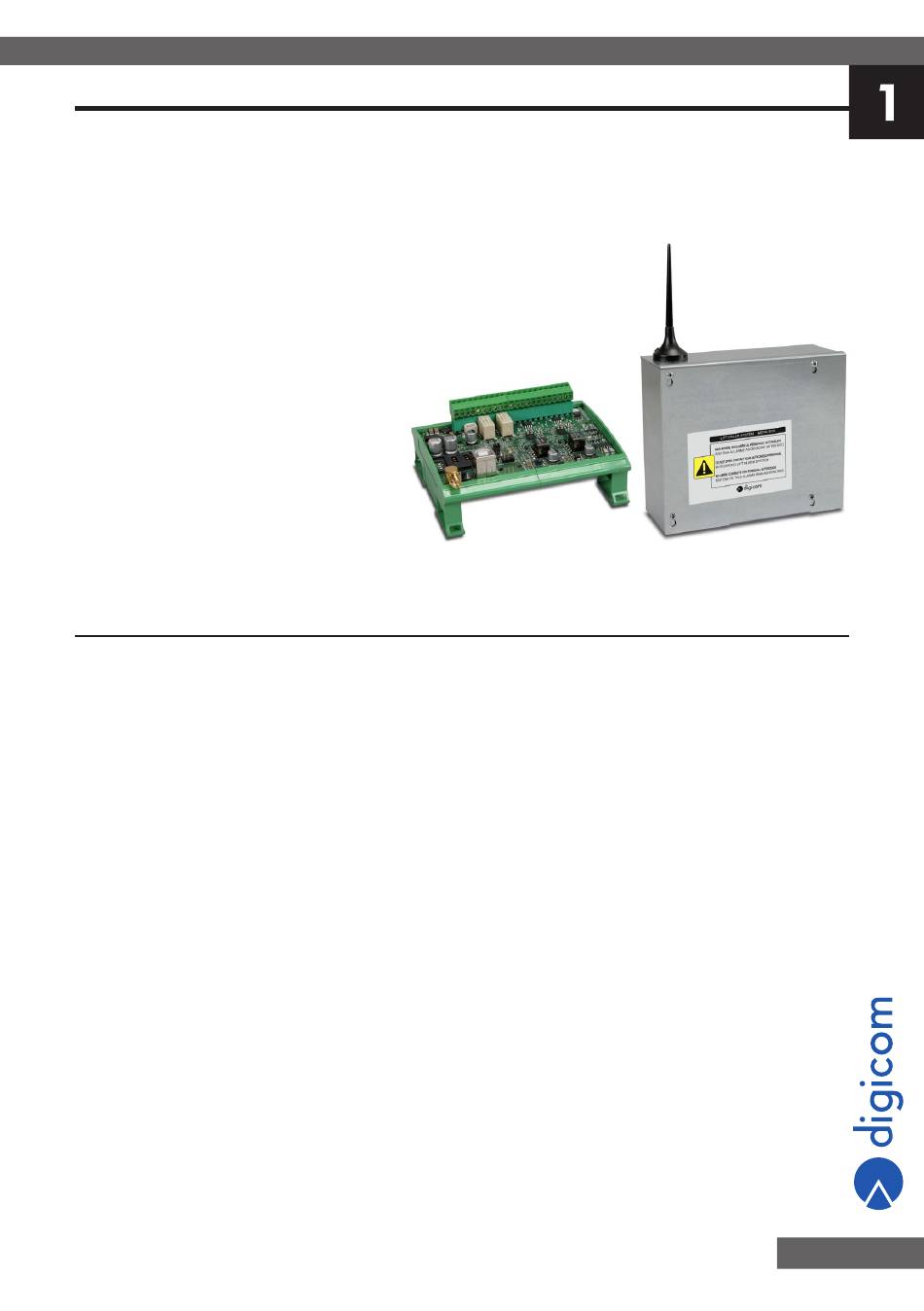

2G Lift Dialer and Voice Box constitute a bidirectional Emergency phone for lifts system, compliant to EN81.28,
EN81.1, EN81.2 regulations.
The Emergency phone allows the users blocked in
a lift cabin to send an alarm via GSM to a Service
Center or to the authorized Technical people.
In the lift cabin the emergency call is activated
by pressing the alarm button connected to the
VoiceBox terminal board.
The people in the lift cabin will be reassured with
a comfort message and a yellow bright light will
turn on to indicate that the alarm has been sent.
At the same time the Emergency phone calls the
Service Center or the technical people (these
numbers must be set by the lift manager installer).
When the Emergency phone establishes the voice
communication with the Service Center, the people
in the cabin will see that a green light turns on indicating that the alarm has been received and they will be able to have
a speakerphone conversation with the technical people in order to receive assistance.
1.1.

TECHNICAL FEATURES

• GSM module: GSM/GPRS Quad-Band 850/900/1800/1900MHz
• Output power:
- Class 4 (2W / 33dBm maximum nominal) for GSM at 850/900 MHz
- Class 1 (1W / 30dBm maximum nominal) for DCS at 1800/1900 MHz
• Voice Interface: FXS on screw terminal board
• Voice call
• Data call
• RS232 serial interface on RJ45 female connector for DATA connections
• GPRS class 10
• GSM speed up to 9600 bps
• Built-in TCP/IP Stack
• Led for indication of device status
• Kit for DIN mounting (for code 8D5778 only)
• Metal case for wall mounting (for code 8D5798 only)
• SMA connector for antenna
• USB port for firmware upgrade
• Reset button (Restart – Alarm end)
• 2 Relays (max 60 Vdc/Vac – 2A)
• Power: 12-24Vdc - 1A min
• Integrated rechargeable Backup battery (for code 8D5798 only)
• CE Mark and Rohs compliant
• EN 81-28 , EN 81-1 , EN 81-2
