An analog phone line always available also in black-out condition • Controlla e gestisci da remoto i tuoi impianti ascensori Remote Control and manage your lifts 8D5824 _ 3G Lift 72H Manuale Operativo ITALIANO ENGLISH User’s Guide...
Indice - Premessa È vietata la riproduzione di qualsiasi parte di questo manuale, in qualsiasi forma, senza esplicito consenso scritto da Digicom. Il contenuto di questo manuale può essere modificato senza preavviso. Ogni cura è stata posta nella raccolta e nella verifica della documentazione contenuta in questo manuale, tuttavia Digicom non può...
3G Lift 72H Indice - Premessa INFORMAZIONI SULLA SICUREZZA Leggete attentamente le istruzioni e norme qui riportate prima di accendere il dispositivo. Violare tali norme potrebbe essere illegale e creare situazioni di pericolo. Per ognuna delle situazioni descritte è necessario fare riferimento alle disposizione e norme del caso. Il presente dispositivo è una radioricetrasmittente a bassa potenza.
Page 6
3G Lift 72H Indice - Premessa INFORMAZIONE AGLI UTENTI ai sensi dell’Art. 26 “Informazione agli utilizzatori” - Decreto Legislativo 14 marzo 2014, n. 49 “Attuazione della direttiva 2012/19/UE sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE).”. Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua confezione indica che il prodotto alla fine della propria vita utile deve essere raccolto separatamente dagli altri rifiuti.
Grazie per la fiducia accordataci nell’acquistare un prodotto Digicom. Digicom 3G Lift 72H simula una linea analogica dove la tradizionale rete telefonica non è disponibile e non conviene attivarla. Grazie a 3G Lift 72H hai a disposizione sempre una linea telefonica...
3G Lift 72H Installazione 2. INSTALLAZIONE Per una corretta installazione del dispositivo, segui i punti descritti di seguito, con il 3G Lift 72H spento. TEL1 TEL2 RJ11 ANTENNA Alimentatore Combinatore Telefonico 1. Collega l’antenna 3G/2G trovata nella confezione al connettore SMA/f. Avvita in senso orario, in caso di problemi non forzare ma rimuovi l’antenna e riprova.
3G Lift 72H Installazione 2.3. INSERIMENTO CODICE PIN Se il codice PIN di protezione della carta SIM è abilitato, ed il PIN non è stato inserito nel gateway, l’indicatore luminoso Status è acceso e dal ricevitore del telefono sentirai il tono di richiesta PIN: doppio beep ravvicinato ripetuto con una pausa. Per inserire il codice PIN puoi usare la tastiera di un telefono (imposta la selezione a toni DTMF) collegato al connettore TEL1 o TEL2.
3G Lift 72H Installazione 2.5. REGISTRAZIONE GSM IN ROAMING/OPERATORE VIRTUALE 3G Lift 72H prevede nella configurazione di fabbrica la registrazione automatica all’operatore 3G/2G. Se il dispositivo viene installato in prossimità dei confini di Stato, potrebbe registrarsi in roaming alla rete 3G/2G di un operatore “straniero” con probabili tariffe più...
3G Lift 72H Installazione 2.6. BATTERIA DI BACKUP La batteria di backup è posizionata all'interno del prodotto. La batteria di backup ha le seguenti caratteristiche: - Li-ion Polymer 3,7V – 1400mAh ricaricabile; - la carica della batteria è garantita solo da 0°C a 45°C . Alla prima accensione, lasciare il dispositivo collegato alla rete elettrica per almeno 10 ore per una corretta e completa ricarica della batteria.
3G Lift 72H Installazione 2.7. MONTAGGIO A PARETE Il 3G Lift 72H può essere installato su un piano quale per esempio una scrivania oppure montato a parete con l’apposita staffa di fissaggio a muro. Per montare il dispositivo a parete: 1.
3G Lift 72H Gestione Remota via SMS 3. GESTIONE REMOTA VIA SMS La configurazione del dispositivo avviene tramite messaggi SMS, in questo modo si potrà interagire da remoto senza recarsi sul luogo dell’installazione. Sarà inoltre possibile in ogni momento effettuare l’interrogazione remota per conoscere lo stato della batteria e la qualità...
3G Lift 72H Gestione Remota via SMS • Se non viene configurata alcuna lista di utenti autorizzati (confx), allora chiunque potrà gestire l’apparato da remoto. Esempi: *1#3GLIFT#+393351234567,+393409876543#+393351234567,+393409876543 *1#3GLIFT##+393351234567,+393409876543 3.1.2. LISTA UTENTI AUTORIZZATI: CONFERMA DI CONFIGURAZIONE 3G Lift 72H ricevuto il messaggio di configurazione, verificherà che il messaggio arrivi da un utente abilitato, ed in questo caso analizzerà...
Page 17
3G Lift 72H Gestione Remota via SMS 3.2.1. BATTERIA SCARICA: CONFIGURAZIONE L’utente può personalizzare il testo “Batteria scarica” e “Arresto in corso”, con il seguente messaggio: Testo primo msg Testo secondo msg # N repeat Time repeat CAMPO DESCRIZIONE Chiave del messaggio per configurare il testo informativo di batteria scarica Simbolo di separazione Testo primo msg Testo del primo messaggio (es.
3G Lift 72H Gestione Remota via SMS 3.2.3. BATTERIA SCARICA: VERIFICA CONFIGURAZIONE Per la verifica della configurazione dei messaggi in caso di batteria scarica, sarà sufficiente inviare il seguente messaggio: L’utente che ne ha fatto richiesta, riceverà la risposta nello stesso formato del messaggio inviato dagli utenti in fase di configurazione con l’aggiunta dell’indice degli SMS Idx_Sms ed il carattere separatore cancelletto (#).
3G Lift 72H Gestione Remota via SMS 3.5. RICHIESTA INFORMAZIONI Gli utenti autorizzati potranno inviare il messaggio SMS: INFO per verificare alcune informazioni sul dispositivo quali ad esempio: nome operatore 3G/2G, la qualità del segnale, stato della batteria, revisione firmware. 3G Lift 72H ricevuto l’SMS, verificherà...
Page 20
3G Lift 72H Gestione Remota via SMS Destinatario 2 Destinatario #2 del SMS di test Simbolo di separazione Destinatario 3 Destinatario #3 del SMS di test Simbolo di separazione Destinatario 4 Destinatario #4 del SMS di test Simbolo di separazione R<SelectedAcT>,<AcTStatus>...
Page 21
3G Lift 72H Index - Preface INDEX PREFACE ................................. II ENVIRONMENTAL CONDITIONS ........................II CLEANING INFORMATION ..........................II SHOCKS OR VIBRATIONS ..........................II BACKUP BATTERY ............................II SIMPLIFIED UE DECLARATION OF CONFORMITY ..................II ASSISTANCE AND CONTACTS ........................II SAFETY WARNINGS ............................III INTRODUCTION ............................
Page 22
Digicom. The contents of this booklet may be modified without notice. Every possible care has been taken in testing and putting together all the documentation contained in this booklet, however Digicom can not take any responsability brought by the use of this booklet.
Page 23
3G Lift 72H Index - Preface SAFETY WARNINGS Read these instructions and norms carefully before powering the device. Violation of such norms may be illegal and cause hazard situations. For any of the described situations please refer to the specific instructions and norms. The device is a low power radio transmitter and receiver.
Page 24
3G Lift 72H Index - Preface INFORMATION TO USERS according to Art. 26 "Information to Users" - Legislative Decree 14 March 2014, n. 49 "Actuation of the Directive 2012/19/ UE on the waste of electrical and electronic devices (RAEE)." The symbol of a crossed waste container marked on the apparatus or on its package indicates that at the end of its useful life the product must be collected separately from other waste materials.
Page 25

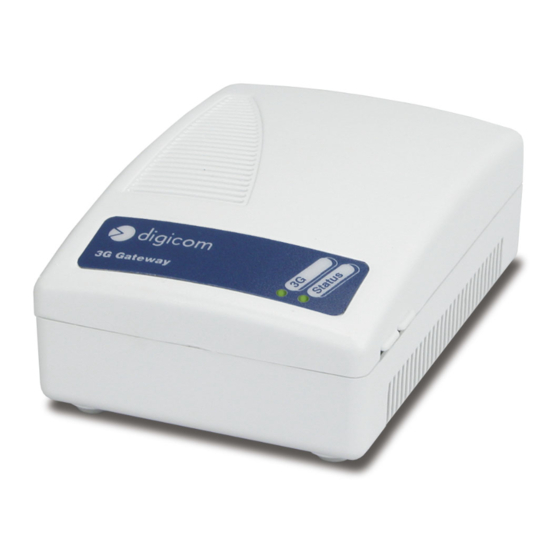

3G Lift 72H Introduction 1. INTRODUCTION Dear Customer, thanks for purchasing 3G Lift 72H. 3G Lift 72H simulates an analog line where the traditional fixed line is not available or where it is not convenient to take it. Thanks to 3G Lift 72H an analog telephone line is always ready and you can continue to use your traditional communicators without connecting to the fixed line, saving the costs of the analog line.
Page 26
3G Lift 72H Introduction 1.3. MECHANICAL FEATURES • 2 RJ11 Connectors • Plug-in SIM card (1,8V - 3V compatible) • External GSM antenna on SMA/f connector • Bracket for wall mounting • Dimensions: 115 x 80 x 45 mm • IP 30 protection 1.4.
Page 27
3G Lift 72H Installation 2. INSTALLATION For a correct installation, turn the device off and read the following instructions. TEL1 TEL2 RJ11 ANTENNA Power supply Communicator 1. Connect the 3G/2G antenna found in the package to the SMA connector. ATTENTION: Apply the magnetic base of the antenna only on metal parts isolated from GND. Use possibly the metallic form provided in the box , fixed to the wall.
Page 28
3G Lift 72H Installation 2.3. INSERT THE PIN CODE If the protection PIN code of the SIM card is enabled and the PIN has not been set in the gateway, the Status led is ON and the PIN code request is transmitted to the phone line (double beep repeated with a short pause). Insert the PIN code using the phone keypad (set DTMF selection) connected to the TEL1 or TEL2 ports: 1.
Page 29
3G Lift 72H Installation 2.5. ROAMING CALLS In factory configuration the 3G Lift 72H detects automatically the 3G/2G operator. If the device is installed near the State boundaries, it could detects the foreign 3G/2G operator, and the tariff could be higher during the voice conversations. To advise the user of this particular situation, if in roaming mode, on the device the 3G led will fast blink and all the calls are made unlimited.
Page 30
3G Lift 72H Installation 2.6. BACKUP BATTERY The backup battery is placed into the product. Backup Battery features: - Li-ion Polymer 3,7V – 1400mAh rechargeable; - the battery charging is guaranteed only from 0°C to 45°C . At the first power on, leave the device connected to the power supply for at least 10 hours for a correct and complete battery charging. In environment temperature with new batteries the autonomy of device: Standby time: about 6 hours (*) Talk time: about 1 hour and 30 minutes (*)
Page 31
3G Lift 72H Installation 2.7. WALL MOUNT 3G Lift 72H can be installed on a table/desk or wall mounted through the proper bracket for wall mounting. For the wall mounting: 1. Place temporarily the bracket on the wall where you want to install the device and mark the mounting points.
Page 33
3G Lift 72H Remote Control via SMS 3. REMOTE CONTROL VIA SMS The device configuration is performed via SMS; so you can remotely manage the device. It will be possible at any time to remote query the device to know the battery status and the quality of 3G/2G signal. Only authorized users can remote manage 3G Lift 72H ;...
Page 34
3G Lift 72H Remote Control via SMS 3.1.2. LIST OF AUTHORIZED USERS: CONFIGURATION ACKNOWLEDGE MESSAGE When 3G Lift 72H receives a message, it will check if the message is coming from an authorized users, it will analyze the message; otherwise the message will be ignored. If the message comes from an authorized user, but the text message is wrong, then the device will answer with a NACK message.
Page 35
3G Lift 72H Remote Control via SMS 3.2.1. LOW BATTERY: CONFIGURATION The user can customize the text “Low Battery” and “Shutdown in progress” with the following message: First msg text Second msg text # N retry Time retry ITEM DESCRIPTION Message key to configure the text for low battery Separation symbol First msg text...
Page 36
3G Lift 72H Remote Control via SMS 3.2.4. LOW BATTERY: WARNING MESSAGES When the above mentioned situations occur, if 3G Lift 72H is correctly configured, it will send the following messages: 14#*B#3GLIFT#Battery Low (Approximately 90 - 60 minutes* of battery autonomy) 15#*B#3GLIFT#Shutdown in progress (Approximately 30 - 5 minutes* of battery autonomy) Key of message Battery low: *B...
Page 37
3G Lift 72H Remote Control via SMS 3.5. INFORMATION REQUEST Authorized users can send the SMS: INFO to check some device information, like: 3G/2G operator name, 3G/2G signal quality, battery status, firmware version. 3G Lift 72H will answer to the user with a message with the following information: ITEM DESCRIPTION Idx_SMS...
Page 38
3G Lift 72H Remote Control via SMS Separation symbol Autotest SMS: Receiver 4 Recipient #4 of autotest SMS Separation symbol R<SelectedAcT>,<AcTStatus> <SelectedAcT> 2G / 3G network selected 1 : Auto 0 : 2G 2 : 3G <AcTStatus> Indicates the current radio access technology 0 : GSM 1 : GSM COMPACT 2 : UTRAN...
