GPRS Card S
User Guide
Rev. 1.0 09/2005

Advertisement

Table of Contents
loading

Related Manuals for Digicom GPRS Card S

Summary of Contents for Digicom GPRS Card S

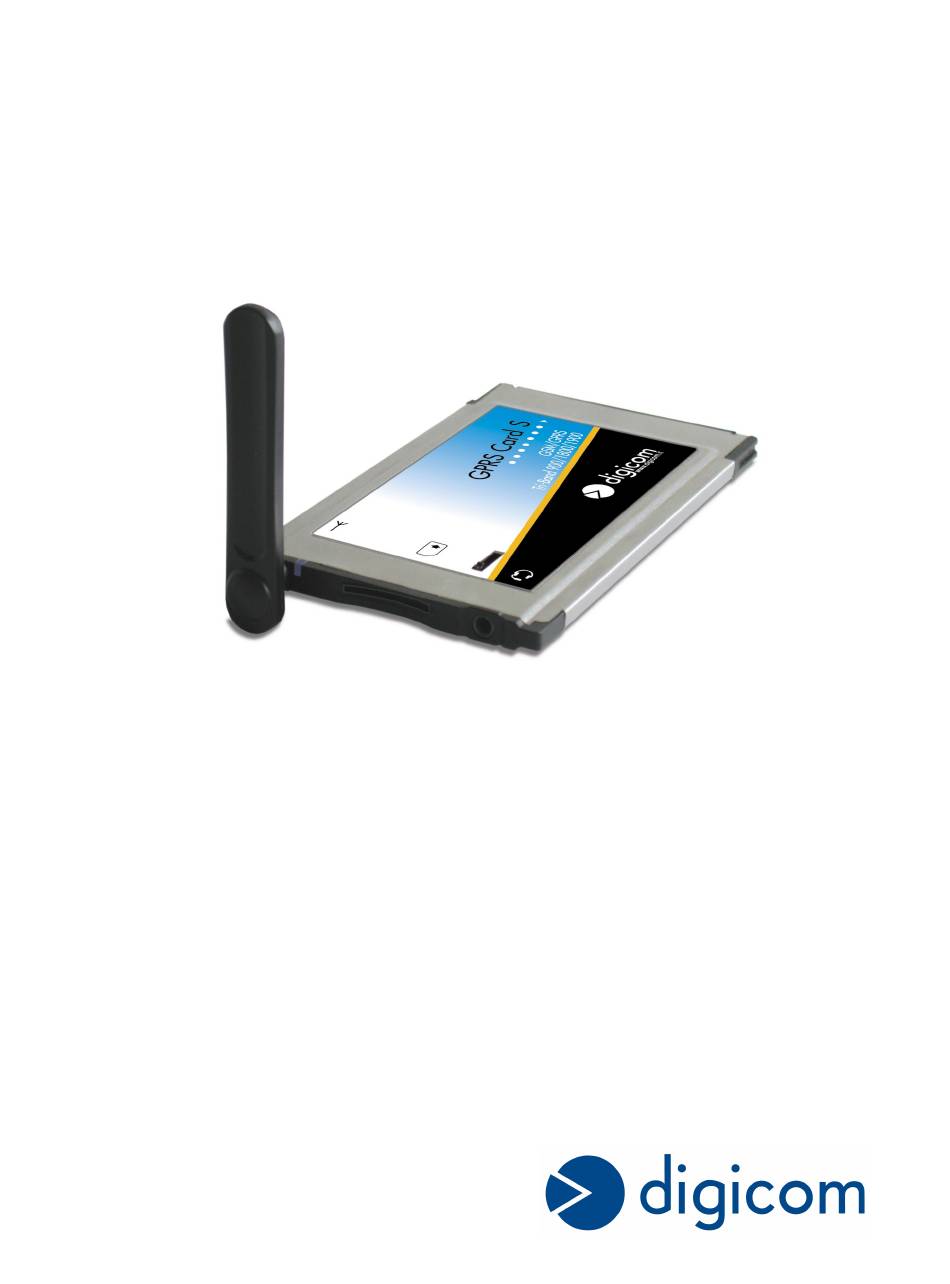

  • Page 1 GPRS Card S User Guide Rev. 1.0 09/2005...

  • Page 3: Table Of Contents

    INDEX PREFACE..........................4 SAFETY INFORMATION......................5 1. INTRODUCTION ........................6 1.1 DESCRIPTION........................ 6 1.2 PACKAGE CONTENTS ....................6 1.3 MODEM GPRS TECHNICAL FEATURES ..............6 1.4 LED DESCRIPTION......................7 1.5 AUDIO JACK DESCRIPTION ..................7 2. INSTALLATION ........................8 2.1 INSERTING THE SIM CARD ..................8 2.2 SOFTWARE MOBILE PHONETOOLS INSTALLATION ..........

  • Page 4: Preface

    Caution against vibrations and dropping. DECLARATION CE OF CONFORMITY We, Digicom S.p.A. registered office at: via Volta 39 - 21010 Cardano al Campo (Varese - Italy) declare under our sole responsability that the product: Name: GPRS Card S Type: Modem Tri-Band EGSM/GPRS 900-1800-1900 MHz satisfies the basic requirement of the below indicated Directive: •...

  • Page 5: Safety Information

    Road Safety Do not use GPRS Card S while driving. In case of use on cars, it is necessary to check that electronic equipment is shielded against RF signal. Do not place GPRS Card S over the air bag or in the air bag deployment area.

  • Page 6: Introduction

    1.1 DESCRIPTION Digicom GPRS Card S is the faster solution to connect to Internet through GSM network and use GPRS (General Packet Radio Service) function to manage the e-mails and surf in Internet. Digicom GPRS Card S includes mobile PhoneTools, thanks it you can install and manage the GPRS Card S functions without other programs.

  • Page 7: Led Description

    1.4 LED DESCRIPTION Through a led indicator, near the antenna, you can control the status of GPRS Card S. STATUS DESCRIPTION • No power supply • SIM card not present • Network search mode • PIN code not inserted BLINK •...

  • Page 8: Installation

    2.1 INSERTING THE SIM CARD Digicom GPRS Card S requires a small SIM card (3 Volt), which is provided by your GSM provider Attention: check with your GSM provider if your SIM is enabled for DATA (GPRS) and FAX traffic, if not ask him for these services.

  • Page 9: Modem Driver Installation

    2.3. MODEM DRIVER INSTALLATION 1. Run mobile PhoneTools. The first time mobile PhoneTools will install the modem driver. Follow the on-screen instructions. Now, you can insert the Digicom GPRS Card S in an available PCMCIA slot. 2. Select Digicom GPRS Card S and press Next.

  • Page 10: Mobile Phonetools

    3. MOBILE PHONETOOLS Thanks to mobile PhoneTools software you can use your Digicom GPRS Card S simply and quickly, without other programs. Follow On-line guide to learn program functions. 3.1 RUN MOBILE PHONETOOLS 1. Run mobile PhoneTools through icon on desktop or from Start / Programs / mobile PhoneTools / mobile PhoneTools.

  • Page 11: Gprs Call

    To disconnect the voice call, click NO button. If during the voice call you must send tones, you can use the PhoneTools keyboard. Surf in Internet with Digicom GPRS Card S ! For further information, you can press (?) button and read the mobile PhoneTools guide.
