RRU
User Guide

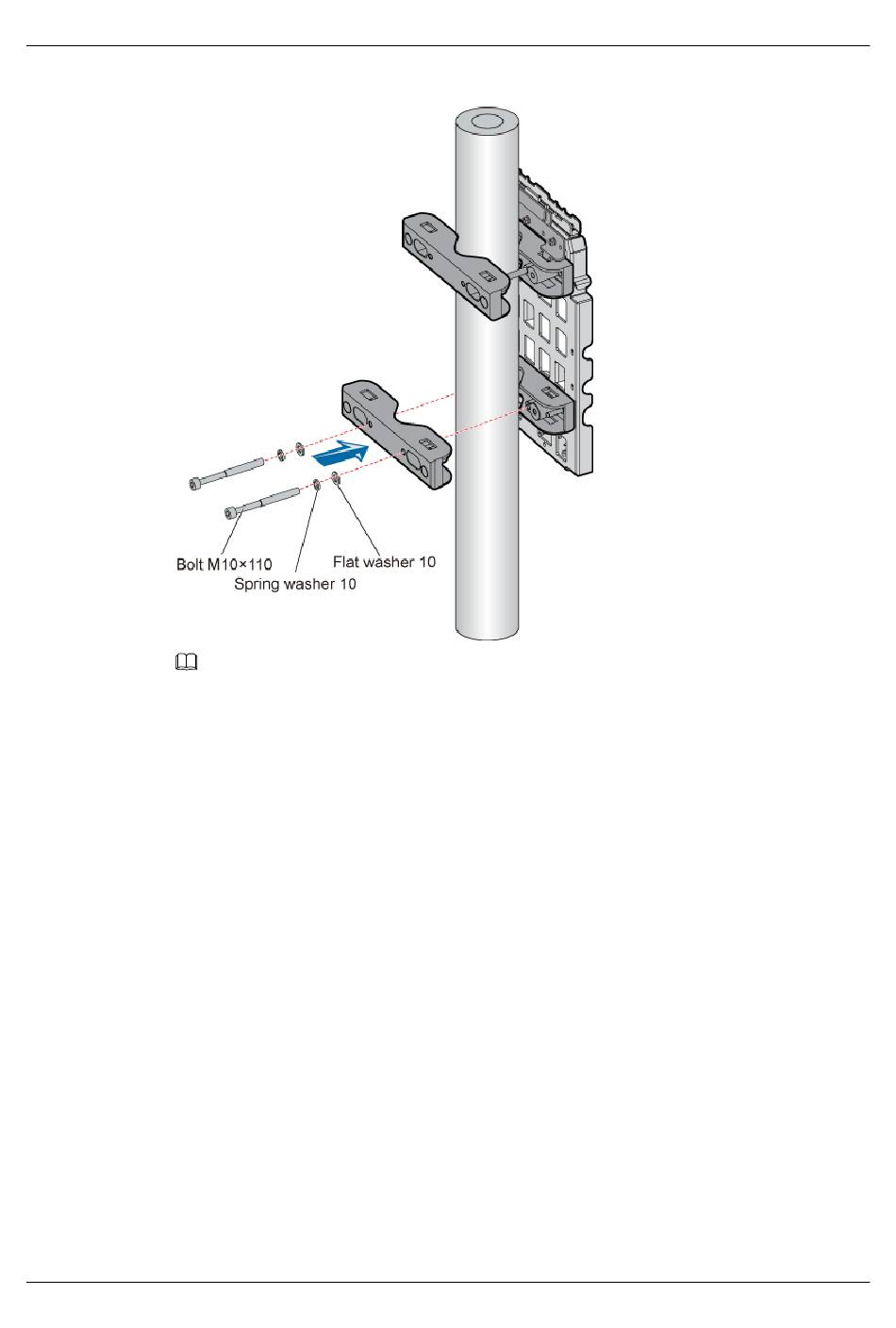

Figure 3-37 Mounting the lower fixture assembly

----End
Installing the Mounting Plate of the Single RRU on the Wall
This describes how to install the mounting plate on the wall.
Procedure
Step 1 Determine the position of the mounting plate.
1.
Issue 01 (2008-04-18)
NOTE
Two pairs of holes can be used for mounting the fixture assembly, as shown in
mm bolts are used, use pair 1. If the 90-114 mm bolts are used, use pair 2.
Determine the position of the mounting plate by referring to the engineering design and
3.1.2 Space Requirements of the RRU and
expansion bolt assemblies and the RRU.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
3 Installing RRU and SRXU Hardware
Figure
SRXU. Figure 3-38 shows the installed
3-31. If the 60-95
3-35
