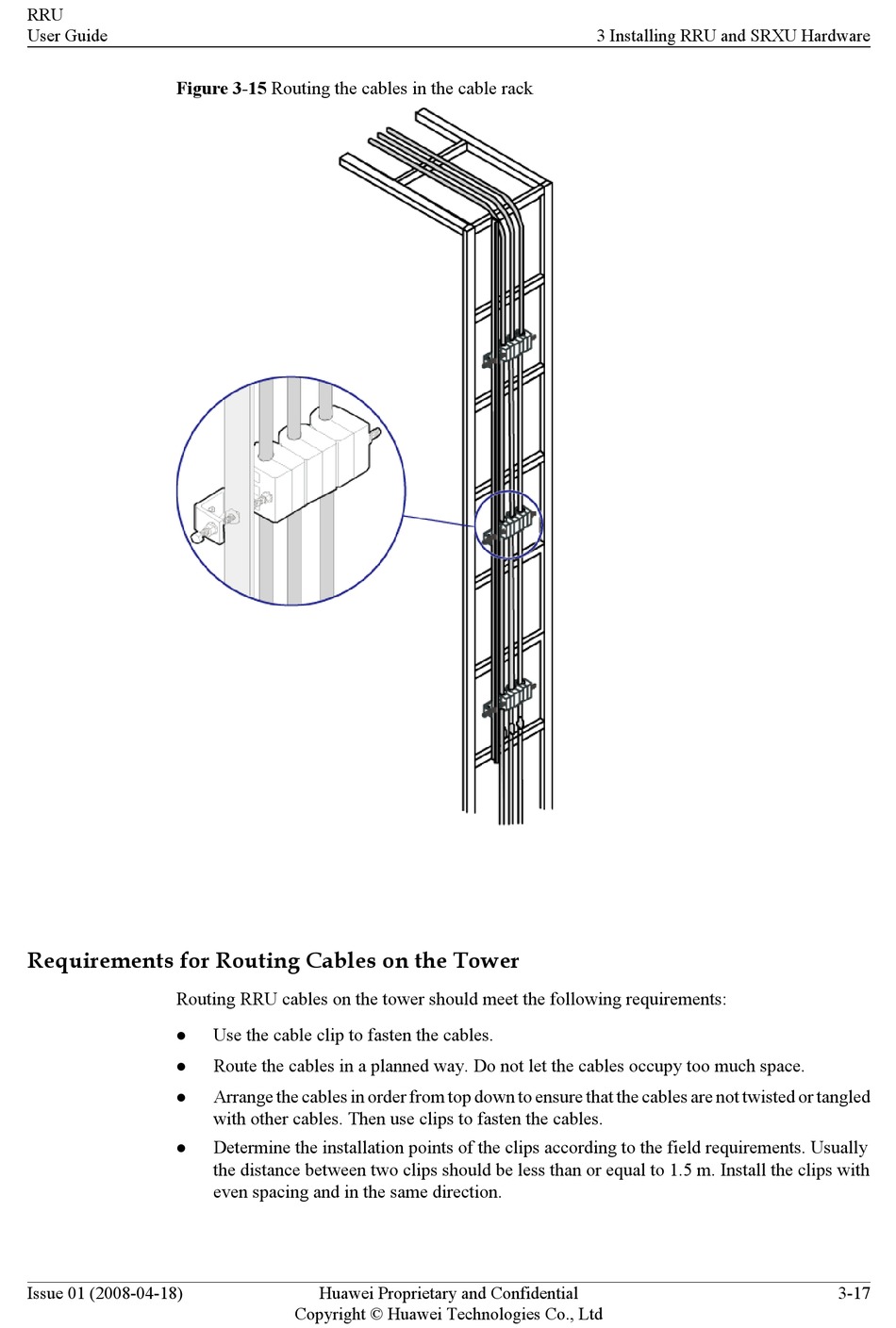

Figure 3-15 Routing the cables in the cable rack

Requirements for Routing Cables on the Tower
Routing RRU cables on the tower should meet the following requirements:
l
l
l
l
Issue 01 (2008-04-18)
Use the cable clip to fasten the cables.
Route the cables in a planned way. Do not let the cables occupy too much space.
Arrange the cables in order from top down to ensure that the cables are not twisted or tangled
with other cables. Then use clips to fasten the cables.
Determine the installation points of the clips according to the field requirements. Usually
the distance between two clips should be less than or equal to 1.5 m. Install the clips with
even spacing and in the same direction.
