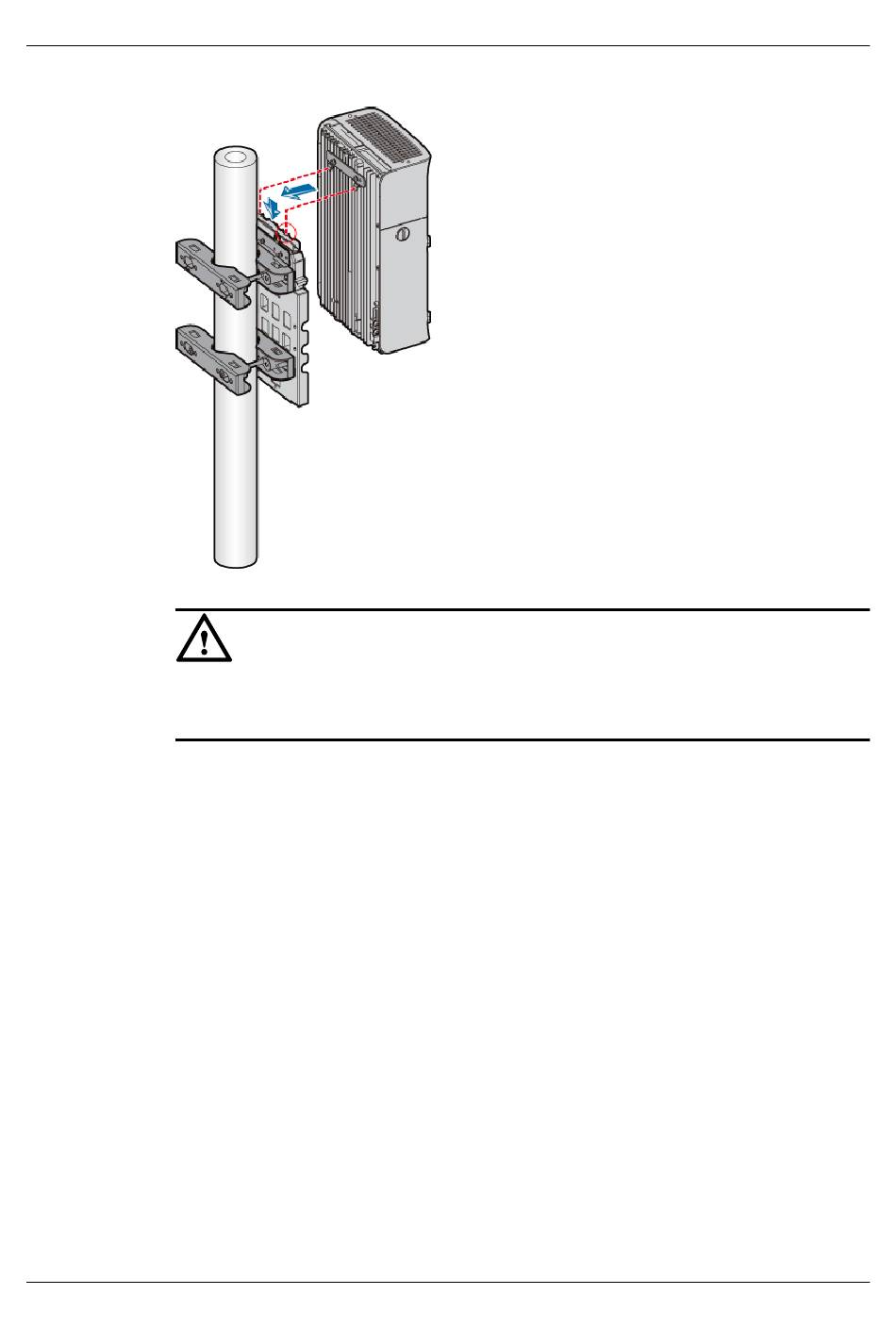

Figure 3-45 Installing the module

The tabs on the attachment plate must be fitted into the middle pair of anchor slots in the mounting
plate.
Step 3 Lead two screws M6 x 20 through the holes in the bottom of the module. Then, secure the module
to the mounting plate, as shown in
Issue 01 (2008-04-18)
CAUTION
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
3 Installing RRU and SRXU Hardware
Figure 3-46.
3-41
