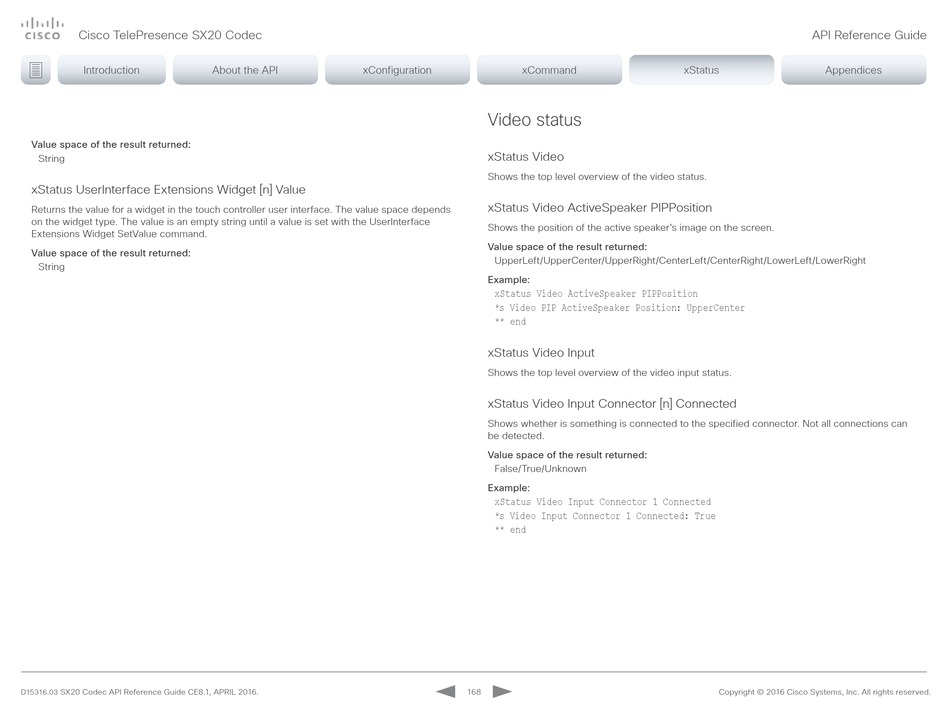

Value space of the result returned:
String

xStatus UserInterface Extensions Widget [n] Value

Returns the value for a widget in the touch controller user interface. The value space depends
on the widget type. The value is an empty string until a value is set with the UserInterface
Extensions Widget SetValue command.
Value space of the result returned:
String
SX20 Codec API Reference Guide CE8.1, APRIL 2016.
D15316.03
About the API xConfiguration xCommand

Video status

xStatus Video

Shows the top level overview of the video status.

xStatus Video ActiveSpeaker PIPPosition

Shows the position of the active speaker's image on the screen.
Value space of the result returned:
UpperLeft/UpperCenter/UpperRight/CenterLeft/CenterRight/LowerLeft/LowerRight
Example:
xStatus Video ActiveSpeaker PIPPosition
*s Video PIP ActiveSpeaker Position: UpperCenter
** end

xStatus Video Input

Shows the top level overview of the video input status.

xStatus Video Input Connector [n] Connected

Shows whether is something is connected to the specified connector. Not all connections can
be detected.
Value space of the result returned:
False/True/Unknown
Example:
xStatus Video Input Connector 1 Connected
*s Video Input Connector 1 Connected: True
** end
