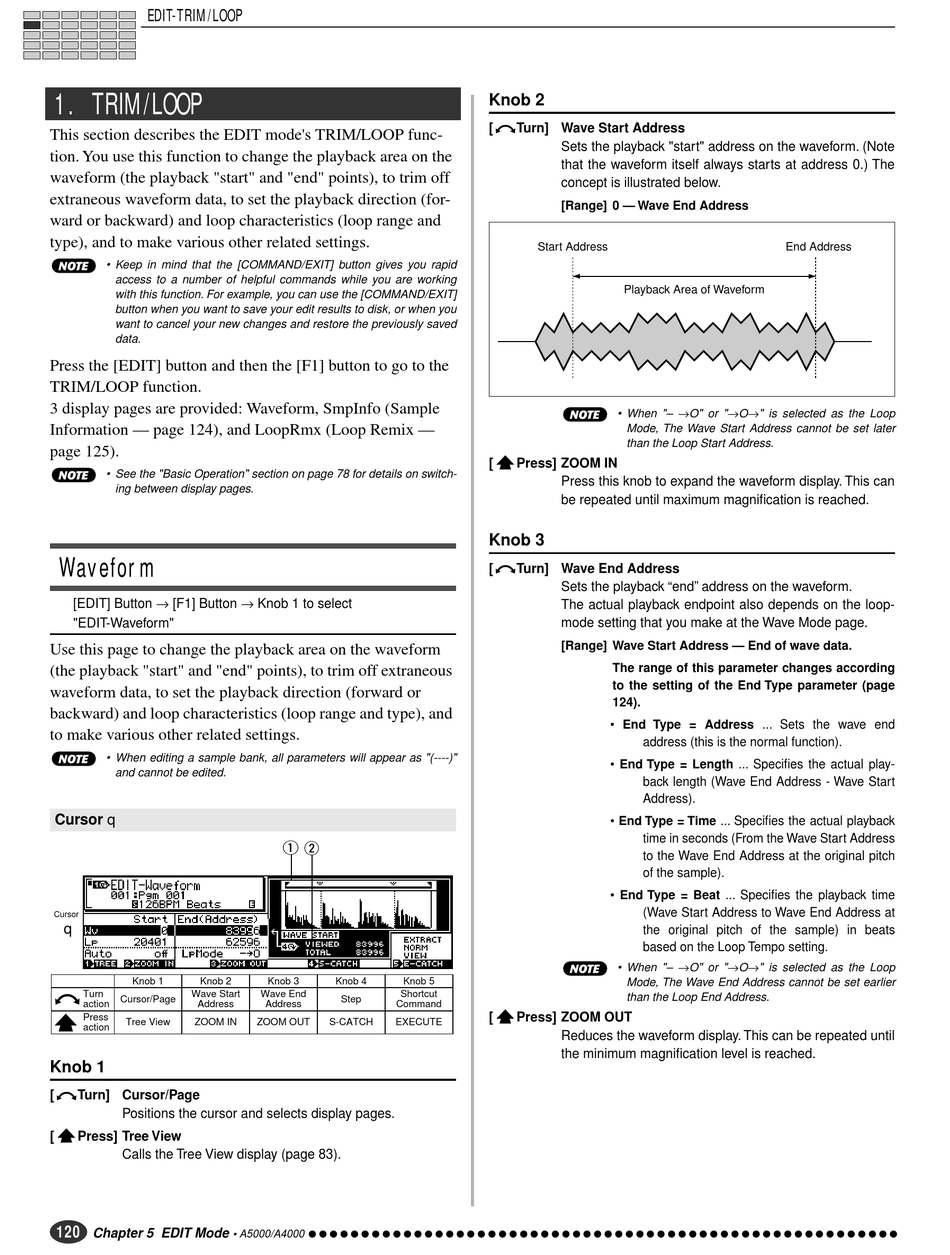

EDIT-TRIM/LOOP

1. TRIM/LOOP

This section describes the EDIT mode's TRIM/LOOP func-
tion. You use this function to change the playback area on the
waveform (the playback "start" and "end" points), to trim off
extraneous waveform data, to set the playback direction (for-
ward or backward) and loop characteristics (loop range and
type), and to make various other related settings.
• Keep in mind that the [COMMAND/EXIT] button gives you rapid
access to a number of helpful commands while you are working
with this function. For example, you can use the [COMMAND/EXIT]
button when you want to save your edit results to disk, or when you
want to cancel your new changes and restore the previously saved
data.
Press the [EDIT] button and then the [F1] button to go to the
TRIM/LOOP function.
3 display pages are provided: Waveform, SmpInfo (Sample
Information — page 124), and LoopRmx (Loop Remix —
page 125).
• See the "Basic Operation" section on page 78 for details on switch-
ing between display pages.

Waveform

[EDIT] Button [F1] Button
"EDIT-Waveform"
Use this page to change the playback area on the waveform
(the playback "start" and "end" points), to trim off extraneous
waveform data, to set the playback direction (forward or
backward) and loop characteristics (loop range and type), and
to make various other related settings.
• When editing a sample bank, all parameters will appear as "(----)"
and cannot be edited.
Cursor q
Cursor
q
Knob 1 Knob 2
Turn Wave Start
Cursor/Page
action Address
Press
Tree View ZOOM IN
action
Knob 1
[ Turn] Cursor/Page
Positions the cursor and selects display pages.
[ Press] Tree View
Calls the Tree View display (page 83).
120
Chapter 5 EDIT Mode
Knob 1 to select
q w
Knob 3 Knob 4 Knob 5
Wave End Shortcut
Step
Address Command
ZOOM OUT S-CATCH EXECUTE
• A5000/A4000
Knob 2
[ Turn] Wave Start Address
Sets the playback "start" address on the waveform. (Note
that the waveform itself always starts at address 0.) The
concept is illustrated below.
[Range] 0 — Wave End Address
Start Address
Playback Area of Waveform
• When "–
Mode, The Wave Start Address cannot be set later
than the Loop Start Address.
[ Press] ZOOM IN
Press this knob to expand the waveform display. This can
be repeated until maximum magnification is reached.
Knob 3
[ Turn] Wave End Address
Sets the playback "end" address on the waveform.
The actual playback endpoint also depends on the loop-
mode setting that you make at the Wave Mode page.
[Range] Wave Start Address — End of wave data.
The range of this parameter changes according
to the setting of the End Type parameter (page
124).
• End Type = Address ... Sets the wave end
address (this is the normal function).
• End Type = Length ... Specifies the actual play-
back length (Wave End Address - Wave Start
Address).
• End Type = Time ... Specifies the actual playback
time in seconds (From the Wave Start Address
to the Wave End Address at the original pitch
of the sample).
• End Type = Beat ... Specifies the playback time
(Wave Start Address to Wave End Address at
the original pitch of the sample) in beats
based on the Loop Tempo setting.
• When "–
Mode, The Wave End Address cannot be set earlier
than the Loop End Address.
[ Press] ZOOM OUT
Reduces the waveform display. This can be repeated until
the minimum magnification level is reached.
End Address
O" or " O " is selected as the Loop
O" or " O " is selected as the Loop
