Page 1 CONTROLLERS FOR PACKAGED Technical Catalogue PC-ARF PC-ALHZF PSC-A1T PC-ART PSC-A64GT PSC-6RAD PC-ARH PSC-A32MN PC-A1IO PC-LH3 PSC-A64S PSC-A5HR PC-LH3B PSC-A16RS PC-AMTB PC-ALH CSNET WEB THM-R2AE PC-ALHN CSNET MANAGER WALL SUPPORT PC-ALHC HC-A64NET STAND SUPPORT PC-ALHD HC-A(8/64)MB PCC-1A PC-ALH3 HC-A16KNX PRC-(10-30)E1 PC-ALHP1 KNX001 NET CONFIG.KIT...
Page 3 Contents C o n t e n t s Controllers code list Control solutions Features and benefits Individual remote controls Centralised remote controls Building air conditioning controls Gateways for building management systems Control support devices Control accessories TCGB0106 rev.0 - 12/2014...
Page 5: Table Of Contents
1.3.4 Gateways for building management systems (BMS) ..................5 1.3.5 Control support devices ........................... 5 1.3.6 Control accessories ............................6 1.3.7 Other devices compatible with HITACHI Air Conditioning systems ..............6 Control solutions ....................... 7 2.1 Introduction ..............................8 2.2 Great control possibilities.......................... 10 2.2.1 Individual control systems ..........................11...
Page 6 3.6.2 PCC-1A ................................. 53 3.6.3 PRC-(10/15/20/30)E1 ............................ 53 3.6.4 Net Config. Kit ............................... 54 3.7 Other devices compatible with HITACHI Air Conditioning systems ............55 3.7.1 HITACHI-AIRZONE gateway (HITI11001) ..................... 55 3.7.2 Power meter for CSNET WEB and CSNET Manager ................... 55 3.7.3 MODBUS-BACNET gateway ........................
Page 7 General Index 4.1.4 Operation ............................... 66 4.1.4.1 Basic Operation ..........................66 4.1.4.2 Test run menu ..........................67 4.1.4.3 Operation mode selection procedure .................... 88 4.1.4.4 Operation menu ..........................91 4.1.4.5 Help menu ........................... 109 4.1.4.6 Other indications ...........................112 4.1.4.7 Alarm codes ..........................114 4.1.4.8 Check Menu ..........................115 PC-ART ...............................
Page 8 General Index 4.3.6 Optional Functions ............................166 4.3.6.1 Command functions ........................166 4.3.6.2 Optional functions list ......................... 167 4.3.6.3 Remote Control Optional Functions .................... 168 4.3.7 Alarm indication ............................170 PC-LH3(A/B) ............................171 4.4.1 Safety summary ............................171 4.4.2 Installation ..............................171 4.4.2.1 Components list ...........................
Page 9 General Index 4.5.8 Operation ..............................210 4.5.8.1 Communication between wireless remote control and receiver kit ..........210 4.5.8.2 Indication of receiver kit ....................... 212 4.5.8.3 Emergency operation ........................213 4.5.8.4 Operation with wired remote control .................... 213 4.5.9 Optional functions ............................214 4.5.10 Troubleshooting ............................
Page 10 General Index PSC-A64S ............................369 5.3.1 Safety summary ............................369 5.3.2 Installation ..............................370 5.3.2.1 Installation site selection ......................370 5.3.2.2 Components list ........................... 370 5.3.2.3 Description of the parts ........................ 371 5.3.2.4 Dimensional data ......................... 372 5.3.2.5 Installation space ......................... 372 5.3.2.6 Installation procedure ........................
Page 11 General Index 6.1.4 Electrical wiring ............................422 6.1.5 Operation ..............................424 6.1.5.1 Test run ............................424 6.1.5.2 Graphic interface ......................... 429 6.1.5.3 Local software configuration ......................432 6.1.5.4 Local computer configuration ...................... 434 6.1.5.5 Configure System ........................438 6.1.5.6 Historical data ..........................449 6.1.5.7 Power consumption ........................455 6.1.5.8 Operation and configuration of packaged units ................
Page 12 General Index HC-A64NET ............................614 6.3.1 Safety summary ............................614 6.3.2 Installation ..............................614 6.3.2.1 Installation site selection ......................614 6.3.2.2 Components list ........................... 614 6.3.2.3 Description of the parts ........................ 615 6.3.2.4 General data ..........................616 6.3.2.5 Dimensional data ......................... 617 6.3.2.6 Installation space .........................
Page 13 General Index KNX001 ............................... 646 7.3.1 Safety summary ............................646 7.3.2 Installation ..............................647 7.3.2.1 Installation site selection ......................647 7.3.2.2 Components list ........................... 647 7.3.2.3 Description of the parts ........................ 647 7.3.2.4 General data ..........................648 7.3.2.5 Dimensional data ......................... 648 7.3.2.6 Installation space .........................
Page 14 General Index 8.1.3 Electrical wiring ............................700 8.1.3.1 Electrical connection of PSC-A1T timer combined with individual or central controllers ..... 700 8.1.3.2 DIP switch setting ........................701 8.1.4 Test run ................................ 702 8.1.5 Operation ..............................703 PSC-6RAD ............................708 8.2.1 Safety summary ............................708 8.2.2 Installation ..............................
Page 15 General Index PC-AMTB ............................737 8.5.1 Safety summary ............................737 8.5.2 Installation ..............................737 8.5.2.1 Installation site selection ......................737 8.5.2.2 Components list ........................... 737 8.5.2.3 Description of the parts ........................ 738 8.5.2.4 General data ..........................738 8.5.2.5 Dimensional data ......................... 738 8.5.2.6 Installation space .........................
Page 17: Controllers Code List
Building air conditioning controls ......................... 4 1.3.4. Gateways for building management systems (BMS) ................... 5 1.3.5. Control support devices ..........................5 1.3.6. Control accessories ............................. 6 1.3.7. Other devices compatible with HITACHI Air Conditioning systems ............. 6 TCGB0106 rev.0 - 12/2014...
Page 18: General Information
This document may therefore have been subject to amendments during the life of the product. HITACHI makes every effort to offer correct, up-to-date documentation. Despite this, printing errors cannot be controlled by HITACHI and are not its responsibility.
Page 19: Product Guide
1 Controllers code list Product guide 1.3 Product guide 1.3.1 Individual remote controls Name Description Code Figure PC-ARF Remote control with timer 70510001 PC-ART Remote control with timer 70510000 PC-ARH Simplified remote control 60291486 PC-LH3A 60291056 Wireless remote control PC-LH3B...
Page 20: Centralised Remote Controls
1 Controllers code list Product guide 1.3.2 Centralised remote controls Name Description Code Figure PSC-A64GT Touch screen central station 60291730 PSC-A32MN Touch screen central station mini 60291966 PSC-A64S Centralised remote control 60291479 PSC-A16RS Centralised ON/OFF control 60291484 (*): All the data regarding PSC-A32MN are preliminary data, and therefore, they are subject to changes. 1.3.3 Building air conditioning controls Name Description...
Page 21: Gateways For Building Management Systems (Bms)
1 Controllers code list Product guide 1.3.4 Gateways for building management systems (BMS) Name Description Code Figure Integration with installation with intelligent control (Building HC-A8MB Management System) Gateway Interface to MODBUS 7E513204 systems (Max. 8 indoor units). Integration with installation with intelligent control (Building HC-A64MB Management System) Gateway Interface to MODBUS 7E513205...
Page 22: Control Accessories
(*): All the data regarding Wall support are preliminary data, and therefore, they are subject to changes. 1.3.7 Other devices compatible with HITACHI Air Conditioning systems In addition to all the aforementioned HITACHI controls, there are some non-HITACHI devices for combination with HITACHI Air Conditioning systems. These are the following: •...
Page 23: Control Solutions
2 Control solutions C o n t r o l s o l u t i o n s Index 2.1. Introduction.............................. 8 2.2. Great control possibilities ........................10 2.2.1. Individual control systems ..........................11 2.2.1.1. Wired remote controls ......................11 2.2.1.2. Wireless remote controls ......................
Page 24: Introduction
• Intelligent building (BMS - Building Management System): which allow that intelligent building controller interact with HITACHI air conditioning systems. N O T E The Building Management Systems (ELB) mentioned on this manual are also commonly known as Building Automati- zation Systems (BAS).
Page 25 2 Control solutions Introduction Different types of remote controls can be used depending on the number of units to be controlled. Individual remote controls • Recommended to be always installed for the local control of each unit. • The indoor units should be grouped in remote control groups with a maximum of 16 indoor units for each group. Centralised remote controls •...
Page 26: Great Control Possibilities
• There are more control support devices that can be used with HITACHI systems. They are not included in the above diagram to make it more comprehensive. Refer to the following pages for its specific information. TCGB0106 rev.0 - 12/2014...
Page 27: Individual Control Systems
PC-ART is the standard individual remote control of HITACHI. PC-ARF is the newest individual remote control of HITACHI, with an attractive design, excellent display thanks to its large sized LCD screen and with new additional optional functions.
Page 28: Wireless Remote Controls
2 Control solutions Great control possibilities 2.2.1.2 Wireless remote controls Wireless remote controls are the most suitable option for those users who are only interested in basic functions (ON/OFF, setting temperature, fan speed and louvre direction). Optional functions cannot be set by wireless remote controls. These remote controls do not require electrical connection between the remote control and the indoor unit, since they are wireless.
Page 29: Centralised Control Systems
Centralised remote controls are ideal for use in installations subject to random occupation, enabling indoor units to be clas- sified in groups by each considered zone. HITACHI recommends the use of centralised remote controls for controlling a high number of indoor units distributed throughout one floor of a building.
Page 30: Centralised On/Off Control (Psc-A16Rs)
2 Control solutions Great control possibilities 2.2.2.3 Centralised ON/OFF control (PSC-A16RS) PSC-A16RS is an user-friendly product that provides individual or simultaneous ON/OFF control of up to 16 groups of units. Connecting a PC-A1T Timer, schedule operation can be programmed for all the groups. PSC-A16RS PSC-A1T (Optional)
Page 31: Csnet Manager
2 Control solutions Great control possibilities 2.2.3.2 CSNET Manager CSNET Manager is a good solution when there is no a computer in the installation with centralised control. In this case, with the use of its H-LINK gateway (HC-A64NET), all the installation parameters can be easily accessible through the touch screen.
Page 32 2 Control solutions Great control possibilities Multiple CSNET Manager system This type of installation can be useful in order to have different access points in the entire installation. Recommended for very large facilities. CSNET MANAGER (LT/XT) HC-A64NET ETHERNET Up to 64 indoor units PSC-A160WEB1 INTERNET...
Page 33: Standard Protocol Interfaces For Building Management Systems (Bms)
2 Control solutions Great control possibilities 2.2.4 Standard protocol interfaces for building management systems (BMS) HITACHI yields to customers a wide range of control interfaces for the integration of the air conditioning equipment and controls into the BMS systems. 2.2.4.1 MODBUS interface Integrated control system for connection between HITACHI air conditioning systems and BMS systems.
Page 34: Knx Interface
This option allows to take advantage of the CSNET WEB functionality, connecting the CSNET WEB hardware (PSC-A160WEB1) to the KNX001 gateway. 2.2.4.3 LONWORKS interface Monitoring and control functions from LONworks networks can be easily integrated to the HITACHI air conditioning sys- tems with the installation of the gateway interface HARC-BX E (A/B). HARC-BC E (A/B)
Page 35: Bacnet Interface
2 Control solutions Great control possibilities 2.2.4.4 BACNET interface The integration of HITACHI systems into a BACNET installation can be carried out by using a double gateway system: • HITACHI MODBUS gateway: HC-A(8/64)MB, PSC-A160WEB1 or CSNET Manager with HC-A64NET which provide HLINK data into a MODBUS protocol.
Page 36: Fidelio Interface
2 Control solutions Great control possibilities 2.2.4.5 FIDELIO interface The integration of HITACHI systems into a FIDELIO installation can be carried out by using a double gateway system: • HITACHI MODBUS gateway: HC-A(8/64)MB, PSC-A160WEB1 or CSNET Manager with HC-A64NET which provide HLINK data into a Modbus protocol.
Page 37: Other Control Possibilities
2 Control solutions Great control possibilities 2.2.5 Other control possibilities Compatibility with HITACHI domestic units HITACHI domestic units (RAC models) can be integrated into H-LINK systems by means of the PSC-6RAD adapter. PSC-6RAD DOMESTIC INDOOR & HITACHI control systems OUTDOOR UNITS...
Page 38 Multitenant installations HITACHI offers the PC-AMTB control support for multitenant buildings (office buildings, multi dwelling, small hotels) with several indoor units of different tenants with a common shared outdoor unit. Thanks to the PC-AMTB, the power supply of some indoor units can be shut-down without causing refrigerant problems, since the expansion valve of such indoor unit is controlled to adjust the refrigerant flow accordingly.
Page 39 2 By the temperature value at the thermistor of the remote control (If available). 3 By the average between both previous values. Moreover, HITACHI offers the remote temperature sensor THM-R2AE in order to provide more options for the room tem- perature measurement. In this case, the room temperature value is obtained as follows: 1 By the average between the air inlet temperature value at the indoor unit and the temperature detected at the remote sensor.
Page 40 Power Meter option by Building AC controls lets the user to configure a TCP-MODBUS power meter for each outdoor unit in order to read the power consumption in (kW). Suggested device tested by Hitachi is 7KM PAC3200 by Siemens. ETHERNET...
Page 41: H-Link Ii Specifications
2 Control solutions H-LINK II Specifications 2.3 H-LINK II Specifications 2.3.1 Hardware characteristics Elements Specifications Communication cable Twin wire, without polarity Communication system Half-duplex Communication method Asynchronous Transmission speed 9600 Bauds Cable length Maximum 1000 m (5000 m if applied four PSC-5HR devices) Either package units or water chillers only can be connected in an H-LINK communication line.
Page 42 2 Control solutions H-LINK II Specifications Therefore, considering the previous maximums and the number of PSC-5HR devices, the maximum number of indoor units with one central control is shown on the following table and graphic. Maximum Indoor Unit Quantity Maximum indoor units quantity 0 PSC-5HR 1 PSC-5HR 2 PSC-5HR...
Page 43: H-Link I & H-Link Ii Compatibility
2 Control solutions H-LINK II Specifications 2.3.3 H-LINK I & H-LINK II Compatibility All the controls shown in this document work with H-LINK II except HARC-BX E (A/B) and PSC-6RAD. However, all the H-LINK II controls can also work with H-KINK I units. H-LINK I unit and H-LINK II unit can be mixed in the same bus without any adapter.
Page 44 2 Control solutions H-LINK II Specifications 4 In case of Central Controllers are mixed (H-LINK I and H-LINK II type) Hold Central Controller HII/old Hold HII/old Hold Hold Hold Hold Refrigerant Cycle Range 0-63 If HI(old) Central controller controls Address lower than 16. Indoor Address Range 0-63 If HI(old) Central controller controls Address lower than 16.
Page 45: Controls Compatibility
2.4.1 Compatibility between controls and H-LINK system Next table shows what sort of H-LINK and what gateway protocol has each device of this technical catalogue. H-LINK Type Gateway protocol H-LINK I H-LINK II PC-ARF PC-ART Individual remote controls PC-ARH PC-LH3A PC-LH3B...
Page 46: Compatibility Between Each Control
2 Control solutions Controls compatibility 2.4.3 Compatibility between each control PC-ARF O (2) X PC-ART O (2) X Individual remote PC-ARH O (2) X controls PC-LH3A O (2) X PC-LH3B O (2) X PSC-A64GT O (1) X X (2) O...
Page 47: Considerations Depending On The Outdoor And Indoor Units
Triple, Quad), remote control cable between indoor units can be removed. However, the following limitations exist. 1 PC-ARF, PC-ART, PC-ARH or PC-LH3(A/B) cannot be installed as a second remote control in the same unit as sub controller. (But they can be installed as main controller.) 2 Optional Function setting for “remote ON/OFF”, “power supply ON/OFF”...
Page 48: Controls Specification
2.5.1 Number of controllable units Next table shows the maximum quantity of each type of units which can be controlled depending on the controller. Number of controllable units Outdoor units Groups of units Indoor units PC-ARF 16 (*) PC-ART 16 (*) Individual remote PC-ARH...
Page 49: List Of Main Functions For Each Control
2 Control solutions Controls specification 2.5.2 List of main functions for each control Next table shows the main available data on each control: PC-ARF PC-ART Individual remote PC-ARH controls PC-LH3A PC-LH3B PSC-A64GT PSC-A32MN Centralised remote controls PSC-A64S PSC-A16RS CSNET WEB...
Page 51: Features And Benefits
PCC-1A ..............................53 3.6.3. PRC-(10/15/20/30)E1 ..........................53 3.6.4. Net Config. Kit ............................54 3.7. Other devices compatible with HITACHI Air Conditioning systems ............55 3.7.1. HITACHI-AIRZONE gateway (HITI11001) ....................55 3.7.2. Power meter for CSNET WEB and CSNET Manager ................55 3.7.3.
Page 52: Individual Remote Controls
3 Features and benefits Individual remote controls 3.1 Individual remote controls 3.1.1 PC-ARF PC-ARF: Remote control with timer Advanced Legibility and Attractive design • The newly adopted LED-backlit LCD provides enhanced legibility. • Large, clear character display is realized by Full Dot Matrix LCD.
Page 53: Pc-Art
3 Features and benefits Individual remote controls 3.1.2 PC-ART PC-ART: Remote control with timer • Excellent display thanks to a large sized LCD screen, facilitating both programmable variable and possible alarm indi- cation readings. • Allows all indoor unit functions to be selected and changed. •...
Page 54: Pc-Arh
3 Features and benefits Individual remote controls 3.1.3 PC-ARH PC-ARH: Simplified remote control • Specially designed for hotels applications. • Just one remote control can control up to 16 indoor units. • Operation mode selection. • Smaller remote control than conventional models. •...
Page 55: Pc-Lh3(A/B)
3 Features and benefits Individual remote controls 3.1.4 PC-LH3(A/B) PC-LH3(A/B): Wireless remote control • Wireless remote control that requires no wiring and provides simple one-touch operation. • Same remote control for all the indoor units. • Each indoor unit has its own receiver. •...
Page 56: Centralised Remote Controls
3 Features and benefits Centralised remote controls 3.2 Centralised remote controls 3.2.1 PSC-A64GT The central station (PSC-A64GT) is connected to H-LINK system and used for the central control and monitoring of the air conditioners. PSC-A64GT: Touch Screen Central Station • Touch Screen Central Station with attractive design.
Page 57: Psc-A32Mn
3 Features and benefits Centralised remote controls 3.2.2 PSC-A32MN The central station mini (PSC-A32MN) is connected to H-LINK system and used for the central control and monitoring of the air conditioners. PSC-A32MN Touch Screen Central Station mini • Touch Screen Central Station with attractive design and reduced dimensions. •...
Page 58: Psc-A64S
A system configuration example is shown below: Max. 64 remote control group and max 160 indoor units are available. Max 8 units in the same H-LINK are available. (For H-LINK II only) (Set DSW1 correctly) HITACHI HITACHI HITACHI GROUP GROUP...
Page 59: Psc-A16Rs
3 Features and benefits Centralised remote controls 3.2.4 PSC-A16RS PSC-A16RS is an ON/OFF controller which allows to manage the running/stop state of 16 groups. PSC-A16RS Centralised ON/OFF remote control • User-friendly product with a simply function works. • Two available switches for the ON/OFF function: Individual RUN/STOP switch: To order the operation/stoppage of one group.
Page 60: Building Ac Controls
3 Features and benefits Building AC controls 3.3 Building AC controls 3.3.1 CSNET WEB (PSC-A160WEB1) The Building AC Control device named CSNET WEB is an independent centralised control system which can control an H-LINK communication line by using the PSC-160WEB1 hardware. It can control up to 160 indoor units and 64 outdoor units.
Page 61: Csnet Manager (Lt/Xt)
1280 indoor units. Accessories • Mounting accessories: CSNET Manager has standard VESA mounting dimensions commonly available in the market. However, HITACHI offers 2 accessories for the CSNET Manager (LT/XT) assembly: Stand mounted support Wall mounted support •...
Page 62: Hc-A64Net (Csnet Manager Gateway)
3 Features and benefits Building AC controls 3.3.3 HC-A64NET (CSNET MANAGER gateway) HC-A64NET is the H-LINK gateway used by CSNET Manager to communicate with the units through the H-LINK protocol. HC-A64NET: H-LINK gateway used by CSNET MANAGER screens • HC-A64NET is connectable up to 64 indoor units and connectable only to one CSNET Manager. However, up to 8 HC- A64NET can be connected to the same CSNET Manager.
Page 63: Gateways For Building Management Systems (Bms)
3.4 Gateways for building management systems (BMS) 3.4.1 HC-A(8/64)MB HC-A8MB and HC-A64MB are the new interfaces which allow an easy integration of HITACHI Air Conditioning installations to a MODBUS BMS by providing full management control of Air Conditioning installation to the BMS controllers.
Page 64: Hc-A16Knx
Up to 8 HC-A16KNX can be connected in an H-LINK line. Only one of this HC-A16KNX devices must be set as master. 3.4.3 KNX001 (CSNET WEB accessory) A HITACHI Air-Conditioning system is integrated with a KNX system using CSNET WEB and the KNX001 device. KNX001: Gateway Interface to KNX system •...
Page 65: Harc-Bx E (A/B)
3 Features and benefits Gateways for building management systems (BMS) 3.4.4 HARC-BX E (A/B) HARC-BX E is a LonWorks® interface that allows connection between LON BMS communication and HITACHI proprietary H-LINK line. HARC-BX E (A/B): Gateway Interface to LONWORKS systems •...
Page 66: Control Support Devices
3 Features and benefits Control support devices 3.5 Control support devices 3.5.1 PSC-A1T The PSC-A1T is a programmable weekly timer intended for use with other remote controls which do not have a built-in weekly timer option, in order to provide them a full complete timer control. PSC-A1T: Programmable Timer •...
Page 67: Pc-A1Io
This application is open to control this equipment and other devices/accessories that are compatible with the control specification of PC-A1IO. • All the devices connected to PC-A1IO are managed as normal HITACHI Indoor Unit in current HITACHI Central Con- trols. •...
Page 68: Pc-Amtb
3 Features and benefits Control support devices 3.5.5 PC-AMTB PC-AMTB is a connection board for multitenant buildings (office buildings, multi dwelling, small hotels). It provides a solu- tion in such installations with a refrigerant system compounded by several indoor units of different tenants with a common shared outdoor unit (typically Set Free systems), when the power supply of some indoor units is shut-down together with the tenant installation without causing refrigerant systems problems.
Page 69: Control Accessories
Control accessories 3.6 Control accessories 3.6.1 Wall / Stand mounted support for CSNET Manager LT/XT CSNET Manager has standard VESA mounting dimensions commonly available in the market. However, HITACHI offers 2 accessories for the CSNET Manager (LT/XT) assembly: Wall mounted support (Image to be informed later) ...
Page 70: Net Config. Kit
3 Features and benefits Control accessories 3.6.4 Net Config. Kit This accessory provides all the necessary devices for HITACHI installers when commissioning a Modbus installation. Net Config. Kit: Net configuration kit for HC-A(8/64)MB and HC-A64NET • The USB memory stick includes a software tool for Modbus communication check when commissioning.
Page 71: Other Devices Compatible With Hitachi Air Conditioning Systems
3.7.3 MODBUS-BACNET gateway • The integration of HITACHI systems into a BACNET installation can be carried out by using a double gateway system: HITACHI MODBUS gateway: HC-A(8/64)MB, PSC-A160WEB1 or CSNET Manager with HC-A64NET which pro- vide HLINK data into a Modbus protocol.
Page 73: Individual Remote Controls
4 Individual remote controls I n d i v i d u a l r e m o t e c o n t r o l s Index 4.1. PC-ARF ..............................60 4.1.1. Safety summary ............................60 4.1.2. Installation ..............................61 4.1.2.1.
Page 74 4 Individual remote controls 4.2.7. Maintenance and repair ........................... 145 4.2.7.1. Abnormal transmission between the remote control and indoor unit ........145 4.2.7.2. Troubleshooting procedure for units connected to the remote control ........145 4.2.7.3. Troubleshooting on check mode ................... 146 4.2.7.4.
Page 75 4 Individual remote controls 4.4.5. Maintenance ............................186 4.4.5.1. Cleaning Wireless Remote Control Switch ................186 4.4.5.2. Replacing Batteries ....................... 186 4.5. Receiver kit for wireless remote control ....................187 4.5.1. Installation of PC-ALH(N) Receiver kit (For RCI-FSN3Ei) ............... 188 4.5.1.1.

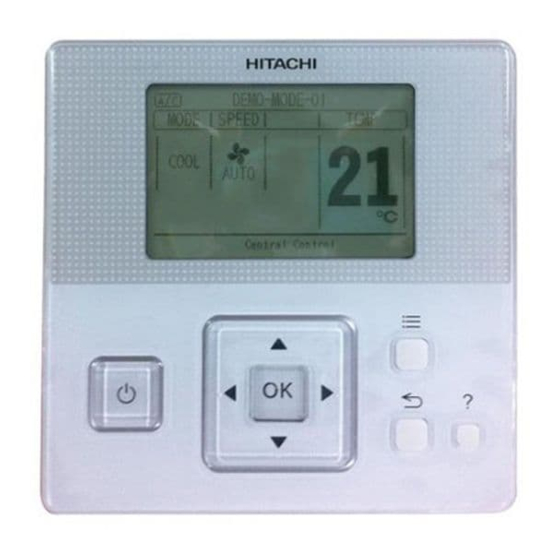

Page 76: Pc-Arf
If the safety devices are activated too frequently or the buttons do not work properly, turn off the unit at the mains and con- tact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N DO NOT install the indoor unit, outdoor unit, remote control or any wiring in the following locations: •...
Page 77: Installation
4 Individual remote controls PC-ARF 4.1.2 Installation 4.1.2.1 Installation site selection Take note of the maximum admissible cable length between units and the control as well as between the units themselves, as shown in the following table: Cable section 0.3 mm ≥...
Page 78: Description Of The Parts
HELP button  To display Help Menu. MENU button  To display Menu. MOTION SENSOR Indicator Model: PC-ARF  It is indicated only for the air panel with motion sensor.  Setting Temperature Indicator Filter Sign Indicator  It is indicated at the set period for filter cleaning.
Page 79: Installation Space
4 Individual remote controls PC-ARF 4.1.2.5 Installation space In case of installing the controllers in vertical line, keep a distance more than 50mm between the controllers vertically. If the distance is insufficient, the controller can not be taken out. > 50mm 4.1.2.6 Installation procedure...
Page 80 4 Individual remote controls PC-ARF When Using Switch Box a. Prepare field-supplied Implanted Switch Box (JIS Box). (JIS C 8336-1988) There are different types of electrical boxes available on the market that can be used for this installation, for example: •...
Page 81: Electrical Wiring
4 Individual remote controls PC-ARF 4.1.3 Electrical wiring Wiring example (Using a twist pair cable with shield tube) Max 16 indoor units Remote control switch Remote control (Subsidiary) switch Electrical box of indoor unit Electrical box of indoor unit...
Page 82: Operation
4 Individual remote controls PC-ARF 4.1.4 Operation Before operation C A U T I O N • Turn on the electrical power supply to the system approximately 12 hours before start-up after a long shutdown. Do not start the sys- tem immediately after connecting the power supply, because the compressor may be damaged if it is not sufficiently heated.
Page 83: Test Run Menu
• Select the functions to lock at the function selection setting. Contact your distributor or dealer of HITACHI for detailed information. 4.1.4.2 Test run menu Test run 1 Turn ON the power supply for all the indoor units.
Page 84 ADDR be displayed on the LCD as shown in the figure below. If the RUN indicator on PC-ARF flashes (2 seconds ON/ 2 seconds OFF), it may SEL. OP MODE ENT.
Page 85 4 Individual remote controls PC-ARF Function Selection and Input/Output setting from remote control 1 Press and hold “ ” (menu) and “ ” (return) simultane- Test Run Menu ously for at least 3 seconds during the normal mode Test Run (when unit is not operated).
Page 86 4 Individual remote controls PC-ARF Optional functions list Indi- Indi- Setting Setting Items Optional Function vidual Contents Items Optional Function vidual Contents condition condition setting setting Hi speed (Except Cancellation Standard +4 ºC Not available for Hi Speed at of heating Hi Speed 1 (*2) ○...
Page 87 4 Individual remote controls PC-ARF Indi- Indi- Setting Setting Items Optional Function vidual Contents Items Optional Function vidual Contents condition condition setting setting Room temperature Not used Not available Not prepared control for energy ○ (Use as 00 conditions) Available...
Page 88 4 Individual remote controls PC-ARF Indi- Indi- Setting Setting Items Optional Function vidual Contents Items Optional Function vidual Contents condition condition setting setting Not available Lock function for Not available Eco-operation (*9) × Available operation mode × Available (Factory Not used...
Page 89 4 Individual remote controls PC-ARF Table B Input and Output Number Display and Connectors Input number display Factory setting Port Input/Output indication Setting item Indication Input 1 CN3 1-2 Remote ON/OFF 1 (Level) Input 2 CN3 2-3 Prohibiting Remote Control after Manual Stoppage...
Page 90 4 Individual remote controls PC-ARF Detailed optional functions b1 - Cancellation of Heating Temperature Compensation (due to Uneven Heat Load) This function is utilized when the setting temperature of the remote control switch and the inlet air temperature of the indoor unit are required to be equal.
Page 91 4 Individual remote controls PC-ARF b7 - Fixing of Operation as Exclusive Cooling Unit This function is utilized when exclusive cooling operation is required. This function invalidates the heating operation and the automatic COOL/HEAT operation setting from the remote control switch, as in the operation of exclusive cooling unit.
Page 92 4 Individual remote controls PC-ARF C9 - Not Prepared CA - Not Prepared Cb - Selection of Forced Stoppage Logic This function is utilized to select the logic of the contact for forced stoppage signal input. The setting conditions and the logic of the contact are as shown below.
Page 93 4 Individual remote controls PC-ARF d4 - Prevention for Cooling Discharge Air Temperature Decrease This function is utilized to change Thermo-ON/OFF conditions during the cooling operation and prevent the discharge air temperature decrease. As a result, the perception of cold draft is prevented.
Page 94 However, the OFF timer function is cancelled when the unit is stopped. When the unit is operated again after stoppage, the setting period for OFF timer is set by the optional setting. The setting condition and the setting period for OFF timer are shown below. • Example for PC-ARF Setting Condition Setting Period for OFF Timer Invalid...
Page 95 4 Individual remote controls PC-ARF F3 - Automatic Reset of Setting Temperature This function is utilized to economize the operation. When this function is valid, in the case that the setting temperature is not changed for a given period of time by the function (54) “Automatic Reset Time (F4)”, the setting temperature au- tomatically returns to (55/56) “Automatic Reset Temperature for Cooling/Heating (F5/F6)”...
Page 96 4 Individual remote controls PC-ARF F6 - Automatic Reset Temperature for Heating This function is utilized to set the automatic reset temperature for HEAT operation. The setting conditions and the automatic reset temperature for heating are as follows: Setting Condition...
Page 97 4 Individual remote controls PC-ARF Fd - Heating Upper Limit for Setting Temperature This function is utilized to limit the highest setting temperature for HEAT operation. When this function is valid, it provides the appropriate heating operation and energy saving.
Page 98 4 Individual remote controls PC-ARF J3 - Run Indicator Colour This function is utilized to set the run indicator colour. Setting Conditions Color Green N O T E The red run indicator flashes during the alarm. J4 - Not Prepared...
Page 99 4 Individual remote controls PC-ARF Thermistor Selection This function changes the temperature thermistor from indoor unit thermistor to thermistor of remote control switch or an average between both temperatures. 1 Press and hold “ ” (menu) and “ ” (return) simultaneously for at least 3 seconds during the normal mode (when unit is not operated).
Page 100 4 Individual remote controls PC-ARF 4 Determine the new indoor unit address. I.U. Address Change: 02-04 Press “ ” to switch the refrigerant cycle number and address in Set refrigerant system No. range of 00-63. and address after indoor unit address change.
Page 101 4 Individual remote controls PC-ARF 5 To return to the test run menu press “ ” (return) while indoor unit is not operated. Confirm the selected indoor unit address and go to “I.U. Address Change”. N O T E •...
Page 102 4 Individual remote controls PC-ARF 3 Select the indoor unit by pressing “ ” and press “OK”. FUNC, Input/Output INITIAL. *This screen is not displayed when the number of indoor units con- nected with the remote control switch is 1 (one). In this case, go directly to the step 4..
Page 103 4 Individual remote controls PC-ARF Contact Information Registration Contact information can be registered from “Contact Information”. 1 Press and hold “ ” (menu) and “ ” (return) simultaneously for at least 3 seconds during the normal mode (when unit is not operated).
Page 104: Operation Mode Selection Procedure
3 By pressing “ ” or “ ”, the operation mode will be changed as follows. AUTO N O T E The advanced setting is required for the “AUTO” operation. Contact your dis- tributor or dealer of HITACHI for detailed information. HEAT COOL Meeting Room MODE...
Page 105 4 Individual remote controls PC-ARF Procedure for setting the temperature, fan speed and louver direction. Setting the temperature 1 Press “ ” or “ ” and select “TEMP”. Meeting Room MODE SPEED TEMP COOL HIGH SPEED 2 By pressing “ ”, the temperature is increased by 1oC. (Max.
Page 106 4 Individual remote controls PC-ARF Setting the louver direction 1 Press “ ” (run/stop). Make sure that the operation is start- Meeting Room MODE SPEED LOUV. TEMP ed. Press “ ” or “ ” and select “LOUV”. COOL N O T E For the indoor unit without the auto louver mechanism, the indication of “LOUV.”...
Page 107: Operation Menu
4 Individual remote controls PC-ARF 4.1.4.4 Operation menu Menu navigation Every setting function is displayed in the menu. Refer to the following sections for each function. N O T E : Unable to set . If the function with “...
Page 108 4 Individual remote controls PC-ARF 2 Select “Yes” by pressing “ ” or “ ” and press “OK”. The indication of “FLTR” will be turned OFF and the screen will return to the normal mode. FLTR Filter Sign Reset Reset filter sign? SEL.
Page 109 4 Individual remote controls PC-ARF 2 Select the indoor unit by pressing “ ”, “ ”, “ ” or “ ”. Press Elevating Grille UPDW “OK”. 00-00 01-01 02-02 SEL. ENT. RTN. 3 Press “ ”. The elevating grille starts lowering.
Page 110 4 Individual remote controls PC-ARF 3 Press “ ” or “ ” to set each setting content for the selected item. When “Timer Ope.” is selected, the setting contents are switched in order of “Not Used” “Once” “Everyday” Simple Timer 15:10(Fri) by repeatedly pressing “...
Page 111 4 Individual remote controls PC-ARF 3 Select the day of the week (from Monday to Sunday) by press- Weekly Schedule Setting 15:10(Fri) ing “ ” or “ ”. Press “OK”. • “ ” (run) and “ ” (stop) are displayed on LCD.
Page 112 4 Individual remote controls PC-ARF Holiday setting This function is used to deactivate the schedule operation temporarily for one entire day. After this day, the schedule opera- tion is automatically recovered. This function is used to set irregular schedules such as national holidays.
Page 113 4 Individual remote controls PC-ARF Schedule ON/OFF setting This function is used to deactivate the schedule operation temporarily. The schedule operation will not be carried out when “OFF” is set in this function. This function is valid for a long period of holidays.
Page 114 4 Individual remote controls PC-ARF Individual Louver Setting Setting This setting is available only for the indoor unit adopting the individual louver. Each louver angle can be set individually. N O T E • This function is available only when the indoor unit corresponds to the individual louver.
Page 115 4 Individual remote controls PC-ARF 6 Select “Yes” by pressing “ ” or “ ” and press “OK”. The set- Louver Setting:01-03 ting is confirmed and the screen returns to the normal mode. Set individual louver? SEL. ENT. RTN. 7 Ensure that “INDV” is turned on at the air flow section on the Meeting Room normal mode.
Page 116 4 Individual remote controls PC-ARF Louver Open/Close This function is used to fully open louver for adjusting the vertical deflector for air flow direction (manually). This function cannot be set when the unit is operating. 1 Select “Louver Open/Close” from the menu and press “OK”.
Page 117 4 Individual remote controls PC-ARF 2 Select “Yes” by pressing “ ” or “ ” and press “OK”. The set- ting will be confirmed and the screen will return to the normal mode. VENTI Fix desired mode? SEL. ENT. RTN.
Page 118 4 Individual remote controls PC-ARF Motion Sensor This function is available only when the motions sensor is equipped with the air panel. The motion sensor detects a human activity by the change of the infrared light. This function saves the air conditioning capacity (adjusting the set temperature, the air flow volume and the air flow direc- tion) automatically depending on a situation.
Page 119 4 Individual remote controls PC-ARF Check Interval • When the motion sensor detects an absence at selected check interval time, the function “If absent” will be executed. The interval can be selected from 30, 60, 90 120 or 180 minutes.
Page 120 4 Individual remote controls PC-ARF 7 Press “ ” or “ ” and select “Check interval”. Motion Sensor Setting Sensor If absent Running Check interval 30MIN SEL. ENT. RTN. 8 The display is switched “30MIN”, “60MIN”, “90MIN”, “120MIN” Motion Sensor Setting and “180MIN”...
Page 121 4 Individual remote controls PC-ARF 4 After the setting is completed, press “OK” and the confirmation screen is displayed. Adjusting Date/Time 01 01 00 :19 2011 SEL. ENT. RTN. 5 Select “Yes” by pressing “ ” or “ ” and press “OK”. The set- ting is confirmed and the screen returns to the normal mode.
Page 122 4 Individual remote controls PC-ARF 3 Select the setting item by pressing “ ” or “ ”. The indication is Display Adjustment changed in order of “Time Format”, “Brightness”, “Back light”, Time Format 24Hour(11:04) Brightness “Contrast” and “On/Off lamp” Back light...
Page 123 4 Individual remote controls PC-ARF 3 Press “ ” or “ ” to select the language and press “OK”. The confirmation screen is displayed then. Language Setting English Français Deutsch Italiano Español SEL. ENT. RTN. 4 Select “Yes” by pressing “ ” or “ ” and press “OK”. The set- ting is confirmed and the screen returns to the normal mode.
Page 124 4 Individual remote controls PC-ARF 4 Select “Yes” by pressing “ ” or “ ” and press “OK”. The set- ting is confirmed and the screen returns to the normal mode. Temperature Unit Save changes? SEL. ENT. RTN. Room Name Registration This function is used to register the name of the room (installation location of remote control switch) 1 Select “Room Name”...
Page 125: Help Menu
4 Individual remote controls PC-ARF 4.1.4.5 Help menu Menu navigation The explanation of indicators on LCD and operations can be found in the help menu. The purpose of this function is to support manual operation. Refer to the following sections for more details.
Page 126 4 Individual remote controls PC-ARF About Operation This function is used when an explanation of operations and operation methods is required. 1 Select “About Operation” from the help menu and press “OK”. Help Menu About Indication About Operation Troubleshooting Contact Information SEL.
Page 127 4 Individual remote controls PC-ARF Troubleshooting This function is used to troubleshoot. Make sure that the troubleshooting is read carefully before requesting for repairs. 1 Select “Troubleshooting” from the help menu and press “OK”. The list of troubleshooting is displayed then.
Page 128: Other Indications
4 Individual remote controls PC-ARF Contact Information The contact information and the latest alarm code are displayed using this option. 1 Select “Contact Information” from the help menu and Help Menu press “OK”. The contact information and the latest About Indication alarm code are displayed then.
Page 129 4 Individual remote controls PC-ARF Defrost • Defrost Operation Meeting Room MODE SPEED LOUV. TEMP “DFR” is turned ON during the defrosting. HEAT The indoor fan is stopped though the indication is not changed. The louver is fixed at the horizontal position. However, the louver indication of LCD continues to activate.
Page 130: Alarm Codes
4 Individual remote controls PC-ARF In Abnormal Condition 01-02 Alarm Code: MODEL : b .02 ALM RST ADDR SEL. OP MODE ENT. Abnormality The RUN (red) indicator flashes and the ALARM indicator appears on the liquid crystal display. The screen also displays the following items: A: indoor unit address.
Page 131: Check Menu
4 Individual remote controls Meeting Room FLTR PC-ARF MODE SPEED LOUV. TEMP COOL HIGH 4.1.4.8 Check Menu LOUV. Indication of Check Menu Press and hold “ ” (menu) and “?” (help) simultaneously for 3 seconds during the normal mode. Each “Check Menu” item and its function are explained in the following table.
Page 132: Pc-Art
If the safety devices are activated too frequently or the buttons do not work properly, turn off the unit at the mains and con- tact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N DO NOT install the indoor unit, outdoor unit, remote control or any wiring in the following locations: •...
Page 133: Installation
4 Individual remote controls PC-ART 4.2.2 Installation 4.2.2.1 Installation site selection Take note of the maximum admissible cable length between units and the control as well as between the units themselves, as shown in the following table: Cable section 0.3 mm ≥...
Page 134: Description Of The Parts
4 Individual remote controls PC-ART 4.2.2.3 Description of the parts Fan speed indicator:  Indicates the fan speed selected: HIGH, MED or LOW Operation mode indicator:  Indicates the operation mode selected: FAN, COOL, HEAT, DRY or AUTO  Run indicator (green LED) Ventilation indicator: ...
Page 135: Dimensional Data
4 Individual remote controls PC-ART 4.2.2.4 Dimensional data (mm) HIGH 1234S TEMP. NEXT SCHEDULE ˚C COOL HEAT ADDS RNHR NO FUNCTION OPER.LOCK AUTO CONTROL UNIT DEFROST SERVICE ABNML FILTER AUTO CENTRAL T.RUN CHECK RCSTHM VENTI H.STRG RUN/STOP TEMP 4.2.2.5 Installation space If several control units are to be installed in a vertical position, leave a distance of at least 50 mm between them to allow the front cover to be opened and to insert the tool for removing the control from its housing.
Page 136 4 Individual remote controls PC-ART b. Insert the cable through the hole in the control unit. A hole can be made in the top centre and top left hand side.. c. Strip the cable insulation and connect to terminals A and B. A Terminal B Terminal ...
Page 137: Electrical Wiring
4 Individual remote controls PC-ART 4.2.3 Electrical wiring 4.2.3.1 Standard electrical connection C A U T I O N For operational and safety purposes, fit the ring core “attachment” when installing the unit. • Wind the remote control cable around the ring core twice, as shown beside, before connecting it to the indoor unit terminal board.
Page 138: Checking Procedure
4 Individual remote controls PC-ART 4.2.4 Checking procedure 1 Turn ON the power supply for all the indoor units. 2 Set the “TEST RUN” mode by pressing the “MODE” and “OK” switch simultaneously for more than 3 seconds. C A U T I O N In case of the control by using two Remote controllers (Main &...
Page 139: Operation
4 Individual remote controls PC-ART 4.2.5 Operation Before operation C A U T I O N • Turn on the electrical power supply to the system approximately 12 hours before start-up after a long shutdown. Do not start the sys- tem immediately after connecting the power supply, because the compressor may be damaged if it is not sufficiently heated.
Page 140 4 Individual remote controls PC-ART Setting the fan speed Press the FAN SPEED button. By pressing the FAN SPEED button repeatedly, the indicator will switch from HIGH to MED and LOW. The unit is designed and sized for optimum operation with the fan set to HIGH. (The figure shows the MED speed setting.) N O T E In DRY mode, the fan speed changes automatically to LOW and cannot be changed (although the indica-...
Page 141 4 Individual remote controls PC-ART Automatic COOL/HEAT mode procedure Automatic COOL/HEAT mode must be configured as an optional function. This function allows the system to be switched automatically to COOL/HEAT mode based on the difference between the tempera- ture setting and the temperature of the suction air. If the intake air exceeds the temperature setting by 3 °C, the system will switch to COOL mode and, if it is 3 °C less than the temperature setting, the system will switch to HEAT mode.
Page 142 4 Individual remote controls PC-ART 5 Press the SELECT DAY/SCHEDULE ▲ ▼ button to adjust the "minutes" and, once set, SCHEDULE press OK. The "minutes" will remain fixed and the switch-off "hour" will flash.  6 Set the switch-off time by following the same procedure as the switch-on time. The schedule will be stored in the memory and all the available schedule will reappear (1, 2, SCHEDULE 3, 4, S).
Page 143 4 Individual remote controls PC-ART 3 Select the temperature change using the TEMP buttons  . At this point, if the RESET 1234S SCHEDULE button is pressed, the temperature change will not be set and “- -” will be displayed. ...
Page 144: Indications In Normal Conditions
The screen will also indicate the number of the indoor unit, the alarm code and the model code. If several indoor units are connected, these indications will be displayed for each one, one at a time. Note down the indications and contact your HITACHI service provider. Model Code Alternate indi- •...
Page 145: Optional Functions
4 Individual remote controls PC-ART 4.2.6 Optional functions 4.2.6.1 Command functions The remote control changes the optional setting mode with the following procedures. The optional functions are programmed using the remote control. • Programming and setting mode Check that the unit is off, press and hold the remote control buttons "OK" and "RESET" simul- taneously for at least 3 seconds and the control will change to the field setting mode.
Page 146 4 Individual remote controls PC-ART When pressing “SELECT▲” b. Press either “SELECT ▲” or “SELECT ▼” and the op- b2 ... e1 f2 tional function indication will change, as shown below. When pressing “SELECT▼” c. Press "OK" and the setting condition of the optional function will change, as shown.
Page 147: Optional Functions List
4 Individual remote controls PC-ART 4.2.6.2 Optional functions list Indi- Setting Indi- Setting Optional Func- Optional Func- Items vidual Condi- Contents Items vidual Condi- Contents tion tion Setting tion Setting tion Standard (Set Not Used Temp. +4 ºC) Not Prepared ○...
Page 148 4 Individual remote controls PC-ART Indi- Setting Indi- Setting Optional Func- Optional Func- Items vidual Condi- Contents Items vidual Condi- Contents tion tion Setting tion Setting tion Standard (7 Indoor Fan Not Available Steps) Operation 60 min. Change of Time After Draft Prevention ○...
Page 149 4 Individual remote controls PC-ART Indi- Setting Indi- Setting Optional Func- Optional Func- Items vidual Condi- Contents Items vidual Condi- Contents tion tion Setting tion Setting tion 19 ºC Not Used 20 ºC Not Prepared (Use as 00 condi- tion) 21-24 (21-24) ºC Automatic...
Page 150 4 Individual remote controls PC-ART Table B Input and Output number display and connectors Input number display Factory Setting Port Setting Input / Output Indication Setting Item Indiicaton Input1 CN3 1-2 Remote ON/OFF 1 (level)  Forbidding Remote Control Input2 CN3 2-3 2 after Manual Stoppage...
Page 151: Remote Control Optional Functions
4 Individual remote controls PC-ART 4.2.6.3 Remote control optional functions b1 Removal of Heating Temperature Compensation (due to Uneven Heat Load). This function is used when the temperature settings of the remote control switch and the suction air temperature of the indoor unit are required to be equal.
Page 152 4 Individual remote controls PC-ART b5 Fixing of Operation Mode This function is used when operation mode changes are not required. When this function is valid, the operation mode which has been set cannot be changed by the remote control switch. b6 Fixing of Setting Temperature This function is used when setting temperature changes are not required.
Page 153 4 Individual remote controls PC-ART C7 Cancelling of Enforced 3 Minutes Minimum Operation Time of Compressor “Enforced 3 Minutes Minimum Operation Time of Compressor” described in the item (b3) is the standard function. This function is used to cancel the “Enforced 3 Minutes Minimum Operation Time of Compressor” function. C8 Thermistor of Remote Control Switch This function is used to control the unit by the built-in thermistor of the remote control switch (remote control thermistor) instead of the thermistor for suction air.
Page 154 4 Individual remote controls PC-ART d3 Power Supply ON/OFF 2 (Restarting Function After Power Failure) This function is used to start the unit operation again automatically when the power supply is recovered after the power failure over 2 seconds. The standard unit is started operation again automatically with all the same operating conditions such as operation mode, etc.
Page 155 4 Individual remote controls PC-ART All fresh mode (Econofresh) This function is able to open the outdoor air damper. The setting condition is showing below. Setting Condition All fresh control Contents of parts Not available The outdoor damper is fully closed. Available The outdoor damper is fully open.
Page 156 4 Individual remote controls PC-ART E6 Indoor Fan Operation Time After Cooling Operation Stoppage This function is used to prevent dew condensation “SLOW” indoor fan operation (for 60 minutes or 120 minutes depending on the setting) while cooling operation is stopped. Additionally, it is effective to prevent fangs or abnormal odor. E7 Not Prepared E8 Fan Operation Control at Heating Thermo-OFF This function is used to prevent the perception of cold draft by reducing indoor fan speed at heating thermo-OFF.
Page 157 4 Individual remote controls PC-ART F2 Remote Control Master-Slave Setting This function is used when two remote control switches are installed in one system. Set one remote control switch to “Master” 00, another remote control switch to “Slave” 01. F3 Automatic Reset of Setting Temperature This function is used to economize the operation.
Page 158 4 Individual remote controls PC-ART F5 Automatic Reset Temperature for Cooling This function is used to set the automatic reset temperature for FAN/COOL/DRY operation. The setting conditions and the automatic reset temperature for cooling are as follows: Setting Condition Setting Temperature for Automatic Reset 19 ºC 20 ºC Omitted 21 to 24...
Page 159 4 Individual remote controls PC-ART F9 Lock function for temperature setting. This function is utilised when setting temperature changes must to be blocked. When this function is valid, the setting temperature cannot be changed. FA Lock function for fan speed selection. This function is utilised when fan speed changes must to be blocked.
Page 160 4 Individual remote controls PC-ART Fd Heating Upper Limit for Setting Temperature This function is used to limit the highest setting temperature for HEAT operation. When this function is valid, it provides the adequate heating operation and energy-saving effect. The setting conditions and the heating upper limit for the setting temperature are as follows: Example Setting Temperature at Remote Control Switch...
Page 161: Maintenance And Repair
4 Individual remote controls PC-ART H5 Central control available after forced stoppage. This function is used in order allow the central control when unit is forced to stop. When this function is “01”, the central control is available. 4.2.7 Maintenance and repair 4.2.7.1 Abnormal transmission between the remote control and indoor unit In this case, the LED run indicator located at the bottom left of the screen will flash every 2 seconds.
Page 162: Troubleshooting On Check Mode
4 Individual remote controls PC-ART 4.2.7.3 Troubleshooting on check mode Use the OK button on the remote control in the following cases: 1 When the LED run indicator is flashing. 2 To monitor the cause of the problem after a system restart due to a stoppage with RUN indicator flashing.
Page 163 4 Individual remote controls PC-ART Check mode 1 Press “” to view the next set of data. After 7 seconds Press “” to view the previous set of data. Press and hold the button If we continue in check mode 1, steps 6 and 7 are a repetition of steps 2 and 3. for at least 3 seconds to enter check mode 2 N O T E...
Page 164 4 Individual remote controls PC-ART Content of check mode 1 By pressing “” consecutively, the following indications will be displayed. Indication of temperature, etc. Category code indication Step Temperature indication Indoor unit temperature setting (°C). Indoor unit air inlet temperature (°C). Indoor unit discharge air temperature (°C).
Page 165 4 Individual remote controls PC-ART Step Microcomputer input/output indication Indoor unit microcomputer input/output. Alarm Heat Thermostat on Cold Thermostat on Operation Dark Y52H Outdoor unit microcomputer input/output. Y211 Y52C1 Y52C2 Y20B Y20A Fan operating Y212 Dark PCB relay Part name Relay for drain pump (MD) and/or dew heater (EHW).
Page 166 4 Individual remote controls PC-ART Step Unit stoppage cause indication Cause of the stoppage. Codes: Operation stopped, power switched off. Thermostat switched off (see bottom section point 1). Alarm (see bottom note section point 2). Freeze protection, overheating protection Instantaneous power failure in the outdoor unit, reset (see bottom note section, point 3) ). Instantaneous power failure in the indoor unit, reset (see bottom note section, point 4) ).
Page 167 4 Individual remote controls PC-ART Step Abnormal operation occurrence counter Abnormal operation occurrence counter Indoor unit instantaneous power failure occurrence counter. Remote control to indoor unit transmission error occurrence counter. Abnormal inverter operation occurrence counter. - Counts up to 99. - For counts above "99”, it will always read "99".
Page 168 4 Individual remote controls PC-ART Step Indoor unit capacity indication Indoor unit capacity. The indoor unit capacity is indicated as shown in the following table: Indoor unit capacity code Equivalent capacity Indication code in (HP) Outdoor unit code: “n” indicates the total number of indoor units. (10) (11) (12) (13)
Page 169 4 Individual remote controls PC-ART Content of check mode 2 When more than three indoor units are connected to one remote control, only the most recent data from the three first indoor units connected in sequence will be shown. Pressing “”...
Page 170: Checking Procedure For Each Main Component
4 Individual remote controls PC-ART Step Compressor pressure/frequency indicator Control information - Displays internal remote control information. - For the SET-FREE unit, this indication shows the number of compressors running. Temperature of the discharge gas in the top of compressor chamber (°C). - (Example) When several compressors are running, the average temperature of 2 compressors is given.
Page 171 4 Individual remote controls PC-ART (continued from the previous page) Step Action required After 5 seconds (maximum 30s in the event of a transmission failure between the indoor and outdoor units): The display will indicate a maximum of 3 types of FAULTS. Types of abnormal condition Abnormal operation condition (1) After 1 second...
Page 172 4 Individual remote controls PC-ART (continued from the previous page) Step Action required Image Press OK button TEMP If there is another unit. Next unit self-check indication.   e.g.: Indication of unit n° “2”. After 7 seconds. From 1 to 5 seconds. After 1 second.
Page 173: Remote Control Self-Checking Procedure
4 Individual remote controls PC-ART 4.2.7.5 Remote control self-checking procedure When to use the OK button: 1 When the remote control displays an operating fault. 2 For periodic maintenance checks. Step Action required Switch on the power source. Press the following three buttons simultaneously. TEMP MODE ...
Page 174 4 Individual remote controls PC-ART (continued from the previous page) Step Action required Image The LCD will change, as shown below: The remote control will begin to check the transmission circuit automatically. - If there is an abnormal condition on the transmission circuit, the LCD screen will re- main as shown in the diagram on the right, and the check will not proceed to the next step.
Page 175: Pc-Arh
If the safety devices are activated too frequently or the buttons do not work properly, turn off the unit at the mains and con- tact your HITACHI service provider. • In the event of an incident of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N •...
Page 176: Installation
4 Individual remote controls PC-ARH 4.3.2 Installation 4.3.2.1 Installation site selection Take note of the maximum admissible cable length between units and the control as well as between the units themselves, as shown in the following table: Cable section 0.3 mm ≥...
Page 177: Dimension Data
4 Individual remote controls PC-ARH 4.3.2.4 Dimension data (mm) 4.3.2.5 Installation space In case of installing the controllers in vertical line, keep a distance more than 50 mm between the controllers vertically. If the distance is insufficient, the controller can not be taken out.
Page 178 4 Individual remote controls PC-ARH 3 Choose one of the following installation options for securing the remote control, depending on the installation re- quirements: With remote control cable exposed. Using an electrical box. With a bedside table. In cases where the remote control cable is exposed. Secure the cable holder accessory to the wall using 2 M4 screws (ac- cessories).
Page 179 4 Individual remote controls PC-ARH 3 Remove the decorative cover and place the remote control in the hole for installation. (field supply) 4 Secure the remote to the bracket using the screws and connect the Pass the cable cable as shown in the diagram. through the hopple Insert the connector 5 Secure the remote to the fixing bracket.
Page 180: Electrical Wiring
4 Individual remote controls PC-ARH 4.3.3 Electrical wiring 4.3.3.1 Standard electrical connection C A U T I O N For operational and safety purposes, fit the ring core “attachment” when installing the unit. • Wind the remote control cable around the ring core twice, as shown Cable tie beside, before connecting it to the indoor unit terminal board.
Page 181: Checking Procedure
4 Individual remote controls PC-ARH 4.3.4 Checking procedure 1 Switch on the power supply to all indoor units. 2 Models with automatic address function will take three to five minutes to complete the settings. 3 Set the system to “TEST RUN” mode from the outdoor units. N O T E •...
Page 182: Operation
4 Individual remote controls PC-ARH 4.3.5 Operation SCHEDULED CHECK indicator  Switches on during test mode AUTO CONTROL indicator  Appears when the operating condition is limited Alarm code indicator  Appears when there is an abnormal condition in the air conditioning unit ...
Page 183: Optional Functions List
4 Individual remote controls PC-ARH 4.3.6.2 Optional functions list Indi- Setting Indi- Setting Optional Func- Optional Func- Items vidual Condi- Contents Items vidual Condi- Contents tion tion Setting tion Setting tion Standard (Set Temp. Standard +4 ºC) Removal of Hea- Upper Limit –1 ºC ○...
Page 184: Remote Control Optional Functions
4 Individual remote controls PC-ARH 4.3.6.3 Remote Control Optional Functions b1 Removal of Heating Temperature Compensation (due to Uneven Heat Load). This function is used when the temperature settings of the remote control switch and the suction air temperature of the indoor unit are required to be equal.
Page 185 4 Individual remote controls PC-ARH FC Cooling Lower Limit for Setting Temperature This function is used to limit the lowest setting temperature for FAN/COOL/DRY operations. When this function is valid, it provides the adequate cooling operation and energy-saving effect. The setting conditions and the cooling lower limit for the setting temperature are as follows: Example: Setting Temperature at Remote Control Switch Factory-Setting: “00”...
Page 186: Alarm Indication
4 Individual remote controls PC-ARH * In case of Standard Unit H1 Maintenance alarm. This function is used in order to display or not the maintenance alarm. When this function is “01”, maintenance alarm will not be displayed. H2 No automatic control indication. This function is used in order to display or not the no automatic control indication.
Page 187: Pc-Lh3(A/B)
If the safety devices are activated too frequently or the buttons do not work properly, turn off the unit at the mains and con- tact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N •...
Page 188: Description Of The Parts
4 Individual remote controls PC-LH3(A/B) 4.4.2.2 Description of the parts • PC-LH3A is intended for use in combination with receiver kits PC-ALH, PC-ALHN, PC-ALHC, PC-ALHD or PC ALHZ and indoor units with no support for HIGH2 fan speed mode. PC-LH3A can also be used with receiver kits PC-ALH3, PC-ALHP1 or PC-ALHZF, but HIGH2 fan speed cannot be selected through PC-LH3A in this case.
Page 189: Dimension Data
4 Individual remote controls PC-LH3(A/B) 4.4.2.3 Dimension data (mm) 16.4 56.5 14.2 ø4.5 5 x 4.6 23.4 4.4.2.4 Installation space The space necessary for the installation is the minimum necessary to fix the bracket allowing to remove without problems the remote control. 4.4.2.5 Batteries setting Place the batteries (AAA/1.5Vx2) in the controller as follows.
Page 190: Installation Procedure
4 Individual remote controls PC-LH3(A/B) 4.4.2.6 Installation procedure Installing onto the wall or pillar C A U T I O N When the commands are sent by the controller hooked onto the wall, the receiver of the indoor unit may not receive the commands de- pending on the installation place.
Page 191 4 Individual remote controls PC-LH3(A/B) 3 Set the operation mode by pressing the “MODE” switch. °C Test run mode is under operating COOL TIMER 4 Operate the test run by pointing the transmitter towards the receiver of the indoor unit and press the “RUN/STOP”...
Page 192: Operation
4 Individual remote controls PC-LH3(A/B) 4.4.4 Operation Before operation C A U T I O N • Turn on the electrical power supply to the system approximately 12 hours before start-up after a long shutdown. Do not start the sys- tem immediately after connecting the power supply, because the compressor may be damaged if it is not sufficiently heated.
Page 193: Operation Mode (Cooling, Heating, Dry, Automatic Cooling/Heating And Fan Operation)
4 Individual remote controls PC-LH3(A/B) Stop Operation Point the transmitter towards the receiver kit and press “RUN/STOP” switch again. The RUN indicator (red) on receiver is turned OFF and the operation is stopped. COOL The indications of setting temperature, fan speed and air flow angle are turned OFF. N O T E After the heating operation is stopped, the fan mode may be operated for approximately 2 minutes.
Page 194: Setting Method
4 Individual remote controls PC-LH3(A/B) 4.4.4.3 Setting method N O T E To adjust the air flow angle, refer to the installation and operation manual of indoor unit. Temperature setting Point the transmitter towards the receiver kit and press “TEMP.” switch to set the temperature. By pressing “...
Page 195 4 Individual remote controls PC-LH3(A/B) Air flow direction Point the transmitter towards the receiver kit and press “LOUVER” switch to set the louver angle. °C The louver angle is set to 1 step at “Hi” in the COOL cooling operation. By pressing “LOUVER”...
Page 196: Automatic Cooling/Heating Operation
4 Individual remote controls PC-LH3(A/B) 4.4.4.4 Automatic Cooling/Heating Operation This function is only available for DC Inverter UTOPIA series (single combination) and SET-FREE series (heat recovery system). Function Automatic cooling/heating operation is automatically switched cooling and heating based on the set temperature as follow- ing inlet air temperature conditions.
Page 197: Timer Setting Method
4 Individual remote controls PC-LH3(A/B) Stop operation Point the transmitter towards the receiver kit and press “RUN/STOP” switch again. The RUN indicator (red) of receiver is turned OFF and the operation is stopped. AUTO The indications of setting temperature, fan speed and air flow angle are turned OFF. 4.4.4.5 Timer Setting Method ...
Page 198: Sending Commands From Remote Controller
4 Individual remote controls PC-LH3(A/B) 4.4.4.6 Sending commands from remote controller When operating the controller, face the transmitter towards the receiver of the indoor unit and press the switch for the required operation. 1 When the commands are sent, the “ ”...
Page 199: Identifying Of Indoor Units Installed Side By Side
4 Individual remote controls PC-LH3(A/B) 4.4.4.7 Identifying of indoor units installed side by side C A U T I O N Turn OFF the power source completely before performing the dip switch setting for receiver kit. If not, it may cause an electric shock. In the case that two indoor units are installed side by side, the commands from the wireless remote control switch may be received by both indoor units.
Page 200: Simultaneous Operation Of Multiple Indoor Units
4 Individual remote controls PC-LH3(A/B) 4.4.4.8 Simultaneous operation of multiple indoor units The multiple indoor units (Max. 16 units) can be started and stopped simultaneously by one controller. Perform this op- eration only in case that multiple indoor units are installed in a room. The detail for setting method shall be refered to the installation manual of the indoor unit.
Page 201 4 Individual remote controls PC-LH3(A/B) Secondary receiver kit setting for a wireless remote control 1. Remove the back cover of the receiver kit. 2. Set pin no. 1 of DIP switch to the ON position. 1 2 3 4 5 6 N O T E Refer to the optional functions of the receiver kit for more information.
Page 202: Maintenance
4 Individual remote controls PC-LH3(A/B) 4.4.5 Maintenance 4.4.5.1 Cleaning Wireless Remote Control Switch • Wipe it by soft, dry cloth. • Do not use wet cloth to clean. It may cause failure of wireless remote control switch. • Do not use benzine, thinner or detergent (Surfactant). If it is used, the wireless remote control switch may be deformed or changed colour.
Page 203: Receiver Kit For Wireless Remote Control
4 Individual remote controls Receiver kit for wireless remote control 4.5 Receiver kit for wireless remote control A receiver is required in order for the indoor units to receive the signal when a wireless remote control is used (PC-LH3(A/B)). Compatible models: ...
Page 204: Installation Of Pc-Alh(N) Receiver Kit (For Rci-Fsn3Ei)
If the safety devices are activated too frequently or the buttons do not work properly, turn off the unit at the mains and con- tact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N DO NOT install the indoor unit, outdoor unit, remote control or any wiring in the following locations: •...
Page 205: Installation
4 Individual remote controls Receiver kit for wireless remote control 4.5.1.2 Installation Components list Unpack the unit and check that: • The package contains all the components (see next table). • All components are in perfect condition. Otherwise, contact the manufacturer. Name Quant.
Page 206 4 Individual remote controls Receiver kit for wireless remote control 5 Draw the connection cable through the wiring hole Connection cable Suspension bracket on the indoor unit and pass it over the unit's sus- pension bracket to the receiver kit installation po- sition.
Page 207: Installation Of Pc-Alhc Receiver Kit (For Rcim-Fsn3)
If the safety devices are activated too frequently or the buttons do not work properly, turn off the unit at the mains and con- tact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N DO NOT install the indoor unit, outdoor unit, remote control or any wiring in the following locations: •...
Page 208: Installation
4 Individual remote controls Receiver kit for wireless remote control 4.5.2.2 Installation Components list Unpack the unit and check that: • The package contains all the components (see next table). • All components are in perfect condition. Otherwise, contact the manufacturer. Name Quant.
Page 209 4 Individual remote controls Receiver kit for wireless remote control 5 Draw the connection cable through the wiring hole of the indoor unit and run it across to the receiver kit installation position. 6 Install the air panel (optional) on the indoor unit. 7 Connect the receiver kit using the following procedure: Air panel a.
Page 210: Installation Of Pc-Alhd Receiver Kit (For Rcd-Fsn2)
If the safety devices are activated too frequently or the buttons do not work properly, turn off the unit at the mains and con- tact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N DO NOT install the indoor unit, outdoor unit, remote control or any wiring in the following locations: •...
Page 211 4 Individual remote controls Receiver kit for wireless remote control Installation procedure C A U T I O N Follow these installation procedures carefully. Failure to do so may cause the receiver to become detached from the panel causing a serious accident.
Page 212 4 Individual remote controls Receiver kit for wireless remote control 6 Remove the remote control cover of the air intake grille. Press the hooks of the remote control cover by hand. Air intake grille Hook Hook Remote Remote Air intake grille Remote Control Cover Control Cover...
Page 213: Installation Of Pc-Alh3 Receiver Kit (For Rci-Fsn3 And Rci-Fsn3Ek)
If the safety devices are activated too frequently or the buttons do not work properly, turn off the unit at the mains and con- tact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N DO NOT install the indoor unit, outdoor unit, remote control or any wiring in the following locations: •...
Page 214 4 Individual remote controls Receiver kit for wireless remote control Installation procedure D A N G E R • Turn OFF the power source completely before performing the dip switch setting, installation work and electrical wiring work for receiver kit. If not, it may cause an electric shock. •...
Page 215 4 Individual remote controls Receiver kit for wireless remote control 5 After connecting the relay wire to each terminal, take it out to inside the false ceiling or outside of the unit. Then, Fixing plate Relay wire run it to the installation position of receiver kit. The wiring connection at the indoor unit should be referred Installa- tion and Maintenance Manual of the indoor unit.
Page 216 4 Individual remote controls Receiver kit for wireless remote control d. Removing corner pocket cover method Remove the corner pocket covers. The corner pocket covers can be removed pulling part toward the arrow direction. 8 After the installation work for receiver kit is completed, attach the corner pocket covers (3 portions). The detail should be referred to the installation manual of the air panel.
Page 217: Installation Of Pc-Alhp1 Receiver Kit (For Rpc-Fsn3)
If the safety devices are activated too frequently or the buttons do not work properly, turn off the unit at the mains and con- tact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N •...
Page 218 4 Individual remote controls Receiver kit for wireless remote control Installation procedure D A N G E R • Turn OFF the power source completely before performing the dip switch setting, installation work and electrical wiring work for receiver kit. If not, it may cause an electric shock. •...
Page 219 4 Individual remote controls Receiver kit for wireless remote control 5 Attach the receiver kit to the lower cover. a. Insert the receiver kit and the connecting cable to the position for receiver kit. b. Lead the connecting cable through the hole for connecting cable. c.
Page 220: Installation Of Pc-Alhz Receiver Kit
If the safety devices are activated too frequently or the buttons do not work properly, turn off the unit at the mains and con- tact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N DO NOT install the indoor unit, outdoor unit, remote control or any wiring in the following locations: •...
Page 221 4 Individual remote controls Receiver kit for wireless remote control Installation procedure C A U T I O N Follow these installation procedures carefully. Failure to do so may cause the receiver to become detached from the panel causing a serious accident.
Page 222 4 Individual remote controls Receiver kit for wireless remote control If using an electric control box. a. There are various types of electrical boxes on the market which can be used for this installation, for example: Electrical box for one remote control unit (without cover.) Electrical box for one remote control unit (with cover) Output box (with cover) Also used:...
Page 223: Installation Of Pc-Alhzf Receiver Kit (For Rci-Fsn3, Rci-Fsn3Ek, Rpk-Fsn(H)3M And Rpc-Fsn3)
If the safety devices are activated too frequently or the buttons do not work properly, turn off the unit at the mains and con- tact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N DO NOT install the indoor unit, outdoor unit, remote control or any wiring in the following locations: •...
Page 224 4 Individual remote controls Receiver kit for wireless remote control Installation procedure D A N G E R • Turn OFF the power source completely before performing the dip switch setting, installation work and electrical wiring work for receiver kit. If not, it may cause an electric shock. •...
Page 225 4 Individual remote controls Receiver kit for wireless remote control d. Fit the cover, making sure not to snag the cable. Hook Cover Click sound Fixing bracket If using an electric control box. a. There are various types of electrical boxes on the market which can be used for this installation, for example: Electrical box for one remote control unit (without cover.) Electrical box for one remote control unit (with cover)
Page 226: Operation
4 Individual remote controls Receiver kit for wireless remote control 4.5.8 Operation 4.5.8.1 Communication between wireless remote control and receiver kit Sending commands from wireless remote control • The operation commands are sent by pressing the required operation switch by facing the transmitter of the wireless remote control switch toward the receiver of the indoor unit.
Page 227 4 Individual remote controls Receiver kit for wireless remote control • RCIM-FSN3 Height of indoor unit (m) Horizontal distance (m) • RCD-FSN2 Height of indoor unit (m) Horizontal distance (m) • RCI-FSN3 and RCI-FSN3Ek Height of indoor unit (m) Horizontal distance (m) •...
Page 228: Indication Of Receiver Kit
4 Individual remote controls Receiver kit for wireless remote control 4.5.8.2 Indication of receiver kit In normal condition Defrost • Defrost operation: DEF indicator (green) is turned ON during the defrosting. The indoor fan is stopped. The louver is fixed at the horizontal position.
Page 229: Emergency Operation
The indoor unit can also be operated with a wired remote control in addition of the installed receiver kit for wireless use. Contact your dealer for more details. Wireless remote Wired remote control switch control switch (PC-LH3B) (PC-ARF) TCGB0106 rev.0 - 12/2014...
Page 230: Optional Functions
4 Individual remote controls Receiver kit for wireless remote control 4.5.9 Optional functions D A N G E R Turn OFF the power source completely before performing the dip switch setting for receiver kit. If not, it may cause an electric shock.
Page 231 4 Individual remote controls Receiver kit for wireless remote control DIP switch for optional functions (DSW1) Open the cover by removing the two screws in order to access the following functions. PC-ALH3 PC-ALHP1 1 2 3 4 5 6 Remove Dip switch (DSW1) Dip switch (DSW1)
Page 232: Troubleshooting
4 Individual remote controls Receiver kit for wireless remote control 4.5.10 Troubleshooting This is not abnormal Refer to the operation manual of the indoor unit together. Phenomenon Cause and action The micro-computer is activated to protect the device from electromagnetic waves.
Page 233: Centralised Remote Controls
5 Centralised remote controls C e n t r a l i s e d r e m o t e c o n t r o l s Index 5.1. PSC-A64GT ............................219 5.1.1. Safety summary ............................219 5.1.2. Installation ...............................
Page 234 5 Centralised remote controls 5.3. PSC-A64S ............................369 5.3.1. Safety summary ............................369 5.3.2. Installation ............................... 370 5.3.2.1. Installation site selection ....................... 370 5.3.2.2. Components list ........................370 5.3.2.3. Description of the parts ......................371 5.3.2.4. Dimensional data ........................372 5.3.2.5.
Page 235: Psc-A64Gt
PSC-A64GT 5.1 PSC-A64GT 5.1.1 Safety summary HITACHI can not anticipate every possible circumstance that might involve a potential hazard. D A N G E R • DO NOT pour water into the central station (hereafter called “controller”). This product is equipped with electrical parts. If water is poured, it will cause a serious electrical shock.
Page 236: Installation
Recommended Cable: Twist Pair Cable with Shield, (For Control) Over 0.75mm (Equivalent to KPEV-S) * The recommended cables are the model name of Hitachi Cables, Ltd. 5.1.2.2 Components list Unpack the unit and check that: • The package contains all the components (see next table).
Page 237: Description Of The Parts
5 Centralised remote controls PSC-A64GT 5.1.2.3 Description of the parts Colour LCD Display with Touchscreen  To operate and monitor the units through the touchscreen display. It is operated by using the touch pen (accessory). The Front side touchscreen display will be automatically turned off when the touchscreen is not operated for the given length of time.
Page 238: General Data
5 Centralised remote controls PSC-A64GT 5.1.2.4 General data Model PSC-A32MN Outer Dimension 250 × 170 × 25 + 55 (mm) <W x H x D + (Built-in Part)> Net Weight 1.5 kg (approx.) Installation Location Indoor Installation Method Wall built-in with JIS switch box for 2 switches (with cover) (JIS C 8340) Connected Indoor Units (Quantity) 160 (Max.) Clock Accuracy...
Page 239: Installation Space
5 Centralised remote controls PSC-A64GT 5.1.2.6 Installation space Keep the installation space for the central station as shown (Unit: mm) in the figure. When installing more than 2 central stations in row or in line, keep the space between each. * Vertical Direction: 100 mm * Horizontal Direction:...
Page 240: Electrical Wiring
Specification Recommended cable model wiring tion Power supply cable AC100~240V 1.25 to 2.0 mm2 600V CV, CCV, CEV (Hitachi Cable) Earth wiring Twist pair cable with shield > 0.75 ≤1000m H-LINK (Control Wire) DC5V 0.75 to 1.25 mm2 mm2 (Equivalent to KPEV-S)
Page 241 5 Centralised remote controls PSC-A64GT Main breaker switch ELB(1) CB(2) Maximum current Model Supply voltage Rated current (A) Sensitivity (mA) Rated current (A) PC-A64GT 1~ 230V 50 Hz (1) ELB: earth leakage breaker (field-supplied) (2) CB: circuit breaker (field-supplied) C A U T I O N When using an AC200V to 240V power supply.
Page 242 5 Centralised remote controls PSC-A64GT N O T E • Turn OFF the power supply when setting the dip switches and rotary switch. Do not touch directly the printed circuit board and metal part to avoid the central station malfunction. •...
Page 243: Operation
5 Centralised remote controls PSC-A64GT 5.1.4 Operation 5.1.4.1 Test run The outline of the test run procedure is indicated as shown in the figure. The items marked with the thick frame ( are required items. The rest of items, which are not specifically required for the test run procedure but they are optional, are explained in its specific section.
Page 244 5 Centralised remote controls PSC-A64GT List of items Item Function Language Setting This function is used for language selection. Adjusting Date/Time This function is used for adjusting the date and time. The connected indoor units are checked by the central station in the same H-LINK. Group Register This function is used for the group or block registration of them.
Page 245 5 Centralised remote controls PSC-A64GT Item Function Demand Function Setting This function is to select the action at “Demand Function” control. Selecting Group for De- This function is to select the target group for “Demand Function” control. mand Function This function specifies each button to be shown/hidden. Button Setting This function also includes specification/setting for “one-tap operation”...
Page 246 5 Centralised remote controls PSC-A64GT Initial Power on Setting Turn on the power supply of the air conditioners. To protect the compressor, the power supply should be turned on 12 hours before starting operation. Do not turn the power supply off during air conditioning seasons. Start-up Perform a test run of each air conditioner first to ensure normal operation.
Page 247 5 Centralised remote controls PSC-A64GT Definitions • Group (Remote Control Switch Group): The minimum operation unit controlled by one central station. 1 remote control group is considered as 1 group, and the same setting is applied to the entire group. A maximum of 64 groups (organized as 4 blocks with 16 groups each) can be controlled with one central station.
Page 248 5 Centralised remote controls PSC-A64GT Registration of a group (Main unit) 1 Select “Group Register” on the “Service Menu” screen. 25/01/2010 (Mon) 10:20 Service Menu Exception Setting External Optional Function Group Register of Run/Stop Setting Input/Output Setting Operation Exception Demand Function Contact Info.
Page 249 5 Centralised remote controls PSC-A64GT 4 Select the indoor unit for registration of the main unit. • Tap buttons “<” and “>” on the upper right of the touchscreen to switch the display of indoor units. • The numbers shown inside the buttons indicate refrigerant cycle number and indoor unit address. •...
Page 250 5 Centralised remote controls PSC-A64GT Registration of a group (Sub unit) 1 Select “Group Register” on the screen of “Service Menu”. 25/01/2010 (Mon) 10:20 Service Menu Exception Setting Optional Function External Group Register of Run/Stop Setting Input/Output Setting Operation Exception Demand Function Contact Info.
Page 251 5 Centralised remote controls PSC-A64GT 4 Select the indoor unit for registration of the sub. • to switch the display of indoor units. • The numbers shown inside the buttons indicate refrigerant cycle number and indoor unit address. • Select an indoor unit button by tapping it. The selected button is highlighted with an orange outline. If the selected indoor unit button is tapped again, the indoor unit selection is cancelled.
Page 252 5 Centralised remote controls PSC-A64GT 7 Tap “Back” to return to the “Service Menu” screen. 25/01/2010 (Mon) 10:20 Group Register Main Unit Register Sub Unit Register Back N O T E t is possible to register a maximum of 15 sub units in the same remote control group. It is not possible to register an indoor unit without remote control switch as a sub unit.
Page 253 5 Centralised remote controls PSC-A64GT 5 Tap “Done” to return to the “Group Register” screen. 6 Tap “Back” to return to Service Menu screen. Group Register (Main Unit Register) 25/01/2010 (Mon) 10:20 25/01/2010 (Mon) 10:20 Group Register Block 1 Indoor Unit (01/03) 0 0 - 00 0 0 - 0 1 00 - 0 2...
Page 254: Main Screen
5 Centralised remote controls PSC-A64GT 5.1.4.2 Main screen Overall view “Monitor 1 (All groups)” Block Button Unit Condition Present Indication To change the screen display into “Block” Monitor To indicate the unit condition such as To display the present indication 2 (Block) indication by tapping this button.
Page 255 5 Centralised remote controls PSC-A64GT Group and block settings Display of All Groups 1 Tap “All Groups” on the touchscreen display. The tab of marked with (1), “All Groups” will not be displayed if only 1 (one) block has been registered. Monitor 2 (Block) 25/01/2010 (Mon) 10:20 F-Level...
Page 256 5 Centralised remote controls PSC-A64GT Display of Specified Block 1 Select the target block from the screen of “Monitor 1 (All Groups)” or “Monitor 2 (Block)”. Monitor 1 (All Groups) Monitor 2 (Block) Monitor 2 (Block) 25/01/2010 (Mon) 10:20 Monitor 1 (All Groups) 25/01/2010 (Mon) 10:20 F-Level F-Level...
Page 257 5 Centralised remote controls PSC-A64GT Simultaneous Run/Stop for All Groups 1 Tap “All Groups” on the touchscreen display. 2 Tap “All Groups Run” or “All Groups Stop”. Monitor 1 (All Groups) 25/01/2010 (Mon) 10:20 Monitor 2 (Block) 25/01/2010 (Mon) 10:20 F-Level F-Level F-Level...
Page 258 5 Centralised remote controls PSC-A64GT Simultaneous Run/Stop for Block 1 Select the target block from the touchscreen display to set simultaneous Run/Stop operation. 2 Tap “Run by Block” or “Stop by Block”. Monitor 2 (Block) 25/01/2010 (Mon) 10:20 F-Level F-Level F-Level All Groups Annex...
Page 259 5 Centralised remote controls PSC-A64GT Run/Stop for Each Group Check the control mode before setting. The control method is different depending whether the control mode is set to “Normal” or “Run/Stop only”. Run/Stop operation for each group (Control mode: Normal) 1 Select the screen of “Monitor 1 (All Groups)”...
Page 260 5 Centralised remote controls PSC-A64GT Run/Stop operation for each group (Control mode: “Run/Stop only”) Monitor 1 (All Groups) 1 Select the target group at screen of “Monitor 1 (All Groups)” in “Run/Stop Only” mode. 2 The selected group operation is alternately changed by tapping as follows. “Stop”...
Page 261 5 Centralised remote controls PSC-A64GT Main parameters setting Operation Mode 1 Select the target group at screen of “Monitor 1 (All Groups)” or “Monitor 2 (Block)” to change the operation mode set- ting. The pop-up of “Setting” for the selected group is displayed on the touchscreen. Monitor 1 (All Groups) Monitor 2 (Block) Monitor 1 (All Groups)
Page 262 5 Centralised remote controls PSC-A64GT Fan Speed 1 Select the target group at screen of “Monitor 1 (All Groups)” or “Monitor 2 (Block)” to change the fan speed setting. The pop-up of “Setting” for the selected group is displayed on the touchscreen. Monitor 1 (All Groups) Monitor 2 (Block) Monitor 1 (All Groups)
Page 263 5 Centralised remote controls PSC-A64GT Swing Louver Direction 1 Select the target group at screen of “Monitor 1 (All Groups)” or “Monitor 2 (Block)” to change the swing louver direc- tion. The pop-up of “Setting” for the selected group is displayed on the touchscreen. Monitor 1 (All Groups) Monitor 2 (Block) Monitor 1 (All Groups)
Page 264 5 Centralised remote controls PSC-A64GT Setting Temperature 1 Select the target group at screen of “Monitor 1 (All Groups)” or “Monitor 2 (Block)” to change the setting temperature. The pop-up of “Setting” for the selected group is displayed on the touchscreen. Monitor 1 (All Groups) Monitor 2 (Block) Monitor 1 (All Groups)
Page 265 5 Centralised remote controls PSC-A64GT Permitting/Prohibiting Operation from Remote Control Switch This function is used for prohibiting the operation from the remote control switch. While operation is prohibited, “Central Control” is indicated on LCD of remote control switch and operating by the remote control switch is not available.
Page 266: Menu
5 Centralised remote controls PSC-A64GT 5.1.4.3 Menu The table below shows menu item and its function. Item Function This function is used for turning off the filter sign of the connected indoor units. Filter Sign Reset This function can be used only for the indoor unit with “Filter Sign”. Schedule Setting This function is used for scheduled timer operation which is possible to set by each block or group.
Page 267 5 Centralised remote controls PSC-A64GT Display menu screen The setting items for the indoor unit and central station are laid out in the menu. 1 Tap “Menu” at screen of “Monitor 1 (All Groups)” or “Monitor 2 (Block)”. Monitor 1 (All Groups) Monitor 2 (Block) Monitor 1 (All Groups) Monitor 2 (Block)
Page 268 5 Centralised remote controls PSC-A64GT Filter Sign Reset 1 Select “Filter Sign Reset” from the screen of “Menu”. (This is available only when the filter sign is indicated). Menu 25/01/2010 (Mon) 10:20 Adjusting Touchscreen Filter Sign Reset Schedule Setting Date/Time Cleaning Touchscreen...
Page 269 5 Centralised remote controls PSC-A64GT Schedule settings This function is used for timer operation. It is possible to set a schedule for a block and for each group. A holiday setting independent of the schedule is also available. Schedule timer settings Timer setting for weekly schedule 1 Select “Schedule Setting”...
Page 270 5 Centralised remote controls PSC-A64GT 7 Tap “Register” to register the scheduled items. If “Cancel” is tapped, the scheduled items will be cancelled. To set the same day of the week, refer to the (5). To set other days of the week, refer to the (4). Schedule Timer F-Level 1-B 25/01/2010 (Mon) 10:20...
Page 271 5 Centralised remote controls PSC-A64GT Copying Schedule Setting by Days of Week 1 Select “Schedule Setting” from the screen of “Menu”. 2 Select “Schedule Timer Setting” from the “Schedule Setting”. 3 Select the target (all groups, block or group). 4 Tap “Copy Day of Week”. 5 Select the day of the week tab to copy.
Page 272 5 Centralised remote controls PSC-A64GT Copying Schedule Setting by Each Group 1 Select “Schedule Setting” from the screen of “Menu”. 2 Select “Schedule Timer Setting” from the screen of “Schedule Setting”. 3 Tap “Schedule Copy”. 4 Select the group to copy. (Block cannot be selected to copy). Selected group button is rimmed with orange line.
Page 273 5 Centralised remote controls PSC-A64GT Deleting Schedule Setting by Operation No. 1 Select “Schedule Setting” from the screen of “Menu”. 2 Select “Schedule Timer Setting” from the screen of “Schedule Setting”. 3 Select the target (all groups, block or group). 4 Tap “Delete Setting”.
Page 274 5 Centralised remote controls PSC-A64GT Deleting Schedule Setting by Each Group 1 Select “Schedule Setting” from the screen of “Menu”. 2 Select “Schedule Timer Setting” from the screen of “Schedule Setting”. 3 Tap “Delete Setting”. 4 Select the groups or blocks to delete the setting. If the groups or blocks are selected, the mark of “...
Page 275 5 Centralised remote controls PSC-A64GT Holiday setting for suspending operation 1 Select “Schedule Setting” from the screen of “Menu”. 2 Select “Holiday Setting” from the screen of “Schedule Setting”. 25/01/2010 (Mon) 10:20 Schedule Setting Menu 25/01/2010 (Mon) 10:20 Schedule Timer Schedule Timer Holiday Setting Adjusting...
Page 276 5 Centralised remote controls PSC-A64GT Schedule timer ON/OFF setting 1 Select “Schedule Setting” from the screen of “Menu”. 2 Select “Schedule Timer ON/OFF Setting” from the “Schedule Setting”. The screen will be changed to the “Schedule Timer ON/OFF Setting”. At first, the setting is “ON” with the mark of “ ”.
Page 277 5 Centralised remote controls PSC-A64GT Adjusting Date/Time 1 Select “Adjusting Date/Time” from the screen of “Menu”. 2 Tap or press-and-hold “ ” or “ ” to adjust the date and time. 3 Tap “Done” to return to the screen of “Monitor 1 (All Groups)” or “Monitor 2 (Block)”. Adjusting 25/01/2010 (Mon) 10:20 Menu...
Page 278 5 Centralised remote controls PSC-A64GT Touchscreen Calibration 1 Select “Touchscreen Calibration” from the screen of “Menu”. Menu 25/01/2010 (Mon) 10:20 Adjusting Touchscreen Filter Sign Reset Schedule Setting Date/Time Cleaning Touchscreen Group Name Screen Display Calibration Register Setting Accumulated Contact Operation Information Time...
Page 279 5 Centralised remote controls PSC-A64GT Registering Groups/Blocks Name Registering name of group (Block) 1 Select “Group Name Register” from the screen of “Menu”. 2 Select the target (block or group) to register the name. Group Name Register 25/01/2010 (Mon) 10:20 Menu 25/01/2010 (Mon) 10:20 Block 1...
Page 280 5 Centralised remote controls PSC-A64GT Copying name of group (Block) 1 Select “Group Name Register” from the screen of “Menu”. 2 Tap “Name Copy”. 3 Select the source group (block) to copy. Selected group (block) button is rimmed with orange line. Press the selected group (block) again to cancel the selection.
Page 281 5 Centralised remote controls PSC-A64GT Screen Display Setting Adjusting backlight brightness of touchscreen display 1 Select “Screen Display Setting” from the screen of “Menu”. Menu 25/01/2010 (Mon) 10:20 Adjusting Touchscreen Filter Sign Reset Schedule Setting Date/Time Cleaning Touchscreen Group Name Screen Display Calibration Register...
Page 282 5 Centralised remote controls PSC-A64GT Language setting 1 Select “Screen Display Setting” from the screen of “Menu”. 2 Select “Language Setting” from the screen of “Screen Display Setting”. Screen Display 25/01/2010 (Mon) 10:20 Menu 25/01/2010 (Mon) 10:20 Setting Adjusting Touchscreen Brightness Language Setting Temperature Unit...
Page 283 5 Centralised remote controls PSC-A64GT Temperature unit setting 1 Select “Screen Display Setting” from the screen of “Menu”. Menu 25/01/2010 (Mon) 10:20 Adjusting Touchscreen Filter Sign Reset Schedule Setting Date/Time Cleaning Touchscreen Group Name Screen Display Calibration Register Setting Accumulated Contact Operation Information...
Page 284 5 Centralised remote controls PSC-A64GT Accumulated Operation Time of Unit Display by month 1 Select “Accumulated Operation Time” from the screen of “Menu”. Menu 25/01/2010 (Mon) 10:20 Adjusting Touchscreen Filter Sign Reset Schedule Setting Date/Time Cleaning Touchscreen Group Name Screen Display Calibration Register...
Page 285 Group1B-02 Group1B-03 Group1B-04 N O T E Group1B-05 Group1B-06 Accumulated operation time of this central station is Group1B-07 Group1B-08 for only reference. Hitachi does not warrant about Group1B-09 above reference accumulated operation time. Group1B-10 Group1B-11 Group1B-12 Group1B-13 Display by Done Group TCGB0106 rev.0 - 12/2014...
Page 286 5 Centralised remote controls PSC-A64GT Contact Information 1 Select “Contact Information” from the screen of “Menu”. The following information will be displayed: • Contact address • Block/group name of the latest alarm • Latest alarm code Menu 25/01/2010 (Mon) 10:20 Adjusting Touchscreen Filter Sign Reset...
Page 287: Service Menu
5 Centralised remote controls PSC-A64GT 5.1.4.4 Service Menu N O T E This switch is for the serviceman only. Therefore do not use it. If this switch is used and the service menu is indicated on the screen, tap “Back”. The screen will return to the menu. Items Contents The connected indoor units are checked by the central station in the same H-LINK.
Page 288 5 Centralised remote controls PSC-A64GT Items Contents This function is used for checking of the connected indoor unit numbers in the same H-LINK. When this function is used, the confirmation for the keeping of registered information such as the Checking Connection group names, schedules, etc.
Page 289 5 Centralised remote controls PSC-A64GT Group register N O T E This function is detailed in section “Test run” since it is a required item when performing the Test run procedure. Optional Function Setting This function is used for setting and changing the function selection of air conditioner and central station listed in the fol- lowing table.
Page 290 5 Centralised remote controls PSC-A64GT 1 Select “Optional Function Setting” on the “Service Menu” screen when the air conditioners are not in operation. N O T E This function cannot be selected when the air conditioner is operating. 2 Select the target groups or block for “Optional Function Setting” by tapping “All Groups”, “Block” or “Group”. •...
Page 291 5 Centralised remote controls PSC-A64GT Exception Setting of Run/Stop Operation This function is used in cases of exception to the command of “All Groups Run/Stop” operation and “Run/Stop by Block” operation to the selected groups or blocks. Selecting of “Exception Setting of Run/Stop Operation” (All Groups/Block) is available as follows. •...
Page 292 5 Centralised remote controls PSC-A64GT Selecting of exception groups 1 Select “Exception Setting of Run/Stop Operation” on the screen of “Service Menu”. 2 Select “Selecting of Exception Groups” on the screen of “Exception of Run/Stop Ope.” N O T E The button of “Selecting of Exception Groups”...
Page 293 5 Centralised remote controls PSC-A64GT External Input/Output Setting 1 Select “External Input/Output Setting” on the screen of “Service Menu”. 25/01/2010 (Mon) 10:20 Service Menu Exception Setting Optional Function External Group Register of Run/Stop Setting Input/Output Setting Operation Exception Demand Function Contact Info.
Page 294 5 Centralised remote controls PSC-A64GT External Input Function 1 All Run/Stop (Level): All groups simultaneously Run/Stop operation by the external input signal 2 All Run (Pulse): All groups simultaneously Run operation by the external pulse input signal 3 All Stop (Pulse): All groups simultaneously Stop operation by the external pulse signal input 4 Emergency Stop (Level): All groups simultaneously Stop operating on receiving an the external emergency stop sig- nal.
Page 295 5 Centralised remote controls PSC-A64GT 6 Demand Function Rotation When the demand control signal is ON, the operation starting target group for “Demand Function” is selected randomly. After that, “Demand Function” operation is started from selected group to the small numbered group at every intervals for 15 seconds as shown below.
Page 296 5 Centralised remote controls PSC-A64GT Exception External Input The external input signals such as “All Run/Stop”, etc. are not accepted when this function has been set for the group. The external input signal exception is available for the input terminal 1 and 2. N O T E If this function is set, the emergency stop command from the external input will be disabled.
Page 297 5 Centralised remote controls PSC-A64GT Demand Function Setting The operating condition of the indoor unit is changed to “Stop” or “Thermo-OFF” when “Demand Function” is selected to the terminal of external input 1. Demand Function Setting 1 Select “Demand Function Setting” on the screen of “Service Menu”. N O T E This function cannot be selected when the external input signal is input to the external input terminal 1 or 2.
Page 298 5 Centralised remote controls PSC-A64GT Selecting group for demand function 1 Select “Demand Function Setting” on the screen of “Service Menu”. N O T E This function cannot be selected when the external input signal is input to the external input terminal 1 or 2. 2 Select “Selecting Group for Demand Function”...
Page 299 5 Centralised remote controls PSC-A64GT Button Setting The operating button indication can be selected to show or hide for restricting operation. 1 Select “Button Setting” on the screen of “Service Menu”. 2 Select “Show” or “Hide” for the operating button indication of the each function. The selected button colour is changed.
Page 300 5 Centralised remote controls PSC-A64GT 5 Input the information. Max. 50 characters are available to input. 6 Tap “Close” to finish. The screen is returned to “Contact Info. Register”. 7 Proceed to register the contact information depending on the setting afterwards. •...
Page 301 5 Centralised remote controls PSC-A64GT Information Restore setting can be set by the screen of “Start-up” displayed. 1 Tap “Restore Setting” for more than 5 seconds in the lower right on the screen of “Start-up”. 2 After a while, connection check process is started. 3 When the process for connection check is finished, “Adjusting Date/Time”...
Page 302 5 Centralised remote controls PSC-A64GT Keeping the setting 3 Tap “OK” at the confirmation screen for keeping the setting. 4 When the process of checking connection is finished, the number of connected units is indicated on the confirmation screen. If the number of connected units is indicated correctly, tap “OK”. The screen of “Main Unit Register” will be displayed.
Page 303: Other Indications On Lcd
5 Centralised remote controls PSC-A64GT Alarm History The alarm history record of the air conditioner and the central station. The time of alarm occurrence, abnormal unit and alarm code are recorded, and the alarm history record deleting is per- formed by this function.
Page 304 5 Centralised remote controls PSC-A64GT In Abnormal Condition Abnormality • The operation indicator (Red) will be flashing when an abnormal condition of the air conditioner occurs. • The red button is indicated on the screen when there is a group in abnormal condition. •...
Page 305: Troubleshooting
5 Centralised remote controls PSC-A64GT 5.1.5 Troubleshooting Check the following table before contacting a dealer for maintenance. Condition Cause Check that the wiring for the power supply is connected to the plug. Indications on the touchscreen are not displayed. Check that the power supply is turned ON. The touchscreen will automatically sleep when the touchscreen is not The touchscreen display is slept.
Page 306: Psc-A32Mn
5.2 PSC-A32MN (*): All the data regarding PSC-A32MN are preliminary data, and therefore, they are subject to changes. 5.2.1 Safety summary HITACHI can not anticipate every possible circumstance that might involve a potential hazard. D A N G E R •...
Page 307: Installation
Cable SPEC: 0.75 to 1.25 mm H-LINK Cable (For control) Recommended cable: JKEPV-S, JKEV-S, CVV-S, CVV, 600V VCT * The recommended cables are the model name of Hitachi Cable, Ltd. 5.2.2.2 Components list Unpack the unit and check that: •...
Page 308: Description Of The Parts
5 Centralised remote controls PSC-A32MN 5.2.2.3 Description of the parts Colour LCD with touchscreen  For operation and monitoring of the units through the touch- screen display. It is operated by using the touch pen (accessory). The touchscreen display will be automatically turned off when Front side the touchscreen is not operated for a given length of time.
Page 309: General Data
5 Centralised remote controls PSC-A32MN 5.2.2.4 General data Model PSC-A32MN Outer Dimension 140 × 120 × 22 + 52.7 (mm) <W x H x D + (Built-in Part)> Net Weight 0.5 kg (approx.) Installation Location Indoor Wall built-in with Installation Method JIS switch box for 2 switches (with cover) (JIS C 8340) Connected Indoor Units (Quantity) 160 (Max.)
Page 310: Installation Space
5 Centralised remote controls PSC-A32MN 5.2.2.6 Installation space Keep the installation space for the central station as shown below. (Unit: mm) 52.7 Do not place anything in the shaded area “ ”. When installing two or more central stations side by side, keep the following separation between each of them. * Vertical space: 50 mm * Horizontal space:...
Page 311 5 Centralised remote controls PSC-A32MN 3 Connect the wiring to the terminal board of the central station. Terminal Connection procedure Board For power supply M3 screw-on terminal Round terminal connection For H-LINK trans- mission Tightening torque 0.5N·m 3-pin connector For external input/ H-LINK (Non-pole) AC100 to 240V CN1 ~ 3...
Page 312: Electrical Wiring
Type of wiring Specification Length of wiring Cable specification Recommended cable model Power supply cable AC100 ~ 240V 1.25 to 2 mm 600V CV, CCV, CEV (Hitachi Cable) Earth wiring H-LINK(Control wire) DC5V ≤1000 m 0.75 to 1.25 mm Input: JKPEV-S, JKEV-S,...
Page 313 5 Centralised remote controls PSC-A32MN • Use an earth leakage breaker with medium sensitivity, and an activation speed of 0.1 or less. If this is not fitted, there is a risk of electric shock and/or fire. • Install an earth leakage breaker, fuse and circuit breaker for each outdoor unit power line. Not fitting it may cause an electric shock or fire.
Page 314 5 Centralised remote controls PSC-A32MN DSW1 setting Name Model DSW1 DSW2 DSW3 DSW4 Central Station EZ PSC-A64GT Central Station mini PSC-A32MN Central Station PSC-A64S Centralised ON/OFF PSC-A16RS Combination of Controller PSC-A32MN Other central HC-A(8/64)MB Not compatible with other central controllers HC-A16KNX Not compatible controllers...
Page 315: Operation
5 Centralised remote controls PSC-A32MN 5.2.4 Operation 5.2.4.1 Test run The outline of the test run procedure is indicated as shown in the figure. The items marked with the thick frame ( are required items. The rest of items, which are not specifically required for the test run procedure but they are optional, are explained in its specific section.
Page 316 5 Centralised remote controls PSC-A32MN List of Items Item Function Language Setting This function is used for language selection. Date and Time Set- This function is used for adjusting the date and time. tings The function is used for the registration of groups or blocks of the indoor units connected to the same H-LINK, Group Register and which have been identified by the central station.
Page 317 5 Centralised remote controls PSC-A32MN Item Function Selection of Ex- cepted Groups for This function is used for selecting the groups whose operation orders are cancelled from external input 1. External Input 1 Selection of Ex- cepted Groups for This function is used for selecting the groups whose operation orders are cancelled from external input 2. External Input 2 This function is used for setting of “Demand Function”...
Page 318 5 Centralised remote controls PSC-A32MN Language Setting When turning the power supply ON for the first time, the language setting screen is displayed after a few minutes. Select the language for operation and tap “Set”. Adjusting Date/Time After setting the language, the screen for adjusting date and time screen is displayed on the touchscreen as shown in the figure.
Page 319 5 Centralised remote controls PSC-A32MN Setting of control patterns After adjusting date and time settings, the control pattern screen is displayed. Tap “Set” on the touchscreen to proceed to the setting of control patterns. When tapping on a control pattern button, the selected button is highlighted with an orange outline. The procedure for the setting of control patterns is explained below.
Page 320 5 Centralised remote controls PSC-A32MN Group register Register Group Register the connected indoor units to groups and blocks of the central station. Definitions Group : • The minimum operation unit controlled by one central station. 1 remote control group is considered as 1 group, and the same setting is applied to the entire group.
Page 321 5 Centralised remote controls PSC-A32MN Main Unit Registration • Only one unit can be registered as the main unit of a group. Thus, duplicate registration of the main unit is not possi- ble inside a group. If the unit registered as the main unit has to be changed for some reason, then cancel the current register of main unit before registering the new main unit again.
Page 322 5 Centralised remote controls PSC-A32MN 3 Select the group for registration of the main unit. • Tap buttons “<” and “>” on the upper left of the touchscreen to switch the block display. • The numbers shown inside the buttons indicate block number and group number. •...
Page 323 5 Centralised remote controls PSC-A32MN Tap buttons “<” and “>” on the upper left of the touchscreen to continue with the setting of another Block, or tap the “Set- ting complet.” button to exit. 6 Tap “Setting Complet.” to register the group and return to Group Register menu screen. 7 Tap “Monitor screen”...
Page 324 5 Centralised remote controls PSC-A32MN 2 Select “Sub Unit Register” on the screen of “Group Register”. 3 Select the group for registration of the sub unit. • Tap buttons “<” and “>” on the upper left of the touchscreen to switch the block display. •...
Page 325 5 Centralised remote controls PSC-A32MN 5 Tap “Register” to register the sub units while the group and indoor units are selected. • If the group and indoor units for the sub units are not selected, the “Register” indication is greyed out and therefore cannot be tapped.
Page 326 5 Centralised remote controls PSC-A32MN Cancellation of group registration 1 Select “Group Register” on the screen of “Service Menu”. Refer to “Registration of a group (Main unit)”. N O T E This function cannot be selected when the external input signal is input to the external input terminal 1 or 2. 2 Select “Main Unit Register (or Sub Unit Register)”...
Page 327 5 Centralised remote controls PSC-A32MN Checking of group registration (Checking of main unit register) 1 Select “Group Register” on the “Service Menu” screen. Refer to section Registration of a group (Main unit). N O T E This function cannot be selected when the external input signal is input to the external input terminal 1 or 2. 2 Select “Main Unit Register”...
Page 328 5 Centralised remote controls PSC-A32MN Checking of group registration (checking register details) 1 Select “Group Register” on the “Service Menu” screen. Refer to section Registration of a group (Main unit). N O T E This function cannot be selected when the external input signal is input to the external input terminal 1 or 2. 2 Select “Display list of registers”...
Page 329: Main Screen
5 Centralised remote controls PSC-A32MN 5.2.4.2 Main Screen Overall view “Monitor 1 (All Groups)” Block button The screen display changes into Unit state Current display “Block” Monitor 2 (Block) display by Indicates the state of the unit with tapping this button. Indicates the current display (All icons like filter sign, demand, etc.
Page 330 5 Centralised remote controls PSC-A32MN “Monitor 2 (Block)” Block tab Changes the monitor display into Current display Unit state “Block” or “All Groups” display. Indicates the current display Group button Indicates the state of the unit with (groups in block) icons like filter sign, demand, etc.
Page 331 5 Centralised remote controls PSC-A32MN Group and block settings Display of All Groups 1 Tap “All Groups” on the touchscreen display. The tab marked with (1), “All Groups”, is not displayed if only one block has been registered. (1)* 2 All groups are displayed on the touchscreen (all the indoor units connected to the central station are shown).
Page 332 5 Centralised remote controls PSC-A32MN Display of Specified Block 1 Select the target block from the screen of “Monitor 1 (All Groups)” or “Monitor 2 (Block)”. Monitor 1 (All Groups) Monitor 2 (Block) 2 The groups in the selected block are displayed on the touchscreen. The operation status of each group is indicated by the colour of the group, as shown below: Green: Run Grey:...
Page 333 5 Centralised remote controls PSC-A32MN Simultaneous Run/Stop for All Groups 1 Tap “All Groups” on the touchscreen display. 2 Tap “Run all” to run all the groups simultaneously. Tap “Stop all” to stop all the groups simultaneously. 3 The confirmation window is displayed. Tap “OK” for simultaneous operation of all indoor units connected to the central station.
Page 334 5 Centralised remote controls PSC-A32MN Simultaneous Run/Stop for Block 1 Select the target block from the touchscreen display to set simultaneous Run/Stop operation. 2 Tap “Run by Block” to run all the groups in the selected block simultaneously. Tap “Stop by Block” to stop all the groups in the selected block simultaneously. 3 The confirmation window is displayed.
Page 335 5 Centralised remote controls PSC-A32MN Run/Stop for Each Group Check the control mode before setting. The control method is different depending whether the control mode is set to “Normal” or “Run/Stop Only”. Run/Stop operation for each group (Control mode: Normal) 1 Select the screen of “Monitor 1 (All Groups)”...
Page 336 5 Centralised remote controls PSC-A32MN Run/Stop operation for each group (Control mode: “Run/Stop only”) Monitor 1 (All Groups) 1 Select the target group at the “Monitor 1 (All Groups)” screen in “Run/Stop Only” mode. 2 The operation state of the selected group is switched alternatively between Run and Stop when tapping its button. In this mode, simultaneous Run/Stop operation for all groups is available with the “Run all”...
Page 337 It is not possible to change settings for each group. • Some modes cannot be set, depending on the type of air conditioner unit. Contact your dealer or a Hitachi customer service centre for detailed information. TCGB0106 rev.0 - 12/2014...
Page 338 5 Centralised remote controls PSC-A32MN Fan Speed 1 Select the target group for the change of fan speed setting at the “Monitor 1 (All Groups)” or “Monitor 2 (Block)” screens. The screen with the settings for the selected group is displayed on the touchscreen. Monitor 1 (All Groups) Monitor 2 (Block) 2 By tapping “...
Page 339 5 Centralised remote controls PSC-A32MN Swing louvre direction 1 Select the target group for the change of swing louvre direction at the “Monitor 1 (All Groups)” or “Monitor 2 (Block)” screens. The screen with the settings for the selected group is displayed on the touchscreen. Monitor 1 (All Groups) Monitor 2 (Block) 2 By tapping “...
Page 340 5 Centralised remote controls PSC-A32MN Setting Temperature 1 Select the target group for the change of setting temperature at the “Monitor 1 (All Groups)” or “Monitor 2 (Block)” screens. The screen with the settings for the selected group is displayed on the touchscreen. Monitor 1 (All Groups) Monitor 2 (Block) 2 By tapping “...
Page 341 5 Centralised remote controls PSC-A32MN Permission/prohibition of operation from remote control switch This function is used for prohibiting the operation from the remote control switch (RCS). When the remote control switch is set as prohibited (by item / for all Items), the control of the selected item becomes unavailable.
Page 342 5 Centralised remote controls PSC-A32MN 3 Select “Permitted” or “Prohibited” for each item. The Icon “ ” appears indicated on items selected as “Prohibited”. Buttons “AlI permitt.” and “All prohib.” set all the items to “Permitted” or “Prohibited” state. N O T E Depending on the air conditioner unit or the remote control switch being used, only “All permitt.
Page 343: Menu
5 Centralised remote controls PSC-A32MN 5.2.4.3 Menu The table below shows the menu items and their functions. Item Function This function is used for turning off the filter sign display of indoor units in which filter sign has occurred. Filter Sign Reset Regardless of the occurrence of the filter sign, it is also possible to reset the display time of the filter sign in the air conditioner units.
Page 344 5 Centralised remote controls PSC-A32MN Display menu screen The setting items for the indoor unit and central station are laid out in the menu. 1 Tap “Menu” at the “Monitor 1 (All Groups)” or “Monitor 2 (Block)” screens. Monitor 1 (All Groups) Monitor 2 (Block) 2 The “Menu”...
Page 345 5 Centralised remote controls PSC-A32MN Filter Sign Reset 1 Select “Filter Sign Reset” at the “Menu” screen. (This is available only when the filter sign is indicated) 2 Select the target to reset the filter sign. • Tap “Display with Sign” to indicate only the groups with filter sign. •...
Page 346 5 Centralised remote controls PSC-A32MN Schedule settings This function is used for timer operation. It is possible to set a schedule for a block and for each group. A holiday setting independent of the schedule is also available. Schedule timer settings Timer setting for weekly schedule 1 Select “Schedule Settings”...
Page 347 5 Centralised remote controls PSC-A32MN 7 Tap “Setting completed” to confirm the setting. If “Cancel” is tapped, the displayed setting contents are discarded, and the screen returns to the schedule setting screen. Go back to step (5) to continue adding settings for the same day of the week. Go back to step (4) to continue adding settings for other days of the week.
Page 348 5 Centralised remote controls PSC-A32MN Copying schedule setting by days of the week 1 Select “Schedule Settings” at the “Menu” screen. 2 Select “Schedule Timer Setting” at the “Schedule Settings” screen. 3 Select the target (all groups, block or group). 4 Tap “Copy Day of Week”.
Page 349 5 Centralised remote controls PSC-A32MN Copying schedule setting by each group 1 Select “Schedule Settings” at the “Menu” screen. 2 Select “Schedule Timer Setting” at the “Schedule Settings” screen. 3 Tap “Copy Settings”. 4 Select the group to copy. (A block cannot be selected as a source for copy). The button of the selected group is highlighted in orange.
Page 350 5 Centralised remote controls PSC-A32MN Deleting schedule setting by individual item 1 Select “Schedule Settings” at the “Menu” screen. 2 Select “Schedule Timer Setting” at the “Schedule Setting” screen. 3 Select the target (all groups, block or group). 4 Tap “Delete Settings”. 5 Select a schedule item number to delete that schedule item.
Page 351 5 Centralised remote controls PSC-A32MN Deleting schedule setting by each group 1 Select “Schedule Settings” at the “Menu” screen. 2 Select “Schedule Timer Setting” at the “Schedule Settings” menu. 3 Tap “Delete Settings”. 4 Select the groups or blocks to delete their settings. A check mark “...
Page 352 5 Centralised remote controls PSC-A32MN Holiday setting for suspending operation 1 Select “Schedule Settings” at the “Menu” screen. 2 Select “Holiday Setting” at the “Schedule Settings” screen. 3 Select the target (all groups, block or group). The calendar for the selection is shown. The buttons of the groups with holiday setup are shown in blue.
Page 353 5 Centralised remote controls PSC-A32MN Schedule timer ON/OFF setting 1 Select “Schedule Settings” at the “Menu” screen. 2 Select “Schedule Timer ON/OFF Setting” at the “Schedule Settings” screen. The screen changes to “Schedule Timer ON/OFF Setting”. The initial setting is “ON”, as indicated with the “ ”...
Page 354 5 Centralised remote controls PSC-A32MN Adjustment of the setting temperature range of the remote control switch 1 Select “Setting temp. range of the remote control” at the “Menu” screen.* * Selection is not possible in case that the connected air conditioners do not support this function. 2 Select the target for setting of temperature range.
Page 355 5 Centralised remote controls PSC-A32MN Adjusting Date/Time 1 Select “Date and time Settings” at the “Menu” screen. 2 Tap or press-and-hold the “ ” or “ ” buttons for each field to adjust the date and time. 3 Tap “Setting completed” to return to the “Menu” screen. N O T E •...
Page 356 5 Centralised remote controls PSC-A32MN Touchscreen Calibration 1 Select “Touchscreen Calibration” at the “Menu” screen. 2 Calibrating touchscreen Tap the intersections of white lines in order, as prompted on the screen. After that, the display changes to the screen shown in figure (3). If the intersections of white lines are not recognized normally, the message “Calibration is cancelled”...
Page 357 5 Centralised remote controls PSC-A32MN Registration of names of groups and blocks Registration of group or block name 1 Select “Group Name Register” at the “Menu” screen. 2 Select the target (block or group) to register its name. 3 The display changes to the text input screen. It is possible to choose between upper case, lower case and symbol keyboards.
Page 358 5 Centralised remote controls PSC-A32MN Copy of group or block name 1 Select “Group Name Register” at the “Menu” screen. 2 Select the source group or block to copy. The button of the selected group or block appears highlighted with an orange frame. Press the button of the selected group or block again to cancel the selection.
Page 359 5 Centralised remote controls PSC-A32MN Screen Display Setting Adjustment of backlight brightness of the touchscreen display 1 Select “Screen Display Setting” at the “Menu” screen. 2 Select “Brightness” at the “Screen Display Setting” screen. 3 Tap “ < ” or “ > ” to adjust the brightness of the backlight. Tap “Setting Completed” (4) to return to the “Menu” screen. TCGB0106 rev.0 - 12/2014...
Page 360 5 Centralised remote controls PSC-A32MN Language setting 1 Select “Screen Display Setting” at the “Menu” screen. 2 Select “Language” at the “Screen Display Setting” screen. 3 A confirmation window is displayed when selecting the language button. 4 Tap “OK” at the confirmation window. N O T E If the language is changed, the registered block and group names as well as contact information are initialized, too.
Page 361 5 Centralised remote controls PSC-A32MN Temperature unit setting 1 Select “Screen Display Setting” at the “Menu” screen. 2 Select “Temperature Unit” at the “Screen Display Setting” screen. 3 Select Celsius degrees or Fahrenheit degrees with the corresponding button. The selected button is highlighted in yellow.
Page 362 5 Centralised remote controls PSC-A32MN Display of accumulated operation time Display by month 1 Select “Accumulated Operation Time” at the “Menu” screen. 2 Tap “Display by Month”. 3 Tap the “<” or “>” buttons to select the target block. 4 Tap the “<”...
Page 363 “Thermo ON Time” can also be displayed ad- ditionally, if the corresponding option is selected in “Optional Function Setting”. via the option for function selection setting. Contact your dealer or a Hitachi customer service centre for detailed information. TCGB0106 rev.0 - 12/2014...
Page 364 5 Centralised remote controls PSC-A32MN Contact Information 1 Select “Contact Information” at the “Menu” screen. The following information is displayed: Contact information (2 independent items) • Name of block and group of the latest alarm occurrence • Latest alarm code •...
Page 365: Service Menu
5 Centralised remote controls PSC-A32MN 5.2.4.4 Service Menu N O T E This switch is for the serviceman only. Therefore do not use it. If this switch is used and the service menu is indicated on the screen, tap “Back”. The screen will return to the menu. Items Contents The connected indoor units are checked by the central station in the same H-LINK.
Page 366 5 Centralised remote controls PSC-A32MN 1 Tap “Menu” on the “Monitor (All Groups)” or “Monitor (Block)” screens. Monitor (All Groups) Monitor (Block) 2 “Menu” screen is displayed. 3 Press and hold “Service Menu” for at least 3 seconds. “Service Menu” is displayed. 4 Select the service menu item by tapping each item button.
Page 367 5 Centralised remote controls PSC-A32MN Group register N O T E This function is detailed in section “Test run” since it is a required item when performing the Test run procedure. Optional Function Setting This function is used for setting and changing the selection of air conditioner and central station functions listed in the following table.
Page 368 5 Centralised remote controls PSC-A32MN Air Conditioner Remote Control Settings 1 Select “Optional Function Setting” on the “Service Menu” screen when the air conditioners are not in operation. 2 Select “Remote control setting” on the Menu screen. Selection is not possible when one or more air conditioners are in operation. •...
Page 369 5 Centralised remote controls PSC-A32MN 4 Tap “Setting completed” to confirm the content set and return to Optional Function Setting Menu screen.* When switch “Enable” ↔ “Disable” of OFF Time Remote prohibited setting and tap “Setting completed”, the confirmation screen is displayed as below. 5 Tap “Service Menu”...
Page 370 5 Centralised remote controls PSC-A32MN Exception Setting of Run/Stop Operation “RUN” and “STOP” orders are not accepted when the group is set to operation in “All groups” or “All blocks”. However, it is possible to set an exception rule for any of the following orders or combinations of orders, affecting specific groups: •...
Page 371 5 Centralised remote controls PSC-A32MN External Input/Output Setting The External Input/Output function of the central station provides the capacity to control 4 inputs and 2 outputs. Select “External Input/Output Setting” on the “Optional Function Setting” screen to access the setting menu. Input and Output Connection Function...
Page 372 5 Centralised remote controls PSC-A32MN (*1): Do not set “STOP” or “Run Mode Shift” when using other central stations at the same time. When setting outdoor unit capacity control, set one of the central station and do not set the others. (*2): Setting is only possible for Stop or Run Mode Shift.
Page 373 5 Centralised remote controls PSC-A32MN External Input setting 1 Select “External Input/Output setting” on the Service Menu screen. Selection is not possible when air conditioners are in operation, or when the contact for external input signal is ON. 2 Select the input target (From input 1 to 4) of the external input. 3 Select the function to be used with the external input.
Page 374 5 Centralised remote controls PSC-A32MN <Outdoor Unit Capacity Control> 5 Select the value for Outdoor Unit Capacity. The selected capacity value button is highlighted in yellow. 6 Use the buttons on the right side of the screen in order to schedule outdoor unit capacity control when there is no external input contact being applied for this purpose.
Page 375 5 Centralised remote controls PSC-A32MN < Other settings > 10 Select the target of External Input Control.(All Groups/Block/Group). Tap the button of a Group to switch its selection state. Tap the button of a Block to switch the selection state of all the Groups in the Block. Tap the “Select All Groups”...
Page 376 5 Centralised remote controls PSC-A32MN Button Setting Button setting is used to select whether to show or hide certain operation buttons, thus restricting operation. 1 Select “Button Setting” on the screen of “Service Menu”. 2 Select the function concerning each items. The selected function appears highlighted in yellow. 3 Tap “Setting completed”...
Page 377 5 Centralised remote controls PSC-A32MN 5 Tap “Register” or “Cancel” to finish the edition, and return to the “Contact Information Register” screen. 6 Proceed to step 2 again to continue registering other fields or to step 7 to finish the setting. 7 Tap “Menu”...
Page 378 5 Centralised remote controls PSC-A32MN Delete memo 1 Select “Memo” on the “Service Menu screen. 2 Tap “Delete Memo”. 3 Select the memo to delete. Tap a memo button to switch its selection state. It is possible to select multiple memos. A check mark is displayed on the selected memos.
Page 379 5 Centralised remote controls PSC-A32MN Restore settings 1 Select “Restore Settings” on the “Service Menu” screen. N O T E This function cannot be selected when remote control switch operation is prohibited, an external input contact is ON, or outdoor unit capac- ity control is not cancelled.
Page 380 5 Centralised remote controls PSC-A32MN Checking Connection 1 Select “Checking Connection” on the “Service Menu” screen. N O T E This function cannot be selected when there is one ore more air conditioners in operation, or if there is an external input signal input to external input terminals 1 or 2.
Page 381 5 Centralised remote controls PSC-A32MN 6 A further confirmation screen is displayed. Check the air conditioners and tap “OK”. N O T E If “Cancel” is tapped, the screen returns to “Service Menu”. This function cannot be selected when remote control switch operation is prohibited, an external input contact is ON, or outdoor unit capacity control is not cancelled.
Page 382: Other Indications On The Lcd
Displayed when demand input is set by optional external input function. The icon blinks during the Demand demand control. Contact your dealer or a Hitachi customer service centre for detailed information. Displayed when optional outdoor unit capacity control schedule is enabled, blinks during the control.
Page 383 In such cases, it is also possible to select the group in abnormal condition to display by tapping the “<” or “>” buttons at the “Alarm” window. Contact your dealer or a Hitachi customer service centre for detailed...
Page 384: Troubleshooting
5 Centralised remote controls PSC-A32MN 5.2.5 Troubleshooting Check the following table before contacting a dealer for assistance. Condition Cause • Check that the wiring for the power supply is connected to the wall plug. Indications on the touchscreen are not dis- played.
Page 385: Psc-A64S
If the safety devices are activated too frequently or the buttons do not work properly, turn off the unit at the mains and con- tact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N DO NOT install the indoor unit, outdoor unit, remote control or any wiring in the following locations: •...
Page 386: Installation
5 Centralised remote controls PSC-A64S 5.3.2 Installation 5.3.2.1 Installation site selection Take note of the maximum admissible cable length between units and the control as well as between the units them- selves, as shown in the following table: Cable section 0.3 mm ≥...
Page 387: Description Of The Parts
5 Centralised remote controls PSC-A64S 5.3.2.3 Description of the parts Fan speed indicator  Indicates the fan speed selected for each group indicated: “HIGH”, “MED”, “LOW”. Mode indication  Indicates the operation mode selected for the indicated group: “Fan”, “Cool” , “Heat” and “Dry”. N O T E The automatic mode is available if the AUTO function is on.
Page 388: Dimensional Data
5 Centralised remote controls PSC-A64S 5.3.2.4 Dimensional data (mm) TEMP. HIGH GROUP TIMER DEMAND °C EMERGENCY COOL HEAT NO FUNCTION LOUVER 1 2 3 4 5 6 7 8 RMT.SW NAVL CHECK 9 10 11 12 13 14 15 16 AUTO AUTO FILTER...
Page 389: Electrical Wiring
5 Centralised remote controls PSC-A64S 2 Connect the power supply part to the control box, as shown below. N O T E Do not lay the cables from the power source and the control unit in the same duct, since the power cable is liable to cause interference with the control cable.
Page 390 5 Centralised remote controls PSC-A64S DIP switch setting DSW2 DSW1 PSC-A64S Setting of DSW Pin Nº Contents Remarks For connecting plural central stations with H-LINK For address setting Refer to the description (control line), the adress setting for each central sta- tion is required DSW1 When using the following central controllers simulta-...
Page 391: Operation
5 Centralised remote controls PSC-A64S Split the central control power supply line from the main power supply line using a junction box, as shown in the following diagram: 220 VAC or 240 VAC To the outdoor unit or Junction box disjunctor Central remote control Indoor unit...
Page 392 5 Centralised remote controls PSC-A64S The central control unit is designed to control up to 16 groups of up to 16 units (the maximum number of indoor units is defined by the H-Link limit). Each of these groups is made up of two types of unit: •...
Page 393 5 Centralised remote controls PSC-A64S Group configuration • The group setting consists of the master unit setting and the slave unit setting. The indoor unit, which is connected directly to the remote control switch, is set as the master unit, and the indoor unit connected with the transmission line is set as the slave unit.
Page 394 5 Centralised remote controls PSC-A64S System of more than 16 indoor units connected In this case, the group setting by central station is required. Group setting is for master unit (directly connected to remote control switch) and slave unit (connected by extension cable). In case that the remote control switch is not connected, the group setting by remote control switch is not available and only one master unit is controlled as one group.
Page 395 5 Centralised remote controls PSC-A64S Procedure of master unit setting a. Screen change for Master Unit Setting keep depressing the “CHECK” switch for 3 seconds during all the indoor unit is stopped (with “RUN” indicator OFF). The “CHECK” indicator turns ON, and it shows the state is changed to the CHECK mode. In addition, “1”...
Page 396 5 Centralised remote controls PSC-A64S Procedure for the cancellation of master unit setting a. Screen change for cancellation of Master Unit setting keep depressing the “CHECK” switch for 3 seconds during all the indoor unit is stopped (with “RUN” indicator OFF). The “CHECK”...
Page 397 5 Centralised remote controls PSC-A64S Procedure of slave unit setting a. Screen Change for slave unit setting. Keep depressing the “CHECK” switch for 3 seconds during all the indoor unit is stopped (with “RUN” indicator OFF). The “CHECK” indicator turns ON, and it shows the state is changed to the “CHECK”...
Page 398: Operation Selection Procedure
5 Centralised remote controls PSC-A64S Procedure for the cancellation of slave unit setting a. Screen Change for Cancellation of Slave Unit Setting. Keep depressing the “CHECK” switch for 3 seconds during all the indoor unit is stopped (with “RUN” indicator OFF). The “CHECK” indicator turns ON, and it shows the state is changed to the CHECK mode.
Page 399 5 Centralised remote controls PSC-A64S Setting target selection and monitoring operation status The central station can control up to 64 groups by each group, each zone or simultaneously . (The selected setting target can be operated and the unit operation status can be monitored.) C A U T I O N •...
Page 400 • Some operation modes can not be set according to the unit model. Contact to HITACHI dealer or your distributor for details. • The operation mode can be set while the unit is stopped or in operation.
Page 401 5 Centralised remote controls PSC-A64S Setting of temperature, fan speed and louver angle C A U T I O N • Do not touch the “CHECK” switch. The “CHECK” switch is only for service use. • When the “CHECK” switch is depressed by a mistake and the central station is changed to the check mode, depress the “RESET” switch to cancel.
Page 402 5 Centralised remote controls PSC-A64S In Case of 4-Way Cassette Type (Example) Indication Air Louver Approx. Approx. Approx. Approx. Approx. Approx. Approx. Angle 25° 30° 35° 40° 50° 55° 60° Cooling / Dry Angle Range Heat Angle Range : Recommended Angle N O T E •...
Page 403 5 Centralised remote controls PSC-A64S Prohibiting Operation by Remote Control Switch <Function> To prohibit the operation by the remote control switch. When this function is available, the “CENTRAL” indication appears on the LCD on the remote control switch and the op- eration by the remote control switch is not available.
Page 404: Input/Output Function
5 Centralised remote controls PSC-A64S 5.3.4.3 Input/Output function The central station has two input functions and two output functions as shown below. 1 Simultaneous Operation/Stoppage. This function is for operating / stopping all the indoor units of the group, which is set by the central station, by the external contact signal.
Page 405 5 Centralised remote controls PSC-A64S 7 Simultaneous Alarm Output. This function is for outputting signal outward in the case where there is any air conditioner in abnormal condition in the group set by the central station. The input function is set by DSW2 as shown in the table below: DSW Pin Nº...
Page 406 5 Centralised remote controls PSC-A64S Demand setting procedure 1 Changing to Check Mode. Depress the “CHECK” switch for more than 3 seconds, and the central station is changed to the check mode. * When there is any group in operation (with “RUN” indicator ON), the “CHECK” mode is not available. 2 Changing to Demand Setting Mode.
Page 407: Option Setting
5 Centralised remote controls PSC-A64S • Setting for Each Group a. Depress the “ZONE” switch and select the zone to set. b. Depress the “GROUP”  switch to select the group to set. Then, the Ref. Nº and I.U. Add. of the indoor unit set as the master unit of selected group are indicated.
Page 408 5 Centralised remote controls PSC-A64S Indication of Option Setting Mode When the central station is changed to the slave unit setting mode, the LCD indication on the central station is as shown below. The indication of the group to be set is flickered. The Ref. Nº and I.U. Add. indicates the address of the indoor unit which is set as the master unit of the group to be set.
Page 409: Initialization Of Central Station
5 Centralised remote controls PSC-A64S 5.3.4.5 Initialization of central station The procedure for initialization of the group setting and the optional setting is as follows. Changing to self check mode Depress the “GROUP ( )” and ”MODE” switches simultaneously, the central station is changed to the self check ...
Page 410: Psc-A16Rs
DO NOT pour water into the centralised ON/OFF controller. This product is equipped with electrical parts. If poured, it will cause a serious electrical shock. • DO NOT perform installation work and electrical wiring connection by yourself. Contact your distributor or dealer of HITACHI and ask them for installation work and electrical wiring by service person. •...
Page 411: Installation
5 Centralised remote controls PSC-A16RS 5.4.2 Installation 5.4.2.1 Installation site selection Take note of the maximum admissible cable length between units and the control as well as between the units them- selves, as shown in the following table: Cable section 0.3 mm ≥...
Page 412: Description Of The Parts
5 Centralised remote controls PSC-A16RS 5.4.2.3 Description of the parts Description Simultaneous RUN/STOP Switch This switch is for ordering the simultaneous operation/stoppage to all groups. Depressing this switch when there is any group in  operation, all the group is stopped simultaneously. Depressing this switch when all the group is stopped, all the group is started operation simultaneously.
Page 413: Installation Procedure
5 Centralised remote controls PSC-A16RS 5.4.2.6 Installation procedure D A N G E R Ensure to fix the centralised ON/OFF controller according to this manual. The incorrect installation will cause personal injury due to the fall of the centralised ON/OFF controller 1 Insert the edge of the screwdriver into the slot parts at the bottom of the case, push and turn the screw-driver and remove the control part from the power supply part.
Page 414: Electrical Wiring
5 Centralised remote controls PSC-A16RS 5.4.3 Electrical wiring Electrical wiring connection Up to 8 centralised ON/OFF controllers can be connected to the H-LINK II (Control Line). Use the 2-core cable of 0.75-1.25 mm or the 2-core twist pair cable (Max. 1,000 m) for the transmission cable for the centralised ON/OFF controller, for the outdoor unit and between indoor units (DC5V).
Page 415 5 Centralised remote controls PSC-A16RS SW18 (Address Setting) Address 0 Address 1 Address 2 Address 3 Address 4 Address 5 Address 6 Address 7 Split the central control power supply line from the main power supply line using a junction box, as shown in the following diagram: AC 220V or 240V To Outdoor unit or breaker...
Page 416: Operation
5 Centralised remote controls PSC-A16RS 5.4.4 Operation 5.4.4.1 Test run Preparation • Ensure to perform the test running of air conditioner before turning ON the power supply of the centralised ON/OFF controller. • Check to ensure that the setting temperature is indicated on the remote control switch after the test running of air conditioner.
Page 417: Group Setting
5 Centralised remote controls PSC-A16RS Resetting of Centralised ON/OFF Controller 1 Depress the switches “15” and “16” simultaneously for 3 seconds when all group is stopped. The operation lamps (LED) of the group 15 and 16 is turned ON. 2 Depress the switches “15”...
Page 418 5 Centralised remote controls PSC-A16RS 5 In the case where the multiple centralised ON/OFF controllers are connected in the same H-LINK (Control Line) system, the group setting is performed in order from the centralised ON/OFF controller No. 0. After completion of the group setting of the centralised ON/OFF controller No.
Page 419 5 Centralised remote controls PSC-A16RS 2 In the case where there are multiple centralised ON/OFF controllers: As there is no indoor unit set as the re- Outdoor unit frigerant cycle address 2, the group set- ting is executed by the next centralised ON/OFF controller Indoor unit Remote...
Page 420 5 Centralised remote controls PSC-A16RS b. Set the intended indoor unit with the inconsecutive indoor unit address number. These indoor units are set as the setting target of Outdoor unit group setting by the centralised ON/OFF controller Nº1 and the group setting is not available as there is no centralised ON/OFF controller Nº1 exists.
Page 421: Operation Selection Procedure
5 Centralised remote controls PSC-A16RS 5.4.4.3 Operation selection procedure Individual operation/stoppage • Preparation 1 Supply power to the unit. C A U T I O N • Supply power to the unit more than 6 hours before unit operation for compressor protection. •...
Page 422: Schedule Control Function
5 Centralised remote controls PSC-A16RS 5.4.4.4 Schedule control function The centralised ON/OFF controller, connecting to the control timer, can control the running schedule of “RUN/STOP” operation three times a day for a week. The “RUN/STOP” operation is controlled simultaneously, and the schedule control for each group is not available. Control timer Centralised ON/OFF Controller Transmission cable (Provided with Control Timer)
Page 423 5 Centralised remote controls PSC-A16RS 5 Simultaneous Operation Output This function is for outputting signal outward in the case where there is any air conditioner in operation in the group set by the centralised ON/OFF controller. 6 Simultaneous Alarm Output This function is for outputting signal outward in the case where there is any air conditioner in abnormal condition in the group set by the centralised ON/OFF controller.
Page 425: Building Air Conditioning Controls
6 Building air conditioning controls B u i l d i n g a i r c o n d i t i o n i n g c o n t r o l s Index 6.1. CSNET WEB (PSC-A160WEB1) ......................411 6.1.1.
Page 426 6 Building air conditioning controls 6.2.2.3. CSNET Manager connection ....................517 6.2.2.4. Internet connection ........................ 517 6.2.2.5. H-LINK ........................... 519 6.2.3. Installation ............................... 520 6.2.3.1. Installation site selection ....................... 520 6.2.3.2. Components list ........................520 6.2.3.3. Description of the parts ......................521 6.2.3.4.
Page 427: Csnet Web (Psc-A160Web1)
DO NOT pour water into the remote controller. This product is equipped with electrical parts. If poured, it will cause a serious electrical shock. • DO NOT perform installation work and electrical wiring connection by yourself. Contact your HITACHI distribu- tor or dealer and ask them for installation work and electrical wiring by service person. •...
Page 428: System Description
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.2 System description 6.1.2.1 Distributed system CSNET WEB is an independent centralised control system which can control an H-LINK communication line. When it is connected to a system with Packaged units, it can control up to 160 indoor units and 64 outdoor units. CSNET WEB connects to a Local Area Network or Internet (using a DSL Router) by means of its Ethernet port, so that the parameters can be adjusted and monitored at a distance.
Page 429: Lan Connection
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.2.4 LAN connection PSC-A160WEB1 can be connected to a Local Area Network through its Ethernet port. After configuring the network, the system will be accessible from any site in the company’s network. Some adjustments are required for the LAN connection, and the network administrator’s assistance is needed.
Page 430 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Direct Using the Ethernet port, PSC-A160WEB1 can be connected directly to the Internet via a suitably configured DSL modem. This makes possible to monitor the system from any computer with Internet access. Assistance from an IT expert is required.
Page 431: H-Link
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.2.6 H-LINK H-LINK II Compatible PSC-A160WEB1 has compatibility with the new version of H-LINK communication called H-LINK 2 while maintaining full compatibility with current H-LINK (H-LINK 1) units. Connection of both H-LINK 1 and H-LINK 2 units in the same H-LINK unit is possible considering the unit limitations and addressing.
Page 432 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Compatibility with Central Stations PSC-A160WEB1 is compatible with PSC-A64GT , PSC-A32MN & PSC-A64S central stations. By switching on the Pin 7 of the option dip-switch, PSC-A160WEB1 activates the compatibility with the central stations. When all the system is set for control in central mode, orders input by CSNET-WEB have preference over those input from Central Stations;...
Page 433: Installation
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.3 Installation 6.1.3.1 Installation site selection Take note of the maximum admissible cable length between units and the control as well as between the units themselves, as shown in the following table: Cable section 0.3 mm ≥...
Page 434: Description Of The Parts
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.3.3 Description of the parts Rear view Front view from “A”  H-LINK connector. Connected to the air conditioning equipment. LAN connector. Connected to the local area network.  Power supply cable. Power supply input. ...
Page 435: General Data
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.3.4 General data Hardware specifications Components Specifications Power supply AC 230 V 1~ ±10% (50Hz) Consumption 10W (maximum) External dimensions Width: 240 mm, Depth: 154 mm, Height: 89 mm Weight 1.4 kg Installation conditions Indoors (in a control panel, table-top) Ambient temperature...
Page 436: Dimensional Data
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.3.5 Dimensional data Units in mm. 6.1.3.6 Installation space Make sure that there is sufficient space around the PSC-A160WEB1 (a minimum of 50 mm) to dissipate properly the heat. (mm) TCGB0106 rev.0 - 12/2014...
Page 437: Installation Procedure
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.3.7 Installation procedure When unpacking the equipment, make sure that it has not been damaged during transport. Perform the following procedure: 1 Remove the rubber base pads. 2 Remove the 4 screws from the cover and take it off. 3 Attach the box to the rear vertical board from the inside with M5 screws (not provided) using 3 mm washers outside to separate the box from the wall.
Page 438: Electrical Wiring
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.4 Electrical wiring In order to run, PSC-A160WEB1 has to be connected to the electrical power network, to the transmission line with the air conditioning equipment (H-Link) and to the Ethernet local area network (LAN). Connection Cable Specifications Twin core twisted pair cable...
Page 439 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) DIP switch adjustment During the installation it must be specified what kind of units are installed. PSC-A160WEB1 offers a variety of options letting you know its status at all times. These options are only accessible from the hardware itself.
Page 440: Operation
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.5 Operation 6.1.5.1 Test run Configuring the Hardware After completing and checking the electrical installation, ensure that all the air conditioning units are running, and supply power to CSNET WEB in order to configure the CSNET WEB interface 1 Connect the computer that will be used for configuration to CSNET WEB with a crossed Ethernet cable.
Page 441 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) CSNET WEB Configurator The initial page for the installation, “CSNETWEB Hardware & Software Setup”, will be displayed with the following options: • Configure CSNET WEB Hardware (Change Network Settings): Change CSNET Web’s TCP/IP configuration in or- der to adapt it to the network where it will be installed.
Page 442 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Connecting to CSNET WEB to configure the software This option lets you change the PC network settings temporarily and connect to the CSNET WEB interface. C A U T I O N We recommend that you do not configure the software without configuring the CSNET WEB interface first.
Page 443 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) < Back Next > Cancel Updating the CSNET WEB hardware This option allows updating of the firmware of the CSNET WEB. 1 Enter the installer’s password, by default “Installer”, in the “Installer Password” field. Enter IP address or the CSNET WEB network name in the “IP Address”...
Page 444 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Installation of the CSNET WEB software and of a shortcut in your PC Proceed as follows to install the CSNET WEB application on your PC and/or on computers in the same network which have to be connected with the CSNET WEB interface: C A U T I O N In order to run, the CSNET WEB application requires Java J2SE Runtime Environment to be installed in your PC.
Page 445: Graphic Interface
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.5.2 Graphic interface CSNET WEB has two ways of presenting information and the available program options: • Overall view: use a tree to organise the installation units and a table to show the units information. •...
Page 446 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Overall view CSNET WEB has also an extended view that allows more complex functions. 1 Edition of area tree: Allows you to edit the area tree. 2 Operation panels: Control area for the operation of units. TCGB0106 rev.0 - 12/2014...
Page 447 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Building layout editor CSNET WEB is supplied with a Building Layout Editor that lets the user to customize their view and the way of how the units are distributed through the installation. The functions are the same than normal CSNET WEB, but there is a new user friendly view.
Page 448: Local Software Configuration
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.5.3 Local software configuration After configuring the CSNET WEB interface you should begin the configuration of the system. To install the RCS Web instead of CSNET WEB read the chapter Web. Remember that RCS Web is a reduced version of CSNET Web with only remote control functions but more user-friendly for a non-expert user.
Page 449 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Initial page The initial page is divided into two parts: 1 Access to the installation required Local Software Configuration: The user name and password are case-sensitive. When you try to access to the required installation, the initial screen shows three text fields which have to be completed to access the installation: •...
Page 450: Local Computer Configuration
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.5.4 Local computer configuration This option allows the different client computer configuration parameters to be modified, such as the Internet connection configuration, default language, local data storage or list of rapid access to installations. If you click this button the following screen appears: This screen lets you configure the operation of the software in your computer in terms of: •...
Page 451 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Installation list Press New to create a new installation. “New Network Item” window will appear. Installation may also be edited or deleted by pressing in the Installation “Edit” and “Delete” buttons respectively. Enter details for the installation as follows: Title: Identification name for installation.
Page 452 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Enter desired user name and password. Also select the different privileges for the user. Note that user name may not be repeated. On unit selection, all the available units on CSNET WEB can be assigned to the current user. By click on configure, it will appear a dialogue to specify which pattern describe the units for this user.
Page 453 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Software settings This tab lets you configure four kinds of data: • Language settings: You can choose the default language to be used in the main screen. You can set the countdown time (in seconds) and make the program remembers the changes.
Page 454: Configure System
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.5.5 Configure System To configure the system, access the historical data and power consumption files you should access the bottom left of the CSNET WEB window, where the following buttons are located: Building Layout Package Chiller (*)
Page 455 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Network settings C A U T I O N • If this is the first time that CSNET WEB is being run in this installation, we recommend using the CD supplied with the interface, as explained in section Configuring the hardware.
Page 456 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Change password The Change button beside Password setting opens the Change password panel. To change your password: Enter the installer password. (The default factory password is “Installer”). Enter the new password. Repeat the new password to confirm it.
Page 457 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) To carry out Auto Configuration: Select the option required in the Auto Configuration selection table. Press the Start button at the right of the menu. If you return to the main window, you will see the progress as a percentage (%) in the bottom left of the screen. ...
Page 458 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Ethernet gateway You can change the IP and MAC values of your Getaway here by clicking the button Change. BMS configuration Modbus Configuration CSNET WEB allows to configure the BMS system by setting the ID for each indoor unit. This configuration will link the BMS with the H-LINK.
Page 459 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Export buttons Save to file button writes in a selected comma-separated values file the content of the table. Copy to clipboard button will set in your clipboard the content of the table, separating the information by tabs. In both cases the information of the table is ready to create an easy view of the information and an easier exportation to other programs like Excel.
Page 460 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Address Name Description Read/Write (Note 1) TLIQUID Liquid pipe temperature (Note 2) Read ERROR_CODE Alarm code Read STOP_CAUSE Compressor stop cause Read VALVE_OPEN Indoor unit expansion valve opening Read Unit operation condition 0: OFF OPER_CONDITION 1: Thermo OFF...
Page 461 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) BMS Monitor Pressing Monitor button, it will be open the following windows, where the user could select which CSNET WEB will be monitored. After select it, must be started the logging. During the logging process, CSNET WEB will register all the Modbus communications that it will receive, and it will be showed on the table.
Page 462 For each unit can be assigned a pattern similar to the timer one that describes a condition for check in and another for check out. It also can be specified the data period where that patterns applies. To activate the Fidelio compatibility it must be selected the check box and specified an accessible IP for the Hitachi Fidelio gateway.
Page 463 CSNET WEB Interface cannot connect to a SMTP encrypted server. INTERNET PROXY SMPT Server H-LINK Hitachi Installation The account details need to specify the next fields: Name: installation name. E-mail: account installation mail. Delivery Server address: mail server address.
Page 464 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Notify settings configures who will receive the notifications and what will be the interval of these notifications. Notify interval: you can set a notification interval of 1, 2, 6, 12 hours or 1 day. Notify E-Mail address: sets the name and the e-mail address of the different receivers.
Page 465: Historical Data
Web server Installation menu refers to the data related to the general installation. • Installation Location is used by web server functions. The location indicates where in the world is the Hitachi air condi- tioning installation. • Web Server configuration activates the software as a web server that lets the user to configure the units through a web.
Page 466 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Displaying historical data CSNET WEB allows you to save a history of data from all the machines connected to the H-Link. It also displays the information in two different formats: Data in the form of a table, which can be exported in text format; and Data in graph format, which can be used to generate graphics for display.
Page 467 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) The graph configuration window has several fields: 1 Selecting the unit: Select the indoor unit address to be displayed. 2 Value: Contains the different values that can be displayed for the unit or cycle. See section on Values table for an ex- planation of each parameter.
Page 468 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Values table Identifier of the type of file: <Type=Version; 3 or 2> Temporary identification and module: <Year> <Month> <Day> <Hour> <Minutes> <CS Port> <OU Number> <IU Number> Adjustment of the indoor unit (CSNET WEB): Central: <Central=1>,Local=0>...
Page 469 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Download of historical data Download the historical data as follows: Select Download Data in the left part of the screen. Select the date from which you want to download the historical data. Press the Get Data button.
Page 470 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Visualization of alarms CSNET WEB also saves the most important alarm events occurred during the lifetime of the installation. Clear button erase the alarm history. To visualize the alarms, click on the Alarm Log tab, and next press the Export log button, which is in the centre bottom of the window.
Page 471: Power Consumption
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) File format The CSNET and CSNET WEB versions contain the same data. An option to choose the version has been added to ensure future compatibility. The alarm file format is as follows: AIarm Port Description...
Page 472 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) To get the data of power consumption for Packaged units, enter the date interval and click the Get Data button. A table will appear with different information. Meaning of the table fields: OU: number of the outdoor unit.
Page 473 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Configuration The cost calculated for each indoor unit is based on tariffs specified on the CSNET WEB. There are two different systems to define the source of the consumed energy: • Use configured power meter devices data: in case of having power meter devices related to the units, the energy consumed per each indoor unit will be calculated based on the information provided by these devices.
Page 474 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Autosave configuration The chapter Local software configuration shows how to access the software settings. The power consumption function allows you to generate automatically a detailed report of the daily consumption of the installation. To activate this option: Mark the selection box.
Page 475: Operation And Configuration Of Packaged Units
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.5.8 Operation and configuration of packaged units The following chapter will apply when the system has Packaged units. Remember that it is not possible to connect water chillers and Packaged units in the same H-LINK communication line. 1 Area tree: Installation tree with the different areas defined by the user.
Page 476 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Area tree Enable Area Edition activates an area tree for this installation. • New: Creates a new area. • Edit: Edits the selected area in the area tree. Delete: Deletes the selected area. •...
Page 477 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) The meaning of each column is as follows: Column Location Content / Symbol Address of the outdoor unit or cooling circuit to <number> which the indoor unit belongs Address of the indoor unit <number>...
Page 478 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Operation panel The Operation Panel has the following access fields offering complete control of the units: • Setting • Timer • Unit configuration • System Status • Auto Cool/Heat • Cold Draft •...
Page 479 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Timer This option shows the operation times which can be chosen for each indoor unit. The Timer shown corresponds to the unit chosen in the table of indoor units, as shown in the example. The Timer is composed of: Button for editing the pattern and timer Edition and...
Page 480 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Access to programming To create the pattern and timer push the Edit Timer and Pattern button: With the following functions: 1 Area to update and close programming. 2 Area to create New, Edit and/or Delete programmed timer. 3 Area to create New, Edit and/or Delete pattern to be pro- grammed 4 Entries for the Daily Pattern you program.
Page 481 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Daily programming After creating and selecting the pattern you can begin to program each of the entries, indicating the conditions of work at each time of day. • Press the button New to create an entry of the programmed pattern. •...
Page 482 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 1 By pressing the day of the week, the pattern selected previ- ously is assigned to all the days of the month corresponding to the day of the week selected. 2 Pressing a particular day assigns the selected pattern only to this day.
Page 483 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Timer wizard Timer Wizard divides the configuration process in 3 parts: • Patterns Create all the different patterns that will be application in a cer- tain hour of a day. • Timers Create different timers and assign to its days the selected pat- tern.
Page 484 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Unit configuration The unit settings show all the data of each of the units controlled by CSNET WEB. The Timer shown corresponds to the unit chosen in the table of indoor units, as in the example. The information given is as follows: Location: Name of the room conditioned by this unit.
Page 485 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) N O T E 1. If the indoor unit is RPC or RPK, CSNET WEB will display RPC(RPK), as they cannot be identified correctly. 2. The precise model should be entered to make necessary maintenance and repair work easier. 3.
Page 486 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Explanation of the fields Although all these parameters are available in the 3-tube systems (Set-Free FX), some are not in other systems. These are indicated in the table. Group Description Model of the indoor unit and its power —...
Page 487 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) N O T E (1): Not for FS units of up to 10 HP. (2): Not for FS units of up to 20 HP. (3): The value shown does not disappear until the cause of the compressor stop does not change. (4): THM4 is the remote thermistor.
Page 488 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Auto cool/heat The outdoor units of 2-tube systems are not designed to operate in the automatic Cool/Heat mode when more than one indoor unit is connected to the same outdoor unit, but only in the cool or heat mode. Thus all indoor units connected to the same outdoor unit should be changed from one mode to another at the same time.
Page 489 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) The temperature difference is calculated as follows: • 2 Tubes: CSNET WEB takes into account all the indoor units which depend on the same cooling circuit. CSNET WEB then calcu- lates in the following way: Temp diff.
Page 490 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Description of parameters To use this option, you have to set the parameters shown in the Auto Cool/Heat operation panel. After that, if unit is work- ing in Auto Cool/Heat mode, you can see the status of this operation on the status zone of the panel. The Auto Cool/Heat panel shown corresponds to the cooling circuit of the indoor unit selected in the table of indoor units, as shown in the example.
Page 491 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) MAXOAT: Maximum outdoor ambient temperature for heat operation. Preset adjustment: +20°C. 1°C steps. 0°C... 40°C margin. MAXOAT should be higher than MINOAT. MAXOAT should be lower than the dry bulb (DB) temperature equivalent to the margin of maximum outdoor ambient temperature for the heat mode: The margin of maximum outdoor ambient temperature for heat mode of the outdoor unit is 15.5 WB Equivalent dry bulb temperature:...
Page 492 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Where: Corrected temperature: Temperature used to calculate the change of operation mode. Setting temperature: Temperature selected by CSNET WEB or by the remote control of the indoor unit. N O T E The remote control and the CSNET WEB always show the corrected temperature (the result is the setting temperature).
Page 493 In VRF systems, when load is very low and only few units are working in a system, it is possible that discharge air tem- perature is reduced below comfort value. With this new option HITACHI improves comfort for these situations by setting unit to Fan Mode when discharge air temperature is below comfort temperature and set unit again to Cooling Mode when temperature will be again inside comfort range.
Page 494 C A U T I O N • Suggested device tested by Hitachi is 7KM PAC3200 by Siemens. • Ensure that your Modbus-TCP power meter register starts at 0. CSNET WEB considers it like this, so if it starts at 1, subtract 1 to each register address.
Page 495 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Select a power meter device on the table and configure its data. • Power Meter ID: identifies the power meter. • IP: Net address to communicate with the power meter device. • Registers: The Modbus Address and the measurement unit of each of the four variables available on the table should be configured by the user according to the specific power meter information.
Page 496: Interface Utilities
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.6 Interface utilities HARC Web status bar HARC Web status bar indicates the date & time of current HARC on the right side, and on the left it has one icon for each HARC.
Page 497 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Setting the mouse over the icon it will give more information about the HARC. N O T E Autoconfiguration indication will grow following the percentage of autoconfiguration task that is currently done. Status bar informs about general functions that are currently being executed by the software.
Page 498: Other Features
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Password visualisation On each password field it could exist the option to enter this password viewing the keys typed. By default password will be hide, but if user does not know what is typing wrong, he can click with right button of the mouse and it will appear a popup menu that will give the option to show or hide the password data.
Page 499 In VRF systems, when load is very low and only few units are working in a system, it is possible that discharge air tem- perature is reduced below comfort value. With this option, HITACHI improves comfort for these situations by setting unit to Thermo OFF when discharge air temperature is below comfort temperature and set unit again to Thermo ON when temperature will be again inside comfort range.
Page 500: Extras
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.8 Extras 6.1.8.1 Customization and configuration of Building Layout CSNET WEB automatically provides an intelligent layout created following the HARC tree distribution. Otherwise, if there is an existing Building Layout file, that must be created using the editor, should be configured as the layout of our installation.
Page 501 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Icons give information of the Unit. The border has an interior shadow made that has the state colour. To control a unit just click on its area or unit icon and start working with the virtual remote controller. The remote controller is divided in two parts, the first one is the display zone that shows you the current values of the unit and the second one is the buttons zone.
Page 502 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Customization and configuration of Building Layout Building Layout option allows to use a schema of your installation, showing you the installation information in a more friendly view. It will make easy to manage your installation. To create a Building layout file you must to start the Building Layout editor application.
Page 503 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Import units from CSNET WEB In order to make easy your layout creation you can import the current units of the CSNET WEB. To do this, you have to open the option file properties and select the units tab On this tab you must enter the IP, port, user and password from one CSNET WEB to get the units existing on the data files.
Page 504 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Create Building Layout file using wizard option In order to make easy your layout creation you can import the current units of the CSNET WEB. To do this, you have to open the option file properties and select the units tab.
Page 505 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) You can choose the distribution of your units and shapes inside the zones: You can specify the margins with the zone, the separation between units and the number of units that you want to have on each row.
Page 506 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 1 Zone Margin X 2 Zone Margin Y 3 Unit Separation Y 4 Unit Separation X 5 Area Offset Finally, wizard dialogue will show you a resume panel with a summary of your selected options and with two alerts. ALERT 1: Accept this wizard configuration will remove your actual layout.
Page 507 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Create Building Layout file You can create your layout file without the wizard dialogue, but it will take more time. There are 3 important steps: • File configuration • Create zones •...
Page 508 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Layout tree The layout tree shows you the topology of your installation. It is helpfully to find the zones of your installation and it is easy a very good tool to organise your installation. Using the tree you can select which zone you want to see on the display zone.
Page 509 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Creating new zone or editing an existing one will appear the zone dialogue to set the information of the zone. Each zone must to have a specific information to identify the zone. The name of the zone must to be unique. In each zone you can insert one background image.
Page 510 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Create shapes A shape is a form that you can create in a zone. Each shape could link to a zone, a unit or nothing. The shape options are on shape in menu, inside edit. You can also find shape options clicking over a shape.
Page 511 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) The two different edition modes have different behaviour during the shape creation. Polygon Creation: Adding a polygon consist on clicking in each limiting point of the desired shape. A line will indicate you where the next point will be add.
Page 512 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) To link a shape you must select the tab link on the shape dialogue and chose the link type. If you want to link to a zone you must select which will be the destination zone. To do this, you must o use the zones table. You can search for a zone using search file.
Page 513: Web Connections
To connect from a smartphone PC software must be running as the server job is done by the software. The web server is the door to the Hitachi installation so it has been prepared to keep that door completely safe. Level Explanation The connection done by the user requires a password.
Page 514 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Web Access Once the client software has been activated as web server, user can connect to the IP of the computer. The Login screen will be showed: Connection can be done as mobile or desktop. It changes few things, but it tries to fit better to the browser. N O T E •...
Page 515 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Screen has 3 common points: Item Icon Menu Button Status bar: show info from the HARCS connected. Smart orders: let the user introduce orders. If browser allow voice input, the orders can be spoked The menu contains the following items: ...
Page 516 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 2 List View List view shows units on a list to use better the screen space. Weather Forecast Weather forecast shows the forecast of the following 3 days and the current one. N O T E •...
Page 517 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Unit Setting Unit setting order is set from the following screen. It works like CSNET WEB setting panel. The configurable items are: • On/Off • Temperature • Mode • • Louver •...
Page 518 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Smart Orders Smart orders lets user say or type what its orders and CSNET WEB will apply them. Those are the available orders: • Smart Orders Action Destination Example cold I want heat I want heat cold...
Page 519 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Web server configuration Web server is configured on the “configure system” panel. A tab has been added to have the whole installation data that affects to the 4 harcs. User can set if server is running or not and also the connection port. It can be also configured if weather forecast and voice orders will appear on the menu or not.
Page 520: Rcs Web
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.8.3 RCS Web Introduction RCS Web software takes the idea to simplify CSNET WEB, and use only the remote controller created for the Building Layout. The main idea is install that software on the computers of users who no need to manage all the CNET WEB options. They will have only the same access that using the remote controller but from their computer.
Page 521 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Local software configuration After start the software it will appear the main window. There, due to configure the software it must to be selected the configure button. To configure the installation will be needed the Installer password, by default “Installer” as the user name and password. N O T E If installer set to white text its user name and password it will be not asked.
Page 522 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Installation On the installation panel it will be able to configure 4 HARCs. Exactly as the CSNET WEB. Each of these 4 HARCS will be specified using the IP and port. User name and password of these HARCS will be configured from CSNET WEB.
Page 523 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) User settings User window let configure the user name and password of the user profile. There are 2 check boxes due to manage the privileges of the user. One will allow user to change central settings, and the other allow to appear the alarm message on the system tray. Proxy settings Proxy window is used to configure a proxy connection.
Page 524 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Changing installer password Installer Password window allow changing or erasing the in- staller user name and password. Setting fields without texts will not ask for the Installer password acceding to the local software configuration. ...
Page 525 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Virtual remote control Once the user is connected, it will appear an interface that looks like a remote control. This interface is equivalent to the building layout one with few improvements that helps to be a central control. The controllable things will be Run/Stop, setting temperature, mode, fan, louver and central.
Page 526 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) Use of system tray If user close the window using the cross button, application will still run setting an icon on the system tray. Clicking twice over the system tray icon will open the application. Using right button of the mouse over it will open a little menu that will allow to the user between close completely the application or open it.
Page 527: Alarm Signals
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.9 Alarm signals When at least one unit is in a situation of alarm this will be indicated physically in the interface by a flashing ERROR on the LED. If all the units are in a situation of alarm this represents a serious error of communications and the flashing will be more rapid.
Page 528: Unit Alarms
6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) 6.1.9.1 Unit alarms The CSNET WEB software lets you identify the error code of the units. This code appears in the System Status window and corresponds to the error code indicated in the service manual of the unit in question. New alarm codes have been added specifically for CSNET WEB to indicate that communication with one of the units has been broken.
Page 529 6 Building air conditioning controls CSNET WEB (PSC-A160WEB1) The table with all the functions and their description is shown below. Table of functions Pins Function Description Indicates the type of installation (PA Packaged) If there is an alarm it shows the alarm code and All OFF Rest the units with this alarm.
Page 530: Csnet Manager Lt/Xt
6.2 CSNET Manager LT/XT 6.2.1 Safety summary HITACHI cannot anticipate every possible circumstance that might involve a potential hazard. I M P O R TA N T N O T E Read carefully the document PMML0303A inside the USB Pen Drive Memory before performing the installation work.
Page 531: Connectable Devices
6 Building air conditioning controls CSNET Manager LT/XT 6.2.2.1 Connectable devices CSNET Manager Screen can connect up to 8 different devices. The following devices are suitable for connection: HC-A64NET H-LINK ETHERNET HC-A64NET CSNET Manager LT/XT CSNET Manager is connected to an H-Link installation through an HC-A64NET gateway. CSNET Manager is used to transmit orders, to store historical data and for time and power consumption management.
Page 532: Based On Java Technology
6 Building air conditioning controls CSNET Manager LT/XT CSNET MANAGER H-LINK ETHERNET ETHERNET CSNET Manager CSNET Manager HC-A64NET LT/XT LT/XT H-LINK It can be LAN or Internet HC-A64NET CSNET Manager is connected to another CSNET Manager that it is connected to the H-Link installation through the HC- A64NET.
Page 533: Csnet Manager Connection
6 Building air conditioning controls CSNET Manager LT/XT 6.2.2.3 CSNET Manager connection CSNET Manager is connected to a Local Area Network through its Ethernet port. After configuring the network, the system will be accessible from any site in the company’s network. Some adjustments are required for the LAN connection, and the network administrator’s assistance is needed.
Page 534 6 Building air conditioning controls CSNET Manager LT/XT Direct Using the Ethernet port, CSNET Manager can be connected directly to the Internet via a suitably configured DSL modem. This makes possible to monitor the system from any computer with Internet access. Assistance from an IT expert is required.
Page 535: H-Link
6 Building air conditioning controls CSNET Manager LT/XT 6.2.2.5 H-LINK HC-A64NET is compatible with the H-LINK 2 and the old version called H-LINK (H-LINK 1) units. Connection of both H-LINK 1 and H-LINK 2 units in the same H-LINK unit is possible considering the unit limitations and addressing.
Page 536: Installation
6 Building air conditioning controls CSNET Manager LT/XT 6.2.3 Installation 6.2.3.1 Installation site selection Take note of the maximum admissible cable length between units and the control as well as between the units themselves, as shown in the following table: Cable section 0.3 mm ≥...
Page 537: Description Of The Parts
6 Building air conditioning controls CSNET Manager LT/XT 6.2.3.3 Description of the parts 13 12 11 10 Name Function Remarks  Screen Touch screen for selecting all the functions  POWER Power on button Compact Flash/COM2 CF Type I/II Socket with Ejector Optional for 2nd COM port ...
Page 538: Dimensional Data
6 Building air conditioning controls CSNET Manager LT/XT 6.2.3.4 Dimensional data Units in mm. CSNET Manager LT CSNET Manager XT TCGB0106 rev.0 - 12/2014...
Page 539: Installation Space
Please refer to the section “6.3 HC-A64NET” CSNET Manager CSNET Manager has standard VESA mounting dimensions commonly available in the market. However, Hitachi offers these 2 accessories for the CSNET Manager (LT/XT) assembly: (Image to be informed later) Wall mounted support...
Page 540 CSNET Manager can be stand mounted by using any standard VESA 75 mm stand mounted support for LT & XT and VESA 100 mm for XT only. HITACHI offers the following stand mounted accessory VESA 75, model code 7E512301. The stand comes disassembled in 2 parts:...
Page 541 6 Building air conditioning controls CSNET Manager LT/XT 3 Screw the rear support screw to the arm and the stand will be completely mounted. Rear support screw 4 Finally, connect the power supply and LAN cable to the CSNET Manager. 5 Press down the power switch.
Page 542: Operation
6 Building air conditioning controls CSNET Manager LT/XT 6.2.4 Operation 6.2.4.1 USB memory connection 1 Plug in the USB memory in the USB port of the CSNET Manager. 2 Program starts up automatically. 3 Please wait until a window pops up. 4 This windows allows browsing the contents of the USB memory (instruction manuals in PDF files, system recovery, etc.).
Page 543 6 Building air conditioning controls CSNET Manager LT/XT Auto configuration When the system is started for the first time, it recognizes all the machines connected to H-Link. With time, the air conditioning installation may undergo changes which have certain repercussions on CSNET Manager. If the system detects machines which have been added after CSNET Manager was installed, or that machines have been removed from the H-Link, the Auto Configuration function lets you recognize all the machines again.
Page 544 6 Building air conditioning controls CSNET Manager LT/XT BMS configuration Modbus Configuration CSNET Manager allows to configure the BMS system in CSNET WEB devices by setting the ID for each indoor unit. This configuration will link the BMS with the H-LINK. To open the BMS configuration click on the change button.
Page 545 6 Building air conditioning controls CSNET Manager LT/XT Available data for Packaged The available data for CSNET WEB can be checked on the CSNET WEB document. Backup copy This option lets you make a backup copy of the CSNET Manager parameters. The Backup button saves the configuration in the file you choose of the computer from which you accessed the system.
Page 546: Graphic Interface
6 Building air conditioning controls CSNET Manager LT/XT 6.2.4.4 Graphic interface CSNET Manager has two ways of presenting information and the available program options: Overall view: A tree scheme is used to organize the installation units and a table to show the units information. Building Layout view: A tree scheme is used to organize the installation units and a zone layout to show the units information.
Page 547: Local Software Configuration
6 Building air conditioning controls CSNET Manager LT/XT 6.2.4.5 Local software configuration After configuring the CSNET Manager interface you should begin the configuration of the system. To install the RCS Web instead of CSNET Manager read the chapter “6.2.5.4 RCS Web”.
Page 548 6 Building air conditioning controls CSNET Manager LT/XT Initial page The initial page is divided into two parts: 1 Access to the installation required Local Software Configuration: The user name and password are case-sensitive. When you try to access to the required installation, the initial screen shows three text fields which have to be completed to access the installation: •...
Page 549 6 Building air conditioning controls CSNET Manager LT/XT Local computer configuration This option allows the different client computer configuration parameters to be modified, such as the Internet connection configuration, default language, local data storage or list of rapid access to installations. If you click this button the following screen appears: This screen lets you configure the operation of the software in your computer in terms of: •...
Page 550 6 Building air conditioning controls CSNET Manager LT/XT Installation list Installation list let the user configure the devices on the installation. Installation may also be edited or deleted by pressing in the Installation (Edit) and (Delete) buttons respectively. Press (New) to create a new installation. “New Network Item”...
Page 551 6 Building air conditioning controls CSNET Manager LT/XT For each CS Port (available CSNET Manager server to connect): Name: Identification name for CSNET Manager server. Address: IP Address for CSNET Manager server. Port: Connection port where CSNET Manager server is listening. Proxy: Determine if communication with CSNET Manager server shall pass a proxy server.
Page 552 6 Building air conditioning controls CSNET Manager LT/XT HC-A64NET Search CSNET Manager includes a new system to make faster configuration of HC-A64NET. IP address of the different devices can be written as in CSNET WEB, but it exist a new search mode where CSNET Manager look for connected HC-A64NET on the LAN.
Page 553 6 Building air conditioning controls CSNET Manager LT/XT Software settings This tab lets you configure four kinds of data: • Language settings: You can choose the default language to be used in the main screen. You can set the countdown time (in seconds) and make the program remembers the changes.
Page 554 6 Building air conditioning controls CSNET Manager LT/XT Software register Software register tab let the user register its software due to be able of having access to the updates server. After register the software, automatic search for updates can be activated and it can be checked for new client versions just by clicking the check button.
Page 555 6 Building air conditioning controls CSNET Manager LT/XT Touch computer settings On “Touch computer settings” tab, we can find the following options to configure: • Network Settings: allows you to configure your LAN settings. • Time and Date Settings: set time and date of your Touch Screen to synchronize it with your CSNET WEB. •...
Page 556 6 Building air conditioning controls CSNET Manager LT/XT Back up and restore CSNET Manager creates a back up of the current status of the software that can be restored at any time. This backup includes all CSNET Manager data: • Installations •...
Page 557: Configuration Of Packaged Units
6 Building air conditioning controls CSNET Manager LT/XT 6.2.4.6 Configuration of packaged units This chapter will apply when the system has Packaged units. Remember that it is not possible to connect water chillers and Packaged units in the same H-LINK communication line. 1 Area tree: Installation tree with the different areas defined by the user.
Page 558 6 Building air conditioning controls CSNET Manager LT/XT Area tree Area tree can be shown or hidden by clicking on button . If area tree is not shown, you can change the installation area clicking over “installation” menu, all areas will showed without need to expand the area tree. Enable Area Edition activates an area tree for this installation.
Page 559 6 Building air conditioning controls CSNET Manager LT/XT The meaning of each column is as follows: Column Location Content / Symbol Address of the outdoor unit or cooling circuit <number> to which the indoor unit belongs Address of the indoor unit <number>...
Page 560 6 Building air conditioning controls CSNET Manager LT/XT Building Layout view On “Building layout” view, software charge the building layout files and navigate through them. In case of do not configure any building layout file, CSNET Manager automatically generate a matrix view, where it display the units along the installation tree.
Page 561 6 Building air conditioning controls CSNET Manager LT/XT Operation panel Operation panel is the interface available in table of indoor units and building layout view, that is shown by default and it is used to send orders to the units. In case of using a virtual remote controller, the panel is hidden. The Operation Panel has the following access fields offering complete control of the units: •...
Page 562 6 Building air conditioning controls CSNET Manager LT/XT System status The system status field shows the operating conditions of each of the units controlled by CSNET Manager (by clicking The system status shown corresponds to the same unit selected in the indoor unit table, as shown in the adjoining example. Description The information display is divided into 4 parts: •...
Page 563 6 Building air conditioning controls CSNET Manager LT/XT Explanation of the fields Although all these parameters are available in the 3-tube systems (Set-Free FX), some are not in other systems. These are indicated in the table. Group Description Model of the indoor unit and its power —...
Page 564 6 Building air conditioning controls CSNET Manager LT/XT Timer CSNET Manager has a timer which is easy to program. A timer is composed by patterns and exceptions, which define which is the daily pattern to be used on a day. Pattern: defines the operations to apply in a period (day/month) for the selected days of the week.
Page 565 6 Building air conditioning controls CSNET Manager LT/XT PC-A1IO System status PC-A1IO has an special system status layout, it shows the value of all the digital outputs and two analog inputs. RAD Units System Status Its special view only shows the values that can be read when a PSC-6RAD adapter is connected. Alarms The alarms shown in CSNET Manager are the same that can be found in the service manual of the outdoor unit in question.
Page 566 6 Building air conditioning controls CSNET Manager LT/XT Configuration panel Network settings The CSNET Manager configuration has the following sections: 1 Network settings 2 Version and updates 3 Change password 4 Installation name 5 Auto configuration 6 Time configuration 7 BMS Configuration 8 Backup copy 9 Configuration report...
Page 567 6 Building air conditioning controls CSNET Manager LT/XT C A U T I O N The network settings specify the parameters for configuring CSNET Manager to be able to communicate with the rest of the network. These parameters are essential, and a bad configuration may cause conflicts in the local area network. This is why we recommend that for making these settings you get in touch with the network administrator where CSNET Manager will be installed.
Page 568 Web server Installation menu refers to the data related to the general installation. • Installation Location is used by web server functions. The location indicates where in the world is the Hitachi air conditioning installation. • Web Server configuration activates the software as a web server that lets the user to configure the units through a web.
Page 569 6 Building air conditioning controls CSNET Manager LT/XT Alarm notification CSNET Manager is ready to notify alarms to the users. These alarms are notified by e-mail. To configure these notifications you must open the alarm notification panel. The configuration is divided in different parts: Alarm notification: allows enable or disable alarm notification function and select between execute this server on the CSNET Manager HARC or in the computer.
Page 570 INTERNET H-LINK SMTP server CSNET Manager HITACHI installation CSNET WEB Interface: a. Configuring the mail alarms on the CSNET WEB Interface is used when CSNET WEB is on a LAN that uses proxy to connect to Internet. b. CSNET WEB device will send the alarm mails using this SMTP server.
Page 571 6 Building air conditioning controls CSNET Manager LT/XT Notify settings Notify settings configures who will receive the notifications and what will be the interval of these notifications. Notify interval: you can set a notification interval of 1, 2, 6, 12 hours or 1 day. Notify E-Mail address: sets the name and the e-mail address of the different receivers.
Page 572 6 Building air conditioning controls CSNET Manager LT/XT Modbus server CSNET Manager can work as a Modbus server. This configuration is done on the “Modbus” panel. On this panel it can be configured if the function is enabled or not, and the listening port of the CSNET Manager. The table displays the different units, where it can be modified the Modbus ID.
Page 573 6 Building air conditioning controls CSNET Manager LT/XT Address Name Description Read/Write (Note 1) Setting temperature SET_TSET Read/Write 17ºC ~ 30ºC Louver setting SET_LOUVER Read/Write 0 ~ 8 (8 is Auto) Central Setting: Bit 0: ON/OFF (always can be stopped) SET_CENTRAL Bit 1: Mode Read/Write...
Page 574 For each unit can be assigned a pattern similar to the timer one that describes a condition for check in and another for check out. It also can be specified the data period where that patterns applies. To activate the Fidelio compatibility it must be selected the check box and specified an accessible IP for the Hitachi Fidelio gateway.
Page 575 6 Building air conditioning controls CSNET Manager LT/XT Unit configuration The unit settings show all the data of each of the units controlled by CSNET Manager. The information given is as follows: • Indoor Unit Location: Name of the room conditioned by this unit. Area: Zone to which this unit belongs.
Page 576 6 Building air conditioning controls CSNET Manager LT/XT OU Serial No: Serial number of the outdoor unit to which the indoor unit is connected (see Note 2). • TSet Limits Cool Range: Sets the maximum and the minimum temperature values in cool mode. Heat Range: Sets the maximum and the minimum temperature values in heat mode.
Page 577 6 Building air conditioning controls CSNET Manager LT/XT Auto cool/heat The outdoor units of 2-tube systems and are not designed to operate in the automatic Cool/Heat mode when more than one indoor unit is connected to the same outdoor unit, but only in the cool or heat mode. Thus all indoor units connected to the same outdoor unit should be changed from one mode to another at the same time.
Page 578 6 Building air conditioning controls CSNET Manager LT/XT Description of the operation mode In the automatic (Auto) Cool/Heat mode requested by the indoor units, CSNET will check first whether the cooling circuit to which the unit is connected is 2 tube or 3 tube before deciding to change the operating mode. Then, CSNET WEB calculates the difference to decide the best operation mode at that moment.
Page 579 6 Building air conditioning controls CSNET Manager LT/XT Description of parameters To use this option, you have to set the parameters shown in the Auto Cool/Heat operation panel. After that, if unit is working in Auto Cool/Heat mode, you can see the status of this operation on the status zone of the panel. The Auto Cool/Heat panel shown corresponds to the cooling circuit of the indoor unit selected in the table of indoor units, as shown in the example.
Page 580 6 Building air conditioning controls CSNET Manager LT/XT Correction value: Temperature corrected on changing the operation mode, to ensure greater comfort.. Pre set adjustment: 0. 1ºC steps. Margin: 0, 1, 2. The Setting temperature is adjusted using the following formula when the operation mode is changed, depending on the DIFF option selected: Correction value Change from cool to heat...
Page 581 6 Building air conditioning controls CSNET Manager LT/XT TSet Limits: • USERMAX: Maximum Setting temperature. If the selected temperature is higher, CSNET will use USERMAX as the value for the Setting temperature, changing this value as soon as the operation mode changes. Pre set adjustment: +25°C.
Page 582 6 Building air conditioning controls CSNET Manager LT/XT Fan stop heating during thermo-off N O T E This function is only available for HC-A64NET units. In VRF systems, when unit is heating thermo-off CSNET Manager can stop the fan. Configurable parameters: Enabled: enables the fan stop function Master unit: field for selecting the method CSNET Manager will use to calculate the temperature difference.
Page 583 In VRF systems, when load is very low and only few units are working in a system, it is possible that discharge air temperature is reduced below comfort value. With this new option HITACHI improves comfort for these situations by setting unit to Fan Mode when discharge air temperature is below comfort temperature and set unit again to Cooling Mode when temperature will be again inside comfort range.
Page 584 6 Building air conditioning controls CSNET Manager LT/XT Outdoor control Outdoor control panel let user set up the following outdoor functions: • Power control: limit the power consumption of the outdoor unit. • Night mode: reduce the unit sound. It is useful during the night. N O T E The list of outdoor units only shows the outdoor units that supports this type of control.
Page 585 C A U T I O N • Suggested device tested by Hitachi is 7KM PAC3200 by Siemens. • Ensure that your Modbus-TCP power meter register starts at 0. CSNET Manager considers it like this, so if it starts at 1, subtract 1 to each register address.
Page 586 6 Building air conditioning controls CSNET Manager LT/XT Historical data CSNET Manager automatically stores an operating record for all the units in the system. These data can be downloaded locally or displayed (both from the data previously stored locally and the data obtained from the system). •...
Page 587 6 Building air conditioning controls CSNET Manager LT/XT Displaying historical data CSNET Manager allows you to save a history of data from all the machines connected to the H-Link. It also displays the information in two different formats: Data in the form of a table, which can be exported in text format; and Data in graph format, which can be used to generate graphics for display.
Page 588 6 Building air conditioning controls CSNET Manager LT/XT Alarm log CSNET Manager also saves the most important alarm events occurred during the lifetime of the installation. Clear button erase the alarm history. To visualize the alarms, click on the Alarm Log tab, and next press the Export log button, which is in the centre bottom of the window.
Page 589 6 Building air conditioning controls CSNET Manager LT/XT Auto save configuration The chapter “6.2.4.5 Local software configuration” shows how to access the software settings. The alarm log function also allows you to keep an updated copy of the log in your computer. To activate this option: Mark the selection box.
Page 590 6 Building air conditioning controls CSNET Manager LT/XT Values table for packaged units Identifier of the type of file: <Type=Version; 3 or 2> Temporary identification and module: <Year> <Month> <Day> <Hour> <Minutes> <CS Port> <OU Number> <IU Number> Adjustment of the indoor unit (CSNET Manager): Central: <Central=1/Local=0>...
Page 591 6 Building air conditioning controls CSNET Manager LT/XT Readings for the outdoor unit: Puls (Pulse): <OU: Impulses of the expansion valve of the IU requested> Ou Mode: <OU: Operation mode: HEAT=0, COOL=1, DRY=2, STOP=3> <OU: Ambient temperature in ºC> <OU: Discharge gas temperature in ºC> <OU: Evaporation temperature in ºC>...
Page 592 6 Building air conditioning controls CSNET Manager LT/XT The graph configuration window has several fields: 1 Indoor unit: Select the address of the indoor unit to be displayed. 2 Value: Contains the different values that can be displayed for the unit or cycle. See section on “Values table for for an explanation of each parameter.
Page 593 6 Building air conditioning controls CSNET Manager LT/XT Power consumption CSNET Manager saves and calculates the percentage of energy consumption of each indoor unit compared to the outdoor units, so that the user can consult the level of consumption at any time. The window is divided into three parts: 1 The upper part allows you to choose the options you want to consult.
Page 594 6 Building air conditioning controls CSNET Manager LT/XT Packaged To get the data of power consumption for Packaged units, enter the date interval and click the Get Data button. Select on the table the outdoor units to be included on the calculation A table will appear with different information.
Page 595 6 Building air conditioning controls CSNET Manager LT/XT Configuration The cost calculated for each indoor unit is based on tariffs specified on the CSNET Manager. There are two different systems to define the source of the consumed energy: • Use configured power meter devices data: in case of having power meter devices related to the units, the energy consumed per each indoor unit will be calculated based on the information provided by these devices.
Page 596 6 Building air conditioning controls CSNET Manager LT/XT Auto save configuration The chapter “6.2.4.5 Local software configuration” shows how to access the software settings. The power consumption function allows you to generate automatically a detailed report of the daily consumption of the installation. To activate this option: Mark the selection box.
Page 597: Operation With Slave Csnet Managers
6 Building air conditioning controls CSNET Manager LT/XT 6.2.4.7 Operation with slave CSNET Managers One CSNET Manager can read units from another CSNET Manager. This second CSNET Manager could have more than one devices configured, this means that to keep an unique identifier of the units, CSNET Manager show the CS Port as follow: [Slot on the current CSNET Manager].[Slot inside the remote CSNET Manager] On the following image we can see an example of that:...
Page 598: Interface Utilities
6 Building air conditioning controls CSNET Manager LT/XT 6.2.4.8 Interface utilities Status bar The status bar is on the bottom of the screen and indicates the date & time of the CSNET Manager on the right side, and on the left it has one icon for each slot devices that shows the current state of each device.
Page 599 In VRF systems, when load is very low and only few units are working in a system, it is possible that discharge air temperature is reduced below comfort value. With this option, HITACHI improves comfort for these situations by setting unit to Thermo OFF when discharge air temperature is below comfort temperature and set unit again to Thermo ON when TCGB0106 rev.0 - 12/2014...
Page 600 CSNET Manager LT/XT temperature will be again inside comfort range. H-LINK II CSNET Manager is compatible with new version of the Hitachi communication protocol H-LINK II. The software still operates with old protocol version. RCS Web RCS Web is a reduced CSNET Manager for Packaged that allows controlling only the remote control functions.
Page 601: Extras
6 Building air conditioning controls CSNET Manager LT/XT 6.2.5 Extras 6.2.5.1 Customization and configuration of Building Layout Building Layout option allows to use a schema of your installation, showing you the installation information in a more friendly view. It will make easy to manage your installation. To create a Building layout file you must to start the Building Layout editor application.
Page 602 6 Building air conditioning controls CSNET Manager LT/XT Import units from CSNET Manager In order to make easy your layout creation you can import the current units of the CSNET Manager. To do this, you have to open the option file properties and select the Import units tab On this tab you must enter the IP, port, user and password from one CSNET Manager to get the units existing on the data files.
Page 603 6 Building air conditioning controls CSNET Manager LT/XT Create Building Layout file using wizard option In order to make easy your layout creation you can import the current units of the CSNET Manager. To do this, you have to open the option file properties and select the Import units tab. Before creating your layout you must select the units used by the wizard function.
Page 604 6 Building air conditioning controls CSNET Manager LT/XT You can choose the distribution of your units and shapes inside the zones: You can specify the margins with the zone, the separation between units and the number of units that you want to have on each row.
Page 605 6 Building air conditioning controls CSNET Manager LT/XT On next image you can see an example, applying the entered values: 1 Zone Margin X 2 Zone Margin Y 3 Unit Separation Y 4 Unit Separation X 5 Area Offset Finally, wizard dialogue will show you a resume panel with a summary of your selected options and with two alerts. ALERT 1: Accept this wizard configuration will remove your actual layout.
Page 606 6 Building air conditioning controls CSNET Manager LT/XT Create Building Layout file You can create your layout file without the wizard dialogue, but it will take more time. There are 3 important steps: • File configuration • Create zones •...
Page 607 6 Building air conditioning controls CSNET Manager LT/XT Proxy connection is useful when Building Layout Software is importing the units from a CSNET Manager that is not directly connected on same LAN than the computer. Layout tree The layout tree shows you the topology of your installation. It is helpfully to find the zones of your installation and it is easy a very good tool to organise your installation.
Page 608 6 Building air conditioning controls CSNET Manager LT/XT Create zones You can find Zone in Edit menu. Zone options can also be found using the right button on a zone inside the installation tree. A zone is a slide where we can add all shapes that we want. On a zone we can choose a background image and edit this. Zone has different options: •...
Page 609 6 Building air conditioning controls CSNET Manager LT/XT When transforming an image, you will see transformation squares around the image. Each square transforms the image fixing the opposite one. Central square will shift the image. Create shapes A shape is a form that you can create in a zone. Each shape could link to a zone, a unit or nothing. The shape options are on shape in menu, inside edit.
Page 610 6 Building air conditioning controls CSNET Manager LT/XT The two different edition modes have different behaviour during the shape creation. Polygon Creation: Adding a polygon consist on clicking in each limiting point of the desired shape. A line will indicate you where the next point will be add.
Page 611 6 Building air conditioning controls CSNET Manager LT/XT Rectangle Edition: Central squares will move the rectangle. Corner squares will expand or reduce rectangle fixing op- posite corner square. Between corner squares will move contiguous corners fix- ing the opposites ones. Using shift button you transform keeping previous propor- tions of the image.
Page 612 6 Building air conditioning controls CSNET Manager LT/XT To make easier your work, if you have imported configuration files of CSNET Manager as previously explained, you can load the fields selecting load button. Unit selector dialogue will appear: Select the unit you want to load and press select button. TCGB0106 rev.0 - 12/2014...
Page 613: Web Connections
Connect from a smart-phone CSNET Manager must be running as the server job is done by the software. The web server is the door to the Hitachi installation so it has been prepared to keep that door completely safe. CSNET Manager...
Page 614 6 Building air conditioning controls CSNET Manager LT/XT Web Access Once the client software has been activated as web server, user can connect to the IP of the computer. The Login screen will be showed: Connection can be done as mobile or desktop. It changes few things, but it tries to fit better to the browser. ...
Page 615 6 Building air conditioning controls CSNET Manager LT/XT The menu contains the following items: Views There are two type of views to display the units: 1 Grid View Grid view looks like auto building layout view. TCGB0106 rev.0 - 12/2014...
Page 616 6 Building air conditioning controls CSNET Manager LT/XT 2 List View List view shows units on a list to use better the screen space. Weather Forecast Weather forecast shows the forecast of the following 3 days and the current one. N O T E •...
Page 617 6 Building air conditioning controls CSNET Manager LT/XT Unit Setting Unit setting order is set from the following screen. It works like CSNET Manager setting panel. The configurable items are: • On/Off • Temperature • Mode • • Louver •...
Page 618 6 Building air conditioning controls CSNET Manager LT/XT Smart Orders Smart orders lets user say or type what its orders and CSNET Manager will apply them. Those are the available orders: • Smart Orders Action Destination Example cold I want heat I want heat cold...
Page 619: Web Server Configuration
6 Building air conditioning controls CSNET Manager LT/XT 6.2.5.3 Web server configuration Web server is configured on the “configure system” panel. A tab has been added to have the whole installation data that affects to the 4 harcs. User can set if server is running or not and also the connection port. It can be also configured if weather forecast and voice orders will appear on the menu or not.
Page 620: Rcs Web
6 Building air conditioning controls CSNET Manager LT/XT 6.2.5.4 RCS Web Introduction RCS Web software takes the idea to simplify CSNET WEB, and use only the remote controller created for the Building Layout. The main idea is install that software on the computers of users who no need to manage all the CSNET WEB options. They will have only the same access that using the remote controller but from their computer.
Page 621 6 Building air conditioning controls CSNET Manager LT/XT Virtual PC-ART Sending orders to the units can be done by enabling the Virtual PC-ART on local computer configuration. After selecting a unit, the remote controller will appear on the screen. The remote controller is divided in two parts, the first one is the display zone that shows you the current values of the unit and the second one is the buttons zone.
Page 622 Virtual PC-ARF Sending orders to the units can be done by enabling the Virtual PC-ARF on local computer configuration. After selecting a unit, the remote controller will appear on the screen. The remote controller is divided in two parts, the first on is the display zone that shows current values of the unit and the buttons zones that let move through the menus.
Page 623 6 Building air conditioning controls CSNET Manager LT/XT Local software configuration After start the software it will appear the main window. There, due to configure the software it must to be selected the configure button. To configure the installation will be needed the Installer password, by default “Installer” as the user name and password. N O T E If installer set to white text its user name and password it will be not asked.
Page 624 6 Building air conditioning controls CSNET Manager LT/XT Installation On the installation panel it will be able to configure 4 HARCs. Exactly as the CSNET WEB. Each of these 4 HARCS will be specified using the IP and port. User name and password of these HARCS will be configured from CSNET WEB.
Page 625 6 Building air conditioning controls CSNET Manager LT/XT User settings User window let configure the user name and password of the user profile. There are 2 check boxes due to manage the privileges of the user. One will allow user to change central settings, and the other allow to appear the alarm message on the system tray. ...
Page 626 Remember password: systems remember the last user name and password configured due to avoid the retyping of these items. Automatic login on startup: if system reminds the password, it will automatically connect when software is started. Remote control: selection of the virtual remote control between PC-ARF and PC-ART. N O T E •...
Page 627 6 Building air conditioning controls CSNET Manager LT/XT Virtual remote control Once the user is connected, it will appear an interface that looks like a remote control. This interface is equivalent to the building layout one with few improvements that helps to be a central control. The controllable things will be Run/Stop, setting temperature, mode, fan, louver and central.
Page 628: Troubleshooting
6 Building air conditioning controls CSNET Manager LT/XT 6.2.6 Troubleshooting 6.2.6.1 Physical keyboard does not type proper characters In case that want to connect a USB keyboard and it does not fit to the keys maps of the system, change the keyboard layout by following that instructions: 1 Connect a USB mouse 2 Close the program (Local computer configuration ->...
Page 629: Unit Alarms
6 Building air conditioning controls CSNET Manager LT/XT 6.2.6.3 Unit alarms The CSNET Manager software lets you identify the error code of the units. This code appears in the System Status window and corresponds to the error code indicated in the service manual of the unit in question. New alarm codes have been added specifically for CSNET Manager to indicate that communication with one of the units has been broken.
Page 630: Hc-A64Net
6 Building air conditioning controls HC-A64NET 6.3 HC-A64NET 6.3.1 Safety summary D A N G E R • Read carefully this manual before performing the installation work. • Do not install this device in places accessible to the general public. Install it in electrical enclosures, which are only acces- sible by the usage of a tool and also provide protection to eventual electromagnetic disturbances.
Page 631: Description Of The Parts
USB cable at configuration time only  RJ45 Ethernet: TCP/IP connection  RS485: Not available  H-LINK Communication bus with HITACHI units  Operation led indicator  Rail DIN 35 mm for assembly inside the electrical box TCGB0106 rev.0 - 12/2014...
Page 632: General Data
Communication system Full-duplex Length Max. 100 m according IEEE 802.3 H-LINK Item Specifications Communication with Hitachi Air Conditioning series: SET-FREE, UTOPIA and CENTRIFUGAL systems Communication line Twisted pair shielded cable, non-polarity Communication system Half-duplex Communication method Asynchronous Speed of transmission...
Page 633: Dimensional Data
6 Building air conditioning controls HC-A64NET 6.3.2.5 Dimensional data (mm) 6.3.2.6 Installation space Keep free the grey area for the correct operation of the device. (mm) TCGB0106 rev.0 - 12/2014...
Page 634: Installation Procedure
N O T E The installation of this device requires an USB cable and Ethernet cable. HITACHI offers the accessory “Net configuration kit” which in- cludes USB cable, Ethernet cable and an USB memory stick with the same software tool. Refer to its specific section for more information.
Page 635 6 Building air conditioning controls HC-A64NET Configuration procedure Configuration through USB port This method is required when the device IP is unknown. 1 Connect the network device to a computer by a USB cable (field supplied or available with the Net Configuration Kit). 2 Select the communication port of the computer.
Page 636 6 Building air conditioning controls HC-A64NET Configuration of device and communication Device information Check that the network device is correctly displayed at the “Device information” table. Press refresh button if necessary. Configuration of Network configuration When the network device is integrated to the LAN / Modbus net by Ethernet, configure the following parameters: •...
Page 637: Electrical Wiring
SW1-2: Not used (keep always “ON”) 6.3.4 Compatibility The new HC-A64NET is compatible with all SET-FREE, UTOPIA and CENTRIFUGAL units using H-LINK communication protocol. This device is not compatible with any of the following HITACHI controllers: • Centralised remote controls •...
Page 639: Gateways For Building Management Systems
7 Gateways for building management systems G a t e w a y s f o r b u i l d i n g m a n a g e m e n t s y s t e m s Index 7.1.
Page 640 7 Gateways for building management systems 7.3.2.4. General data .......................... 648 7.3.2.5. Dimensional data ........................648 7.3.2.6. Installation space ........................649 7.3.2.7. Installation procedure ......................650 7.3.3. Electrical wiring ............................651 7.3.4. Operation ..............................652 7.3.4.1. Introduction ..........................652 7.3.4.2. Limitations ..........................
Page 641: Hc-A(8/64)Mb
7 Gateways for building management systems HC-A(8/64)MB 7.1 HC-A(8/64)MB 7.1.1 Safety summary D A N G E R • Read carefully this manual before performing the installation work. • Do not install this device in places accessible to the general public. Install it in electrical enclosures, which are only acces- sible by the usage of a tool and also provide protection to eventual electromagnetic disturbances.
Page 642: Description Of The Parts
USB cable at configuration time only  RJ45 Ethernet: Modbus TCP  RS485: Modbus RTU  H-LINK Communication bus with HITACHI units  Operation led indicator  Rail DIN 35 mm for assembly inside the electrical box TCGB0106 rev.0 - 12/2014...
Page 643: General Data
Communication system Full-duplex Length Max. 100 m according IEEE 802.3 H-LINK Item Specifications Communication with Hitachi Air Conditioning series: SET-FREE, UTOPIA and CENTRIFUGAL systems Communication line Twisted pair shielded cable, non-polarity Communication system Half-duplex Communication method Asynchronous Speed of transmission...
Page 644: Dimensional Data
7 Gateways for building management systems HC-A(8/64)MB 7.1.2.5 Dimensional data (mm) 7.1.2.6 Installation space Keep free the grey area for the correct operation of the device. (mm) TCGB0106 rev.0 - 12/2014...
Page 645: Installation Procedure
N O T E The installation of this device requires an USB cable and Ethernet cable. HITACHI offers the accessory “Net configuration kit” which in- cludes USB cable, Ethernet cable and an USB memory stick with the same software tool. Refer to its specific section for more information.
Page 646 7 Gateways for building management systems HC-A(8/64)MB Configuration procedure Configuration through USB port This method is required when the device IP is unknown. 1 Connect the network device to a computer by a USB cable (field supplied or available with the Net Configuration Kit). 2 Select the communication port of the computer.
Page 647 7 Gateways for building management systems HC-A(8/64)MB Configuration of device and communication Device information Check that the network device is correctly displayed at the “Device information” table. Press refresh button if necessary. Configuration of Network configuration When the network device is integrated to the LAN / Modbus net by Ethernet, configure the following parameters: •...
Page 648: Electrical Wiring
7 Gateways for building management systems HC-A(8/64)MB Units Id Configuration • Automatic address can be done by pushing • Manual address configuration can be done by the assignation of each Id to a specific H-LINK address Outdoor unit address (Ou) and Indoor unit address (Iu) •...
Page 649: Operation
7.1.4 Operation 7.1.4.1 Compatibility The new HC-A(8/64)MB is compatible with all SET-FREE, UTOPIA and CENTRIFUGAL units using H-LINK communica- tion protocol. This device is not compatible with any of the following HITACHI controllers: • Centralised remote controls • Building air conditioning controls •...
Page 650: Alarm Code
Indoor Unit or Outdoor Unit alarm. 7.1.6 Troubleshooting ALARM CODE DESCRIPTION COUNTERMEASURE Shut down the device power supply and restore it after 5 s. If LED2 is still flicker- LED2 is flickering Abnormal operation ing contact to the HITACHI customer service TCGB0106 rev.0 - 12/2014...
Page 651: Hc-A16Knx
7 Gateways for building management systems HC-A16KNX 7.2 HC-A16KNX 7.2.1 Safety summary C A U T I O N • Do not connect voltage input to the control system before preparation for test run has been correctly completed. • Read this manual carefully before performing installation work. •...
Page 652: Description Of The Parts
Indoors (in a control panel or desktop) Ambient temperature 0~40°C Humidity 20~85% (Without condensation) H-LINK Item Specifications Communication with HITACHI PACKAGED Communication line Twisted pair shielded cable, non polarity Communications system Half-duplex Communication method Asynchronous Speed of transmission 9600 Bauds...
Page 653: Dimensional Data
7 Gateways for building management systems HC-A16KNX 7.2.2.5 Dimensional data (mm) 7.2.2.6 Installation space Keep free grated area for ventilation and cable connection. (mm) TCGB0106 rev.0 - 12/2014...
Page 654: Installation Procedure
7 Gateways for building management systems HC-A16KNX 7.2.2.7 Installation procedure Perform the following procedure: 1 Remove the rubber supports 2 Unscrew the 4 screws from the top cover and remove it 3 Attach the box to the rear vertical board from the inside with M4 screws (not provided) and place 3 mm washers on the outside to separate the box from the wall.
Page 655: Electrical Wiring
(With protection circuit) 2 cables harness 0.75 mm² (H05RN-F type). Use different colour for each cable. (KNX Port) Communication cables for the connection of HC-A16KNX to an Hitachi installation, via CSNET WEB or any Hitachi unit using same H-LINK terminals. H-LINK Twisted pair shielded cable 0.75 mm²...
Page 656 7 Gateways for building management systems HC-A16KNX DIP switch setting Name Function Factory setting Description Reset button. To be used in case of KNX communication has been Reset KNX PCB – locked.) Reset – Reset button. To be used in case of program has been locked Not available Factory purposes.
Page 657 Checking of HC-A16KNX consist in disconnect and connect the HC-A16KNX and check that in the 7-segments display appears the current software value. N O T E Ask your Hitachi distributor what check value has the last version of firmware TCGB0106 rev.0 - 12/2014...
Page 658: Operation
7 Gateways for building management systems HC-A16KNX 7.2.4 Operation 7.2.4.1 KNX Address KNX Default address for this device is 1.1.1, it can later be modify using ETS software from KNX Association. 7.2.4.2 Available data The maximum numbers of units that can be controlled using HC-A16KNX are 16. Each unit has 15 communication objects. These objects are explained as follows: Address Name...
Page 659: Configuration Method
Code (in Hexadecimal) Description No Error 1~98 See Hitachi documentation Unit not configured 7.2.4.3 Configuration method Every HC-A16KNX can control up to 16 indoor units, considering that in the same H-LINK can be connected up to 160 indoor units, it must be set which indoor units are selected for each HC-A16KNX.
Page 660 7 Gateways for building management systems HC-A16KNX Switch configuration for the previous example Step 7 segments Action Remarks number (display) For “id” 14: Press SW4 for 3 seconds Configuration mode selected Id selection (IU No.) From 0 to 15 Press SW4 (By pushing SW5 ▲...
Page 661: Troubleshooting
7 Gateways for building management systems HC-A16KNX 7.2.5 Troubleshooting Nº ALARM CODE DESCRIPTION COUNTERMEASURE Ensure that H-LINK connection is correctly done in Indoor Units have not communi- →61 cated with HC-A16KNX for more HARC (K1) and also Indoor Units than 10 min. Ensure that Power are supplied to Air Conditioners Ensure that H-LINK connection is correctly done in Indoor Units have never communi-...
Page 662: Knx001
7 Gateways for building management systems KNX001 7.3 KNX001 7.3.1 Safety summary C A U T I O N • This interface KNX001 must be installed by skilled personal (electrician, EIB installer or other skilled technician). • Do not connect voltage input to the control system before installation has been correctly completed. •...
Page 663: Installation
7 Gateways for building management systems KNX001 7.3.2 Installation 7.3.2.1 Installation site selection Take note of the maximum admissible cable length between units and the control as well as between the units themselves, as shown in the following table: Cable section 0.3 mm ≥...
Page 664: General Data
7 Gateways for building management systems KNX001 7.3.2.4 General data Cover PC plastic type (UL 94 V-0). Grey. RAL 7035. Dimensions Width 107mm - Height 90 mm - Depth 58 mm Weight 2 kg 9 a 30 VDC ±10% 1.4W. Power Supply 24 VAC ±10% 1.4VA.
Page 665: Installation Space
7 Gateways for building management systems KNX001 7.3.2.6 Installation space Minimum space recommended for the interface and its external connections. (mm) Ethernet Port Power supply KNX Port PC Console TCGB0106 rev.0 - 12/2014...
Page 666: Installation Procedure
7 Gateways for building management systems KNX001 7.3.2.7 Installation procedure 1 Ensure that there is no power supply connected to any part of KNX001 (power terminals and EIB bus). 2 Install the device following the detailed explanations in 4.2.1 and 4.2.2. It is recommended to install KNX001 inside an electrical box.
Page 667: Electrical Wiring
7 Gateways for building management systems KNX001 7.3.3 Electrical wiring See Note 2 Power Supply See Note 1 Console Cable 1,8 m. DB9 Female - DB9 Male Only required for con- figuration See Note 3 N O T E Use always a DC Power Supply: •...
Page 668: Operation
7.3.4.1 Introduction A Hitachi Air-Conditioning system is integrated with a KNX system using CSNET WEB and the KNX001 device. The types of machines to connect are Packaged, and up to 128 units are supported. This interface has different signals. The signals...
Page 669: Limitations
7 Gateways for building management systems KNX001 Each of the previous signals must be associated with an address of Group KNX, so that the whole set behaves as one more part of the KNX system with the same configuration and operation characteristics. KNX001 CSNET WEB Ethernet...
Page 670 7 Gateways for building management systems KNX001 Definition of signals Each signal from the external system uses the following KNX properties: Property Description Signal Signal description Only for information. Permits a signal to be identified easily. The type of KNX data item used to express the value of the signal. Depends on the type of external system EIS (DataPoint) signal in each case.
Page 671: Configuration
The folder where the projects are created is FolderApplication\ProjectsHGT, where FolderApplication is the folder in which HGT is installed (by default C:\Program Files\Hitachi\HGT). Within the projects folder, a new folder is created for each new project with the files that contain the project configuration.
Page 672 7 Gateways for building management systems KNX001 To create a new project, select a project with the same external protocol as the one you want to use and press New. You will be asked whether a copy of a selected project or a new one is to be created. If you select Yes, you will be able to specify the name and description of the new project, based on the same external pro- tocol selected.
Page 673 7 Gateways for building management systems KNX001 4 Enable the check box off-line under the menu bar (it will change to on-line) and HGT will ask for INFO from KNX001. If the connection is correct, KNX001 will respond with its identification (this can be supervised via the console window of communication with KNX001, as shown in the image).
Page 674 7 Gateways for building management systems KNX001 To monitor communication between KNX001 and CSNET WEB, select the menu See -> Bus -> CSNET WEB. The window of the Communication viewfinder of the external system will be opened. This window shows in real time the communication links with the external system, along with information messages.
Page 675 The window has a button to copy all the content of the window, in text format separated by tabs, to the Windows clipboard. Configuration of KNX001 To configure KNX001, select the menu Configuration -> Hitachi Gateway. The configuration window will be opened. This window has two tabs: Connection and Signals, which are explained below. TCGB0106 rev.0 - 12/2014...
Page 676 7 Gateways for building management systems KNX001 Connection settings In this window 3 types of information are configured, the KNX001 TCP/IP configuration, the KNX connection configuration and the CSNET WEB connection configuration. KNX001 TCP/IP configuration 1 KNX001 IP address. It must be in the same network segment as CSNET WEB if it does not use the IP gateway. 2 Network mask.
Page 677 4 List of devices to use. For a device to be used in the KNX, it must be selected in the check box in the list. Each device has the following properties: 5 System No., identifies each Hitachi refrigeration system. 6 Unit No., identifies each Hitachi unit.
Page 678 7 Gateways for building management systems KNX001 Configuration of the signals Table listing signals 1 Signal number. Each line of the table corresponds to a signal. Signals cannot be added or deleted, because the signals available are fixed and can only be enabled or disabled. Serves only to number the rows. 2 Device no.
Page 679 7 Gateways for building management systems KNX001 The R, W, T, U and Enable columns can be modified by double-clicking on the cell, marking one or more cells of the same column and using the contextual menu with the right button, or pressing the key of the first letter of the word. The R, W, T, U columns appear by default with a correct selection.
Page 680 7 Gateways for building management systems KNX001 The following image shows the table without pulling down to view the multibit signals. The following image shows the table with a signal with the multibit signals option pulled down. TCGB0106 rev.0 - 12/2014...
Page 681 7 Gateways for building management systems KNX001 The following image shows all the multibit signals pulled down. By default, all multibit signals are shown pulled down. If they are not going to be used you can do Hide-All to have a table with fewer signals in order to work more comfortably.
Page 682 7 Gateways for building management systems KNX001 Reminder • If T is not enabled, changes in the external system will not be transmitted to KNX nor to its links. • If R is not enabled, signals cannot be read via Read requests from KNX. •...
Page 683 7 Gateways for building management systems KNX001 Files KNX001 saves the configuration of each project in the following files: <TYPE>.INI A text file that saves information regarding the connection and other special adjustments. <TYPE>.DAT A text file with values separated by tabs, with information corresponding to the signals. <TYPE>.HGT A binary file created from the files mentioned above.
Page 684: Harc-Bx E
If the safety devices should be activated too often or the buttons do not work properly, turn off the unit at the mains and contact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N DO NOT install the indoor unit, outdoor unit, remote control or any wiring in the following locations: •...
Page 685: Description Of The Parts
7 Gateways for building management systems HARC-BX E 7.4.2.3 Description of the parts HARC-BX E unit components Power supply terminal to connect a AC220~240V power supply  Earthing terminal.  Terminal board for the transmission of the unit to connect the H-Link ...
Page 686: General Data
7 Gateways for building management systems HARC-BX E 7.4.2.4 General data HARC-BX E specifications Hardware specifications Element Specification Power supply AC240V±10% (50/60Hz) Energy consumption 30 W (max) External dimensions Width: 240 mm, height: 285 mm, depth: 128.5 mm (Installed inside the box) Weight 2.3 kg Installation conditions...
Page 687: Dimensional Data
7 Gateways for building management systems HARC-BX E 7.4.2.5 Dimensional data (mm) HITACHI BMS Interface HARC-BX E 128.5 7.4.2.6 Installation space N O T E • Bear in mind the safety summary warnings when selecting the installation site. • The installation site should be located in a place with an earthing connection.
Page 688: Electrical Wiring
7 Gateways for building management systems HARC-BX E 7.4.3 Electrical wiring C A U T I O N • All wiring work must be done in accordance with local regulations and the instructions of the electricity company. • A qualified electrician should carry out the electrical wiring. •...
Page 689: Electrical Wiring Connection
There are 8 PCBs in each HARC-BX E that correspond to the unit’s H-LINK terminals as shown in the following figure. So that the PCBs can communicate and control the assigned units, they should be connected to the H-LINK corresponding to the circuit where the unit is. HITACHI BMS Interface H-LINK AC 100 - 240 HARC - BX E TCGB0106 rev.0 - 12/2014...
Page 690: Dip Switch Adjustment
7 Gateways for building management systems HARC-BX E 7.4.3.4 DIP switch adjustment The DIP switches are inside the central HARC-BX E control between the terminal board and the PCBs. The first column of DIP switches (S201) are used to programme the numbers of the outdoor units and indoor units, and the second column of DIP switches (S202) are used to programme the master and slave controls.
Page 691: Bms Connection
7 Gateways for building management systems HARC-BX E 5 Set the 8 pin DIP switch (S202). The 8 pin DIP switch (S202) is used as follows: Board not activated ON 1 2 3 4 5 6 7 8 Activate the board to control a given number of indoor units based on S201 ON 1 2 3 4 5 6 7 8 Board active as slave ON 1 2 3 4 5 6 7 8...
Page 692: Test Run
7 Gateways for building management systems HARC-BX E 7.4.4 Test run 1 Check that all the “Wiring connection” and “DIP switch adjustment” procedures have been carried out. 2 Turn the power supply by following the procedure below: • Plug in the mono bloc air conditioning. •...
Page 693: Operation
7 Gateways for building management systems HARC-BX E 7-segment 7-segment 7-segment 7-segment Description Description Description Description display display display display OU no. 01 or IU OU no. 05 or IU OU no. 09 or IU OU no. 13 or IU ...
Page 694 7 Gateways for building management systems HARC-BX E b. XIF file variables SVNT Unit Variable num- LONMARK Type Description Condition Note number number SNVT No. Byte 1: Value 0 (Fixed) nviOnOff_0 SNVT_switch On/Off order Byte 2: State 0 = STOP State 1 = RUN 1 byte: 1 = HVAC_HEAT (Heat-...
Page 695 7 Gateways for building management systems HARC-BX E SVNT Unit Variable num- LONMARK Type Description Condition Note number number SNVT No. Byte 1: Value 0 (Fixed) nviOnOff_2 SNVT_switch On/Off order Byte 2: State 0 = STOP State 1 = RUN 1 byte: 1 = HVAC_HEAT (Heating 3 = HVAC_COOL (Cool-...
Page 696 7 Gateways for building management systems HARC-BX E SVNT Unit Variable num- LONMARK Type Description Condition Note number number SNVT No. Byte 1: Value 0 (Fixed) nviOnOff_4 SNVT_switch On/Off order Byte 2: State 0 = STOP State 1 = RUN 1 byte: 1 = HVAC_HEAT (Heat- ing)
Page 697 7 Gateways for building management systems HARC-BX E SVNT Unit Variable num- LONMARK Type Description Condition Note number number SNVT No. 1 byte: 1 = HVAC_HEAT (Heat- ing) 3 = HVAC_COOL (Cool- SNVT_hvac_ Operation mode nviMode_6 ing) mode setting 5 = HVAC_PRE_COOL (Dehumidification) 9 = HVAC_FAN_ONLY (Ventilation)
Page 698 7 Gateways for building management systems HARC-BX E HARC-BX(B) The HARC-BX(B) is a LonWorks interface designed for cases that require a more detailed control of the units, in addition to complete unit operation monitoring functions. This interface allows us to: •...
Page 699 7 Gateways for building management systems HARC-BX E SVNT Unit LONMARK Variable name Type Description Condition Note number number SNVT No. 32 bits: ON/OFF state and nvoOnOff_0 SNVT_state bit 0: 0 (STOP)/1 (RUN) alarm notification bit 1: 0 (Normal) /1 (Alarm) 1 byte: 1 = HVAC_HEAT (Heating) 3 = HVAC_COOL (Cooling)
Page 700 7 Gateways for building management systems HARC-BX E SVNT Unit LONMARK Variable name Type Description Condition Note number number SNVT No. 32 bits: ON/OFF state and nvoOnOff_1 SNVT_state bit 0: 0 (STOP)/1 (RUN) alarm notification bit 1: 0 (Normal) /1 (Alarm) 1 byte: 1 = HVAC_HEAT (Heating) 3 = HVAC_COOL (Cooling)
Page 701 7 Gateways for building management systems HARC-BX E SVNT Unit LONMARK Variable name Type Description Condition Note number number SNVT No. 32 bits: ON/OFF state and bit 0: 0 (STOP)/1 (RUN) nvoOnOff_2 SNVT_state alarm notification bit 1: 0 (Normal) /1 (Alarm) 1 byte: 1 = HVAC_HEAT (Heating) 3 = HVAC_COOL (Cooling)
Page 702 7 Gateways for building management systems HARC-BX E SVNT Unit LONMARK Variable name Type Description Condition Note number number SNVT No. 32 bits: ON/OFF state and nvoOnOff_3 SNVT_state bit 0: 0 (STOP)/1 (RUN) alarm notification bit 1: 0 (Normal) /1 (Alarm) 1 byte: 1 = HVAC_HEAT (Heating) 3 = HVAC_COOL (Cooling)
Page 703: Harc-Bx E Self-Check
7 Gateways for building management systems HARC-BX E 7.4.5.2 HARC-BX E self-check The self-check, used to identify any abnormal conditions which may occur in the HARC-BX E, can be carried out with the following procedures: 1 Connect the power supply leaving the 8 pin DIP switch (S202) in the OFF position. “88“ appears on the 7-segment display and turns off).
Page 704: Troubleshooting
7 Gateways for building management systems HARC-BX E 7.4.6 Troubleshooting The following table shows the possible troubleshooting actions to be carried out in the event of unit malfunction. Make sure that the power supply is disconnected before starting any check. Phenomenon Check points Action...
Page 705: Maintenance
7 Gateways for building management systems HARC-BX E Check if the transmission cable specified by the Use a shielded cable or twisted and shielded pair cable manufacturer has been used to connect to the (0.75 mm air conditioning units. Check if the transmission cable connected to the air conditioning is connected to the power Leave a minimum space of 150 mm between cables.
Page 707: Control Support Devices
8 Control support devices C o n t r o l s u p p o r t d e v i c e s Index 8.1. PSC-A1T ............................. 694 8.1.1. Safety summary ............................694 8.1.2. Installation ............................... 695 8.1.2.1. Installation site selection .......................
Page 708 8 Control support devices 8.3.2.4. General data .......................... 720 8.3.2.5. Dimensional data ........................721 8.3.2.6. Installation space ........................721 8.3.2.7. Installation procedure ......................721 8.3.3. Electrical wiring ............................722 8.3.3.1. Relay PCB ..........................723 8.3.3.2. Control PCB .......................... 723 8.3.3.3. Configuration .........................
Page 709 8 Control support devices 8.6. THM-R2AE ............................742 8.6.1. Installation ............................... 742 8.6.1.1. Installation site selection ....................... 742 8.6.1.2. Components list ........................742 8.6.1.3. Description of the parts ......................743 8.6.1.4. Dimensional data ........................743 8.6.1.5. Installation procedure ......................744 8.6.2.
Page 710: Psc-A1T
If the safety devices should be activated too often or the buttons do not work properly, turn off the unit at the mains and contact your HITACHI service provider. • In the event of other incidents of an electrical nature, turn off the system, switch it off at the mains and contact your HITACHI service provider. C A U T I O N DO NOT install the indoor unit, outdoor unit, remote control or any wiring in the following locations: •...
Page 711: Installation
8 Control support devices PSC-A1T 8.1.2 Installation 8.1.2.1 Installation site selection Take note of the maximum admissible cable length between units and the control as well as between the units themselves, as shown in the following table: Cable section 0.3 mm ≥...
Page 712: Description Of The Parts
8 Control support devices PSC-A1T 8.1.2.3 Description of the parts Current time indicator.  Time setting and holiday indication  Indicates the “SET” or “MONITOR” operation mode and the holiday. Current day indications.  Run day indication.  This indicator appears when a day is set. Run indicator (green pilot light).
Page 713: Dimensional Data
8 Control support devices PSC-A1T 8.1.2.4 Dimensional data (mm) SET/MONITOR HOUR-MINUTE >ABS< 8.1.2.5 Installation space If several control units are to be installed in a vertical position, leave a distance of at least 50 mm between them to allow the front cover to be opened and to insert the tool for remov- ing the control from its housing.
Page 714 8 Control support devices PSC-A1T 2 Select and cut the knockout hole through which to pass the cable. Determine the position of the wiring and drill one of the holes marked with * in the diagram. If using an accessory cable, drill a hole on the bottom. 3 Insert the cable through the hole/s.
Page 715 8 Control support devices PSC-A1T If using an electrical box There are different types of electrical boxes available on the market that can be used for this installation, for example: • Electrical box for one remote control unit (without cover). •...
Page 716: Electrical Wiring
8 Control support devices PSC-A1T 8.1.3 Electrical wiring 8.1.3.1 Electrical connection of PSC-A1T timer combined with individual or central controllers This section explains how to electrically connect the timer to another remote controls or central stations. C A U T I O N Use a twisted pair cable (1P - 0.75 mm ) as a transmission cable to avoid possible communication errors.
Page 717: Dip Switch Setting
8 Control support devices PSC-A1T PSC-A1T timer combined with PSC-A16RS centralised ON/OFF controller Set DSW1-4 pin OFF and DSW2-2 pin to ON position on the PSC-A1T. Connector 220 VAC or 240 V power supply Outdoor unit Accessory cable (1 m) Available for H-Link con- nection (to connect to the indoor or to the outdoor unit...
Page 718: Test Run
8 Control support devices PSC-A1T 8.1.4 Test run Perform the test running according to the procedure described below. Preparation: Set the operation schedule according to the section “Operation”. 1 In the case where the present time indication is ON TIME (The “RUN” lamp of the control timer is ON). a.
Page 719: Operation
8 Control support devices PSC-A1T 8.1.5 Operation Setting the current date and time N O T E • During the setting mode or the timer pause mode, the setting of the present time is not available when depressing the “PRESENT” switch more than 3 seconds.
Page 720 8 Control support devices PSC-A1T Press the “SET/MONITOR” button. Turned OFF Turned ON "SET" mode is switched off and setting mode switches to monitor mode. N O T E • In the case where the ON TIME or OFF TIME comes during the setting mode, there is no operation or stoppage. After setting, ensure to change the mode of the control timer to the monitor mode.
Page 721 8 Control support devices PSC-A1T Set the "OFF TIME”. Follow the same procedure as that used to set the ON time. The diagram on the right shows the time set to 5:00 PM. Press the "SET/MONITOR" button. Turned OFF The "SET" indication will go off and the remote control timer will switch to monitor mode. The diagram on the right shows the current day setting condition.
Page 722 8 Control support devices PSC-A1T Holiday setting <Example> “B” pattern, Tuesday N O T E • This setting temporarily cancels the operating schedule. • The scheduled operation will be cancelled only for the day set as a holiday, afterwards the scheduled operation will once again be available.
Page 723 If the “RUN” indicator is flashing, this indicates an abnormal condition on the timer. Check that the cable connections and DIP switch settings are correct. If the “RUN” indicator continues to flash after the check, con- tact your dealer or HITACHI supplier. N O T E •...
Page 724: Psc-6Rad
If poured, it will cause a serious electrical shock. C A U T I O N • DO NOT perform installation work and electrical wiring connection by yourself. Contact your distributor or dealer of HITACHI and ask them for installation work and electrical wiring by service person. •...
Page 725: Installation
8 Control support devices PSC-6RAD 8.2.2 Installation 8.2.2.1 Installation site selection Take note of the maximum admissible cable length between units and the control as well as between the units themselves, as shown in the following table: Cable section 0.3 mm ≥...
Page 726: Dimensional Data
8 Control support devices PSC-6RAD 8.2.2.3 Dimensional data All dimensions are in mm. Adaptor Wiring cover 8.2.2.4 Installation space Keep a distance of at least 50 mm under the lower side of PSC-6RAD to enable bending the cables easily. At least 50 mm TCGB0106 rev.0 - 12/2014...
Page 727: Installation Procedure
8 Control support devices PSC-6RAD 8.2.2.5 Installation procedure C A U T I O N • Read carefully “Installation Manual” attached with the RAC adaptor and follow the information provided for installation and mainte- nance. • If a wiring is performed when the power is ON, the equipment may be damaged. Ensure that the power is turned OFF before a wiring. •...
Page 728 8 Control support devices PSC-6RAD ii. When using the cover. It can be installed at the right and left side of room air-conditioner. Double-face tape fixes the cover and RAC adapter. Example of installation: adapter Cover Room Air-conditioner Wiring outlet 40 mm Keep a distance of 10mm...
Page 729: Electrical Wiring
8 Control support devices PSC-6RAD 8.2.3 Electrical wiring 8.2.3.1 System composition • Up to 128 units can be connected in case that H-LINK is made up only by RAC adapter. • In case of combination use with H-LINK de- vices like package air-conditioner, 16 refrig- erant systems and up to 128 indoor units can be used.
Page 730: Connection With Room Air-Conditioner
8 Control support devices PSC-6RAD 8.2.3.3 Connection with room air-conditioner. 1 Remove the front cover of room air-conditioner and the cover of electrical box. 2 The cable attached with the connector of RAC adapter shall be connected with the connector of indoor PCB. 3 Install the electrical box cover paying attention not to clamp the cable.
Page 731: Dip Switch Setting
8 Control support devices PSC-6RAD 8.2.3.5 DIP Switch setting 1 Dip Switch setting should be performed with the power of room air-conditioner OFF. The setting contents are invalid if it is performed with the power ON. 2 Installation position of Dip Switch is as below. DSW1 Refrigerant cycle No.
Page 732: Test Run
8 Control support devices PSC-6RAD  : Main setting  : Setting before shipping C A U T I O N      Do not set various main adapters in the same refrigerant cycle.    ...
Page 733: Maintenance And Repair
8 Control support devices PSC-6RAD 8.2.5 Maintenance and repair Alarm code table Code No. Content of Abnormality RAC I.U. Alarm Code (0010) Ventilation Fan Failure RAC I.U. Alarm Code (0011) Smutch Sensor Failure RAC I.U. Alarm Code (0012) Cleaning Unit Failure RAC I.U.
Page 734: Pc-A1Io
8 Control support devices PC-A1IO 8.3 PC-A1IO 8.3.1 Safety summary C A U T I O N • Do not connect voltage input to the control system before installation is correctly done. • Read this manual carefully before performing installation work. •...
Page 735: Installation
8 Control support devices PC-A1IO 8.3.2 Installation 8.3.2.1 Installation site selection Take note of the maximum admissible cable length between units and the control as well as between the units themselves, as shown in the following table: Cable section 0.3 mm ≥...
Page 736: General Data
8 Control support devices PC-A1IO 8.3.2.4 General data Hardware specifications Item Specifications Power supply 1~ 230V ±10% 50Hz Consumption 25 W (maximum) Outer dimensions Width: 143 mm, Depth: 302 mm, Height: 76 mm Weight 2 kg Assembling conditions Indoor (in a control panel or desktop) Ambient temperature 0~40°C Humidity...
Page 737: Dimensional Data
8 Control support devices PC-A1IO 8.3.2.5 Dimensional data (mm) 8.3.2.6 Installation space Keep free grated area for ventilation and cable connection. (mm) 8.3.2.7 Installation procedure C A U T I O N Before applying power and turning on PC-A1IO you must ensure that: •...
Page 738: Electrical Wiring
1~ 230V 50Hz 25W (Recommended minimum 1.5 mm² H05RN-F) (With protection circuit) Communication cables for the connection of PC-A1IO to an Hitachi installation, via CS- NET WEB or any Hitachi unit using same H-LINK terminals. H-LINK Twisted pair shielded cable 0.75 mm² H05RN-F.
Page 739: Relay Pcb
8 Control support devices PC-A1IO 8.3.3.1 Relay PCB 8.3.3.2 Control PCB TCGB0106 rev.0 - 12/2014...
Page 740: Configuration
0 (All OFF): A.C I.U. Parameters 1~255 (Other configurations): Not available (Application type) Same concept than Hitachi I.U. address Indoor unit address Each PC-A1IO must use free I.U. and O.U. address In case of several PC-A1IO, thay can use the same O.U. address, fol- lowing same limitations than I.U.
Page 741 8 Control support devices PC-A1IO SW9 – PC-A1IO address in H-LINK (Same concept of I.U. address) Description Address: 0 Address: 1 Address: 2 Address: 3 Address: 4 Address: 5 Address: 6 Address: 7 Address: 8 Address: 9 Address: 10 Address: 11 Address: 12 Address: 13 Address: 14...
Page 742 8 Control support devices PC-A1IO SW10 – O.U. address H-LINK (Same concept of O.U./Refrigerant cycle address) SW10 Description Address: 0 Address: 1 Address: 2 Address: 3 Address: 4 Address: 5 Address: 6 Address: 7 Address: 8 Address: 9 Address: 10 Address: 11 Address: 12 Address: 13...
Page 743 8 Control support devices PC-A1IO Example Cycle 0 Cycle 1 Cycle 2 Setting before Cancellation shipment SW11 SW11 Cancellation Cancellation SW10 SW10 TCGB0106 rev.0 - 12/2014...
Page 744: Operation
Those functions in central mode can be operated from CSNET WEB as normal Hitachi Indoor Unit TCGB0106 rev.0 - 12/2014...
Page 745: Operation Procedure
8 Control support devices PC-A1IO 8.3.4.2 Operation procedure All central control is made from CSNET WEB as normal Indoor Unit. It can be controlled / monitored with the same pa- rameters than any Indoor Unit by using next screen, provided that these parameters are available on the connected unit. These parameters can be controlled by timer as normal Indoor Unit Historical data of these units are available as any Indoor Unit For more control and monitoring details, see CSNET WEB manual...
Page 746: Troubleshooting
8 Control support devices PC-A1IO 8.3.5 Troubleshooting Nº Alarm Code Description Countermeasure Ensure that 230 are supplied to Power Source. Ensure that +5V DC is supplied to K3. No LED is flickering on PCB and 7 seg- N O T E D7 is always OFF ments are OFF Power source output DC signal has a rotary switch that must...
Page 747: Psc-5Hr
8 Control support devices PSC-5HR 8.4 PSC-5HR 8.4.1 Safety summary C A U T I O N DO NOT TURN ON the power source of the H-LINK Relay, control system, unless the preparation for the test running is completed. Read this manual carefully before installation work for correct performance. Read this manual together with the “Installation &...
Page 748: Dimensional Data
8 Control support devices PSC-5HR 8.4.2.2 Dimensional data Units in mm. 8.4.2.3 Installation space Units in mm. TCGB0106 rev.0 - 12/2014...
Page 749: Installation Procedure
8 Control support devices PSC-5HR 8.4.2.4 Installation procedure There are two attachment methods. Attaching on the Wall Attach the PSC-5HR on the wall by using screw for wood (mm) as follows. Attaching Pitch Screw for wood Mounting on Suspension Bolt Attach the PSC-5HR on the suspension bolts using clamps Hook here Fitting Screw...
Page 750 8 Control support devices PSC-5HR Internal layout Terminal Board for transmission Ring core Power source H-LINK to terminal board the unit to be connected Power source Control PCB 220/240 VAC Terminal Board for Earth screw transmission C A U T I O N •...
Page 751: Wiring Type And Length
Select the wire as shown below. • It is recommended that the cable should be twist pair cable (1P-0.75 mm2 ). The cable type is as shown in Type Hitachi Cable the table. without Shield KPEV • If the twist cable is used, the maximum length in each divided H-LINK is 1000m.
Page 752: Test Run
8 Control support devices PSC-5HR 8.4.3.4 Test run Test run shall be performed after Installation, wiring and other setting. Refer to the Installation and operation manual of each central control system and check the detail. 1 Check connection condition of Air conditioners. Check the model name and connected unit quantity by using remote control switch.
Page 753: Pc-Amtb
PC-AMTB 8.5 PC-AMTB 8.5.1 Safety summary N O T E • HITACHI cannot anticipate every possible circumstance that might involve a potential hazard. • Read carefully this document before performing the installation work. D A N G E R •...
Page 754: Description Of The Parts
8 Control support devices PC-AMTB 8.5.2.3 Description of the parts Description  Case  Expansion valve outlet connector  Expansion valve inlet connector  Internal H-LINK connector  Power supply terminals  External H-LINK connector  Remote control communication terminals ...
Page 755: Installation Space
8 Control support devices PC-AMTB 8.5.2.6 Installation space Please consider that installation space must be wide enough for wiring connection. Units: mm Upper view Front view 8.5.2.7 Installation procedure PC-AMTB enclosure is furnished with side bored flanges in order to easily screw it to a wall or vertical surface by using 4 screws M4 or 4 mm diameter, tapping type (field-supplied).
Page 756: Electrical Wiring
8 Control support devices PC-AMTB 8.5.3.2 Electrical wiring 1 Make sure that indoor unit is switched off, and then, open the electrical box. 2 Disconnect the Remote Control (RCS) cable from the electrical box terminals of the indoor unit and connect it into the PC-AMTB screw terminals “RC-A,B”.
Page 757: Dsw Setting And Led Indication
8 Control support devices PC-AMTB 8.5.3.3 DSW Setting and led indication Setting of DIP switches DSW1: Not used Factory setting (Do not change) LED indication • Monitor led 1 is ON while PC-AMTB is power supplied. • Monitor led 2 flickers from time to time when there is traffic at HLINK bus 1. •...
Page 758: Thm-R2Ae
8 Control support devices THM-R2AE 8.6 THM-R2AE 8.6.1 Installation 8.6.1.1 Installation site selection The thermistor for detecting room temperature is installed inside the remote sensor. The installation position of the remote sensor should be determined in consideration with the following conditions: •...
Page 759: Description Of The Parts
8 Control support devices THM-R2AE 8.6.1.3 Description of the parts Description  Thermistor base  Thermistor case  Thermistor  Cord for thermistor  Holes for fixing device to wall (2-Ф4.5) 8.6.1.4 Dimensional data Units in mm. TCGB0106 rev.0 - 12/2014...
Page 760: Installation Procedure
8 Control support devices THM-R2AE 8.6.1.5 Installation procedure In case of mounting onto the wall • Make the wiring on the sensor box, and let the wires for sensor through the box slot. • Fix the sensor box onto the wall with 2 screws (B). •...
Page 761: Electrical Wiring
8 Control support devices THM-R2AE 8.6.2 Electrical wiring Connect the cord (8 m) of the remote sensor to THM4 of the indoor printed circuit board. In case of extending the cord • In the case that the cord is required to be extended, cut the cord in the middle, connect the extension cord (field- supplied;...
Page 763: Control Accessories
9 Control accessories C o n t r o l a c c e s s o r i e s Index 9.1. Wall and stand mounted support for CSNET Manager LT/XT ............. 748 9.1.1. Components list ............................748 9.1.2. Dimensional data .............................
Page 764: Wall And Stand Mounted Support For Csnet Manager Lt/Xt
9 Control accessories Wall and stand mounted support for CSNET Manager LT/XT 9.1 Wall and stand mounted support for CSNET Manager LT/XT 9.1.1 Components list Unpack the unit and check that: • The package contains all the components (see next table). •...
Page 765: Dimensional Data
9 Control accessories Wall and stand mounted support for CSNET Manager LT/XT 9.1.2 Dimensional data Units in mm. Wall mounted support To be informed later. Stand mounted support TCGB0106 rev.0 - 12/2014...
Page 766: Installation Procedure
CSNET Manager can be stand mounted by using any standard VESA 75 mm stand mounted support for LT & XT and VESA 100 mm for XT only. HITACHI offers the following stand mounted accessory VESA 75, model code 7E512301. The stand comes disassembled in 2 parts:...
Page 767 9 Control accessories Wall and stand mounted support for CSNET Manager LT/XT 3 Screw the rear support screw to the arm and the stand will be completely mounted. Rear support screw 4 Finally, connect the power supply and LAN cable to the CSNET Manager. 5 Press down the power switch.
Page 768: Pcc-1A
9 Control accessories PCC-1A 9.2 PCC-1A 9.2.1 Components list Unpack the unit and check that: • The package contains all the components (see next table). • All components are in perfect condition. Otherwise, contact the manufacturer. Name Figure Quantity Comments For connection of external input/output PCC-1A connector cord signals...
Page 769: Prc-(10-30)E1
9 Control accessories PRC-(10-30)E1 9.3 PRC-(10-30)E1 9.3.1 Components list Unpack the unit and check that: • The package contains all the components (see next table). • All components are in perfect condition. Otherwise, contact the manufacturer. Name Figure Quantity Comments For extending the length of individual and PCC-1A connector cord central remote controllers...
Page 770 9 Control accessories PRC-(10-30)E1 Remote Control Cable Utilization Method Do not install the control cable parallel to the power source wires (220V to 415V) If the control cable is required to be installed parallel to the power source wires, separate the control cable by at least 15 cm.
Page 771: Net Configuration Kit
9 Control accessories Net Configuration Kit 9.4 Net Configuration Kit This accessory provides all the necessary devices for HITACHI installers when commissioning a Modbus installation. Name Figure Quantity Comments USB cable For configuring the device (network parameters) For a quick connection with a laptop for the Modbus Ethernet cable communication check.
